FRDM Development Platform for Kinetis® K64, K63, and K24 MCUs

FRDM-K64F アクティブ

画像にカーソルを合わせると拡大表示されます。

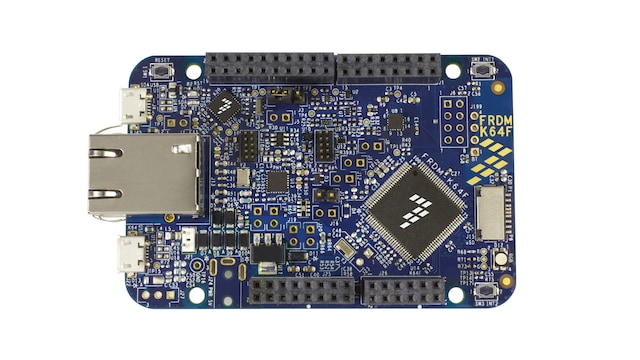

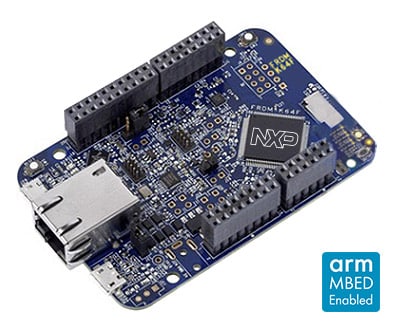

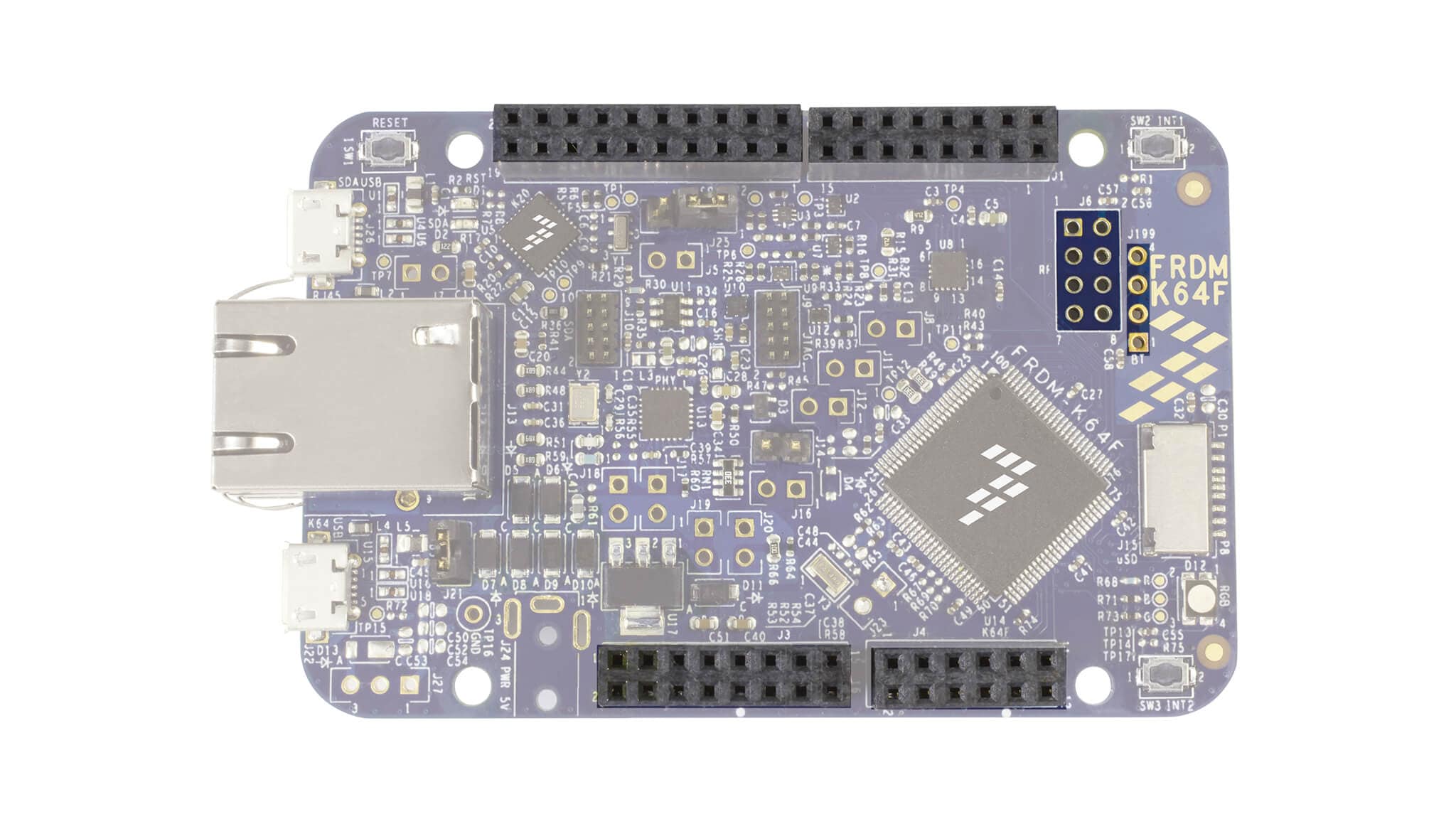

The FRDM-K64F is an ultra-low-cost development platform for Kinetis® K64, K63 and K24 MCUs.

  • Form factor compatible with the Arduino® UNO Rev3 pin layout
  • Peripherals enable rapid prototyping, including a 6-axis digital accelerometer and magnetometer to create full eCompass capabilities, a tri-colored LED and 2 user push-buttons for direct interaction, a microSD card slot and connectivity using onboard Ethernet port and headers for use with Bluetooth®; and 2.4 GHz radio add-on modules
  • OpenSDAv2, the NXP open source hardware embedded serial and debug adapter running an open source bootloader, offers options for serial communication, flash programming and run-control debugging

The FRDM-K64 is now supported by Arm® Mbed™ OS and Zephyr OS, both open source embedded operating systems for developing the Internet of Things.

対応製品

プロセッサ＆マイクロコントローラ

K2x / KS2x USB

  • K24_120: Kinetis® K24-120 MHz, Full-Speed USB, 256KB SRAM Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K6xイーサネット

  • K63_120: Kinetis® K63-120 MHz, 256KB SRAM, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K64_120: Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

インターフェース

USBインターフェース

Features

Microcontroller

    MK64FN1M0VLL12 MCU

  • 120 MHz
  • 1 MB flash memory
  • 256 kB RAM
  • low-power
  • crystal-less USB
  • 100 Low profile Quad Flat Package (LQFP)

Power Management

    Flexible power supply option:

  • OpenSDAv2 USB
  • Kinetis K64 USB
  • External source

Connectivity

  • Dual role USB interface with micro-B USB connector
  • Ethernet
  • SDHC
  • Easy access to MCU input/output through Arduino® UNO Rev3 compatible I/O connectors

Sensors

  • FXOS8700CQ accelerometer and magnetometer

Debug

    Programmable OpenSDAv2 debug circuit supporting the CMSIS-DAP Interface software that provides:

  • Mass storage device (MSD) flashes programming interface
  • CMSIS-DAP debug interface over a driver-less USB HID connection providing run-control debugging and compatibility with IDE tools
  • Virtual serial port interface
  • Open source CMSIS-DAP software project

Wireless

  • Add-on Bluetooth module: JY-MCU BT board V1.05 BT

Support

Components

  • RGB LED

もっと見る

購入オプション

FRDM-K64F-Image

クリックして展開

  • FRDM-K64F
    アクティブ

  • Freedom Development Board for Kinetis K24 (1 MB Flash), K63 and K64 MCUs.

  • Kit contains

    • FRDM-K64F hardware
    • Quick Reference Card
    • Additional hardware required: USB A-to-MicroB cable (not included)
  • $52.35 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 68
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
