Freedom Development Platform for 48MHz KE1xZ64/32 MCUs

FRDM-KE16Z

画像にカーソルを合わせると拡大表示されます。

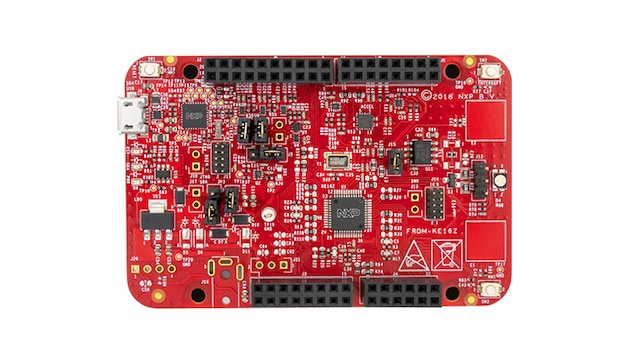

The FRDM-KE16Z Freedom Board is designed to work in standalone mode or as the main board of FRDM-TOUCH, FRDM-MC-LVBLDC, and Arduino® boards. This Freedom board is compatible with DC 5v and 3.3v power supply and features a KE16Z, a device extends the Kinetis E family with smaller memory footprint options for broad scalability. The onboard interfaces include an RGB LED, a 6-axis digital sensor, a 3-axis digital angular rate gyroscope, an ambient temperature sensor, and CAN control interface and capacitive touchpad.

対応製品

プロセッサ＆マイクロコントローラ

KEシリーズArm Cortex-M4/M0+

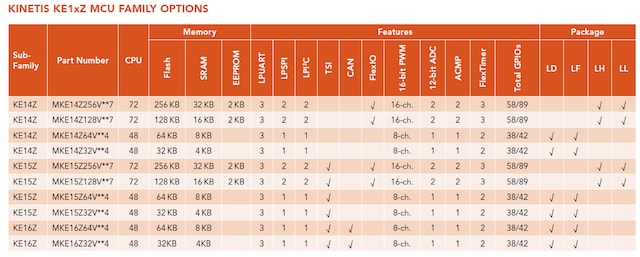

  • KE1xZ: KE1xZ: Arm® Cortex®-M0+ 5V Main Stream MCU with NXP Touch and CAN Control

Features

Microcontroller

  • MKE16Z64VLF4 MCU (Arm® Cortex® CM0+ 48LQFP package)

Connectivity

  • I/O headers for easy access to MCU I/O pins
  • CAN communication interface

Debug

  • Onboard debug circuit: K20DX128VFM5 (OpenSDA) with a virtual serial port

Sensors

  • NXP inertial sensor, FXOS8700CQ

User Components

  • Reset push button, two user buttons, and one RGB LED
  • Touch electrodes in the self-capacitive mode
  • Compatible with FRDM-TOUCH, FRDM-MC-LVBLDC, and Arduino® > boards

購入オプション

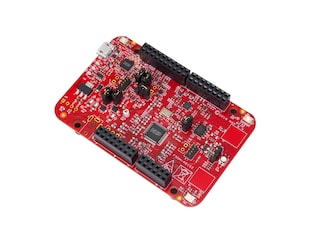

FRDM-KE16Z-Image

クリックして展開

  • FRDM-KE16Z
    アクティブ

  • Freedom Development Platform for 48MHz KE1xZ64/32 MCUs.

  • $44.85 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 15
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
