S08D Evaluation Board

EVB9S08DZ60_128 アクティブ

画像にカーソルを合わせると拡大表示されます。

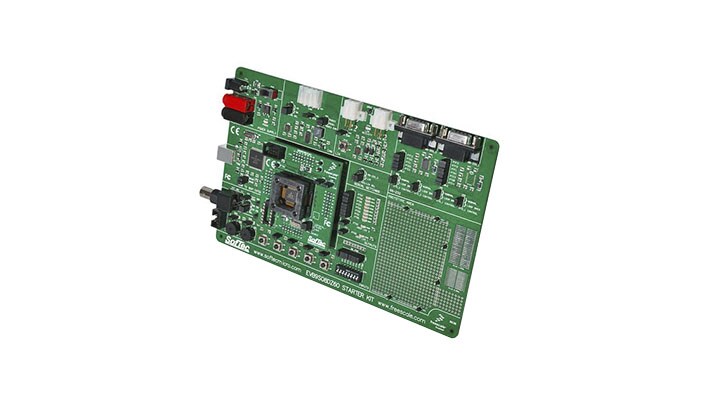

The EVB9S08DZ60/128 evaluation board supports the NXP® S08DZ 8-bit CAN familiy of MCUs. It allows you to program and debug advance application code with expanded I/O functions, peripherals and large prototype areas. It can be used as a standalone application or via its built-in USB-to-BDM interface.

EVB9S08DZ Products

  • EVB9S08DZ128
  • 100-pin LQFP package
  • EVB9S08DZ60
  • 64-pin LQFP package

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

8ビットS08 MCU

  • S08D: 8-bit Cost-Effective with CAN D MCUs

Features

Microcontroller

  • Supports the NXP® S08DZ 8-bit CAN family of MCUs

Connectivity

  • BDM connector
  • Four header connections with all MCU signals
  • 12 V DC barrel input connector (2.1 mm)
  • Two banana input connectors (12 V DC and GND)
  • Series of jumpers to connect/disconnect the above controls
  • Outputs section containing 10 LEDS and relative jumpers
  • CAN section that has CAN connector with two CAN transceivers (high speed and single wire) with series of jumpers to select the CAN physical layer
  • LIN section with LIN connectors and LIN enable jumper and a "WAKE" push button
  • RS-232 section with two RS-232 connectors
  • Serial settings section containing two jumpers to select which transceiver is connected to microcontroller's shared TXD1 and RXD1 serial lines
  • Clock module, crystal oscillator, and connector for providing an external clock source
  • Built-in "USB to BDM Interface"
  • Prototype area

User Components

  • Power on/off switch
  • Reset push button
  • Four additional push buttons
  • Two potentiometers
  • Eight dip-switches

購入オプション

EVB9S08DZ128-Image

クリックして展開

  • EVB9S08DZ128
    アクティブ

  • Evaluation Board for the S08DZ128, push buttons, 2 potentiometers, 8 DIP switches, prototype area.

    • One of the following Boards
      • EVB9S08DZ60 Evaluation Board
      • EVB9S08DZ128 Evaluation Board
    • Global Power Adaptors
    • CodeWarriorTM Development Studio CD
    • SoftTec Microsystems "System Software" CD
    • USB Cable
    • Quick Start Guide
    • User Manual
  • JP¥ 36,474
  • の数量に対して 1
EVB9S08DZ60-Image

クリックして展開

  • EVB9S08DZ60
    アクティブ

  • Evaluation Board for the S08DZ60, push buttons, 2 potentiometers, 8 DIP switches, prototype area.

  • JP¥ 31,003
  • の数量に対して 1
代理店からの注文
