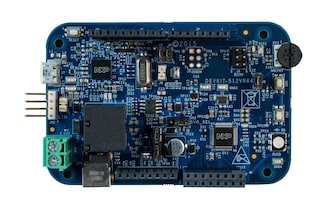

The DEVKIT-S12VR64 board features the S12VR64 MagniV microcontroller ideal for space constrained relays, actuators and switches on LIN bus for automotive and industrial applications. The S12VR family features an S12 core, scalable memory up to 64 KB of Flash, integrated LIN physical layer, integrated 5 to 12 V voltage regulator, ADC, 2 x SCI, 1 x SPI, offered in 32 and 48 LQFP packages and supports -40 to 125 °C temperatures.

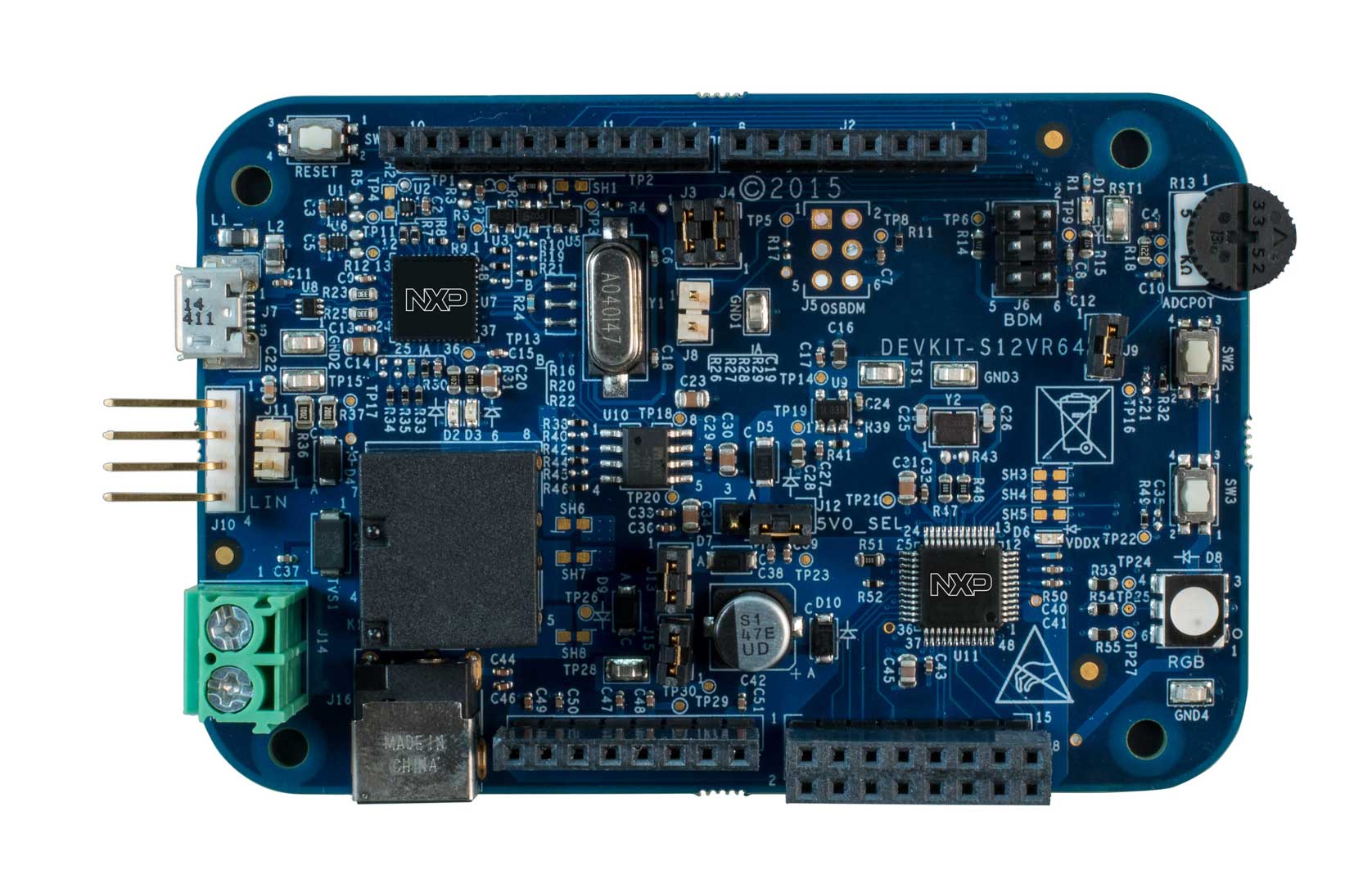

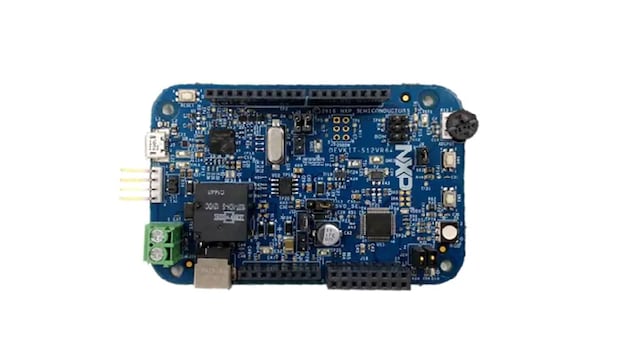

The DEVKIT-S12VR is a low-cost development kit with LIN connection and 2 Low and High-side drivers in a small form factor board compatible with the Arduino® UNO Rev3 pinout. It has expansion options using the DEVKIT-COMM board. The development kit features USB powered OpenBDM debug, potentiometer, dual push buttons and RGB LED.
DEVKIT plus for S12VR64 microcontroller.
