S12ZVL128 CAN and LIN Evaluation Board

DEVKIT-ZVL128
アクティブ

画像にカーソルを合わせると拡大表示されます。

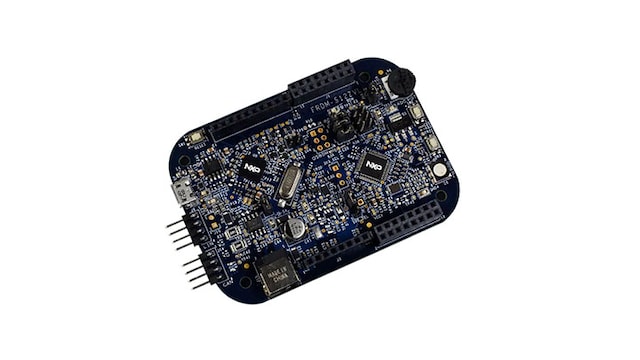

The DEVKIT-ZVL128 features the S12ZVLA128 16-bit automotive MCU with integrated S12Z CPU, LIN physical interface, CAN Interface [MSCAN], a 5 - 3.3 V internal low-dropout regulator which operates at vehicle battery level and a high voltage input pin.

The DEVKIT-ZVL128 is a low-cost development kit provides easy access to all MCU I/O’s in a small form factor board compatible with the Arduino® UNO Rev3 pinout. It has expansion options using the DEVKIT-COMM board. The development kit features a 12 V power supply, USB powered OpenBDM debug, potentiometer, dual push buttons and RGB LED.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

S12 MagniVミックスド・シグナルMCU

  • S12ZVL: S12ZVLミックスド・シグナルMCU（車載/産業用LINアプリケーション向け）

Features

Connectivity

  • USB to Serial Interface
  • LIN physical layer IN/OUT connector
  • CAN Interface [MSCAN]

Other Features

  • ADC Potentiometer
  • RGB LED
  • Power LEDs indicators
  • Note: 12 V (1 Amp) power supply is required for debugging and CAN/LIN communication, this is not included in the kit

購入オプション

DEVKIT-ZVL128-Image

クリックして展開

  • DEVKIT-ZVL128
    アクティブ

  • DEVKIT board for S12ZVL128.

    • DEVKIT-ZVL128 Development Board
  • $149.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 8
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
N true 0 TSPDEVKIT-ZVL128ja 10 アプリケーション・ノート Application Note t789 8 ユーザ・ガイド User Guide t792 2 ja 1 1 1.0 English 1466613112404726694559 TSP 1.4 MB None None documents Y None 1466613112404726694559 /docs/en/quick-reference-guide/DVKITZVL128QSG.pdf 1386553 /docs/en/quick-reference-guide/DVKITZVL128QSG.pdf DVKITZVL128QSG N N 2016-10-31 NXP DEVKIT-ZVL128 Quick Start Guide /docs/en/quick-reference-guide/DVKITZVL128QSG.pdf /docs/en/quick-reference-guide/DVKITZVL128QSG.pdf User Guide N Y 132339537837198660 2023-04-21 pdf N en Jun 22, 2016 User Guide t792 ユーザ・ガイド User Guide Y N NXP DEVKIT-ZVL128 Quick Start Guide false ja 0 false ja アプリケーション・ノート Application Note 8 2 3 English Describing hardware design guidelines for S12ZVL Microcontrollers. The MC9S12ZVL-Family is an automotive 16-bit microcontroller family using the 180nm NVM + UHV technology offering the capability to integrate 40 V analog components. This family reuses many features from the existing S12 portfolio. 1423805077751727529613 TSP 1.3 MB Registration without Disclaimer None documents Extended 1423805077751727529613 /secured/assets/documents/en/application-note/AN5084.pdf 1318335 /secured/assets/documents/en/application-note/AN5084.pdf AN5084 documents Y N 2016-10-31 AN5084: Hardware Design Guidelines for S12ZVL – Application Note /webapp/Download?colCode=AN5084&lang_cd=ja /secured/assets/documents/en/application-note/AN5084.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Apr 6, 2017 645036621402383989 Application Note Y N AN5084: Hardware Design Guidelines for S12ZVL – Application Note 3 1 English AN5122SW.zip /secured/assets/documents/en/application-note-software/AN5122SW.zip /webapp/Download?colCode=AN5122SW&docLang=en Introducing NXP’s LIN driver and relying on a “hands-on” example to get the LIN driver up and running. Providing some guidelines about using some functionalities like different frame types, configuring followers through LIN and considerations for going to sleep and waking up through LIN. 1429077223404713889665 TSP 2.5 MB None None documents None 1429077223404713889665 /docs/en/application-note/AN5122.pdf 2466657 /docs/en/application-note/AN5122.pdf AN5122 documents N N 2017-03-06 AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note /docs/en/application-note/AN5122.pdf /docs/en/application-note/AN5122.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Mar 5, 2017 645036621402383989 Application Note Y N AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note 4 0 English AN5264: The I2C protocol is a 2-wire serial communication interface implemented by hardware in numerous devices. 1461063073757735797320 TSP 321.4 KB None None documents None 1461063073757735797320 /docs/en/application-note/AN5264.pdf 321365 /docs/en/application-note/AN5264.pdf AN5264 documents N N 2016-10-31 AN5264, Emulating I2C controller mode - Application notes /docs/en/application-note/AN5264.pdf /docs/en/application-note/AN5264.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 2, 2016 645036621402383989 Application Note Y N AN5264, Emulating I2C controller mode - Application notes 5 1 English Introducing some considerations on how to enable MagniV MCU family for 24 V applications. In particular cases, the common PCB design can be used for both 12 V and 24 V applications like cars or trucks. These considerations are based on the ISO 16750-1, ISO 16750-2, ISO 7637-2, and ISO 7637-3 standards, taking into account the device power supply chain, I/O pins, and the physical communication layer. 1426254102361716153980 TSP 425.8 KB None None documents None 1426254102361716153980 /docs/en/application-note/AN5082.pdf 425820 /docs/en/application-note/AN5082.pdf AN5082 documents N N 2016-10-31 AN5082: MagniV MCUs in 24V Applications – Application Note /docs/en/application-note/AN5082.pdf /docs/en/application-note/AN5082.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Mar 15, 2015 645036621402383989 Application Note Y N AN5082: MagniV MCUs in 24V Applications – Application Note 6 0 English Providing a simple MSCAN driver allowing users to enable CAN communications on any of the MagniV devices and explaining the configuration of the MSCAN registers. Offering a simple software driver for CAN communications on the MagniV devices and does not intend to give a full in-depth explanation of the CAN protocol. 1407932756289724724697 TSP 745.5 KB None None documents None 1407932756289724724697 /docs/en/application-note/AN4975.pdf 745522 /docs/en/application-note/AN4975.pdf AN4975 documents N N 2016-10-31 AN4975: Using MSCAN on the MagniV Family – Application Note /docs/en/application-note/AN4975.pdf /docs/en/application-note/AN4975.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Aug 11, 2014 645036621402383989 Application Note Y N AN4975: Using MSCAN on the MagniV Family – Application Note 7 1.0 English Introducing the MC9S12ZVL32 device in ultrasonic sonar application, capable of detecting an object and measuring the object distance. 1395142356046728941177 TSP 889.0 KB None None documents None 1395142356046728941177 /docs/en/application-note/AN4841.pdf 888995 /docs/en/application-note/AN4841.pdf AN4841 documents N N 2016-10-31 AN4841: S12ZVL LIN Enabled Ultrasonic Distance Measurement – Application Note /docs/en/application-note/AN4841.pdf /docs/en/application-note/AN4841.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 16, 2014 645036621402383989 Application Note Y N AN4841: S12ZVL LIN Enabled Ultrasonic Distance Measurement – Application Note 8 1 Chinese 1394529775497703950907zh TSP 665.9 KB Registration without Disclaimer None documents Extended 1394529775497703950907 /secured/assets/documents/zh/application-note/AN4842.pdf 665858 /secured/assets/documents/zh/application-note/AN4842.pdf AN4842 documents Y N 2016-10-31 AN4842: S12ZVL LIN Enabled RGB LED Lighting Application – Application Note /secured/assets/documents/zh/application-note/AN4842.pdf https://www.nxp.com.cn/webapp/Download?colCode=AN4842&docLang=zh Application Note N 645036621402383989 2022-12-07 zh Mar 10, 2014 645036621402383989 Application Note Y N AN4842，S12ZVL LIN RGB LED照明应用 - 应用说明和原理图 1 English Introducing the MC9S12ZVL32 device in an RGB LED lighting application, capable of RGB LED control and diagnostics. The RGB LED lighting application is controlled using the FreeMASTER tool. 1394529775497703950907 TSP 665.9 KB Registration without Disclaimer None documents Extended 1394529775497703950907 /secured/assets/documents/en/application-note/AN4842.pdf 665858 /secured/assets/documents/en/application-note/AN4842.pdf AN4842 documents Y N 2016-10-31 AN4842: S12ZVL LIN Enabled RGB LED Lighting Application – Application Note /webapp/Download?colCode=AN4842&lang_cd=ja /secured/assets/documents/en/application-note/AN4842.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Mar 10, 2014 645036621402383989 Application Note Y N AN4842: S12ZVL LIN Enabled RGB LED Lighting Application – Application Note 9 0 Chinese 1372857997482752017970zh TSP 463.1 KB None None documents None 1372857997482752017970 /docs/zh/application-note/AN4723.pdf 463109 /docs/zh/application-note/AN4723.pdf AN4723 documents N N 2016-10-31 AN4723: S12Z MagniV Bootloader – Application Note /docs/zh/application-note/AN4723.pdf /docs/zh/application-note/AN4723.pdf Application Note N 645036621402383989 2024-07-15 zh 645036621402383989 Application Note N AN4723，S12Z MagniV引导加载程序 - 应用说明 0 English Describing the boot operation of S12Z core and how to implement and use a bootloader application that can serially reprogram a device. Focusing on explaining how this core manages boot process, memory layout and manipulation schemes, and interrupt management. The bootloader application can be matched with any serial communication protocol driver to provide flexibility to the implementation. 1372857997482752017970 TSP 463.1 KB None None documents None 1372857997482752017970 /docs/en/application-note/AN4723.pdf 463109 /docs/en/application-note/AN4723.pdf AN4723 documents N N 2016-10-31 AN4723: S12Z MagniV Bootloader – Application Note /docs/en/application-note/AN4723.pdf /docs/en/application-note/AN4723.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Jul 2, 2013 645036621402383989 Application Note Y N AN4723: S12Z MagniV Bootloader – Application Note ユーザ・ガイド User Guide 1 10 0 English Software Integration Guide 1475275932597710505266 TSP 604.7 KB Registration without Disclaimer None documents Extended 1475275932597710505266 /secured/assets/documents/en/user-guide/DEVKIT-SWIG-S12Z.pdf 604731 /secured/assets/documents/en/user-guide/DEVKIT-SWIG-S12Z.pdf DEVKIT-SWIG-S12Z documents Y N 2016-11-09 Software Integration Guide /webapp/Download?colCode=DEVKIT-SWIG-S12Z&lang_cd=ja /secured/assets/documents/en/user-guide/DEVKIT-SWIG-S12Z.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Sep 30, 2016 132339537837198660 User Guide Y N Software Integration Guide false 0 DEVKIT-ZVL128 downloads ja true 0 Y TSP アプリケーション・ノート 8 /secured/assets/documents/en/application-note/AN5084.pdf 2016-10-31 1423805077751727529613 TSP 2 Apr 6, 2017 Application Note Describing hardware design guidelines for S12ZVL Microcontrollers. The MC9S12ZVL-Family is an automotive 16-bit microcontroller family using the 180nm NVM + UHV technology offering the capability to integrate 40 V analog components. This family reuses many features from the existing S12 portfolio. Registration without Disclaimer /secured/assets/documents/en/application-note/AN5084.pdf English documents 1318335 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN5084&lang_cd=ja AN5084: Hardware Design Guidelines for S12ZVL – Application Note /secured/assets/documents/en/application-note/AN5084.pdf documents 645036621402383989 Application Note N en Extended Y pdf 3 Y N AN5084: Hardware Design Guidelines for S12ZVL – Application Note 1.3 MB AN5084 N 1423805077751727529613 /docs/en/application-note/AN5122.pdf 2017-03-06 1429077223404713889665 TSP 3 Mar 5, 2017 Application Note Introducing NXP’s LIN driver and relying on a “hands-on” example to get the LIN driver up and running. Providing some guidelines about using some functionalities like different frame types, configuring followers through LIN and considerations for going to sleep and waking up through LIN. None /docs/en/application-note/AN5122.pdf English documents 2466657 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5122.pdf AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note /docs/en/application-note/AN5122.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note 2.5 MB AN5122 N 1429077223404713889665 /docs/en/application-note/AN5264.pdf 2016-10-31 1461063073757735797320 TSP 4 May 2, 2016 Application Note AN5264: The I2C protocol is a 2-wire serial communication interface implemented by hardware in numerous devices. None /docs/en/application-note/AN5264.pdf English documents 321365 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5264.pdf AN5264, Emulating I2C controller mode - Application notes /docs/en/application-note/AN5264.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5264, Emulating I2C controller mode - Application notes 321.4 KB AN5264 N 1461063073757735797320 /docs/en/application-note/AN5082.pdf 2016-10-31 1426254102361716153980 TSP 5 Mar 15, 2015 Application Note Introducing some considerations on how to enable MagniV MCU family for 24 V applications. In particular cases, the common PCB design can be used for both 12 V and 24 V applications like cars or trucks. These considerations are based on the ISO 16750-1, ISO 16750-2, ISO 7637-2, and ISO 7637-3 standards, taking into account the device power supply chain, I/O pins, and the physical communication layer. None /docs/en/application-note/AN5082.pdf English documents 425820 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5082.pdf AN5082: MagniV MCUs in 24V Applications – Application Note /docs/en/application-note/AN5082.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5082: MagniV MCUs in 24V Applications – Application Note 425.8 KB AN5082 N 1426254102361716153980 /docs/en/application-note/AN4975.pdf 2016-10-31 1407932756289724724697 TSP 6 Aug 11, 2014 Application Note Providing a simple MSCAN driver allowing users to enable CAN communications on any of the MagniV devices and explaining the configuration of the MSCAN registers. Offering a simple software driver for CAN communications on the MagniV devices and does not intend to give a full in-depth explanation of the CAN protocol. None /docs/en/application-note/AN4975.pdf English documents 745522 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4975.pdf AN4975: Using MSCAN on the MagniV Family – Application Note /docs/en/application-note/AN4975.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4975: Using MSCAN on the MagniV Family – Application Note 745.5 KB AN4975 N 1407932756289724724697 /docs/en/application-note/AN4841.pdf 2016-10-31 1395142356046728941177 TSP 7 Apr 16, 2014 Application Note Introducing the MC9S12ZVL32 device in ultrasonic sonar application, capable of detecting an object and measuring the object distance. None /docs/en/application-note/AN4841.pdf English documents 888995 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4841.pdf AN4841: S12ZVL LIN Enabled Ultrasonic Distance Measurement – Application Note /docs/en/application-note/AN4841.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN4841: S12ZVL LIN Enabled Ultrasonic Distance Measurement – Application Note 889.0 KB AN4841 N 1395142356046728941177 /secured/assets/documents/en/application-note/AN4842.pdf 2016-10-31 1394529775497703950907 TSP 8 Mar 10, 2014 Application Note Introducing the MC9S12ZVL32 device in an RGB LED lighting application, capable of RGB LED control and diagnostics. The RGB LED lighting application is controlled using the FreeMASTER tool. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4842.pdf English documents 665858 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4842&lang_cd=ja AN4842: S12ZVL LIN Enabled RGB LED Lighting Application – Application Note /secured/assets/documents/en/application-note/AN4842.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N AN4842: S12ZVL LIN Enabled RGB LED Lighting Application – Application Note 665.9 KB AN4842 N 1394529775497703950907 /docs/en/application-note/AN4723.pdf 2016-10-31 1372857997482752017970 TSP 9 Jul 2, 2013 Application Note Describing the boot operation of S12Z core and how to implement and use a bootloader application that can serially reprogram a device. Focusing on explaining how this core manages boot process, memory layout and manipulation schemes, and interrupt management. The bootloader application can be matched with any serial communication protocol driver to provide flexibility to the implementation. None /docs/en/application-note/AN4723.pdf English documents 463109 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4723.pdf AN4723: S12Z MagniV Bootloader – Application Note /docs/en/application-note/AN4723.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4723: S12Z MagniV Bootloader – Application Note 463.1 KB AN4723 N 1372857997482752017970 ユーザ・ガイド 2 /secured/assets/documents/en/user-guide/DEVKIT-SWIG-S12Z.pdf 2016-11-09 1475275932597710505266 TSP 10 Sep 30, 2016 User Guide Software Integration Guide Registration without Disclaimer /secured/assets/documents/en/user-guide/DEVKIT-SWIG-S12Z.pdf English documents 604731 None 132339537837198660 2023-06-18 Y /webapp/Download?colCode=DEVKIT-SWIG-S12Z&lang_cd=ja Software Integration Guide /secured/assets/documents/en/user-guide/DEVKIT-SWIG-S12Z.pdf documents 132339537837198660 User Guide N en Extended Y pdf 0 Y N Software Integration Guide 604.7 KB DEVKIT-SWIG-S12Z N 1475275932597710505266 /docs/en/quick-reference-guide/DVKITZVL128QSG.pdf 2016-10-31 1466613112404726694559 TSP 1 Jun 22, 2016 User Guide ユーザ・ガイド Y None /docs/en/quick-reference-guide/DVKITZVL128QSG.pdf English 1386553 None User Guide 2023-04-21 N /docs/en/quick-reference-guide/DVKITZVL128QSG.pdf NXP DEVKIT-ZVL128 Quick Start Guide /docs/en/quick-reference-guide/DVKITZVL128QSG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 1.0 N N NXP DEVKIT-ZVL128 Quick Start Guide 1.4 MB DVKITZVL128QSG N 1466613112404726694559 true Y Tools
