MC9S12XE Demonstration Board

DEMOAX9S12XEP100
製造中止

画像にカーソルを合わせると拡大表示されます。

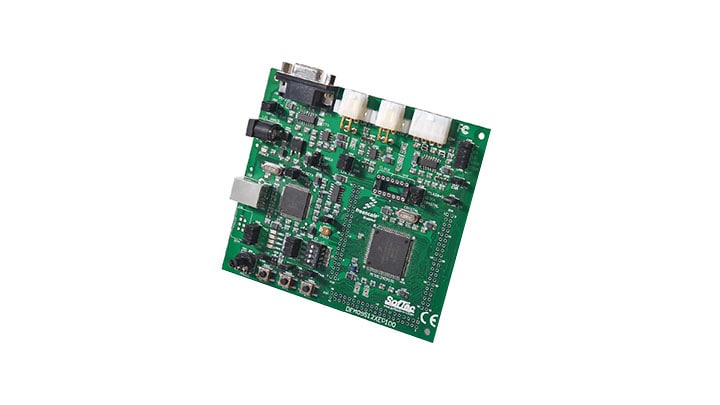

The DEMO9S12XEP100 Demo Board is a full-featured, ready-to-use evaluation system for the MC9S12XEP100 MCU. DEMOAX9S12XEP100 Demo Board takes advantage of CodeWarrior® (which groups an editor, assembler, c compiler and debugger) and Our USB-BDM interface, allowing the download and debug of the user application in the MCU's flash memory.

Write code, download, evaluate. Yes, that simple.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

16ビットS12/S12Xマイクロコントローラ

  • S12XE: Ultra-Reliable S12XE High-Performance Automotive and Industrial Microcontrollers

Features

Microcontroller

    MC9S12XEP100 MCU

  • 112-pin LQFP

Debug

  • Built-in USB to BDM interface for in-circuit debugging
  • Provision for a BDM connector for external in-circuit debugging

Connectivity

  • Header connectors with all MCU signals
  • One CAN connector with transceiver
  • Two LIN connector with one transceiver
  • One RS-232 connector with transceiver
  • Selectable 4 MHz Crystal and a provision for an oscillator module (socketed)

Sensor

  • Light sensor

User Components

  • Four user LEDs
  • Four DIP-switches
  • Potentiometer for analog input
  • 2 push buttons
  • Reset push button
N true 0 TSPDEMOAX9S12XEP100ja 2 ユーザ・ガイド User Guide t792 2 ja ja 2 1 1.0 English The DEMOAX9S12 supports application development and debug of the MC9S12P128, MC9S12XEP100, and MC9S12XS128 MCU on a single, low-cost board. 1396290321517700360485 TSP 154.1 KB None None documents Y None 1396290321517700360485 /docs/en/user-guide/DEMOAX9S12QSG.pdf 154087 /docs/en/user-guide/DEMOAX9S12QSG.pdf DEMOAX9S12QSG N 2014-04-02 DEMOAX9S12 - Quick Start Guide /docs/en/user-guide/DEMOAX9S12QSG.pdf /docs/en/user-guide/DEMOAX9S12QSG.pdf User Guide N 132339537837198660 2023-06-19 pdf en Nov 18, 2013 User Guide t792 ユーザ・ガイド User Guide N N DEMOAX9S12 - Quick Start Guide 2 A English The DEMOAX9S12 board is a demonstration board designed to support 3 different NXP microprocessors: the MC9S12P128, the MC9S12XEP100, and the MC9S12XS128. 1396290321073728873668 TSP 801.2 KB None None documents Y None 1396290321073728873668 /docs/en/user-guide/DEMOAX9S12UG.pdf 801201 /docs/en/user-guide/DEMOAX9S12UG.pdf DEMOAX9S12UG N 2014-04-02 DEMOAX9S12 - User Guide /docs/en/user-guide/DEMOAX9S12UG.pdf /docs/en/user-guide/DEMOAX9S12UG.pdf User Guide N 132339537837198660 2023-06-19 pdf en Nov 18, 2013 User Guide t792 ユーザ・ガイド User Guide N N DEMOAX9S12 - User Guide false ja false 0 DEMOAX9S12XEP100 downloads ja true 0 Y TSP ユーザ・ガイド 2 /docs/en/user-guide/DEMOAX9S12QSG.pdf 2014-04-02 1396290321517700360485 TSP 1 Nov 18, 2013 User Guide ユーザ・ガイド The DEMOAX9S12 supports application development and debug of the MC9S12P128, MC9S12XEP100, and MC9S12XS128 MCU on a single, low-cost board. Y None /docs/en/user-guide/DEMOAX9S12QSG.pdf English 154087 None User Guide 2023-06-19 /docs/en/user-guide/DEMOAX9S12QSG.pdf DEMOAX9S12 - Quick Start Guide /docs/en/user-guide/DEMOAX9S12QSG.pdf documents 132339537837198660 User Guide N en None N t792 pdf 1.0 N DEMOAX9S12 - Quick Start Guide 154.1 KB DEMOAX9S12QSG N 1396290321517700360485 /docs/en/user-guide/DEMOAX9S12UG.pdf 2014-04-02 1396290321073728873668 TSP 2 Nov 18, 2013 User Guide ユーザ・ガイド The DEMOAX9S12 board is a demonstration board designed to support 3 different NXP microprocessors: the MC9S12P128, the MC9S12XEP100, and the MC9S12XS128. Y None /docs/en/user-guide/DEMOAX9S12UG.pdf English 801201 None User Guide 2023-06-19 /docs/en/user-guide/DEMOAX9S12UG.pdf DEMOAX9S12 - User Guide /docs/en/user-guide/DEMOAX9S12UG.pdf documents 132339537837198660 User Guide N en None N t792 pdf A N DEMOAX9S12 - User Guide 801.2 KB DEMOAX9S12UG N 1396290321073728873668 true Y Tools
