Digital Signal Controller with CAN for Industrial Applications

56F803X アクティブ

NXP® 56F803X digital signal controllers belong to the 56800E core-based DSC family. It combines digital signal processing and microcontroller functionalities on a single chip, with a flexible set of peripherals.

  • Supports industrial and motor control, home appliances, inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring
  • On-chip integration and ease of implementation help to speed development, lower component count, and significantly reduce system cost
  • Supported by robust development tools to simplify and accelerate time-to-market

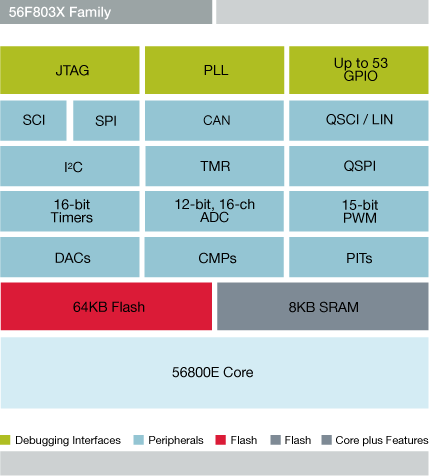

ブロック図

56F803X Digital Signal Controller

NXP<sup>&#174;</sup> 56F803X Digital Signal Controller Block Diagram
図を取得する PDF

Features

  • DSP and MCU functionality in a unified,C-efficient architecture with up to 32 MIPS at 32 MHz core frequency
  • 64 KB (32K x 16) program Flash
  • 8 KB (4K x 16) unified data/program RAM
  • Integrated Peripherials:
    • Controller area network (CAN)
    • One 6-channel pulse width modulation (PWM) module
    • Three programmable interval timers (PITs)
    • Up to 53 GPIO lines
    • Two up to 8-channel 12-bit analog-to-digital converters (ADCs)
    • Two 12-bit digital-to-analog converters (DACs)
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch

購入/パラメータ

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSP56F803Xja 29 アプリケーション・ノート Application Note t789 12 エラッタ Errata t522 4 データ・シート Data Sheet t520 4 ファクト・シート Fact Sheet t523 2 ホワイト・ペーパ White Paper t530 1 ユーザ・ガイド User Guide t792 1 リファレンス・マニュアル Reference Manual t877 3 製品概要 Product Brief t532 2 ja 5 1 MC56F8027VLH,MC56F8037MLH,MC56F8037VLH,SC56F8037F4VLH 8 English The 56F8037/56F8027 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8037/56F8027 includes many peripherals that are especially useful for industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. 1158954177698709988610 PSP 1.2 MB None None documents None 1158954177698709988610 /docs/en/data-sheet/MC56F8037.pdf 1216099 /docs/en/data-sheet/MC56F8037.pdf MC56F8037 N N 2006-09-25 56F8037 / 56F8027 - Data Sheet /docs/en/data-sheet/MC56F8037.pdf /docs/en/data-sheet/MC56F8037.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Apr 5, 2012 Data Sheet t520 データ・シート Data Sheet Y N 56F8037 / 56F8027 - Data Sheet 2 3 English This manual describes the central processing unit of the DSP56800E and DSP56800EX in detail. The 32-bit DSP56800EX core represents the next step in the evolution of NXP&#8217;s families of digital signal controllers (DSCs). The DSP56800EX core extends the capabilities of the DSP56800E core architecture. Both the DSP56800EX and DSP56800E cores provide low-cost, low-power computing, combining DSC power and parallelism with MCU-like programming simplicity. C968463319800 PSP 8.9 MB Registration without Disclaimer None documents Extended C968463319800 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf 8861960 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf DSP56800ERM Y N 2016-10-31 DSP56800E and DSP56800EX - Reference Manual /webapp/Download?colCode=DSP56800ERM&docLang=en /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf Y en Sep 22, 2011 Reference Manual t877 リファレンス・マニュアル Reference Manual Y N DSP56800E and DSP56800EX - Reference Manual 3 MC56F8025VLD,MC56F8035VLD 6 English The 56F8035/56F8025 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8035/56F8025 includes many peripherals that are especially useful for industrial control, motion control, home appliances, general-purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. 1158954173961690575086 PSP 2.2 MB None None documents None 1158954173961690575086 /docs/en/data-sheet/MC56F8025.pdf 2212314 /docs/en/data-sheet/MC56F8025.pdf MC56F8025 N 2006-09-25 56F8035 / 56F8025 Technical Data - Data Sheet /docs/en/data-sheet/MC56F8025.pdf /docs/en/data-sheet/MC56F8025.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf en Feb 1, 2010 Data Sheet t520 データ・シート Data Sheet Y N 56F8035 / 56F8025 Technical Data - Data Sheet 4 MC56F8023VLC,MC56F8033VLC 6 English The 56F8033/56F8023 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8033/56F8023 includes many peripherals that are especially useful for industrial control, motion control, home appliances, general-purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. 1158954181411736389457 PSP 2.2 MB None None documents None 1158954181411736389457 /docs/en/data-sheet/MC56F8023.pdf 2168597 /docs/en/data-sheet/MC56F8023.pdf MC56F8023 N 2006-09-25 56F8033 / 56F8023 Technical Data - Data Sheet /docs/en/data-sheet/MC56F8023.pdf /docs/en/data-sheet/MC56F8023.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf en Feb 1, 2010 Data Sheet t520 データ・シート Data Sheet Y N 56F8033 / 56F8023 Technical Data - Data Sheet 5 MC56F8036VLF 6 English The 56F8036 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8036 includes many peripherals that are especially useful for industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. 1158954167247700897744 PSP 916.0 KB None None documents None 1158954167247700897744 /docs/en/data-sheet/MC56F8036.pdf 915955 /docs/en/data-sheet/MC56F8036.pdf MC56F8036 N 2006-09-25 56F8036 Technical Data - Data Sheet /docs/en/data-sheet/MC56F8036.pdf /docs/en/data-sheet/MC56F8036.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf en Feb 1, 2010 Data Sheet t520 データ・シート Data Sheet Y N 56F8036 Technical Data - Data Sheet true ja ja リファレンス・マニュアル Reference Manual 2 6 3.1 English Features of the 56F80xx Series of 16-bit digital signal controllers (DSC) are described in this preliminary manual release. Peripheral modules are documented here. This manual is intended to be used with the DSP56800E Reference Manual (DSP56800RM), describing the central processing unit (CPU), programming models, and instruction set details. 1158958905240723366100 PSP 4.1 MB None None documents None 1158958905240723366100 /docs/en/reference-manual/MC56F80XXRM.pdf 4124107 /docs/en/reference-manual/MC56F80XXRM.pdf MC56F80XXRM documents N N 2006-09-22 56F802X and 56F803X Peripheral - Reference Manual /docs/en/reference-manual/MC56F80XXRM.pdf /docs/en/reference-manual/MC56F80XXRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf N en Mar 1, 2012 500633505221135046 Reference Manual Y N 56F802X and 56F803X Peripheral - Reference Manual 7 0 English DRM100: This designer reference manual describes a sensorless high speed Switch Reluctance (SR) motor drive, where the rotor position detection is based on phase current peak detection. The presented high speed SR drive is targeted mainly at vacuum cleaners and other appliance and industry applications, which can benefit from small motor size and high speed. Usage of the NXP Semiconductors MC56F8013 device ensures cost-effective implementation for this type of motor control application. 1218638802338706401002 PSP 1.6 MB None None documents None 1218638802338706401002 /docs/en/reference-manual/DRM100.pdf 1593638 /docs/en/reference-manual/DRM100.pdf DRM100 documents N N 2016-10-31 DRM100 - Designer Reference Manual /docs/en/reference-manual/DRM100.pdf /docs/en/reference-manual/DRM100.pdf Reference Manual N 500633505221135046 2022-12-07 pdf N en Jun 30, 2008 500633505221135046 Reference Manual Y N DRM100 - Designer Reference Manual アプリケーション・ノート Application Note 12 8 1.0 English AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. 1383694760468710465910 PSP 53.3 MB Registration With Click-Thru Software Licensing Agreement 0yqyQpfQ documents Extended 1383694760468710465910 /secured/assets/documents/en/application-note/AN4824SW.zip 53275751 /secured/assets/documents/en/application-note/AN4824SW.zip AN4824SW documents Y N 2016-10-31 Software files for AN4824 Freescale DSC Flasher /webapp/Download?colCode=AN4824SW&appType=license&lang_cd=ja /secured/assets/documents/en/application-note/AN4824SW.zip Application Note N 645036621402383989 2024-08-28 zip Y en Jul 14, 2014 645036621402383989 Application Note Y N Software files for AN4824 Freescale DSC Flasher 9 0 English AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. 1383694360052702070622 PSP 860.8 KB None None documents None 1383694360052702070622 /docs/en/application-note/AN4824.pdf 860786 /docs/en/application-note/AN4824.pdf AN4824 documents N N 2013-11-05 AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note /docs/en/application-note/AN4824.pdf /docs/en/application-note/AN4824.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 5, 2013 645036621402383989 Application Note N N AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note 10 0 English This Application Note describes one way to perform the non-blocking communication on the I2C bus and provides c-code example for an I2C controller 1382425896639685691413 PSP 671.4 KB None None documents None 1382425896639685691413 /docs/en/application-note/AN4803.pdf 671393 /docs/en/application-note/AN4803.pdf AN4803 documents N N 2016-10-31 I2C non-blocking communication /docs/en/application-note/AN4803.pdf /docs/en/application-note/AN4803.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 21, 2013 645036621402383989 Application Note Y N I2C non-blocking communication 11 0 English The purpose of the IEC 60730 safety routines for&#13;&#10;household appliances is to ensure the safe and reliable operation of their products. NXP has developed safety routines to help manufacturers of automatic control systems in the large appliance and industrial control market meet the IEC 60730 standard class B. 1377197605205684315112 PSP 460.2 KB Registration without Disclaimer None documents Extended 1377197605205684315112 /secured/assets/documents/en/application-note/An4772.pdf 460191 /secured/assets/documents/en/application-note/An4772.pdf AN4772 documents Y N 2016-10-31 AN4772: IEC 60730 Safety Routines for the DSC 56800EX Core - Application Note /webapp/Download?colCode=AN4772&lang_cd=ja /secured/assets/documents/en/application-note/An4772.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Aug 22, 2013 645036621402383989 Application Note Y N AN4772: IEC 60730 Safety Routines for the DSC 56800EX Core - Application Note 12 0 English Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. 1370013855832696188368 PSP 2.2 MB Registration without Disclaimer None documents Extended 1370013855832696188368 /secured/assets/documents/en/application-note/AN4752.pdf 2220944 /secured/assets/documents/en/application-note/AN4752.pdf AN4752 documents Y N 2016-10-31 AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /webapp/Download?colCode=AN4752&lang_cd=ja /secured/assets/documents/en/application-note/AN4752.pdf Application Note N 645036621402383989 2024-07-15 pdf Y en May 31, 2013 645036621402383989 Application Note Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 13 0 English Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. 1369937932059742568603 PSP 477.3 KB None None documents None 1369937932059742568603 /docs/en/application-note/AN4753.pdf 477314 /docs/en/application-note/AN4753.pdf AN4753 documents N N 2016-10-31 AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf /docs/en/application-note/AN4753.pdf Application Note N 645036621402383989 2024-07-15 pdf N en May 30, 2013 645036621402383989 Application Note Y N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 14 0 English This Application Note focuses on the introduction and description of the Embedded Software and Motor Control Libraries 1349298868720722973654 PSP 246.8 KB Registration without Disclaimer None documents Extended 1349298868720722973654 /secured/assets/documents/en/application-note/AN4611.pdf 246845 /secured/assets/documents/en/application-note/AN4611.pdf AN4611 documents Y N 2016-10-31 Freescale Embedded Software and Motor Control libraries /webapp/Download?colCode=AN4611&lang_cd=ja /secured/assets/documents/en/application-note/AN4611.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Sep 14, 2012 645036621402383989 Application Note Y N Freescale Embedded Software and Motor Control libraries 15 0 English The 56F8000 Digital Signal Controllers (DSCs) developed by NXP<sup>&#174;</sup> include a 56800E hybrid core, associated memories, and a mixture of analog and digital components. 1114128271034729302574 PSP 152.5 KB None None documents None 1114128271034729302574 /docs/en/application-note/AN3103.pdf 152469 /docs/en/application-note/AN3103.pdf AN3103 documents N 2005-04-21 56F8000 Clock Generation Guidelines to Insure Correct Functionality /docs/en/application-note/AN3103.pdf /docs/en/application-note/AN3103.pdf Application Note N 645036621402383989 2022-12-07 pdf en Sep 20, 2005 645036621402383989 Application Note Y N 56F8000 Clock Generation Guidelines to Insure Correct Functionality 16 0 English AN3118: This document presents techniques and detailed information on production programming of the Program Flash memory blocks in the 56F8000 components. This is distinct from the developmental loading of the Flash blocks that is achieved using developmental tools such as the Metrowerks CodeWarrior for NXP debugger. There are four ways to program the Flash blocks in a factory environment. 1123188807732708410868 PSP 159.9 KB None None documents None 1123188807732708410868 /docs/en/application-note/AN3118.pdf 159908 /docs/en/application-note/AN3118.pdf AN3118 documents N 2005-08-04 AN3118, Production Flash Programming for the 56F8000 Family - Application Notes /docs/en/application-note/AN3118.pdf /docs/en/application-note/AN3118.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 3, 2005 645036621402383989 Application Note Y N AN3118, Production Flash Programming for the 56F8000 Family - Application Notes 17 1 English This document describes the design of an Indirect Power Factor Correction (PFC) application. It is based on Our 56F800/E controllers, which are ideal for&#13;&#10;motor control applications.&#13;&#10; 1073597832087704012595 PSP 728.0 KB None None documents None 1073597832087704012595 /docs/en/application-note/AN1965.pdf 727979 /docs/en/application-note/AN1965.pdf AN1965 documents N 2004-01-08 AN1965 Design of Indirect Power factor Correction Using the 56F800/E /docs/en/application-note/AN1965.pdf /docs/en/application-note/AN1965.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 29, 2005 645036621402383989 Application Note Y N AN1965 Design of Indirect Power factor Correction Using the 56F800/E 18 0 English One of the benefits of the using Code Warrior with Processor Expert<sup>&#174;</sup> for NXP&#8217;s family of processors is its flexibility. Code Warrior provides Stationery (templates) to address different memory configurations. However, templates to address new product hardware may be required and can be developed using tools in CodeWarrior. This document details the steps required to create a new build target. 1063315964244695375471 PSP 358.4 KB None None documents None 1063315964244695375471 /docs/en/application-note/AN1975.pdf 358398 /docs/en/application-note/AN1975.pdf AN1975 documents N 2003-09-11 Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> /docs/en/application-note/AN1975.pdf /docs/en/application-note/AN1975.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 29, 2005 645036621402383989 Application Note Y N Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> 19 1 English This document provides general information that will help in porting code from the HCS12/16 microcontroller cores to the&#13;&#10;higher-performance 56800/E cores. The 56800/E hybrid controllers provide a migration path for microcontrollers requiring additional resources and/or signal processing functionality, while maintaining the ease of MCU programmability. 1071605184328718044286 PSP 347.4 KB None None documents None 1071605184328718044286 /docs/en/application-note/AN1983.pdf 347353 /docs/en/application-note/AN1983.pdf AN1983 documents N 2003-12-16 HCS12/16 to 56800/E Software Porting Considerations /docs/en/application-note/AN1983.pdf /docs/en/application-note/AN1983.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 29, 2005 645036621402383989 Application Note N N HCS12/16 to 56800/E Software Porting Considerations ユーザ・ガイド User Guide 1 20 0 English The 56800E Flash Programmer provides a means to program the on-chip Flash of the 56800E DSC family. The Flash Memory blocks are programmed in circuit, using the JTAG/EOnCE interface. The 56800E Flash Programmer runs under a 32-bit Windows environment on PC compatible computers. A Parallel Command Converter or CodeWarrior USB TAP is needed to provide the interface between the JTAG/OnCE interface of the target system and the computer. 1128116417222721579465 PSP 578.2 KB None None documents None 1128116417222721579465 /docs/en/user-guide/56800EFPUG.pdf 578182 /docs/en/user-guide/56800EFPUG.pdf 56800EFPUG documents N 2005-09-30 56800E Flash Programmer - User's Guide /docs/en/user-guide/56800EFPUG.pdf /docs/en/user-guide/56800EFPUG.pdf User Guide N 132339537837198660 2023-06-19 pdf en Sep 30, 2005 132339537837198660 User Guide Y N 56800E Flash Programmer - User's Guide エラッタ Errata 4 21 4 English This document reports errata information on chip revision B. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revisions B and E Errata Information: The following errata items apply to revisions B and E 56F8036 devices only. 1159211439299718710128 PSP 47.9 KB None None documents None 1159211439299718710128 /docs/en/errata/MC56F8036E.pdf 47914 /docs/en/errata/MC56F8036E.pdf MC56F8036E documents N 2006-09-25 56F8036 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8036E.pdf /docs/en/errata/MC56F8036E.pdf Errata N 155452329886410597 2022-12-07 pdf en Jul 30, 2010 155452329886410597 Errata Y N 56F8036 Digital Signal Controller: Preliminary Chip Errata - Errata 22 4 English This document reports errata information on chip revisions B and E. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revisions B and E Errata Information: The following errata items apply to revisions B and E 56F8037/56F8027 devices only. 1159211441499702693915 PSP 46.4 KB None None documents None 1159211441499702693915 /docs/en/errata/MC56F8037E.pdf 46373 /docs/en/errata/MC56F8037E.pdf MC56F8037E documents N 2006-09-25 56F8037/56F8027 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8037E.pdf /docs/en/errata/MC56F8037E.pdf Errata N 155452329886410597 2022-12-07 pdf en Jul 13, 2010 155452329886410597 Errata Y N 56F8037/56F8027 Digital Signal Controller: Preliminary Chip Errata - Errata 23 4 English This document reports errata information on chip revisions B and E. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revision B and E Errata Information: The following errata items apply to revisions B and E 56F8023/56F8033 devices only. 1159211434850714514517 PSP 47.1 KB None None documents None 1159211434850714514517 /docs/en/errata/MC56F8023E.pdf 47149 /docs/en/errata/MC56F8023E.pdf MC56F8023E documents N 2006-09-25 56F8023/56F8033 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8023E.pdf /docs/en/errata/MC56F8023E.pdf Errata N 155452329886410597 2022-12-07 pdf en Jul 13, 2010 155452329886410597 Errata Y N 56F8023/56F8033 Digital Signal Controller: Preliminary Chip Errata - Errata 24 4 English This document reports errata information on chip revisions B and E. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revision Band E Errata Information: The following errata items apply to revisions B and E 56F8025/56F8035 devices only. 1159211437051730888053 PSP 46.8 KB None None documents None 1159211437051730888053 /docs/en/errata/MC56F8025E.pdf 46761 /docs/en/errata/MC56F8025E.pdf MC56F8025E documents N 2006-09-25 56F8025/56F8035 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8025E.pdf /docs/en/errata/MC56F8025E.pdf Errata N 155452329886410597 2022-12-07 pdf en Jul 13, 2010 155452329886410597 Errata Y N 56F8025/56F8035 Digital Signal Controller: Preliminary Chip Errata - Errata ファクト・シート Fact Sheet 2 25 0 English 1158967608816732628155 PSP 114.0 KB None None documents None 1158967608816732628155 /docs/en/fact-sheet/56F8000EVMFS.pdf 113974 /docs/en/fact-sheet/56F8000EVMFS.pdf 56F8000EVMFS documents N 2006-09-22 56F8000 Hardware Development Tools Fact Sheet /docs/en/fact-sheet/56F8000EVMFS.pdf /docs/en/fact-sheet/56F8000EVMFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Sep 21, 2006 736675474163315314 Fact Sheet Y N 56F8000 Hardware Development Tools Fact Sheet 26 0 English Discusses Low End Digital Signal Controller (DSC) portfolio 1158967606648703843789 PSP 76.9 KB None None documents None 1158967606648703843789 /docs/en/fact-sheet/56F8000DSCFS.pdf 76924 /docs/en/fact-sheet/56F8000DSCFS.pdf 56F8000DSCFS documents N 2006-09-22 56F8000 Series Fact Sheet /docs/en/fact-sheet/56F8000DSCFS.pdf /docs/en/fact-sheet/56F8000DSCFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Sep 21, 2006 736675474163315314 Fact Sheet N N 56F8000 Series Fact Sheet 製品概要 Product Brief 2 27 0 English The 56F8037 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8037 supports program execution from internal memories. Two data operands can be accessed from the on-chip data RAM per instruction cycle. The 56F8037 also offers up to 53 General Purpose Input/Output (GPIO) lines, depending on peripheral configuration. The 56F8037 Digital Signal Controller includes 64KB of Program Flash and 8KB of Unified Data/Program RAM. 1158958672827711249332 PSP 197.4 KB None None documents None 1158958672827711249332 /docs/en/product-brief/MC56F8037PB.pdf 197357 /docs/en/product-brief/MC56F8037PB.pdf MC56F8037PB documents N 2006-09-25 56F8037 Digital Signal Controller - Product Brief /docs/en/product-brief/MC56F8037PB.pdf /docs/en/product-brief/MC56F8037PB.pdf Product Brief N 899114358132306053 2022-12-07 pdf en Sep 25, 2006 899114358132306053 Product Brief Y N 56F8037 Digital Signal Controller - Product Brief 28 0 English The 56F8036 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8036 supports program execution from internal memories. Two data operands can be accessed from the on-chip data RAM per instruction cycle. The 56F8036 also offers up to 39 General Purpose Input/Output (GPIO) lines, depending on peripheral configuration. The 56F8036 Digital Signal Controller includes 64KB of Program Flash and 8KB of Unified Data/Program RAM. 1158958670689711675204 PSP 184.2 KB None None documents None 1158958670689711675204 /docs/en/product-brief/MC56F8036PB.pdf 184190 /docs/en/product-brief/MC56F8036PB.pdf MC56F8036PB documents N 2006-09-25 56F8036 Digital Signal Controller - Product Brief /docs/en/product-brief/MC56F8036PB.pdf /docs/en/product-brief/MC56F8036PB.pdf Product Brief N 899114358132306053 2022-12-07 pdf en Sep 25, 2006 899114358132306053 Product Brief Y N 56F8036 Digital Signal Controller - Product Brief ホワイト・ペーパ White Paper 1 29 0 English This white paper covers the 56F8000 series of DSCs. 1159466952973724987471 PSP 787.9 KB None None documents None 1159466952973724987471 /docs/en/white-paper/56F80XXEWP.pdf 787939 /docs/en/white-paper/56F80XXEWP.pdf 56F80XXEWP documents N 2006-09-28 Benefits and Applications Enabled by Expanded 56F8000 Digital Signal Controllers /docs/en/white-paper/56F80XXEWP.pdf /docs/en/white-paper/56F80XXEWP.pdf White Paper N 918633085541740938 2023-06-19 pdf en Sep 28, 2006 918633085541740938 White Paper Y N Benefits and Applications Enabled by Expanded 56F8000 Digital Signal Controllers false 0 56F803X downloads ja true 1 Y PSP アプリケーション・ノート 12 /secured/assets/documents/en/application-note/AN4824SW.zip 2016-10-31 1383694760468710465910 PSP 8 Jul 14, 2014 Application Note AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note/AN4824SW.zip English documents 53275751 0yqyQpfQ 645036621402383989 2024-08-28 Y /webapp/Download?colCode=AN4824SW&appType=license&lang_cd=ja Software files for AN4824 Freescale DSC Flasher /secured/assets/documents/en/application-note/AN4824SW.zip documents 645036621402383989 Application Note N en Extended Y zip 1.0 Y N Software files for AN4824 Freescale DSC Flasher 53.3 MB AN4824SW N 1383694760468710465910 /docs/en/application-note/AN4824.pdf 2013-11-05 1383694360052702070622 PSP 9 Nov 5, 2013 Application Note AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. None /docs/en/application-note/AN4824.pdf English documents 860786 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4824.pdf AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note /docs/en/application-note/AN4824.pdf documents 645036621402383989 Application Note N en None N pdf 0 N N AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note 860.8 KB AN4824 N 1383694360052702070622 /docs/en/application-note/AN4803.pdf 2016-10-31 1382425896639685691413 PSP 10 Oct 21, 2013 Application Note This Application Note describes one way to perform the non-blocking communication on the I2C bus and provides c-code example for an I2C controller None /docs/en/application-note/AN4803.pdf English documents 671393 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4803.pdf I2C non-blocking communication /docs/en/application-note/AN4803.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N I2C non-blocking communication 671.4 KB AN4803 N 1382425896639685691413 /secured/assets/documents/en/application-note/An4772.pdf 2016-10-31 1377197605205684315112 PSP 11 Aug 22, 2013 Application Note The purpose of the IEC 60730 safety routines for&#13;&#10;household appliances is to ensure the safe and reliable operation of their products. NXP has developed safety routines to help manufacturers of automatic control systems in the large appliance and industrial control market meet the IEC 60730 standard class B. Registration without Disclaimer /secured/assets/documents/en/application-note/An4772.pdf English documents 460191 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4772&lang_cd=ja AN4772: IEC 60730 Safety Routines for the DSC 56800EX Core - Application Note /secured/assets/documents/en/application-note/An4772.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN4772: IEC 60730 Safety Routines for the DSC 56800EX Core - Application Note 460.2 KB AN4772 N 1377197605205684315112 /secured/assets/documents/en/application-note/AN4752.pdf 2016-10-31 1370013855832696188368 PSP 12 May 31, 2013 Application Note Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4752.pdf English documents 2220944 None 645036621402383989 2024-07-15 Y /webapp/Download?colCode=AN4752&lang_cd=ja AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /secured/assets/documents/en/application-note/AN4752.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 2.2 MB AN4752 N 1370013855832696188368 /docs/en/application-note/AN4753.pdf 2016-10-31 1369937932059742568603 PSP 13 May 30, 2013 Application Note Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. None /docs/en/application-note/AN4753.pdf English documents 477314 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4753.pdf AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 477.3 KB AN4753 N 1369937932059742568603 /secured/assets/documents/en/application-note/AN4611.pdf 2016-10-31 1349298868720722973654 PSP 14 Sep 14, 2012 Application Note This Application Note focuses on the introduction and description of the Embedded Software and Motor Control Libraries Registration without Disclaimer /secured/assets/documents/en/application-note/AN4611.pdf English documents 246845 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4611&lang_cd=ja Freescale Embedded Software and Motor Control libraries /secured/assets/documents/en/application-note/AN4611.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N Freescale Embedded Software and Motor Control libraries 246.8 KB AN4611 N 1349298868720722973654 /docs/en/application-note/AN3103.pdf 2005-04-21 1114128271034729302574 PSP 15 Sep 20, 2005 Application Note The 56F8000 Digital Signal Controllers (DSCs) developed by NXP<sup>&#174;</sup> include a 56800E hybrid core, associated memories, and a mixture of analog and digital components. None /docs/en/application-note/AN3103.pdf English documents 152469 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3103.pdf 56F8000 Clock Generation Guidelines to Insure Correct Functionality /docs/en/application-note/AN3103.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 56F8000 Clock Generation Guidelines to Insure Correct Functionality 152.5 KB AN3103 N 1114128271034729302574 /docs/en/application-note/AN3118.pdf 2005-08-04 1123188807732708410868 PSP 16 Aug 3, 2005 Application Note AN3118: This document presents techniques and detailed information on production programming of the Program Flash memory blocks in the 56F8000 components. This is distinct from the developmental loading of the Flash blocks that is achieved using developmental tools such as the Metrowerks CodeWarrior for NXP debugger. There are four ways to program the Flash blocks in a factory environment. None /docs/en/application-note/AN3118.pdf English documents 159908 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3118.pdf AN3118, Production Flash Programming for the 56F8000 Family - Application Notes /docs/en/application-note/AN3118.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN3118, Production Flash Programming for the 56F8000 Family - Application Notes 159.9 KB AN3118 N 1123188807732708410868 /docs/en/application-note/AN1965.pdf 2004-01-08 1073597832087704012595 PSP 17 Jul 29, 2005 Application Note This document describes the design of an Indirect Power Factor Correction (PFC) application. It is based on Our 56F800/E controllers, which are ideal for&#13;&#10;motor control applications.&#13;&#10; None /docs/en/application-note/AN1965.pdf English documents 727979 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1965.pdf AN1965 Design of Indirect Power factor Correction Using the 56F800/E /docs/en/application-note/AN1965.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N AN1965 Design of Indirect Power factor Correction Using the 56F800/E 728.0 KB AN1965 N 1073597832087704012595 /docs/en/application-note/AN1975.pdf 2003-09-11 1063315964244695375471 PSP 18 Jul 29, 2005 Application Note One of the benefits of the using Code Warrior with Processor Expert<sup>&#174;</sup> for NXP&#8217;s family of processors is its flexibility. Code Warrior provides Stationery (templates) to address different memory configurations. However, templates to address new product hardware may be required and can be developed using tools in CodeWarrior. This document details the steps required to create a new build target. None /docs/en/application-note/AN1975.pdf English documents 358398 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1975.pdf Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> /docs/en/application-note/AN1975.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> 358.4 KB AN1975 N 1063315964244695375471 /docs/en/application-note/AN1983.pdf 2003-12-16 1071605184328718044286 PSP 19 Jul 29, 2005 Application Note This document provides general information that will help in porting code from the HCS12/16 microcontroller cores to the&#13;&#10;higher-performance 56800/E cores. The 56800/E hybrid controllers provide a migration path for microcontrollers requiring additional resources and/or signal processing functionality, while maintaining the ease of MCU programmability. None /docs/en/application-note/AN1983.pdf English documents 347353 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1983.pdf HCS12/16 to 56800/E Software Porting Considerations /docs/en/application-note/AN1983.pdf documents 645036621402383989 Application Note N en None N pdf 1 N HCS12/16 to 56800/E Software Porting Considerations 347.4 KB AN1983 N 1071605184328718044286 エラッタ 4 /docs/en/errata/MC56F8036E.pdf 2006-09-25 1159211439299718710128 PSP 21 Jul 30, 2010 Errata This document reports errata information on chip revision B. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revisions B and E Errata Information: The following errata items apply to revisions B and E 56F8036 devices only. None /docs/en/errata/MC56F8036E.pdf English documents 47914 None 155452329886410597 2022-12-07 /docs/en/errata/MC56F8036E.pdf 56F8036 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8036E.pdf documents 155452329886410597 Errata N en None Y pdf 4 N 56F8036 Digital Signal Controller: Preliminary Chip Errata - Errata 47.9 KB MC56F8036E N 1159211439299718710128 /docs/en/errata/MC56F8037E.pdf 2006-09-25 1159211441499702693915 PSP 22 Jul 13, 2010 Errata This document reports errata information on chip revisions B and E. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revisions B and E Errata Information: The following errata items apply to revisions B and E 56F8037/56F8027 devices only. None /docs/en/errata/MC56F8037E.pdf English documents 46373 None 155452329886410597 2022-12-07 /docs/en/errata/MC56F8037E.pdf 56F8037/56F8027 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8037E.pdf documents 155452329886410597 Errata N en None Y pdf 4 N 56F8037/56F8027 Digital Signal Controller: Preliminary Chip Errata - Errata 46.4 KB MC56F8037E N 1159211441499702693915 /docs/en/errata/MC56F8023E.pdf 2006-09-25 1159211434850714514517 PSP 23 Jul 13, 2010 Errata This document reports errata information on chip revisions B and E. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revision B and E Errata Information: The following errata items apply to revisions B and E 56F8023/56F8033 devices only. None /docs/en/errata/MC56F8023E.pdf English documents 47149 None 155452329886410597 2022-12-07 /docs/en/errata/MC56F8023E.pdf 56F8023/56F8033 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8023E.pdf documents 155452329886410597 Errata N en None Y pdf 4 N 56F8023/56F8033 Digital Signal Controller: Preliminary Chip Errata - Errata 47.1 KB MC56F8023E N 1159211434850714514517 /docs/en/errata/MC56F8025E.pdf 2006-09-25 1159211437051730888053 PSP 24 Jul 13, 2010 Errata This document reports errata information on chip revisions B and E. Errata numbers are in the form n.m, where n is the number of the errata item and m identifies the document revision number. Chip Revision Band E Errata Information: The following errata items apply to revisions B and E 56F8025/56F8035 devices only. None /docs/en/errata/MC56F8025E.pdf English documents 46761 None 155452329886410597 2022-12-07 /docs/en/errata/MC56F8025E.pdf 56F8025/56F8035 Digital Signal Controller: Preliminary Chip Errata - Errata /docs/en/errata/MC56F8025E.pdf documents 155452329886410597 Errata N en None Y pdf 4 N 56F8025/56F8035 Digital Signal Controller: Preliminary Chip Errata - Errata 46.8 KB MC56F8025E N 1159211437051730888053 データ・シート 4 /docs/en/data-sheet/MC56F8037.pdf 2006-09-25 1158954177698709988610 PSP 1 Apr 5, 2012 Data Sheet データ・シート The 56F8037/56F8027 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8037/56F8027 includes many peripherals that are especially useful for industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. None /docs/en/data-sheet/MC56F8037.pdf English 1216099 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC56F8037.pdf 56F8037 / 56F8027 - Data Sheet /docs/en/data-sheet/MC56F8037.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 8 N N 56F8037 / 56F8027 - Data Sheet MC56F8027VLH,MC56F8037MLH,MC56F8037VLH,SC56F8037F4VLH 1.2 MB MC56F8037 N 1158954177698709988610 /docs/en/data-sheet/MC56F8025.pdf 2006-09-25 1158954173961690575086 PSP 3 Feb 1, 2010 Data Sheet データ・シート The 56F8035/56F8025 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8035/56F8025 includes many peripherals that are especially useful for industrial control, motion control, home appliances, general-purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. None /docs/en/data-sheet/MC56F8025.pdf English 2212314 None Data Sheet 2022-12-07 /docs/en/data-sheet/MC56F8025.pdf 56F8035 / 56F8025 Technical Data - Data Sheet /docs/en/data-sheet/MC56F8025.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 6 N 56F8035 / 56F8025 Technical Data - Data Sheet MC56F8025VLD,MC56F8035VLD 2.2 MB MC56F8025 N 1158954173961690575086 /docs/en/data-sheet/MC56F8023.pdf 2006-09-25 1158954181411736389457 PSP 4 Feb 1, 2010 Data Sheet データ・シート The 56F8033/56F8023 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8033/56F8023 includes many peripherals that are especially useful for industrial control, motion control, home appliances, general-purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. None /docs/en/data-sheet/MC56F8023.pdf English 2168597 None Data Sheet 2022-12-07 /docs/en/data-sheet/MC56F8023.pdf 56F8033 / 56F8023 Technical Data - Data Sheet /docs/en/data-sheet/MC56F8023.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 6 N 56F8033 / 56F8023 Technical Data - Data Sheet MC56F8023VLC,MC56F8033VLC 2.2 MB MC56F8023 N 1158954181411736389457 /docs/en/data-sheet/MC56F8036.pdf 2006-09-25 1158954167247700897744 PSP 5 Feb 1, 2010 Data Sheet データ・シート The 56F8036 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8036 includes many peripherals that are especially useful for industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. None /docs/en/data-sheet/MC56F8036.pdf English 915955 None Data Sheet 2022-12-07 /docs/en/data-sheet/MC56F8036.pdf 56F8036 Technical Data - Data Sheet /docs/en/data-sheet/MC56F8036.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 6 N 56F8036 Technical Data - Data Sheet MC56F8036VLF 916.0 KB MC56F8036 N 1158954167247700897744 ファクト・シート 2 /docs/en/fact-sheet/56F8000EVMFS.pdf 2006-09-22 1158967608816732628155 PSP 25 Sep 21, 2006 Fact Sheet None /docs/en/fact-sheet/56F8000EVMFS.pdf English documents 113974 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/56F8000EVMFS.pdf 56F8000 Hardware Development Tools Fact Sheet /docs/en/fact-sheet/56F8000EVMFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 0 N 56F8000 Hardware Development Tools Fact Sheet 114.0 KB 56F8000EVMFS N 1158967608816732628155 /docs/en/fact-sheet/56F8000DSCFS.pdf 2006-09-22 1158967606648703843789 PSP 26 Sep 21, 2006 Fact Sheet Discusses Low End Digital Signal Controller (DSC) portfolio None /docs/en/fact-sheet/56F8000DSCFS.pdf English documents 76924 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/56F8000DSCFS.pdf 56F8000 Series Fact Sheet /docs/en/fact-sheet/56F8000DSCFS.pdf documents 736675474163315314 Fact Sheet N en None N pdf 0 N 56F8000 Series Fact Sheet 76.9 KB 56F8000DSCFS N 1158967606648703843789 ホワイト・ペーパ 1 /docs/en/white-paper/56F80XXEWP.pdf 2006-09-28 1159466952973724987471 PSP 29 Sep 28, 2006 White Paper This white paper covers the 56F8000 series of DSCs. None /docs/en/white-paper/56F80XXEWP.pdf English documents 787939 None 918633085541740938 2023-06-19 /docs/en/white-paper/56F80XXEWP.pdf Benefits and Applications Enabled by Expanded 56F8000 Digital Signal Controllers /docs/en/white-paper/56F80XXEWP.pdf documents 918633085541740938 White Paper N en None Y pdf 0 N Benefits and Applications Enabled by Expanded 56F8000 Digital Signal Controllers 787.9 KB 56F80XXEWP N 1159466952973724987471 ユーザ・ガイド 1 /docs/en/user-guide/56800EFPUG.pdf 2005-09-30 1128116417222721579465 PSP 20 Sep 30, 2005 User Guide The 56800E Flash Programmer provides a means to program the on-chip Flash of the 56800E DSC family. The Flash Memory blocks are programmed in circuit, using the JTAG/EOnCE interface. The 56800E Flash Programmer runs under a 32-bit Windows environment on PC compatible computers. A Parallel Command Converter or CodeWarrior USB TAP is needed to provide the interface between the JTAG/OnCE interface of the target system and the computer. None /docs/en/user-guide/56800EFPUG.pdf English documents 578182 None 132339537837198660 2023-06-19 /docs/en/user-guide/56800EFPUG.pdf 56800E Flash Programmer - User's Guide /docs/en/user-guide/56800EFPUG.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N 56800E Flash Programmer - User's Guide 578.2 KB 56800EFPUG N 1128116417222721579465 リファレンス・マニュアル 3 /docs/en/reference-manual/MC56F80XXRM.pdf 2006-09-22 1158958905240723366100 PSP 6 Mar 1, 2012 Reference Manual Features of the 56F80xx Series of 16-bit digital signal controllers (DSC) are described in this preliminary manual release. Peripheral modules are documented here. This manual is intended to be used with the DSP56800E Reference Manual (DSP56800RM), describing the central processing unit (CPU), programming models, and instruction set details. None /docs/en/reference-manual/MC56F80XXRM.pdf English documents 4124107 None 500633505221135046 2022-12-07 N /docs/en/reference-manual/MC56F80XXRM.pdf 56F802X and 56F803X Peripheral - Reference Manual /docs/en/reference-manual/MC56F80XXRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 3.1 N N 56F802X and 56F803X Peripheral - Reference Manual 4.1 MB MC56F80XXRM N 1158958905240723366100 /docs/en/reference-manual/DRM100.pdf 2016-10-31 1218638802338706401002 PSP 7 Jun 30, 2008 Reference Manual DRM100: This designer reference manual describes a sensorless high speed Switch Reluctance (SR) motor drive, where the rotor position detection is based on phase current peak detection. The presented high speed SR drive is targeted mainly at vacuum cleaners and other appliance and industry applications, which can benefit from small motor size and high speed. Usage of the NXP Semiconductors MC56F8013 device ensures cost-effective implementation for this type of motor control application. None /docs/en/reference-manual/DRM100.pdf English documents 1593638 None 500633505221135046 2022-12-07 N /docs/en/reference-manual/DRM100.pdf DRM100 - Designer Reference Manual /docs/en/reference-manual/DRM100.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0 N N DRM100 - Designer Reference Manual 1.6 MB DRM100 N 1218638802338706401002 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf 2016-10-31 C968463319800 PSP 2 Sep 22, 2011 Reference Manual リファレンス・マニュアル This manual describes the central processing unit of the DSP56800E and DSP56800EX in detail. The 32-bit DSP56800EX core represents the next step in the evolution of NXP&#8217;s families of digital signal controllers (DSCs). The DSP56800EX core extends the capabilities of the DSP56800E core architecture. Both the DSP56800EX and DSP56800E cores provide low-cost, low-power computing, combining DSC power and parallelism with MCU-like programming simplicity. Registration without Disclaimer /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf English 8861960 None Reference Manual 2022-12-07 Y /webapp/Download?colCode=DSP56800ERM&docLang=en DSP56800E and DSP56800EX - Reference Manual /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf documents 500633505221135046 Reference Manual N Y en Extended Y t877 pdf 3 Y N DSP56800E and DSP56800EX - Reference Manual 8.9 MB DSP56800ERM N C968463319800 製品概要 2 /docs/en/product-brief/MC56F8037PB.pdf 2006-09-25 1158958672827711249332 PSP 27 Sep 25, 2006 Product Brief The 56F8037 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8037 supports program execution from internal memories. Two data operands can be accessed from the on-chip data RAM per instruction cycle. The 56F8037 also offers up to 53 General Purpose Input/Output (GPIO) lines, depending on peripheral configuration. The 56F8037 Digital Signal Controller includes 64KB of Program Flash and 8KB of Unified Data/Program RAM. None /docs/en/product-brief/MC56F8037PB.pdf English documents 197357 None 899114358132306053 2022-12-07 /docs/en/product-brief/MC56F8037PB.pdf 56F8037 Digital Signal Controller - Product Brief /docs/en/product-brief/MC56F8037PB.pdf documents 899114358132306053 Product Brief N en None Y pdf 0 N 56F8037 Digital Signal Controller - Product Brief 197.4 KB MC56F8037PB N 1158958672827711249332 /docs/en/product-brief/MC56F8036PB.pdf 2006-09-25 1158958670689711675204 PSP 28 Sep 25, 2006 Product Brief The 56F8036 is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The 56F8036 supports program execution from internal memories. Two data operands can be accessed from the on-chip data RAM per instruction cycle. The 56F8036 also offers up to 39 General Purpose Input/Output (GPIO) lines, depending on peripheral configuration. The 56F8036 Digital Signal Controller includes 64KB of Program Flash and 8KB of Unified Data/Program RAM. None /docs/en/product-brief/MC56F8036PB.pdf English documents 184190 None 899114358132306053 2022-12-07 /docs/en/product-brief/MC56F8036PB.pdf 56F8036 Digital Signal Controller - Product Brief /docs/en/product-brief/MC56F8036PB.pdf documents 899114358132306053 Product Brief N en None Y pdf 0 N 56F8036 Digital Signal Controller - Product Brief 184.2 KB MC56F8036PB N 1158958670689711675204 true Y Products
