Digital Signal Controllers

56F836X-816X アクティブ

NXP® 56F836X and 56F816X digital signal controllers belong to the 56800E core-based DSC family. They combine digital signal processing and microcontroller functionalities on a single chip, with a flexible set of peripherals.

  • On-chip integration and ease of implementation help to speed development, lower component count, and significantly reduce system cost
  • Simplifies designs while promoting compliance with safety regulations
  • Supported by robust development tools to simplify and accelerate time-to-market

ブロック図

56F836X/816X Digital Signal Controller

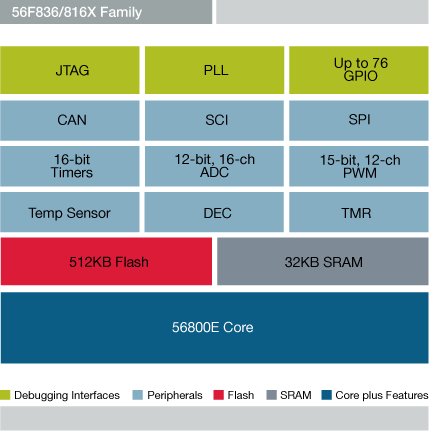

NXP<sup>&#174;</sup> 56F836X/816X Digital Signal Controller Block Diagram
図を取得する PDF

Features

  • On-chip memory includes high-speed volatile and nonvolatile components:
    • 512 KB of program Flash
    • 4 KB of program RAM (836X devices)
    • 32 KB of data RAM
    • 32 KB of data Flash (836X devices)
    • 32 KB of boot Flash
  • Access up to 4 MB of off-chip program and 32 MB of data memory
  • Up to 60 MIPS at 60 MHz execution frequency
  • Chip select logic for glueless interface to ROM and SRAM
  • JTAG/EOnCE for unobtrusive real-time debugging
  • Four 12-bit ADCs
  • Temperature sensor
  • Up to two FlexCAN (CAN Version 2.0 B-compliant)
  • Two serial communication interfaces (SCIs)
  • Up to two serial peripheral interfaces (SPIs)
  • Two dedicated external interrupt pins
  • Software-programmable phase-lock loop
  • Up to 76 GPIO pins

購入/パラメータ

5 結果

マッチしていない 5 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージ端子数

パッケージタイプ

標準価格

Flash (kB)

RAM (kB)

動作周波数[最大](MHz)

CAN

SPI

Ambient Operating Temperature (Min to Max) (℃)

電源電圧 [最小 - 最大] (V)

MC56F8167VPYE
データ・シート

アクティブ

160

LQFP160

10K @ US$21.71

512

32

40

—

2

-40 to 105

—

MC56F8366MFVE
データ・シート

アクティブ

144

LQFP144

10K @ US$29.74

512

36

60

2

—

-40 to 125

3 to 3.6

MC56F8366VFVE
データ・シート

アクティブ

144

LQFP144

10K @ US$26.03

512

36

60

2

—

-40 to 105

3 to 3.6

MC56F8367MPYE
データ・シート

アクティブ

160

LQFP160

10K @ US$31.45

512

36

60

2

—

-40 to 125

3 to 3.6

MC56F8367VPYE
データ・シート

アクティブ

160

LQFP160

10K @ US$27.19

512

36

60

2

—

-40 to 105

3 to 3.6
