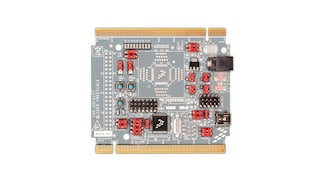

Digital Signal Controller

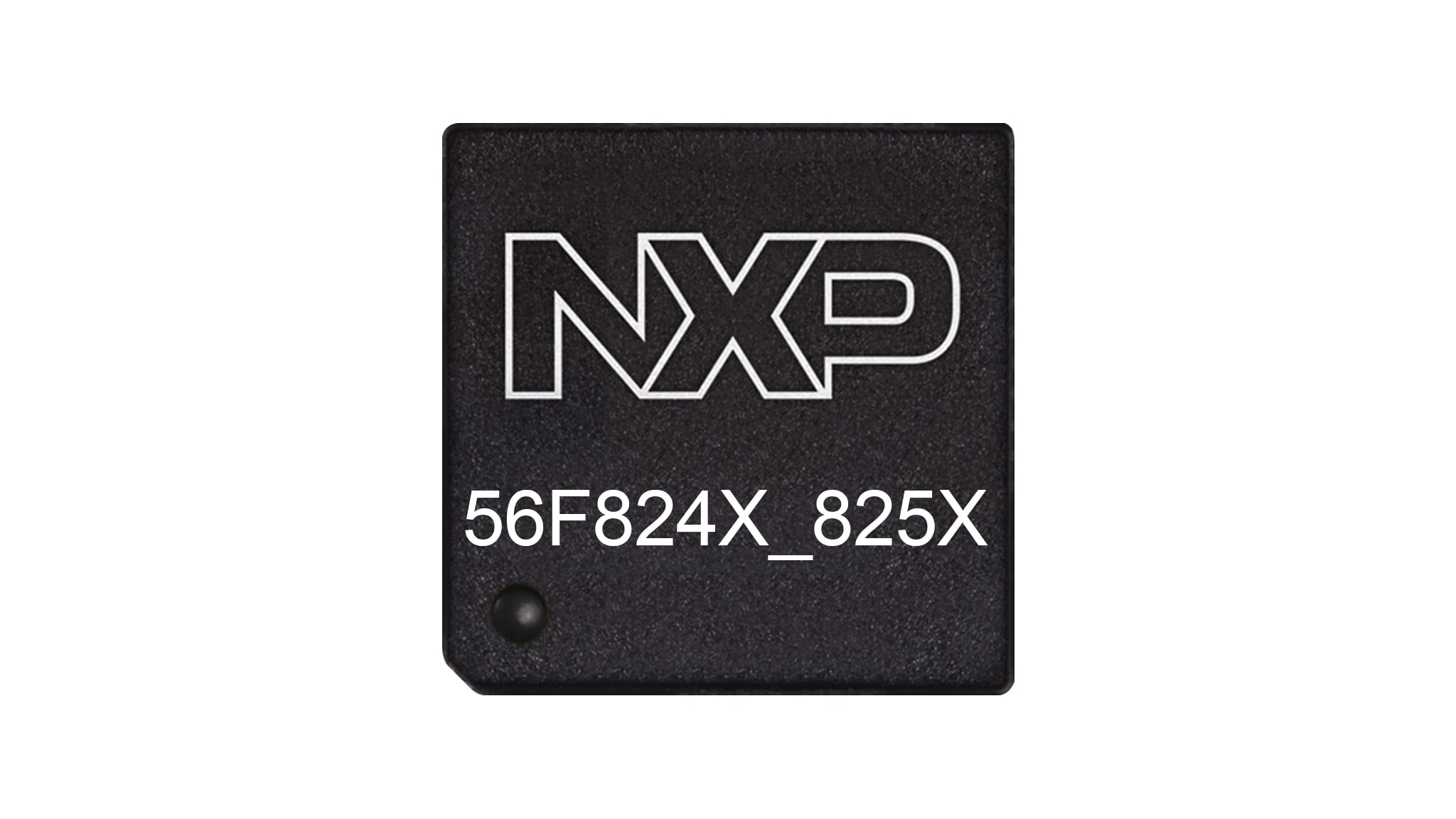

56F824X_825X アクティブ

The NXP® MC56F825x/MC56F824x is a member of the 56800E core-based family of digital signal controllers (DSCs). It combines DSP processing power and microcontroller functionality on a single chip, with a flexible set of peripherals.

  • Offers an ideal fit for power conversion and motor control applications as well as other consumer and industrial applications
  • Provides a low-cost solution with configuration flexibility and compact program code
  • Includes fast, powerful peripherals that precisely measure and modulate power
  • Supported by robust development tools to simplify and accelerate time-to-market

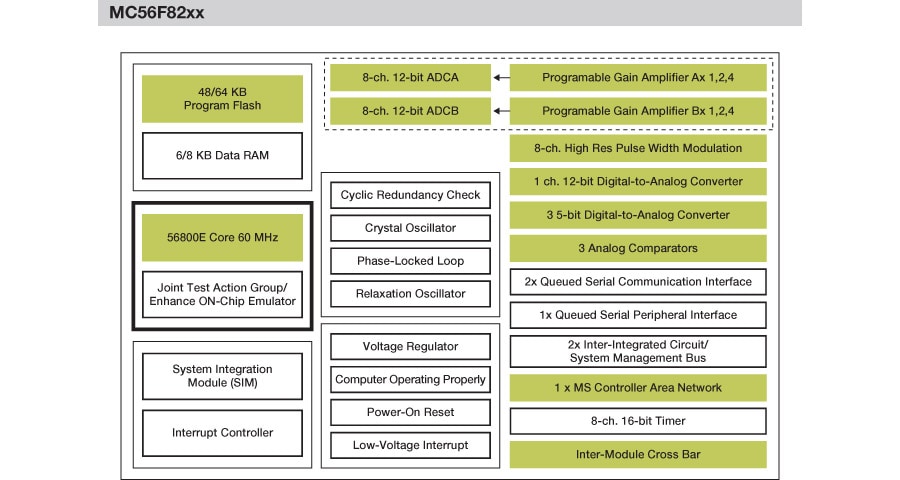

ブロック図

56F824X/825X Digital Signal Controller

NXP<sup>&#174;</sup> 56F824X/825X Digital Signal Controller Block Diagram
図を取得する PDF

Features

  • 60 MHz operation frequency
  • On-chip memory
  • eFlexPWM with up to nine channels, including six channels with high-resolution NanoEdge placement
  • Two 8-channel, 12-bit ADCs with dynamic x2 and x4 programmable amplifier
  • Three analog comparators with integrated 5-bit digital-to-analog converter (DAC) references
  • Cyclic redundancy check (CRC) generator
  • Multiple communication interfaces such as QSPI, QSCI with LIN functionality, SMBus-compatible I²C and MSCAN 2.0 A/B module
  • Two 16-bit quad timers (2 x 4 16-bit timers)
  • On-chip relaxation oscillator: 8 MHz (400 kHz at standby mode)
  • Inter-module crossbar connection

購入/パラメータ

1-10 の 12 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージ端子数

パッケージタイプ

標準価格

Flash (kB)

RAM (kB)

動作周波数[最大](MHz)

CAN

I2C

Ambient Operating Temperature (Min to Max) (℃)

電源電圧 [最小 - 最大] (V)

MC56F8245MLD
データ・シート

アクティブ

44

LQFP44

10K @ US$4.11

48

6

60

—

2

-40 to 125

3 to 3.6

MC56F8245VLD
データ・シート

アクティブ

44

LQFP44

10K @ US$3.93

48

6

60

—

2

-40 to 105

3 to 3.6

MC56F8246MLF
データ・シート

アクティブ

48

LQFP48

10K @ US$4.18

48

6

60

—

2

-40 to 125

3 to 3.6

MC56F8246VLF
データ・シート

アクティブ

48

LQFP48

10K @ US$4.00

48

6

60

—

2

-40 to 105

3 to 3.6

MC56F8247MLH
データ・シート

アクティブ

64

LQFP64

10K @ US$5.09

48

8

60

—

2

-40 to 125

3 to 3.6

MC56F8247VLH
データ・シート

アクティブ

64

LQFP64

10K @ US$4.84

48

8

60

—

2

-40 to 105

3 to 3.6

MC56F8255MLD
データ・シート

アクティブ

44

LQFP44

10K @ US$4.71

64

8

60

1

2

-40 to 125

3 to 3.6

MC56F8255VLD
データ・シート

アクティブ

44

LQFP44

10K @ US$4.49

64

8

60

1

2

-40 to 105

3 to 3.6

MC56F8256MLF
データ・シート

アクティブ

48

LQFP48

10K @ US$4.78

64

8

60

1

2

-40 to 125

3 to 3.6

MC56F8256VLF
データ・シート

アクティブ

48

LQFP48

10K @ US$4.57

64

8

60

1

2

-40 to 105

3 to 3.6

N true 0 PSP56F824X_825Xja 29 アプリケーション・ノート Application Note t789 19 アプリケーション・ノート・ソフトウェア Application Note Software t783 2 エラッタ Errata t522 2 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 1 ユーザ・ガイド User Guide t792 1 リファレンス・マニュアル Reference Manual t877 2 製品概要 Product Brief t532 1 ja 5 1 4 English The MC56F825x/MC56F824x is a member of the 56800E core-based family of digital signal controllers (DSCs). The MC56F825x/MC56F824x includes many peripherals that are especially useful for cost-sensitive applications, including: Solar inverters and Battery chargers and management. 1286823858082718663666 PSP 4.7 MB None None documents None 1286823858082718663666 /docs/en/data-sheet/MC56F825X.pdf 4749390 /docs/en/data-sheet/MC56F825X.pdf MC56F825X N 2010-10-11 MC56F825x / MC56F824x Digital Signal Controller - Data Sheet /docs/en/data-sheet/MC56F825X.pdf /docs/en/data-sheet/MC56F825X.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf en Jun 13, 2014 Data Sheet t520 データ・シート Data Sheet Y N MC56F825x / MC56F824x Digital Signal Controller - Data Sheet 2 2 English The MC56F825x/MC56F824x is a member of NXP&#8217;s family of digital signal controllers (DSCs) based on the 56800E core. It combines, on a single chip, DSP processing power and microcontroller functionality with a flexible set of peripherals, creating a cost-effective solution. Because of its low cost, configuration flexibility, and compact program code, it is well-suited for many consumer and industrial applications. 1276032485409734664473 PSP 337.3 KB None None documents None 1276032485409734664473 /docs/en/product-brief/MC56F825XPB.pdf 337257 /docs/en/product-brief/MC56F825XPB.pdf MC56F825XPB N 2010-06-18 MC56F825x/MC56F824x - Product Brief /docs/en/product-brief/MC56F825XPB.pdf /docs/en/product-brief/MC56F825XPB.pdf Product Brief N Y 899114358132306053 2022-12-07 pdf en Jun 18, 2010 Product Brief t532 製品概要 Product Brief Y N MC56F825x/MC56F824x - Product Brief 3 0 English The MC56F825x/MC56F824x is a member of the 56800E core-based family of digital signal controllers (DSCs). It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with fast and powerful peripherals to create a cost-effective solution. Supports applications such as: advanced power conversion, motor control. 1294691559064707822332 PSP 337.5 KB None None documents None 1294691559064707822332 /docs/en/fact-sheet/MC56F82XXFS.pdf 337502 /docs/en/fact-sheet/MC56F82XXFS.pdf MC56F82XXFS N 2011-01-11 MC56F82xx For power conversion and motor control - Fact Sheet /docs/en/fact-sheet/MC56F82XXFS.pdf /docs/en/fact-sheet/MC56F82XXFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf en Jan 11, 2011 Fact Sheet t523 ファクト・シート Fact Sheet Y N MC56F82xx For power conversion and motor control - Fact Sheet 4 3 English This manual describes the central processing unit of the DSP56800E and DSP56800EX in detail. The 32-bit DSP56800EX core represents the next step in the evolution of NXP&#8217;s families of digital signal controllers (DSCs). The DSP56800EX core extends the capabilities of the DSP56800E core architecture. Both the DSP56800EX and DSP56800E cores provide low-cost, low-power computing, combining DSC power and parallelism with MCU-like programming simplicity. C968463319800 PSP 8.9 MB Registration without Disclaimer None documents Extended C968463319800 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf 8861960 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf DSP56800ERM Y N 2016-10-31 DSP56800E and DSP56800EX - Reference Manual /webapp/Download?colCode=DSP56800ERM&docLang=en /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf Y en Sep 22, 2011 Reference Manual t877 リファレンス・マニュアル Reference Manual Y N DSP56800E and DSP56800EX - Reference Manual 5 2 English The MC56F825x/MC56F824x is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The MC56F825x/MC56F824x includes many peripherals that are especially useful for industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. 1286817480915701712516 PSP 3.2 MB None None documents None 1286817480915701712516 /docs/en/reference-manual/MC56F825XRM.pdf 3165358 /docs/en/reference-manual/MC56F825XRM.pdf MC56F825XRM N N 2010-10-11 MC56F825x/4x - Reference Manual /docs/en/reference-manual/MC56F825XRM.pdf /docs/en/reference-manual/MC56F825XRM.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf N en Oct 11, 2010 Reference Manual t877 リファレンス・マニュアル Reference Manual Y N MC56F825x/4x - Reference Manual false ja ja アプリケーション・ノート Application Note 19 6 1.0 English AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. 1383694760468710465910 PSP 53.3 MB Registration With Click-Thru Software Licensing Agreement 0yqyQpfQ documents Extended 1383694760468710465910 /secured/assets/documents/en/application-note/AN4824SW.zip 53275751 /secured/assets/documents/en/application-note/AN4824SW.zip AN4824SW documents Y N 2016-10-31 Software files for AN4824 Freescale DSC Flasher /webapp/Download?colCode=AN4824SW&appType=license&lang_cd=ja /secured/assets/documents/en/application-note/AN4824SW.zip Application Note N 645036621402383989 2024-08-28 zip Y en Jul 14, 2014 645036621402383989 Application Note Y N Software files for AN4824 Freescale DSC Flasher 7 0 English AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. 1383694360052702070622 PSP 860.8 KB None None documents None 1383694360052702070622 /docs/en/application-note/AN4824.pdf 860786 /docs/en/application-note/AN4824.pdf AN4824 documents N N 2013-11-05 AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note /docs/en/application-note/AN4824.pdf /docs/en/application-note/AN4824.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 5, 2013 645036621402383989 Application Note N N AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note 8 0 English This Application Note describes one way to perform the non-blocking communication on the I2C bus and provides c-code example for an I2C controller 1382425896639685691413 PSP 671.4 KB None None documents None 1382425896639685691413 /docs/en/application-note/AN4803.pdf 671393 /docs/en/application-note/AN4803.pdf AN4803 documents N N 2016-10-31 I2C non-blocking communication /docs/en/application-note/AN4803.pdf /docs/en/application-note/AN4803.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 21, 2013 645036621402383989 Application Note Y N I2C non-blocking communication 9 0 English AN4664: NXP offers digital signal controllers, the MC56F8xxx family, that are well suited to on-grid solar inverter designs. This application note describes the solar microinverter solution developed together with Future Electronics. 1377155557949738910775 PSP 730.0 KB Registration without Disclaimer None documents Extended 1377155557949738910775 /secured/assets/documents/en/application-note/AN4664.pdf 729963 /secured/assets/documents/en/application-note/AN4664.pdf AN4664 documents Y N 2016-10-31 AN4664, On-Grid Solar Microinverter on Freescale MC56F82xx/MC56F82xxx DSCs - Application Notes /webapp/Download?colCode=AN4664&lang_cd=ja /secured/assets/documents/en/application-note/AN4664.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Aug 21, 2013 645036621402383989 Application Note Y N AN4664, On-Grid Solar Microinverter on Freescale MC56F82xx/MC56F82xxx DSCs - Application Notes 10 0 Chinese 1370266590823716289636zh PSP 278.6 KB None None documents None 1370266590823716289636 /docs/zh/application-note/AN4746.pdf 278635 /docs/zh/application-note/AN4746.pdf AN4746 documents N N 2013-06-03 AN4746, High-Resolution PWM Generation Using MC56F82xx, MC56F84xxx, MC56F823xx, and MC56F827xx DSC Families - Application Notes /docs/zh/application-note/AN4746.pdf /docs/zh/application-note/AN4746.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N AN4746，利用MC56F82xx、MC56F84xxx、 MC56F823xx和MC56F827xx DSC系列产生高 分辨率PWM信号 - 应用说明 0 English AN4746: This application note describes the implementation of high-resolution duty cycle and frequency PWM generation used on NXP digital signal controllers in detail including the principle of fractional delay block operation, difference between high-resolution duty cycle and frequency generation, and using fractional delay block in the software. 1370266590823716289636 PSP 278.6 KB None None documents None 1370266590823716289636 /docs/en/application-note/AN4746.pdf 278635 /docs/en/application-note/AN4746.pdf AN4746 documents N N 2013-06-03 AN4746, High-Resolution PWM Generation Using MC56F82xx, MC56F84xxx, MC56F823xx, and MC56F827xx DSC Families - Application Notes /docs/en/application-note/AN4746.pdf /docs/en/application-note/AN4746.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jun 2, 2013 645036621402383989 Application Note Y N AN4746, High-Resolution PWM Generation Using MC56F82xx, MC56F84xxx, MC56F823xx, and MC56F827xx DSC Families - Application Notes 11 0 English Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. 1370013855832696188368 PSP 2.2 MB Registration without Disclaimer None documents Extended 1370013855832696188368 /secured/assets/documents/en/application-note/AN4752.pdf 2220944 /secured/assets/documents/en/application-note/AN4752.pdf AN4752 documents Y N 2016-10-31 AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /webapp/Download?colCode=AN4752&lang_cd=ja /secured/assets/documents/en/application-note/AN4752.pdf Application Note N 645036621402383989 2024-07-15 pdf Y en May 31, 2013 645036621402383989 Application Note Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 12 0 English Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. 1369937932059742568603 PSP 477.3 KB None None documents None 1369937932059742568603 /docs/en/application-note/AN4753.pdf 477314 /docs/en/application-note/AN4753.pdf AN4753 documents N N 2016-10-31 AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf /docs/en/application-note/AN4753.pdf Application Note N 645036621402383989 2024-07-15 pdf N en May 30, 2013 645036621402383989 Application Note Y N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 13 1 English AN4716: This application note concentrates on the implementation of peak current mode control using MC56F8257 digital signal controller (DSC). 1366707462334717733006 PSP 361.1 KB None None documents None 1366707462334717733006 /docs/en/application-note/AN4716.pdf 361144 /docs/en/application-note/AN4716.pdf AN4716 documents N N 2016-10-31 AN4716, Digital Peak Current Mode Control of Buck Converter Using MC56F8527 DSC - Application Notes /docs/en/application-note/AN4716.pdf /docs/en/application-note/AN4716.pdf Application Note N 645036621402383989 2023-05-05 pdf N en May 28, 2013 645036621402383989 Application Note Y N AN4716, Digital Peak Current Mode Control of Buck Converter Using MC56F8527 DSC - Application Notes 14 0 Chinese 1359610394724716618407zh PSP 359.5 KB None None documents None 1359610394724716618407 /docs/zh/application-note/AN4675.pdf 359499 /docs/zh/application-note/AN4675.pdf AN4675 documents N N 2013-01-30 AN4675, Using eFlexPWM Module for ADC Synchronization in MC56F82xx and MC56F84xx Family of Digital Signal Controllers - Application Notes /docs/zh/application-note/AN4675.pdf /docs/zh/application-note/AN4675.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N AN4675，在MC56F82xx和MC56F84xx系列数字信号控制器中使用eFlexPWM模块进行ADC同步 - 应用说明 0 English AN4675: This application note describes the usage of eFlexPWM as a trigger unit. The PWM to ADC synchronization is also necessary in situations when the current or voltage sensor is placed in the position where measured signal is not available during the whole PWM period. The application example shows peripherals configuration for the 56F82xx family of DSCs. 1359610394724716618407 PSP 359.5 KB None None documents None 1359610394724716618407 /docs/en/application-note/AN4675.pdf 359499 /docs/en/application-note/AN4675.pdf AN4675 documents N N 2013-01-30 AN4675, Using eFlexPWM Module for ADC Synchronization in MC56F82xx and MC56F84xx Family of Digital Signal Controllers - Application Notes /docs/en/application-note/AN4675.pdf /docs/en/application-note/AN4675.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 30, 2013 645036621402383989 Application Note Y N AN4675, Using eFlexPWM Module for ADC Synchronization in MC56F82xx and MC56F84xx Family of Digital Signal Controllers - Application Notes 15 0 English This Application Note focuses on the introduction and description of the Embedded Software and Motor Control Libraries 1349298868720722973654 PSP 246.8 KB Registration without Disclaimer None documents Extended 1349298868720722973654 /secured/assets/documents/en/application-note/AN4611.pdf 246845 /secured/assets/documents/en/application-note/AN4611.pdf AN4611 documents Y N 2016-10-31 Freescale Embedded Software and Motor Control libraries /webapp/Download?colCode=AN4611&lang_cd=ja /secured/assets/documents/en/application-note/AN4611.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Sep 14, 2012 645036621402383989 Application Note Y N Freescale Embedded Software and Motor Control libraries 16 0 English This application note deals with the step-by-step guide how to quickly and easily include the FSLESL into an empty project and to reduce the necessary time of the user to study how to do&#13;&#10;that. 1346755334507726943483 PSP 962.9 KB None None documents None 1346755334507726943483 /docs/en/application-note/AN4586.pdf 962878 /docs/en/application-note/AN4586.pdf AN4586 documents N N 2012-09-04 Inclusion of DSC NXP<sup>&#174;</sup> Embedded Software Libraries in CodeWarrior<sup>&#174;</sup> 10.2 /docs/en/application-note/AN4586.pdf /docs/en/application-note/AN4586.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 4, 2012 645036621402383989 Application Note Y N Inclusion of DSC NXP<sup>&#174;</sup> Embedded Software Libraries in CodeWarrior<sup>&#174;</sup> 10.2 17 0 English AN4485SW.zip /docs/en/application-note-software/AN4485SW.zip /docs/en/application-note-software/AN4485SW.zip AN4485: The enhanced flexible pulse width modulator (eFlexPWM) module contains PWM submodules, each of which is set up to control a single half-bridge power stage. Fault channel support is provided. The eFlexPWM module can generate various PWM modes, including highly sophisticated waveforms, which can be used to control all known motor types and is ideal for controlling different switching mode power supply (SMPS) topologies as well. 1337012344393705966968 PSP 387.8 KB None None documents None 1337012344393705966968 /docs/en/application-note/AN4485.pdf 387836 /docs/en/application-note/AN4485.pdf AN4485 documents N N 2012-05-14 AN4485, Using eFlexPWM with MC56F82xx DSC - Application Notes /docs/en/application-note/AN4485.pdf /docs/en/application-note/AN4485.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 14, 2012 645036621402383989 Application Note Y N AN4485, Using eFlexPWM with MC56F82xx DSC - Application Notes 18 0 English This document describes the static serial bootloader and dynamic serial bootloader as well as their usage requirements for applications. The static serial bootloader can reside in flash forever after downloading an application code, whereas the dynamic version will destroy itself after downloading an application code and&#13;&#10;can only be used once. This document describes the both types of the serial bootloader, and their usage requirements for applications. 1297920650322695242999 PSP 889.2 KB None None documents None 1297920650322695242999 /docs/en/application-note/AN4275.pdf 889164 /docs/en/application-note/AN4275.pdf AN4275 documents N 2011-02-16 Serial Bootloader for 56F82xx /docs/en/application-note/AN4275.pdf /docs/en/application-note/AN4275.pdf Application Note N 645036621402383989 2022-12-07 pdf en Feb 16, 2011 645036621402383989 Application Note Y N Serial Bootloader for 56F82xx 19 1 English AN3561SW.zip /secured/assets/documents/en/application-note-software/AN3561SW.zip /webapp/Download?colCode=AN3561SW&appType=license&docLang=en AN3561: This application note describes a bootloader for the MC9S08JM60 allowing in-circuit reprogramming of the flash memory via a universal serial bus (USB). In-circuit programming (ICP) is a process where the MCU is programmed or erased on the printed circuit board that is the target system. This allows the user code to be changed during product development, production, and code upgrades. 1195749135374714484898 PSP 2.1 MB None None documents None 1195749135374714484898 /docs/en/application-note/AN3561.pdf 2104223 /docs/en/application-note/AN3561.pdf AN3561 documents N 2007-11-23 AN3561, USB Bootloader for the MC9S08JM60 - Application Notes /docs/en/application-note/AN3561.pdf /docs/en/application-note/AN3561.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 21, 2008 645036621402383989 Application Note Y N AN3561, USB Bootloader for the MC9S08JM60 - Application Notes 20 3 Chinese U993580316788zh PSP 252.5 KB None None documents None U993580316788 /docs/zh/application-note/AN1916.pdf 252515 /docs/zh/application-note/AN1916.pdf AN1916 documents N N 2016-10-31 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers /docs/zh/application-note/AN1916.pdf /docs/zh/application-note/AN1916.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 使用56800/E数字信号控制器实现带霍尔传感器的3相无刷直流电机控制 3 English 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers U993580316788 PSP 252.5 KB None None documents None U993580316788 /docs/en/application-note/AN1916.pdf 252515 /docs/en/application-note/AN1916.pdf AN1916 documents N N 2016-10-31 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers /docs/en/application-note/AN1916.pdf /docs/en/application-note/AN1916.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 11, 2005 645036621402383989 Application Note Y N 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers 21 0 English The 56F8000 Digital Signal Controllers (DSCs) developed by NXP<sup>&#174;</sup> include a 56800E hybrid core, associated memories, and a mixture of analog and digital components. 1114128271034729302574 PSP 152.5 KB None None documents None 1114128271034729302574 /docs/en/application-note/AN3103.pdf 152469 /docs/en/application-note/AN3103.pdf AN3103 documents N 2005-04-21 56F8000 Clock Generation Guidelines to Insure Correct Functionality /docs/en/application-note/AN3103.pdf /docs/en/application-note/AN3103.pdf Application Note N 645036621402383989 2022-12-07 pdf en Sep 20, 2005 645036621402383989 Application Note Y N 56F8000 Clock Generation Guidelines to Insure Correct Functionality 22 0 English AN3118: This document presents techniques and detailed information on production programming of the Program Flash memory blocks in the 56F8000 components. This is distinct from the developmental loading of the Flash blocks that is achieved using developmental tools such as the Metrowerks CodeWarrior for NXP debugger. There are four ways to program the Flash blocks in a factory environment. 1123188807732708410868 PSP 159.9 KB None None documents None 1123188807732708410868 /docs/en/application-note/AN3118.pdf 159908 /docs/en/application-note/AN3118.pdf AN3118 documents N 2005-08-04 AN3118, Production Flash Programming for the 56F8000 Family - Application Notes /docs/en/application-note/AN3118.pdf /docs/en/application-note/AN3118.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 3, 2005 645036621402383989 Application Note Y N AN3118, Production Flash Programming for the 56F8000 Family - Application Notes 23 1 English This document describes the design of an Indirect Power Factor Correction (PFC) application. It is based on Our 56F800/E controllers, which are ideal for&#13;&#10;motor control applications.&#13;&#10; 1073597832087704012595 PSP 728.0 KB None None documents None 1073597832087704012595 /docs/en/application-note/AN1965.pdf 727979 /docs/en/application-note/AN1965.pdf AN1965 documents N 2004-01-08 AN1965 Design of Indirect Power factor Correction Using the 56F800/E /docs/en/application-note/AN1965.pdf /docs/en/application-note/AN1965.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 29, 2005 645036621402383989 Application Note Y N AN1965 Design of Indirect Power factor Correction Using the 56F800/E 24 0 English One of the benefits of the using Code Warrior with Processor Expert<sup>&#174;</sup> for NXP&#8217;s family of processors is its flexibility. Code Warrior provides Stationery (templates) to address different memory configurations. However, templates to address new product hardware may be required and can be developed using tools in CodeWarrior. This document details the steps required to create a new build target. 1063315964244695375471 PSP 358.4 KB None None documents None 1063315964244695375471 /docs/en/application-note/AN1975.pdf 358398 /docs/en/application-note/AN1975.pdf AN1975 documents N 2003-09-11 Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> /docs/en/application-note/AN1975.pdf /docs/en/application-note/AN1975.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 29, 2005 645036621402383989 Application Note Y N Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> ユーザ・ガイド User Guide 1 25 5 English This user&#8217;s manual is targeted for NXP 56F82xxx and 56F84xxx application developers. Its purpose is to describe the development environment, the software modules and the tools for the 56F82xxx and 56F84xxx and the Application Programming Interface (API). Simply, this manual describes how to use the NXP DSC56800EX_Quick_Start tool to develop software for the NXP 56F82xxx and 56F84xxx Digital Signal Controllers (DSC). 1430827694233718006667 PSP 6.1 MB Registration without Disclaimer None documents Extended 1430827694233718006667 /secured/assets/documents/en/user-guide/DSC56800EXQSUG.pdf 6137412 /secured/assets/documents/en/user-guide/DSC56800EXQSUG.pdf DSC56800EXQSUG documents Y N 2016-10-31 DSC56800EX Quick Start User Guide /webapp/Download?colCode=DSC56800EXQSUG&lang_cd=ja /secured/assets/documents/en/user-guide/DSC56800EXQSUG.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Feb 28, 2021 132339537837198660 User Guide Y N DSC56800EX Quick Start User Guide アプリケーション・ノート・ソフトウェア Application Note Software 2 26 0 English Example code for AN4485 1337011985774679277975 PSP 234.6 KB None None documents None 1337011985774679277975 /docs/en/application-note-software/AN4485SW.zip 234584 /docs/en/application-note-software/AN4485SW.zip AN4485SW documents N N 2012-05-14 Associated software for AN4485 /docs/en/application-note-software/AN4485SW.zip /docs/en/application-note-software/AN4485SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en May 14, 2012 789425793691620447 Application Note Software D N Associated software for AN4485 27 0 English 1195775510820700705298 PSP 1.0 MB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended 1195775510820700705298 /secured/assets/documents/en/application-note-software/AN3561SW.zip 1007329 /secured/assets/documents/en/application-note-software/AN3561SW.zip AN3561SW documents Y N 2016-10-31 JM60 Bootloader /webapp/Download?colCode=AN3561SW&appType=license&lang_cd=ja /secured/assets/documents/en/application-note-software/AN3561SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Nov 22, 2007 789425793691620447 Application Note Software N JM60 Bootloader エラッタ Errata 2 28 0 English The following errata items apply to devices of the mask set 4M53V. 1392239263288719903541 PSP 170.1 KB None None documents None 1392239263288719903541 /docs/en/errata/MC56F825XE_4M53V.pdf 170068 /docs/en/errata/MC56F825XE_4M53V.pdf MC56F825XE_4M53V documents N N 2016-10-31 MC56F825x/MC56F824x (4M53V) Chip Errata /docs/en/errata/MC56F825XE_4M53V.pdf /docs/en/errata/MC56F825XE_4M53V.pdf Errata N 155452329886410597 2022-12-07 pdf N en Feb 12, 2014 155452329886410597 Errata Y N MC56F825x/MC56F824x (4M53V) Chip Errata 29 1 English Chip errata that apply to maskset 2M35V of the devices MC56F8257, MC56F8256, MC56F8255, MC56F8247, MC56F8246, and MC56F8245 1288103757119695596032 PSP 113.1 KB None None documents None 1288103757119695596032 /docs/en/errata/MC56F825XE_2M53V.pdf 113138 /docs/en/errata/MC56F825XE_2M53V.pdf MC56F825XE_2M53V documents N 2010-10-26 MC56F825x/MC56F824x Chip Errata for Maskset 2M53V /docs/en/errata/MC56F825XE_2M53V.pdf /docs/en/errata/MC56F825XE_2M53V.pdf Errata N 155452329886410597 2022-12-07 pdf en May 15, 2012 155452329886410597 Errata Y N MC56F825x/MC56F824x Chip Errata for Maskset 2M53V false 0 56F824X_825X downloads ja true 1 Y PSP アプリケーション・ノート 19 /secured/assets/documents/en/application-note/AN4824SW.zip 2016-10-31 1383694760468710465910 PSP 6 Jul 14, 2014 Application Note AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note/AN4824SW.zip English documents 53275751 0yqyQpfQ 645036621402383989 2024-08-28 Y /webapp/Download?colCode=AN4824SW&appType=license&lang_cd=ja Software files for AN4824 Freescale DSC Flasher /secured/assets/documents/en/application-note/AN4824SW.zip documents 645036621402383989 Application Note N en Extended Y zip 1.0 Y N Software files for AN4824 Freescale DSC Flasher 53.3 MB AN4824SW N 1383694760468710465910 /docs/en/application-note/AN4824.pdf 2013-11-05 1383694360052702070622 PSP 7 Nov 5, 2013 Application Note AN4824, The NXP DSC Flasher is a stand-alone flash programmer for the MC56F8xxx family of Digital Signal Controller products. It is meant as an alternative to the CodeWarrior Flash Programmer that is integrated within the CodeWarrior development tool. None /docs/en/application-note/AN4824.pdf English documents 860786 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4824.pdf AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note /docs/en/application-note/AN4824.pdf documents 645036621402383989 Application Note N en None N pdf 0 N N AN4824, NXP<sup>&#174;</sup> DSC Flasher - Application Note 860.8 KB AN4824 N 1383694360052702070622 /docs/en/application-note/AN4803.pdf 2016-10-31 1382425896639685691413 PSP 8 Oct 21, 2013 Application Note This Application Note describes one way to perform the non-blocking communication on the I2C bus and provides c-code example for an I2C controller None /docs/en/application-note/AN4803.pdf English documents 671393 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4803.pdf I2C non-blocking communication /docs/en/application-note/AN4803.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N I2C non-blocking communication 671.4 KB AN4803 N 1382425896639685691413 /secured/assets/documents/en/application-note/AN4664.pdf 2016-10-31 1377155557949738910775 PSP 9 Aug 21, 2013 Application Note AN4664: NXP offers digital signal controllers, the MC56F8xxx family, that are well suited to on-grid solar inverter designs. This application note describes the solar microinverter solution developed together with Future Electronics. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4664.pdf English documents 729963 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4664&lang_cd=ja AN4664, On-Grid Solar Microinverter on Freescale MC56F82xx/MC56F82xxx DSCs - Application Notes /secured/assets/documents/en/application-note/AN4664.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN4664, On-Grid Solar Microinverter on Freescale MC56F82xx/MC56F82xxx DSCs - Application Notes 730.0 KB AN4664 N 1377155557949738910775 /docs/en/application-note/AN4746.pdf 2013-06-03 1370266590823716289636 PSP 10 Jun 2, 2013 Application Note AN4746: This application note describes the implementation of high-resolution duty cycle and frequency PWM generation used on NXP digital signal controllers in detail including the principle of fractional delay block operation, difference between high-resolution duty cycle and frequency generation, and using fractional delay block in the software. None /docs/en/application-note/AN4746.pdf English documents 278635 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4746.pdf AN4746, High-Resolution PWM Generation Using MC56F82xx, MC56F84xxx, MC56F823xx, and MC56F827xx DSC Families - Application Notes /docs/en/application-note/AN4746.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4746, High-Resolution PWM Generation Using MC56F82xx, MC56F84xxx, MC56F823xx, and MC56F827xx DSC Families - Application Notes 278.6 KB AN4746 N 1370266590823716289636 /secured/assets/documents/en/application-note/AN4752.pdf 2016-10-31 1370013855832696188368 PSP 11 May 31, 2013 Application Note Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4752.pdf English documents 2220944 None 645036621402383989 2024-07-15 Y /webapp/Download?colCode=AN4752&lang_cd=ja AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /secured/assets/documents/en/application-note/AN4752.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 2.2 MB AN4752 N 1370013855832696188368 /docs/en/application-note/AN4753.pdf 2016-10-31 1369937932059742568603 PSP 12 May 30, 2013 Application Note Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. None /docs/en/application-note/AN4753.pdf English documents 477314 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4753.pdf AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 477.3 KB AN4753 N 1369937932059742568603 /docs/en/application-note/AN4716.pdf 2016-10-31 1366707462334717733006 PSP 13 May 28, 2013 Application Note AN4716: This application note concentrates on the implementation of peak current mode control using MC56F8257 digital signal controller (DSC). None /docs/en/application-note/AN4716.pdf English documents 361144 None 645036621402383989 2023-05-05 N /docs/en/application-note/AN4716.pdf AN4716, Digital Peak Current Mode Control of Buck Converter Using MC56F8527 DSC - Application Notes /docs/en/application-note/AN4716.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4716, Digital Peak Current Mode Control of Buck Converter Using MC56F8527 DSC - Application Notes 361.1 KB AN4716 N 1366707462334717733006 /docs/en/application-note/AN4675.pdf 2013-01-30 1359610394724716618407 PSP 14 Jan 30, 2013 Application Note AN4675: This application note describes the usage of eFlexPWM as a trigger unit. The PWM to ADC synchronization is also necessary in situations when the current or voltage sensor is placed in the position where measured signal is not available during the whole PWM period. The application example shows peripherals configuration for the 56F82xx family of DSCs. None /docs/en/application-note/AN4675.pdf English documents 359499 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4675.pdf AN4675, Using eFlexPWM Module for ADC Synchronization in MC56F82xx and MC56F84xx Family of Digital Signal Controllers - Application Notes /docs/en/application-note/AN4675.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4675, Using eFlexPWM Module for ADC Synchronization in MC56F82xx and MC56F84xx Family of Digital Signal Controllers - Application Notes 359.5 KB AN4675 N 1359610394724716618407 /secured/assets/documents/en/application-note/AN4611.pdf 2016-10-31 1349298868720722973654 PSP 15 Sep 14, 2012 Application Note This Application Note focuses on the introduction and description of the Embedded Software and Motor Control Libraries Registration without Disclaimer /secured/assets/documents/en/application-note/AN4611.pdf English documents 246845 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4611&lang_cd=ja Freescale Embedded Software and Motor Control libraries /secured/assets/documents/en/application-note/AN4611.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N Freescale Embedded Software and Motor Control libraries 246.8 KB AN4611 N 1349298868720722973654 /docs/en/application-note/AN4586.pdf 2012-09-04 1346755334507726943483 PSP 16 Sep 4, 2012 Application Note This application note deals with the step-by-step guide how to quickly and easily include the FSLESL into an empty project and to reduce the necessary time of the user to study how to do&#13;&#10;that. None /docs/en/application-note/AN4586.pdf English documents 962878 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4586.pdf Inclusion of DSC NXP<sup>&#174;</sup> Embedded Software Libraries in CodeWarrior<sup>&#174;</sup> 10.2 /docs/en/application-note/AN4586.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Inclusion of DSC NXP<sup>&#174;</sup> Embedded Software Libraries in CodeWarrior<sup>&#174;</sup> 10.2 962.9 KB AN4586 N 1346755334507726943483 /docs/en/application-note/AN4485.pdf 2012-05-14 1337012344393705966968 PSP 17 May 14, 2012 Application Note AN4485: The enhanced flexible pulse width modulator (eFlexPWM) module contains PWM submodules, each of which is set up to control a single half-bridge power stage. Fault channel support is provided. The eFlexPWM module can generate various PWM modes, including highly sophisticated waveforms, which can be used to control all known motor types and is ideal for controlling different switching mode power supply (SMPS) topologies as well. None /docs/en/application-note/AN4485.pdf English documents 387836 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4485.pdf AN4485, Using eFlexPWM with MC56F82xx DSC - Application Notes /docs/en/application-note/AN4485.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4485, Using eFlexPWM with MC56F82xx DSC - Application Notes 387.8 KB AN4485 N 1337012344393705966968 /docs/en/application-note/AN4275.pdf 2011-02-16 1297920650322695242999 PSP 18 Feb 16, 2011 Application Note This document describes the static serial bootloader and dynamic serial bootloader as well as their usage requirements for applications. The static serial bootloader can reside in flash forever after downloading an application code, whereas the dynamic version will destroy itself after downloading an application code and&#13;&#10;can only be used once. This document describes the both types of the serial bootloader, and their usage requirements for applications. None /docs/en/application-note/AN4275.pdf English documents 889164 None 645036621402383989 2022-12-07 /docs/en/application-note/AN4275.pdf Serial Bootloader for 56F82xx /docs/en/application-note/AN4275.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Serial Bootloader for 56F82xx 889.2 KB AN4275 N 1297920650322695242999 /docs/en/application-note/AN3561.pdf 2007-11-23 1195749135374714484898 PSP 19 May 21, 2008 Application Note AN3561: This application note describes a bootloader for the MC9S08JM60 allowing in-circuit reprogramming of the flash memory via a universal serial bus (USB). In-circuit programming (ICP) is a process where the MCU is programmed or erased on the printed circuit board that is the target system. This allows the user code to be changed during product development, production, and code upgrades. None /docs/en/application-note/AN3561.pdf English documents 2104223 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3561.pdf AN3561, USB Bootloader for the MC9S08JM60 - Application Notes /docs/en/application-note/AN3561.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N AN3561, USB Bootloader for the MC9S08JM60 - Application Notes 2.1 MB AN3561 N 1195749135374714484898 /docs/en/application-note/AN1916.pdf 2016-10-31 U993580316788 PSP 20 Nov 11, 2005 Application Note 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers None /docs/en/application-note/AN1916.pdf English documents 252515 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN1916.pdf 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers /docs/en/application-note/AN1916.pdf documents 645036621402383989 Application Note N en None Y pdf 3 N N 3-Phase BLDC Motor Control with Hall Sensors Using 56800/E Digital Signal Controllers 252.5 KB AN1916 N U993580316788 /docs/en/application-note/AN3103.pdf 2005-04-21 1114128271034729302574 PSP 21 Sep 20, 2005 Application Note The 56F8000 Digital Signal Controllers (DSCs) developed by NXP<sup>&#174;</sup> include a 56800E hybrid core, associated memories, and a mixture of analog and digital components. None /docs/en/application-note/AN3103.pdf English documents 152469 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3103.pdf 56F8000 Clock Generation Guidelines to Insure Correct Functionality /docs/en/application-note/AN3103.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 56F8000 Clock Generation Guidelines to Insure Correct Functionality 152.5 KB AN3103 N 1114128271034729302574 /docs/en/application-note/AN3118.pdf 2005-08-04 1123188807732708410868 PSP 22 Aug 3, 2005 Application Note AN3118: This document presents techniques and detailed information on production programming of the Program Flash memory blocks in the 56F8000 components. This is distinct from the developmental loading of the Flash blocks that is achieved using developmental tools such as the Metrowerks CodeWarrior for NXP debugger. There are four ways to program the Flash blocks in a factory environment. None /docs/en/application-note/AN3118.pdf English documents 159908 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3118.pdf AN3118, Production Flash Programming for the 56F8000 Family - Application Notes /docs/en/application-note/AN3118.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN3118, Production Flash Programming for the 56F8000 Family - Application Notes 159.9 KB AN3118 N 1123188807732708410868 /docs/en/application-note/AN1965.pdf 2004-01-08 1073597832087704012595 PSP 23 Jul 29, 2005 Application Note This document describes the design of an Indirect Power Factor Correction (PFC) application. It is based on Our 56F800/E controllers, which are ideal for&#13;&#10;motor control applications.&#13;&#10; None /docs/en/application-note/AN1965.pdf English documents 727979 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1965.pdf AN1965 Design of Indirect Power factor Correction Using the 56F800/E /docs/en/application-note/AN1965.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N AN1965 Design of Indirect Power factor Correction Using the 56F800/E 728.0 KB AN1965 N 1073597832087704012595 /docs/en/application-note/AN1975.pdf 2003-09-11 1063315964244695375471 PSP 24 Jul 29, 2005 Application Note One of the benefits of the using Code Warrior with Processor Expert<sup>&#174;</sup> for NXP&#8217;s family of processors is its flexibility. Code Warrior provides Stationery (templates) to address different memory configurations. However, templates to address new product hardware may be required and can be developed using tools in CodeWarrior. This document details the steps required to create a new build target. None /docs/en/application-note/AN1975.pdf English documents 358398 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1975.pdf Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> /docs/en/application-note/AN1975.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Multiple Target Features Using Processor Expert<sup>&#174;</sup> and CodeWarrior<sup>&#174;</sup> 358.4 KB AN1975 N 1063315964244695375471 アプリケーション・ノート・ソフトウェア 2 /docs/en/application-note-software/AN4485SW.zip 2012-05-14 1337011985774679277975 PSP 26 May 14, 2012 Application Note Software Example code for AN4485 None /docs/en/application-note-software/AN4485SW.zip English documents 234584 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4485SW.zip Associated software for AN4485 /docs/en/application-note-software/AN4485SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N N Associated software for AN4485 234.6 KB AN4485SW N 1337011985774679277975 /secured/assets/documents/en/application-note-software/AN3561SW.zip 2016-10-31 1195775510820700705298 PSP 27 Nov 22, 2007 Application Note Software Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN3561SW.zip English documents 1007329 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN3561SW&appType=license&lang_cd=ja JM60 Bootloader /secured/assets/documents/en/application-note-software/AN3561SW.zip documents 789425793691620447 Application Note Software N en Extended zip 0 Y N JM60 Bootloader 1.0 MB AN3561SW N 1195775510820700705298 エラッタ 2 /docs/en/errata/MC56F825XE_4M53V.pdf 2016-10-31 1392239263288719903541 PSP 28 Feb 12, 2014 Errata The following errata items apply to devices of the mask set 4M53V. None /docs/en/errata/MC56F825XE_4M53V.pdf English documents 170068 None 155452329886410597 2022-12-07 N /docs/en/errata/MC56F825XE_4M53V.pdf MC56F825x/MC56F824x (4M53V) Chip Errata /docs/en/errata/MC56F825XE_4M53V.pdf documents 155452329886410597 Errata N en None Y pdf 0 N N MC56F825x/MC56F824x (4M53V) Chip Errata 170.1 KB MC56F825XE_4M53V N 1392239263288719903541 /docs/en/errata/MC56F825XE_2M53V.pdf 2010-10-26 1288103757119695596032 PSP 29 May 15, 2012 Errata Chip errata that apply to maskset 2M35V of the devices MC56F8257, MC56F8256, MC56F8255, MC56F8247, MC56F8246, and MC56F8245 None /docs/en/errata/MC56F825XE_2M53V.pdf English documents 113138 None 155452329886410597 2022-12-07 /docs/en/errata/MC56F825XE_2M53V.pdf MC56F825x/MC56F824x Chip Errata for Maskset 2M53V /docs/en/errata/MC56F825XE_2M53V.pdf documents 155452329886410597 Errata N en None Y pdf 1 N MC56F825x/MC56F824x Chip Errata for Maskset 2M53V 113.1 KB MC56F825XE_2M53V N 1288103757119695596032 データ・シート 1 /docs/en/data-sheet/MC56F825X.pdf 2010-10-11 1286823858082718663666 PSP 1 Jun 13, 2014 Data Sheet データ・シート The MC56F825x/MC56F824x is a member of the 56800E core-based family of digital signal controllers (DSCs). The MC56F825x/MC56F824x includes many peripherals that are especially useful for cost-sensitive applications, including: Solar inverters and Battery chargers and management. None /docs/en/data-sheet/MC56F825X.pdf English 4749390 None Data Sheet 2022-12-07 /docs/en/data-sheet/MC56F825X.pdf MC56F825x / MC56F824x Digital Signal Controller - Data Sheet /docs/en/data-sheet/MC56F825X.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 4 N MC56F825x / MC56F824x Digital Signal Controller - Data Sheet 4.7 MB MC56F825X N 1286823858082718663666 ファクト・シート 1 /docs/en/fact-sheet/MC56F82XXFS.pdf 2011-01-11 1294691559064707822332 PSP 3 Jan 11, 2011 Fact Sheet ファクト・シート The MC56F825x/MC56F824x is a member of the 56800E core-based family of digital signal controllers (DSCs). It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with fast and powerful peripherals to create a cost-effective solution. Supports applications such as: advanced power conversion, motor control. None /docs/en/fact-sheet/MC56F82XXFS.pdf English 337502 None Fact Sheet 2022-12-07 /docs/en/fact-sheet/MC56F82XXFS.pdf MC56F82xx For power conversion and motor control - Fact Sheet /docs/en/fact-sheet/MC56F82XXFS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 0 N MC56F82xx For power conversion and motor control - Fact Sheet 337.5 KB MC56F82XXFS N 1294691559064707822332 ユーザ・ガイド 1 /secured/assets/documents/en/user-guide/DSC56800EXQSUG.pdf 2016-10-31 1430827694233718006667 PSP 25 Feb 28, 2021 User Guide This user&#8217;s manual is targeted for NXP 56F82xxx and 56F84xxx application developers. Its purpose is to describe the development environment, the software modules and the tools for the 56F82xxx and 56F84xxx and the Application Programming Interface (API). Simply, this manual describes how to use the NXP DSC56800EX_Quick_Start tool to develop software for the NXP 56F82xxx and 56F84xxx Digital Signal Controllers (DSC). Registration without Disclaimer /secured/assets/documents/en/user-guide/DSC56800EXQSUG.pdf English documents 6137412 None 132339537837198660 2023-06-18 Y /webapp/Download?colCode=DSC56800EXQSUG&lang_cd=ja DSC56800EX Quick Start User Guide /secured/assets/documents/en/user-guide/DSC56800EXQSUG.pdf documents 132339537837198660 User Guide N en Extended Y pdf 5 Y N DSC56800EX Quick Start User Guide 6.1 MB DSC56800EXQSUG N 1430827694233718006667 リファレンス・マニュアル 2 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf 2016-10-31 C968463319800 PSP 4 Sep 22, 2011 Reference Manual リファレンス・マニュアル This manual describes the central processing unit of the DSP56800E and DSP56800EX in detail. The 32-bit DSP56800EX core represents the next step in the evolution of NXP&#8217;s families of digital signal controllers (DSCs). The DSP56800EX core extends the capabilities of the DSP56800E core architecture. Both the DSP56800EX and DSP56800E cores provide low-cost, low-power computing, combining DSC power and parallelism with MCU-like programming simplicity. Registration without Disclaimer /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf English 8861960 None Reference Manual 2022-12-07 Y /webapp/Download?colCode=DSP56800ERM&docLang=en DSP56800E and DSP56800EX - Reference Manual /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf documents 500633505221135046 Reference Manual N Y en Extended Y t877 pdf 3 Y N DSP56800E and DSP56800EX - Reference Manual 8.9 MB DSP56800ERM N C968463319800 /docs/en/reference-manual/MC56F825XRM.pdf 2010-10-11 1286817480915701712516 PSP 5 Oct 11, 2010 Reference Manual リファレンス・マニュアル The MC56F825x/MC56F824x is a member of the 56800E core-based family of Digital Signal Controllers (DSCs). The MC56F825x/MC56F824x includes many peripherals that are especially useful for industrial control, motion control, home appliances, general purpose inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring applications. None /docs/en/reference-manual/MC56F825XRM.pdf English 3165358 None Reference Manual 2022-12-07 N /docs/en/reference-manual/MC56F825XRM.pdf MC56F825x/4x - Reference Manual /docs/en/reference-manual/MC56F825XRM.pdf documents 500633505221135046 Reference Manual N Y en None Y t877 pdf 2 N N MC56F825x/4x - Reference Manual 3.2 MB MC56F825XRM N 1286817480915701712516 製品概要 1 /docs/en/product-brief/MC56F825XPB.pdf 2010-06-18 1276032485409734664473 PSP 2 Jun 18, 2010 Product Brief 製品概要 The MC56F825x/MC56F824x is a member of NXP&#8217;s family of digital signal controllers (DSCs) based on the 56800E core. It combines, on a single chip, DSP processing power and microcontroller functionality with a flexible set of peripherals, creating a cost-effective solution. Because of its low cost, configuration flexibility, and compact program code, it is well-suited for many consumer and industrial applications. None /docs/en/product-brief/MC56F825XPB.pdf English 337257 None Product Brief 2022-12-07 /docs/en/product-brief/MC56F825XPB.pdf MC56F825x/MC56F824x - Product Brief /docs/en/product-brief/MC56F825XPB.pdf documents 899114358132306053 Product Brief N Y en None Y t532 pdf 2 N MC56F825x/MC56F824x - Product Brief 337.3 KB MC56F825XPB N 1276032485409734664473 true Y Products
