Digital Signal Controllers for Auto and Industrial Applications

56F8335_8135 アクティブ

NXP® 56F8335 and 56F8135 digital signal controllers belong to the 56800E core-based DSC family. They combine digital signal processing and microcontroller functionalities on a single chip, with a flexible set of peripherals.

  • On-chip integration and ease of implementation help to speed development, lower component count, and significantly reduce system cost
  • Simplifies designs while promoting compliance with safety regulations
  • Supported by robust development tools to simplify and accelerate time-to-market

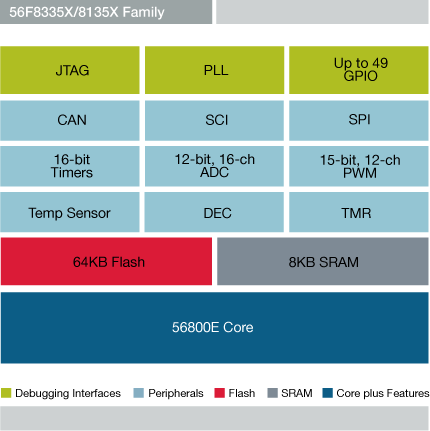

ブロック図

56F8335/8135 Digital Signal Controller

NXP<sup>&#174;</sup> 56F8335/8135 Digital Signal Controller Block Diagram
図を取得する PDF

Features

  • On-chip memory includes high-speed volatile and nonvolatile components:
    • 64 KB of program Flash
    • 4 KB of program RAM (8335 device)
    • 8 KB of data Flash (8335 device)
    • 8 KB of data RAM
    • 8 KB of boot Flash
  • Up to 60 MIPS at 60 MHz execution frequency
  • JTAG/EOnCE for unobtrusive real-time debugging
  • Temperature sensor
  • FlexCAN module
  • EEPROM emulation capability
  • Four 12-bit ADCs
  • Two serial communication interfaces (SCIs)
  • Up to two serial peripheral interfaces (SPIs)
  • Two dedicated external interrupt pins
  • Integrated low-voltage interrupt module
  • TTL-compatible digital inputs

購入/パラメータ

3 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージ端子数

パッケージタイプ

標準価格

Flash (kB)

RAM (kB)

動作周波数[最大](MHz)

CAN

SPI

Ambient Operating Temperature (Min to Max) (℃)

電源電圧 [最小 - 最大] (V)

MC56F8135VFGE
データ・シート

アクティブ

128

LQFP128

10K @ US$10.66

64

8

40

—

2

-40 to 105

3 to 3.6

MC56F8335MFGE
データ・シート

アクティブ

128

LQFP128

10K @ US$16.22

64

12

60

1

2

-40 to 125

3 to 3.6

MC56F8335VFGE
データ・シート

アクティブ

128

LQFP128

10K @ US$13.63

64

12

60

1

2

-40 to 105

3 to 3.6
