The Kinetis KE02 sub-family is the entry-point to the Kinetis E series portfolio and is pin compatible with Kinetis E series and with the Our 8-bit S08P family. This sub-family includes a powerful array of analog, communication and timing and control peripherals with specific flash memory size and the pin count. The family acts as a low-power, high-robustness, and cost-effective microcontroller to provide developers an appropriate entry-level 32-bit solution. The family is next generation MCU solution with enhanced ESD/EMC performance for cost-sensitive, high-reliability devices applications used in high electrical noise environments.

データ・シート

リファレンス・マニュアル

製品詳細

ブロック図

KE0xZ MCU Family

図を取得する PDF

Features

Operating characteristics

Voltage range: 2.7 to 5.5 V
Flash write voltage range: 2.7 to 5.5 V
Temperature range (ambient): -40 to 105°C

Performance

Up to 48 MHz Arm^{^®} Cortex^®-M0+ core
Single-cycle 32-bit x 32-bit multiplier
Single-cycle I/O access port

Memories and memory interfaces

Up to 64 KB flash
Up to 256 B EEPROM
Up to 4 KB RAM

Clocks

Oscillator (OSC) - loop-controlled Pierce oscillator, crystal or ceramic resonator range of 31.25 kHz to 39.0625 kHz or 4 MHz to 20 MHz
Internal clock source (ICS) - internal FLL with internal or external reference, precision trimming of internal reference allowing 1% deviation across temperature range of 0 °C to 70 °C and 1.5% deviation across temperature range of -40 °C to 105 °C, up to 20 MHz
Internal 1 kHz low-power oscillator (LPO)

System peripherals

Power management module (PMC) with three power modes: run, wait, stop
Low-voltage detection (LVD) with reset or interrupt, selectable trip points
Watchdog with independent clock source (WDOG)
Programmable cyclic redundancy check module (CRC)
Serial wire debug interface (SWD)
Bit manipulation engine (BME)

Security and integrity modules

64-bit unique identification (ID) number per chip

Human-machine interface

Up to 57 general-purpose input/output (GPIO)
Two 8-bit keyboard interrupt modules (KBI)

Analog modules

One 16-channel 12-bit SAR ADC with internal bandgap reference channel, operation in Stop mode, optional hardware trigger (ADC)
Two analog comparators containing a 6-bit DAC and programmable reference input (ACMP)

Timers

One 6-channel FlexTimer/PWM (FTM)
Two 2-channel FlexTimer/PWM (FTM)
One 2-channel periodic interrupt timer (PIT)
One real-time clock (RTC)
One pulse-width timer (PWT)
One fast timer

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

設計・リソース

デザイン・ファイル

クイック・リファレンス設計・ファイルの種類.

1 設計・ファイル

シンボルおよびフットプリント
Kinetis^® Symbols, Footprints and Models

INTERNAL改訂 1.0Nov 27, 20171 KBCAD-SYMBOLFOOTPRINTS

ダウンロード

ハードウェア

クイック・リファレンスボードタイプ.

1-5 の 11 ハードウェア提供

評価・開発ボード

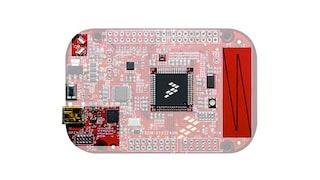

Freedom Development Platform for Kinetis KE02 MCUs注目

FRDM-KE02Z40M
評価・開発ボード

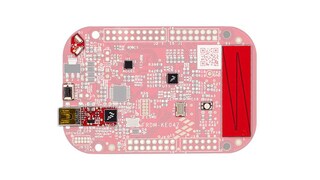

NXP Freedom Development Platform for Kinetis^® KE04 MCUs注目
