Kinetis KE1xF-168MHz, Performance with CAN 5V Microcontrollers based on Arm® Cortex®-M4

KE1xF アクティブ

画像にカーソルを合わせると拡大表示されます。

Kinetis KE1xF MCUs are the high end series MCUs in Kinetis E family, providing robust 5V solution with the high performance Arm® Cortex®-M4 core running at up to 168 MHz. The Kinetis KE1xF MCU family also integrates CAN 2.0B compliant FlexCAN provides high reliable serial communication interface for industry applications, and rich suite of communication interfaces including LPUARTs, LPI2Cs, LPSPIs, and FlexIO.

ブロック図

5V Robust Arm Cortex-M4 Core MCUs with CAN

5V Robust ARM Cortex-M4 core MCUs with CAN Block Diagram
図を取得する PDF

Features

  • Up to 168MHz Cortex-M4 core supporting a broad range of processing bandwidth requirements while maintaining excellent cost-effectiveness, easy to use packages and a wide range of memory densities
  • Enhanced robust IOs make sure the high performance under noisy environment
  • Flextimer featured 8ch PWM supports 3-phase motor control with dead time insertion and fault detect
  • 1MSPS 12b ADC with up to 16ch input per module, provides fast sampling rate for prompt data conversion and storage
  • Analog comparator for fast response to external analog change
  • Programmable delay block with flexible trigger system providing various interconnections for on chip modules, ADC, DAC, Flextimers, ACMP, etc.
  • CAN 2.0B compliant FlexCAN provides high reliable serial communication interface for industry applications
  • FlexIO provides flexibility for serial communication interface implementation
  • Boot ROM provides on chip boot code and serial port drivers that could save flash space and provide flexible boot options and in system programming support
  • Packages with big pin pitch make manufacture easy with high yield
  • 8KB Cache could improve the code and data access efficiency
  • Featuring digital signal processing capabilities with floating point unit offering outstanding computational power for control algorithms, sensor data processing, audio processing, among others, while increasing math accuracy and reducing code size
  • MPU for memory protect and code safety
  • Faster time to market with comprehensive enablement solutions, including SDK (drivers, libraries, stacks), IDE, bootloader, RTOS, online community and more

購入/パラメータ

1-10 の 12 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

標準価格

コア・タイプ

動作周波数[最大](MHz)

Flash (kB)

SRAM (kB)

EEPROM (KB)

Serial Communication

CAN

RTC

FlexIO

eDMA [Number, channels]

セキュリティ

PWM [Number, bits]

ADC [Number, bits]

汎用I/O

電源電圧 [最小 - 最大] (V)

Ambient Operating Temperature (Min to Max) (℃)

パッケージタイプ

Package Pitch (mm)

MKE14F256VLH16
データ・シート

アクティブ

10K @ US$2.77

Arm Cortex-M4

168

320

32

4

2 x I²C, 2 x SPI, 3 x UART

—

1

1

1 x 16

CRC

32 x 16

3 x 12

58

2.7 to 5.5

-40 to 105

LQFP64

0.5

MKE14F256VLL16
データ・シート

アクティブ

10K @ US$2.96

Arm Cortex-M4

168

320

32

4

2 x I²C, 2 x SPI, 3 x UART

—

1

1

1 x 16

CRC

32 x 16

3 x 12

89

2.7 to 5.5

-40 to 105

LQFP100

0.5

MKE14F512VLH16
データ・シート

アクティブ

10K @ US$3.64

Arm Cortex-M4

168

576

64

4

2 x I²C, 2 x SPI, 3 x UART

—

1

1

1 x 16

CRC

32 x 16

3 x 12

58

2.7 to 5.5

-40 to 105

LQFP64

0.5

MKE14F512VLL16
データ・シート

アクティブ

10K @ US$3.84

Arm Cortex-M4

168

576

64

4

2 x I²C, 2 x SPI, 3 x UART

—

1

1

1 x 16

CRC

32 x 16

3 x 12

89

2.7 to 5.5

-40 to 105

LQFP100

0.5

MKE16F256VLH16
データ・シート

アクティブ

10K @ US$3.07

Arm Cortex-M4

168

320

32

4

2 x I²C, 2 x SPI, 3 x UART

1

1

1

1 x 16

CRC

32 x 16

3 x 12

58

2.7 to 5.5

-40 to 105

LQFP64

0.5

MKE16F256VLL16
データ・シート

アクティブ

10K @ US$3.28

Arm Cortex-M4

168

320

32

4

2 x I²C, 2 x SPI, 3 x UART

1

1

1

1 x 16

CRC

32 x 16

3 x 12

89

2.7 to 5.5

-40 to 105

LQFP100

0.5

MKE16F512VLH16
データ・シート

アクティブ

10K @ US$3.95

Arm Cortex-M4

168

576

64

4

2 x I²C, 2 x SPI, 3 x UART

1

1

1

1 x 16

CRC

32 x 16

3 x 12

58

2.7 to 5.5

-40 to 105

LQFP64

0.5

MKE16F512VLL16
データ・シート

アクティブ

10K @ US$4.16

Arm Cortex-M4

168

576

64

4

2 x I²C, 2 x SPI, 3 x UART

1

1

1

1 x 16

CRC

32 x 16

3 x 12

89

2.7 to 5.5

-40 to 105

LQFP100

0.5

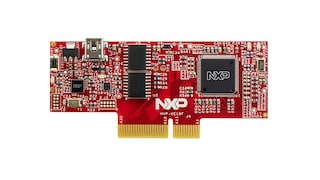

MKE18F256VLH16
データ・シート

アクティブ

10K @ US$3.39

Arm Cortex-M4

168

320

32

4

2 x I²C, 2 x SPI, 3 x UART

2

1

1

1 x 16

CRC

32 x 16

3 x 12

58

2.7 to 5.5

-40 to 105

LQFP64

0.5

MKE18F256VLL16
データ・シート

アクティブ

10K @ US$3.60

Arm Cortex-M4

168

320

32

4

2 x I²C, 2 x SPI, 3 x UART

2

1

1

1 x 16

CRC

32 x 16

3 x 12

89

2.7 to 5.5

-40 to 105

LQFP100

0.5
