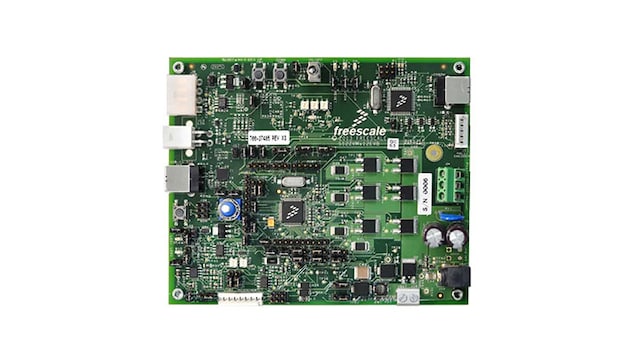

S12ZVM 3-phase BLDC/PMSM Evaluation Board

S12ZVMEVB アクティブ

画像にカーソルを合わせると拡大表示されます。

The S12ZVMEVB is a development board for the S12 MagniV® S12ZVM 16-bit MCUs targeted for 2-phase DC and 3-phase BLDC or PMSM motor control applications.

The S12ZVM integrates an MCU with an S12Z core, a 5 V voltage regulator, a LIN physical layer and a gate driver unit capable of controlling up to 6 power MOSFETs and is targeted for automotive applications such as HVAC blowers, engine cooling fans, wiper systems, fuel or water pumps.

There are two versions of the EVB:

  • The S12ZVML12EVB uses the S12ZVML128 integrating a LIN transceiver
  • The S12ZVMC12EVB uses the S12ZVMC128 integrating a voltage regulator controller for an external CAN transceiver

対応製品

プロセッサ＆マイクロコントローラ

S12 MagniVミックスド・シグナルMCU

  • S12ZVM: S12ZVM Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

  • S12ZVML128 (LIN version) or S12ZVMC128 (CAN version), in 64 LQFP-EP

Connectivity

  • Connector interface for 2-phase (DC) or 3-phase (BLDC or PMSM) motor
  • USB-to-SCI interface
  • LIN connector
  • External CAN transceiver
  • Hall-sensor interface and connector
  • Resolver interface and connector

Power Management

  • Shunt resistors for current sensing on up to three phases and common DC link

Debug

  • Built-in OSBDM debugger

Components

  • One general purpose potentiometer, two LEDs, two push buttons and one switch

購入オプション

S12ZVMC12EVBCAN-Image

クリックして展開

  • S12ZVMC12EVBCAN
    アクティブ

  • S12ZVM Development Board (for external CAN) for 2-phase DC and 3-phase BLDC.

    • S12ZVM Evaluation Board
    • Quick Start Guide
  • $479.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
S12ZVML12EVBLIN-Image

クリックして展開

  • S12ZVML12EVBLIN
    アクティブ

  • S12ZVM Development Board (integrating LIN) for 2-phase DC and 3-phase BLDC.

  • $369.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
