高速CANトランシーバ - Mantisファミリ

画像にカーソルを合わせると拡大表示されます。

ブロック図

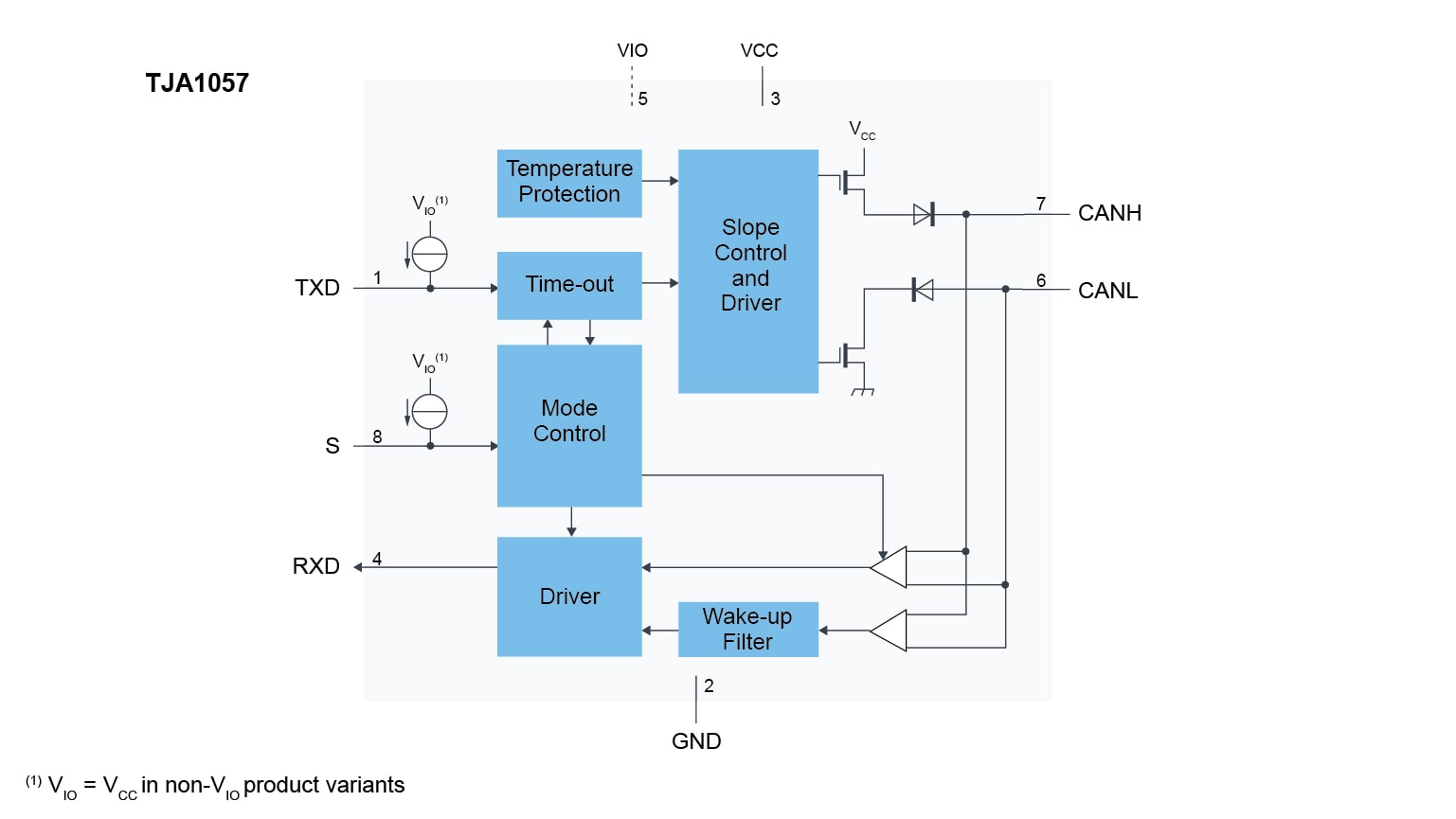

TJA1057のブロック図

TJA1057 Block Diagram

特長

一般的な機能

  • ISO 11898-2:2016、SAE J2284-1~SAE J2284-5およびSAE J1939-14に完全準拠
  • 12 V車載システム向けに最適化
  • 提案されたEMC規格IEC 62228-3およびSAE J2962-2に準拠した低い電磁放射 (EME) と高い電磁耐性 (EMI)
  • AEC-Q100準拠
  • ダーク・グリーン製品(ハロゲン・フリー、RoHS規制準拠)
  • TJA1057BおよびTJA1057Cは伝搬遅延が短く、より大きなネットワーク・トポロジをサポート
  • VIO入力を備えたバージョンは、3.3 V~5 Vのマイクロコントローラに直接インターフェース可能。VIOピンのないバージョンは、マイクロコントローラのI/Oが5 Vに対応していれば、3.3 Vおよび5 V電源のマイクロコントローラにインターフェース可能

予測可能なフェイルセーフ動作

  • あらゆる電源条件下で予測可能な機能的挙動
  • 電源非供給時にトランシーバをバスから切断(ゼロ負荷)
  • 送信データ (TXD) ドミナント・タイムアウト機能
  • TXDおよびS入力ピンの内部バイアス

保護

  • バス・ピンでの高いESD処理能力 (8 kV IECおよびHBM)
  • 車載環境における過渡電圧から保護されたバス・ピン
  • VCCおよびVIOピンの低電圧検出
  • 熱保護

TJA1057GT(/3)/TJA1057GTK(/3)

  • 最大5 Mbit/sのデータ・レートに対するタイミング保証
  • TXDからRXDへの伝搬遅延を210 nsに改善
