2.4/5 GHz Dual-Band 2x2 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.1 Solution

もっと見る

ブロック図

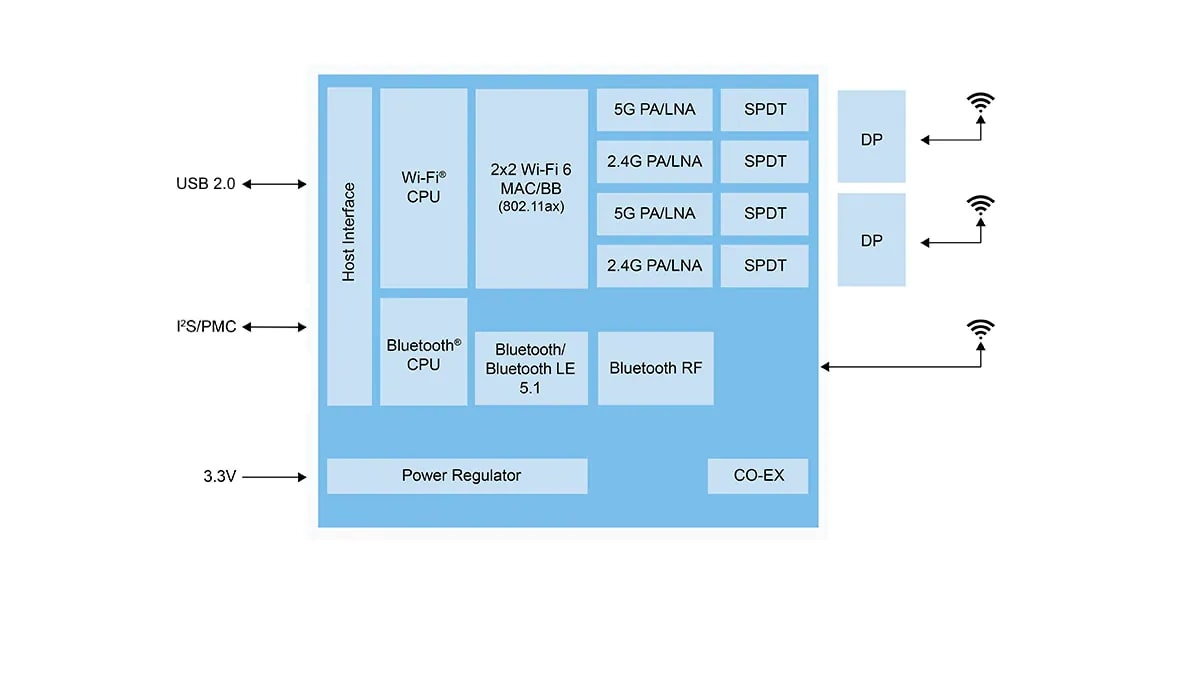

IW620P Block Diagram

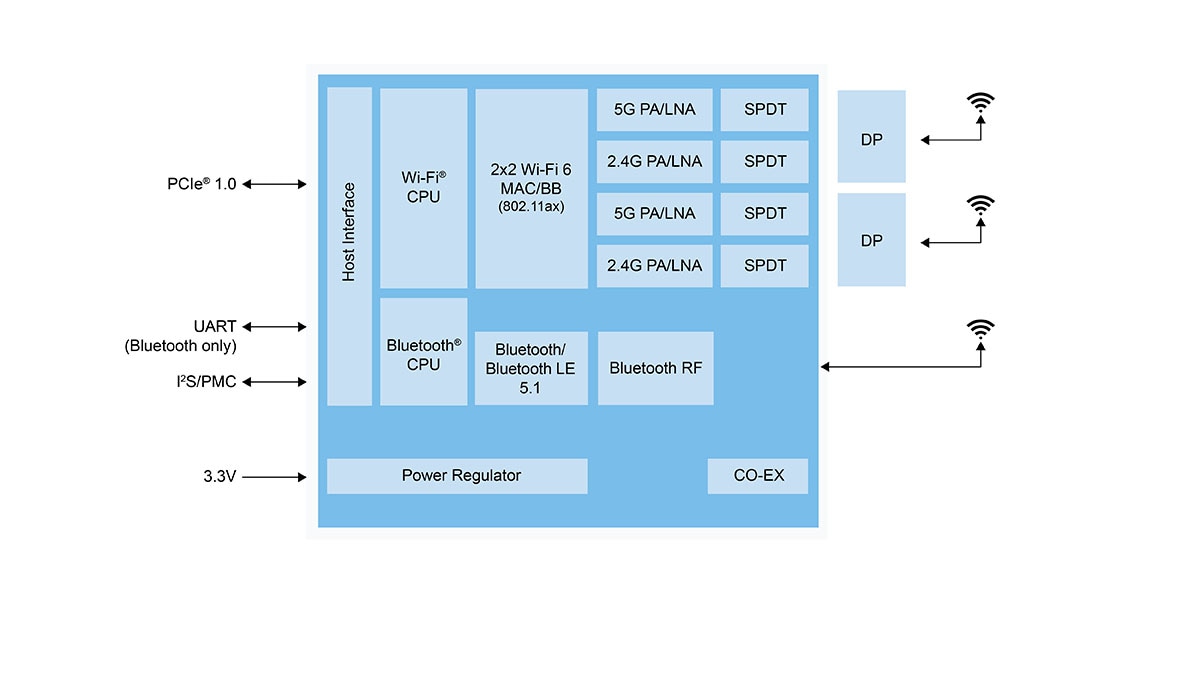

IW620P Block Diagram

Features

Wi-Fi 6 (802.11ax)

  • 2x2 Wi-Fi 6 (802.11ax) dual-band support
  • 1024 QAM, 80 MHz
  • Peak throughput: 1200 Mbit/s
  • MU-OFDMA + MU-MIMO support
  • Advanced active channel scanning
  • Low-power Wi-Fi standby with Wi-Fi 6 TWT suspend mode

Bluetooth and Bluetooth Low Energy 5.1

  • Bluetooth Low Energy LR / 2 Mbps + LR
  • Bluetooth Low Energy Mesh

Antenna support

  • 3-antenna configuration
  • 2x2 5 GHz/2.4 GHz Wi-Fi RF path
  • Dedicated 2.4 GHz Bluetooth RF path

Drivers

  • Linux
