2.4/5 GHzデュアルバンド2x2 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.3車載ソリューション
Wi-Fi® 6 1x1 Concurrent Dual Wi-Fi (CDW) and Bluetooth® 5.3 Combo SoC
The AW690 is a highly integrated Wi-Fi 6 device enabling concurrent dual Wi-Fi (CDW) and Bluetooth 5.3 operation. Supporting a 1x1 CDW configuration in both the 2.4 GHz and 5 GHz bands, and 2x2 MIMO single-band operation, the system-on-chip (SoC) provides a peak data rate of 1.2 Gbit/s and implements advanced features including MU-MIMO, OFDMA and target wake time (TWT).
With integrated 2.4 GHz and 5 GHz TX power amplifiers (PA), RX low noise amplifiers (LNA) and Tx/Rx switches (T/R SW) as well as a full Bluetooth radio, the AW690 simplifies the design and minimizes the PCB area.
The AW690 implements advanced Wi-Fi and Bluetooth coexistence hardware with algorithms to optimize collaborative performance. In addition, support for external radio coexistence (for example, cellular) is provided through an external interface.
With AEC-Q100 Grade 3- compliant options, the AW690 provides multiple host interface options for the Wi-Fi radios (PCIe) and Bluetooth radio (UART) to provide a flexible design for easy integration into demanding automotive applications.
Wireless modules based on the NXP AW690 are offered by leading module manufacturers.
製品詳細

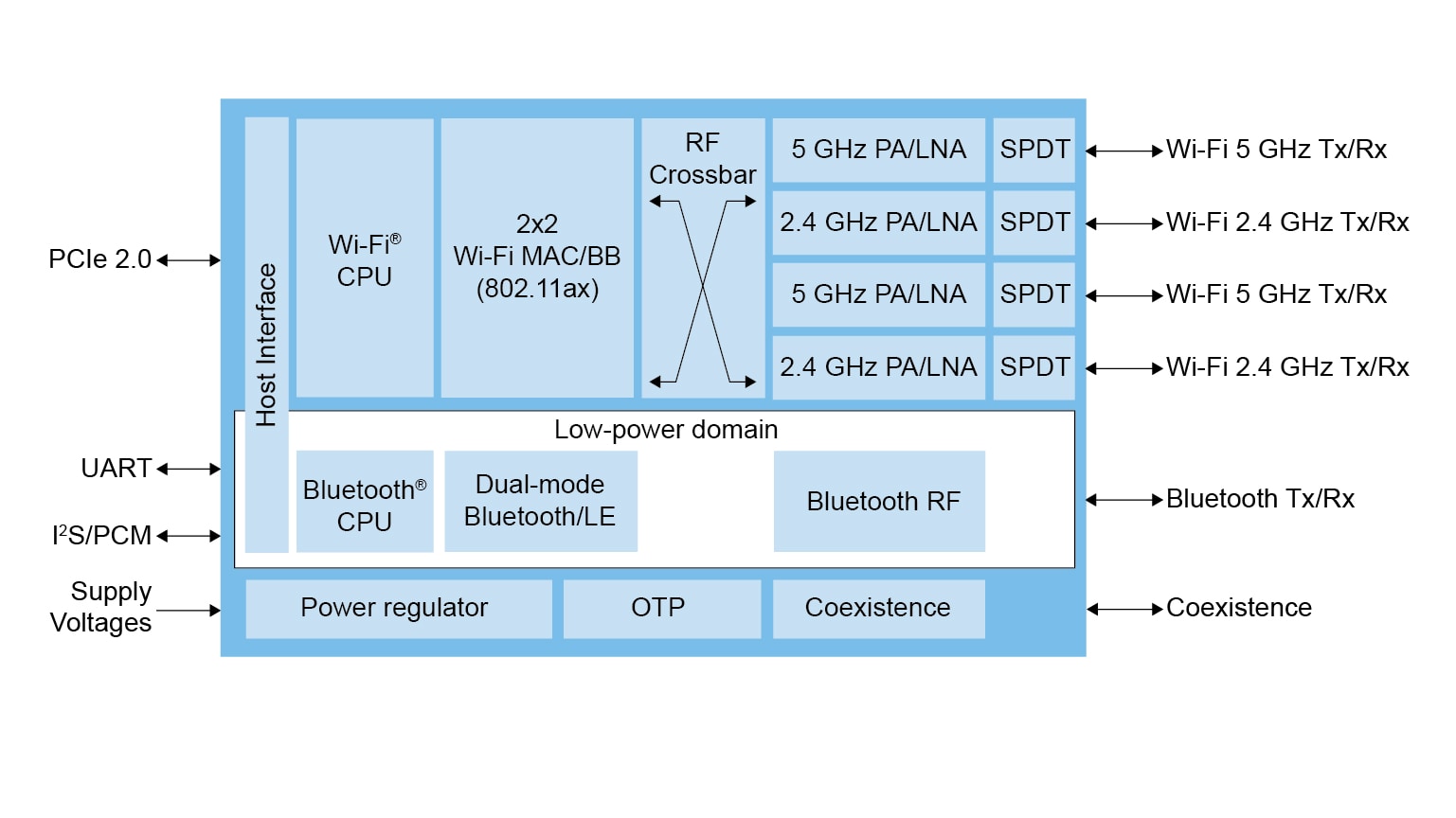

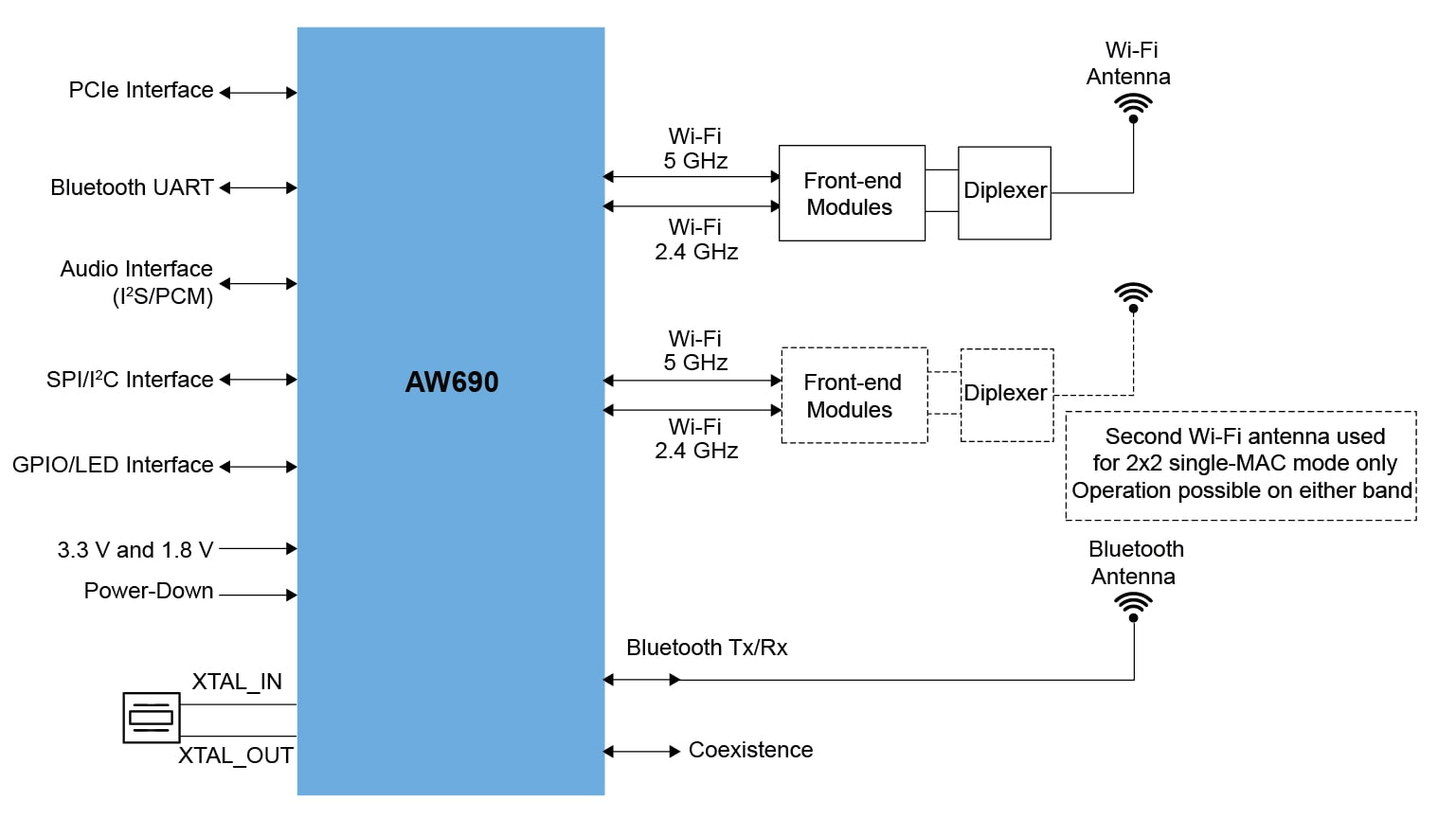

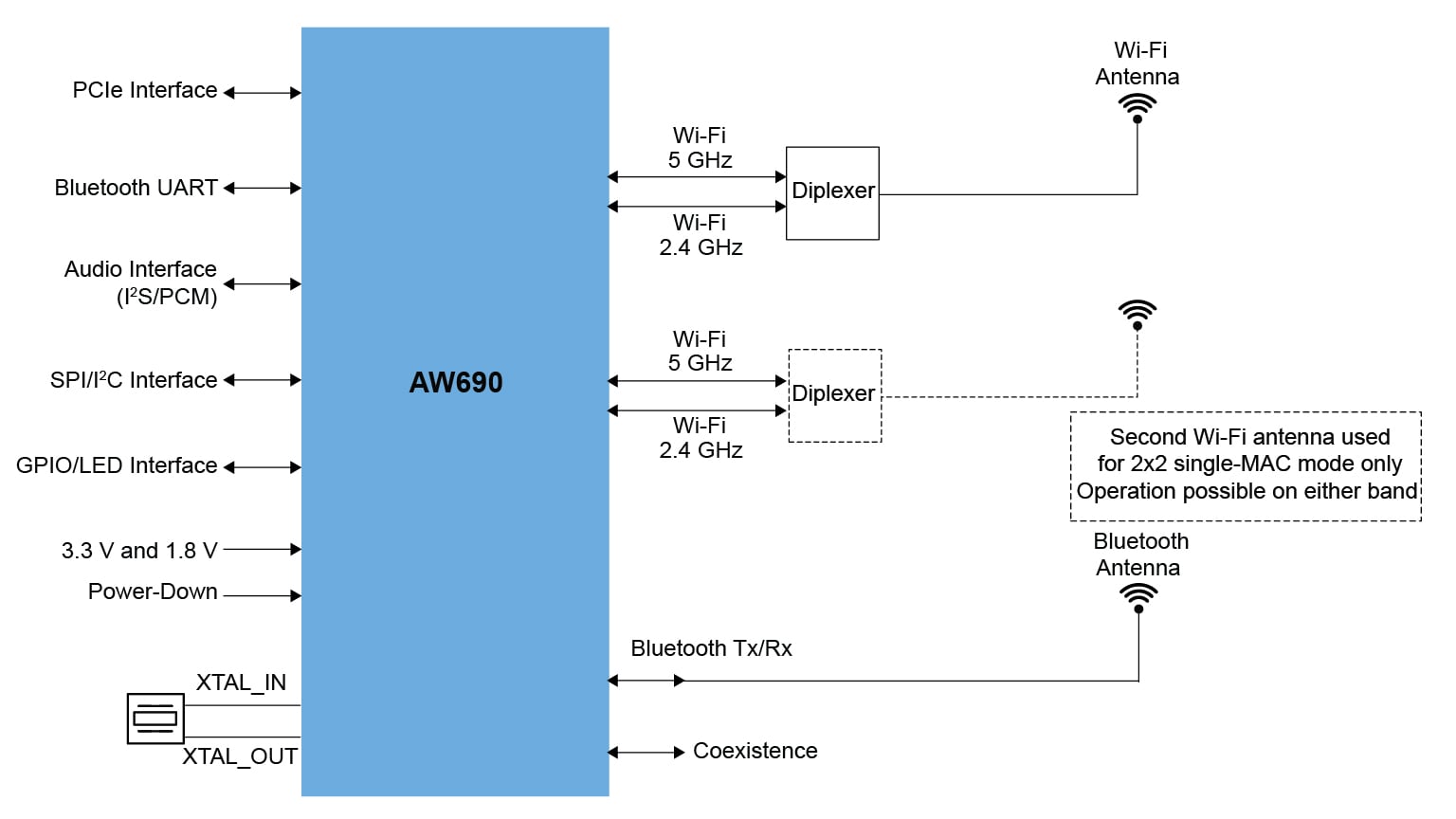

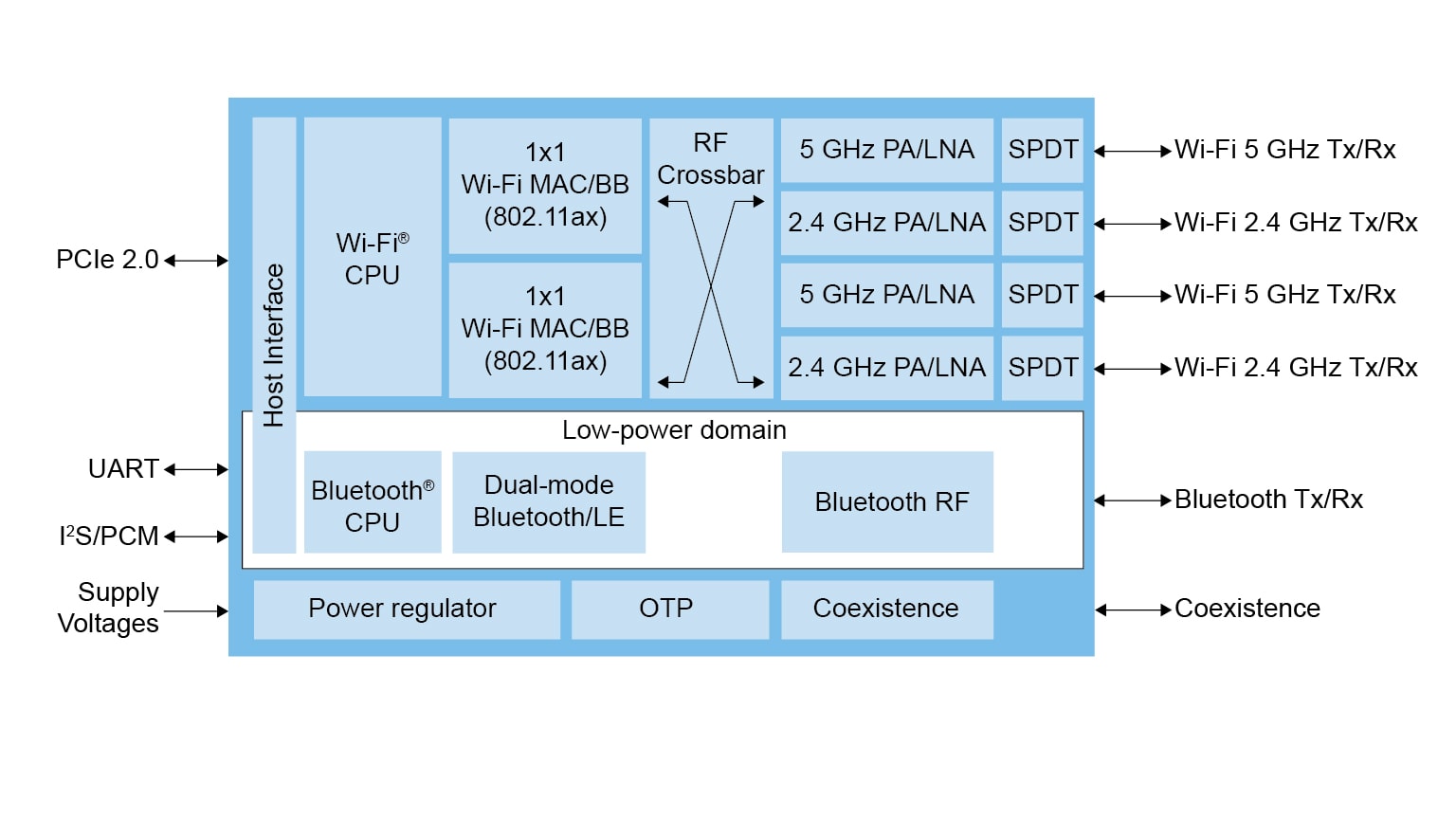

ブロック図
図を選択する。:
Features
Wi-Fi Key Features
- Concurrent Wi-Fi 6 and Wi-Fi 5 1x1 SISO operation
- Single-MAC Wi-Fi 6 2x2 MIMO operation
- 1024 QAM
- MU-MIMO
- OFDMA
- Target Wake Time (TWT)
- WPA2, WPA3
Bluetooth Key Features
- Bluetooth 5.3 specification support
- Bluetooth Class 1.5 and Class 2
- BDR and EDR: 1 Mbit/s, 2 Mbit/s and 3 Mbit/s
- Bluetooth Low Energy (LE) 1 Mbit/s and 2 Mbit/s
- Bluetooth Low Energy Long Range
- Two wide-band speech links
- Up to 16 Bluetooth LE links
- Bluetooth LE ultra-low power mode
- Wi-Fi/Bluetooth coexistence protocol support
General Features
- Efficient power management supporting low power modes
- PCIe and UART host interfaces
- Independent ARM-based Wi-Fi and Bluetooth CPUs
- Integrated RF PAs / LNAs, T/R switch, and internal low-voltage regulator
- AEC-Q100 Grade 3 (-40°C to +85°C) support

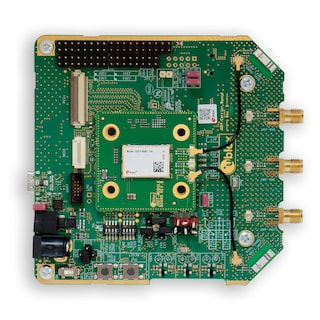

Partner Modules
AW690
Wi-Fi 6 (802.11ax) 2.4/5 GHz 1x1 + Bluetooth® 5.3| Product | Wi-Fi I/F | Bluetooth I/F | Operating Temp | Antenna Type | Antenna # | Module Type | Module Size | Qualifications | Recommended Host |
|---|---|---|---|---|---|---|---|---|---|
|
JODY-W354-00A |
PCIe | UART, PCM/I²S | -40 to 85 | Antenna pin(s) | 2 | SMD | 13.8 x 19.8 x 2.5 | HW qual: AEC-Q104; FCC/ISED, RED/UKCA,GITEKI,NCC,KCC,ANZ,BTSIG | i.MX 6/7 |
