Freedom Development Platform for 72MHz KE17Z/KE13Z/KE12Z MCUs

FRDM-KE17Z アクティブ

画像にカーソルを合わせると拡大表示されます。

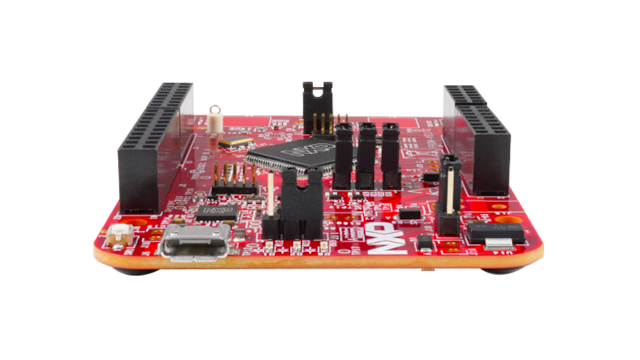

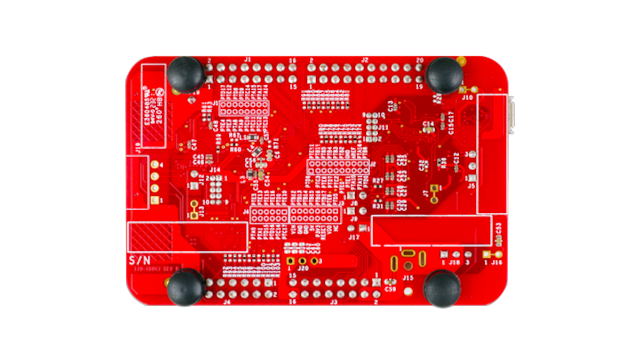

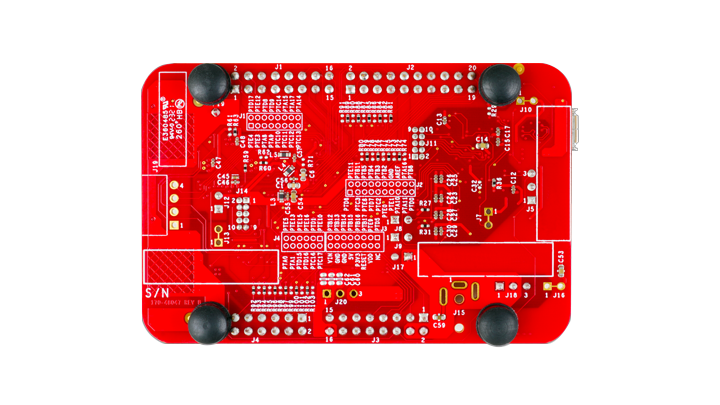

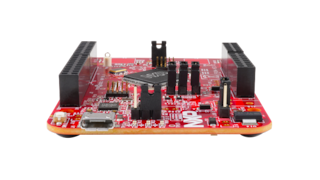

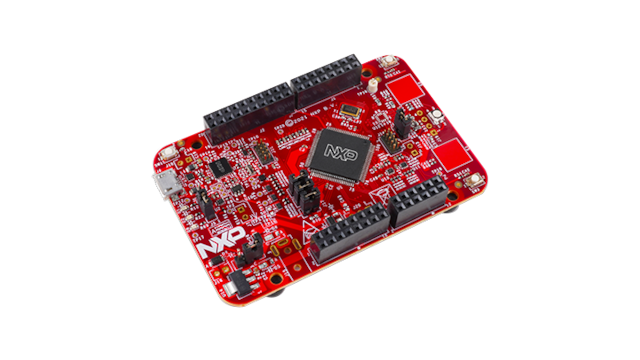

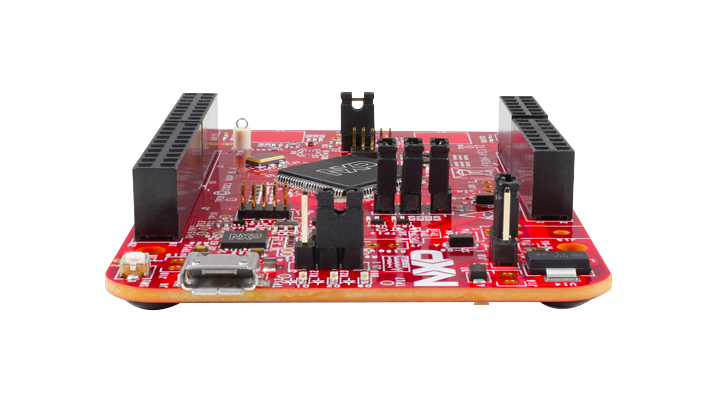

The FRDM-KE17Z Freedom Board is designed to work in standalone mode or as the main board of FRDM-TOUCH, FRDM-MC-LVBLDC and Arduino® boards.

This Freedom board is compatible with DC 5v and 3.3v power supply and features a KE17Z, a device boasting up to 256KB Flash and 48KB SRAM and numerous analog and digital peripherals.

The onboard interfaces include an RGB LED, an ambient temperature sensor, two capacitive touchpads.

An area is reserved for populating a 6-axis digital sensor, a 3-axis digital angular rate gyroscope.

対応製品

プロセッサ＆マイクロコントローラ

KEシリーズArm Cortex-M4/M0+

  • KE1xZ: KE1xZ: Arm® Cortex®-M0+ 5V Main Stream MCU with NXP Touch and CAN Control

Features

Microcontroller

  • MKE17Z256VLL7 MCU (Arm® Cortex®-M0+)
  • 72MHz
  • 100LQFP package
  • 256 KB flash
  • 48 KB SRAM

Connectivity

  • I/O headers for easy access to MCU I/O pins

Debug

  • Onboard debug circuit: K20DX128VFM5 (OpenSDA) with a virtual serial port

Sensors

  • NXP inertial sensor, FXOS8700CQ (DNP)

Components

  • Thermistor, reset push button, two user buttons and one RGB LED
  • Two touch electrodes in the self-capacitive mode

購入オプション

FRDM-KE17Z-Image

クリックして展開

  • FRDM-KE17Z
    アクティブ

  • Freedom Development Platform for 72MHz KE17Z/KE13Z/KE12Z MCUs.

    • FRDM-KE17Z
    • Quick start guide
    • Supporting cable
  • $44.85 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 2
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
