LPCScrypt
Note: : LPCScrypt is now installed as part of LinkServer, the recommended utility package for NXP LPC-Link2 (and its replacement, MCU-Link).
LPCScrypt is the recommended tool for programming the latest versions of CMSIS-DAP and J-Link firmware onto boards with Link2/LPC-Link2 debug probes. Please note that LPCScrypt does not support other types of debug probe.

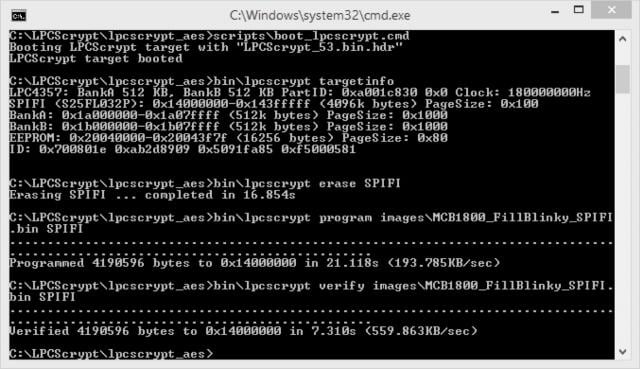

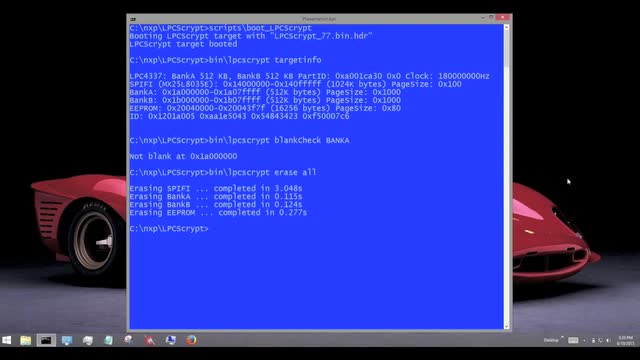

As well as being used for LPC-Link2 debug probes, LPCScrypt is also a command-line based, flash, EEPROM, OTP and security programming tool for LPC1800 and LPC4300 series microcontrollers. LPCScrypt consists of a multi-platform command line tool and an MCU firmware monitor. For further information please refer to the documentation provided in the installation.
Contact your local NXP® representative to obtain the enhanced version (required for export control compliance).
ソフトウェア詳細
Features
- Scriptable command line interface
- Programming of internal and SPIFI flash
- Support for a wide range of SPIFI devices (via SFDP identification and configuration)
- Optimised for high speed operation - typically 100-300KB/sec, depending upon flash device, host OS and host computer.
- Programming EEPROM (internal flash parts only)
- Programming One-Time Programmable (OTP) memory
- Images and scripts to program LPC-Link2 and LPCXpresso V2/V3 debug probe firmware
- LPC-Link2 Debug Firmware Programming
- Generating and programming 128 bit AES keys
- Encrypting and programming secure images
対応製品
-
プロセッサ＆マイクロコントローラ
-
Armマイクロコントローラ
-
LPC1800シリーズ： Arm® Cortex®-M3コアをベースにした高性能マイクロコントローラ(MCU)
- LPC1850FET256
- LPC1822JBD144
- LPC1817JBD144
- LPC1853JET256
- LPC1837JET256
- LPC1837JET100
- LPC1830FET100
- LPC1833JET100
- LPC18S57JBD208
- LPC18S37JBD144
- LPC1857FET256
- LPC1850FET180
- LPC18S30FET100
- LPC1827JET100
- LPC1820FET100
- LPC1815JET100
- LPC18S37JET100
- LPC18S57JET256
- LPC1812JET100
- LPC1823JET100
- LPC1813JBD144
- LPC1827JBD144
- LPC1830FBD144
- LPC1857JET256
- LPC1813JET100
- LPC1857JBD208
- LPC1817JET100
- LPC1833FET256
- LPC18S30FET256
- LPC1825JBD144
- LPC1837JBD144
- LPC1820FBD144
- LPC1815JBD144
- LPC18S50FET180
- LPC1833JBD144
- LPC1812JBD144
- LPC18S30FBD144
- LPC18S10FET100
- LPC1823JBD144
- LPC1830FET256
- LPC1810FET100
- LPC1810FBD144
- LPC1830FET180
- LPC1853JBD208
- LPC1837FET256
- LPC1853FET256
- LPC18S50FET256
- LPC1822JET100
- LPC1833JET256
- LPC1825JET100
-
LPC4300シリーズ： Arm® Cortex®-M4/M0コアを搭載した高性能マイクロコントローラ(MCU)
- LPC4322JET100
- LPC4357JBD208
- LPC43S50FET256
- LPC43S67JET256
- LPC43S67JET100
- LPC4367JBD208
- LPC43S67JBD208
- LPC4367JET256
- LPC4367JET100
- LPC4330FBD144
- LPC43S70FET100
- LPC4325JET100
- LPC4333JET100
- LPC4310FET100
- LPC4315JBD144
- LPC4312JBD144
- LPC43S57JET256
- LPC4317JBD144
- LPC4353JBD208
- LPC4357FET256
- LPC4323JBD144
- LPC4327JET100
- LPC4310FBD144
- LPC4353FET256
- LPC4350FET256
- LPC43S30FBD144
- LPC43S20FBD144
- LPC4312JET100
- LPC4317JET100
- LPC4323JET100
- LPC4353JET256
- LPC4313JBD144
- LPC4330FET100
- LPC4337FET256
- LPC4325JBD144
- LPC4370FET256
- LPC4322JBD144
- LPC4330FET256
- LPC43S30FET100
- LPC4350FET180
- LPC4337JBD144
- LPC4330FET180
- LPC4337JET256
- LPC4315JET100
- LPC4327JBD144
- LPC4370FET100
- LPC43S37JET100
- LPC43S20FET180
- LPC4333JBD144
- LPC4320FET100
- LPC43S37JBD144
- LPC4313JET100
- LPC43S57JBD208
- LPC43S50FET180
- LPC4337JET100
- LPC43S70FET256
- LPC4320FBD144
- LPC4357JET256
- LPC43S30FET256
-
-
システム要件
Multi-Platform Support
- Windows 7 and later
- Mac OS X 10.11 or later
- Linux (Ubuntu 16.04 / 18.04)
