MPC5643L 3-phase PMSM Development Kit

MTRCKTDPS5643L 製造開始前

画像にカーソルを合わせると拡大表示されます。

The MTRCKTDPS5643L motor control development kit is ideal for applications requiring two PMSM motors, like active suspension or electric powertrain. The kit is designed to enable rapid prototyping and evaluation of the motor control application without having to wait for the final hardware design. The kit includes a 32-bit NXP® MPC5643L based controller board and the 3-phase low-voltage power stage board.

An integral part of the automotive motor control development kit is the application software which provides a complete reference implementation of the PMSM motor control application and also takes advantage of the Automotive Math and Motor Control Library Set.

ブロック図

図を選択する。:

Motor Control Algorithm Concept

Motor Control Algorithm Concept

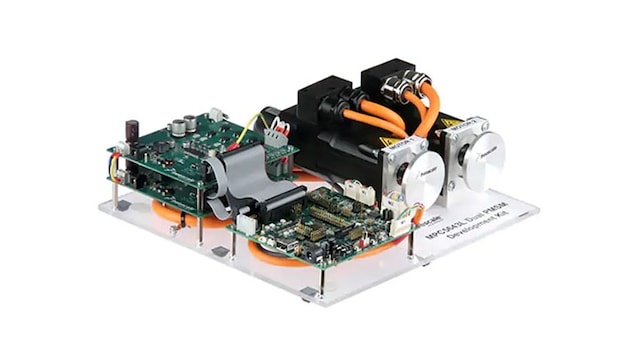

MTRCKTDPS5643L Dual 3-phase PMSM Development Kit with NXP MPC5643L MCU

MTRCKTDPS5643L Dual 3-phase PMSM Development Kit with NXP MPC5643L MCU IMG 2
図を取得する PDF

対応製品

インターフェース

オートモーティブLINソリューション

  • MC33905: SBC Gen2 with High-Speed CAN and LIN

パワーマネージメント

プリドライバ

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver

プロセッサ＆マイクロコントローラ

超高信頼性MPC56xx MCU

  • MPC564xL: Ultra-Reliable Dual-Core 32-bit MCU for Automotive and Industrial Applications

Features

    The NXP MTRCKTDPS5643L motor control development kit is ideal for applications requiring two PMSM motors, such as active suspension or electric powertrain

  • Designed to enable rapid prototyping and evaluation of the motor control application without having to wait for the final hardware design
  • Includes a 32-bit NXP MPC5643L based controller board and the 3-phase low-voltage power stage board
  • The application software is an integral part of the automotive motor control development kit as it provides a complete reference implementation of the PMSM motor control application and also takes advantage of the Automotive Math and Motor Control Library Set
