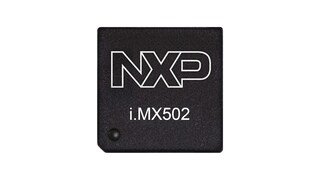

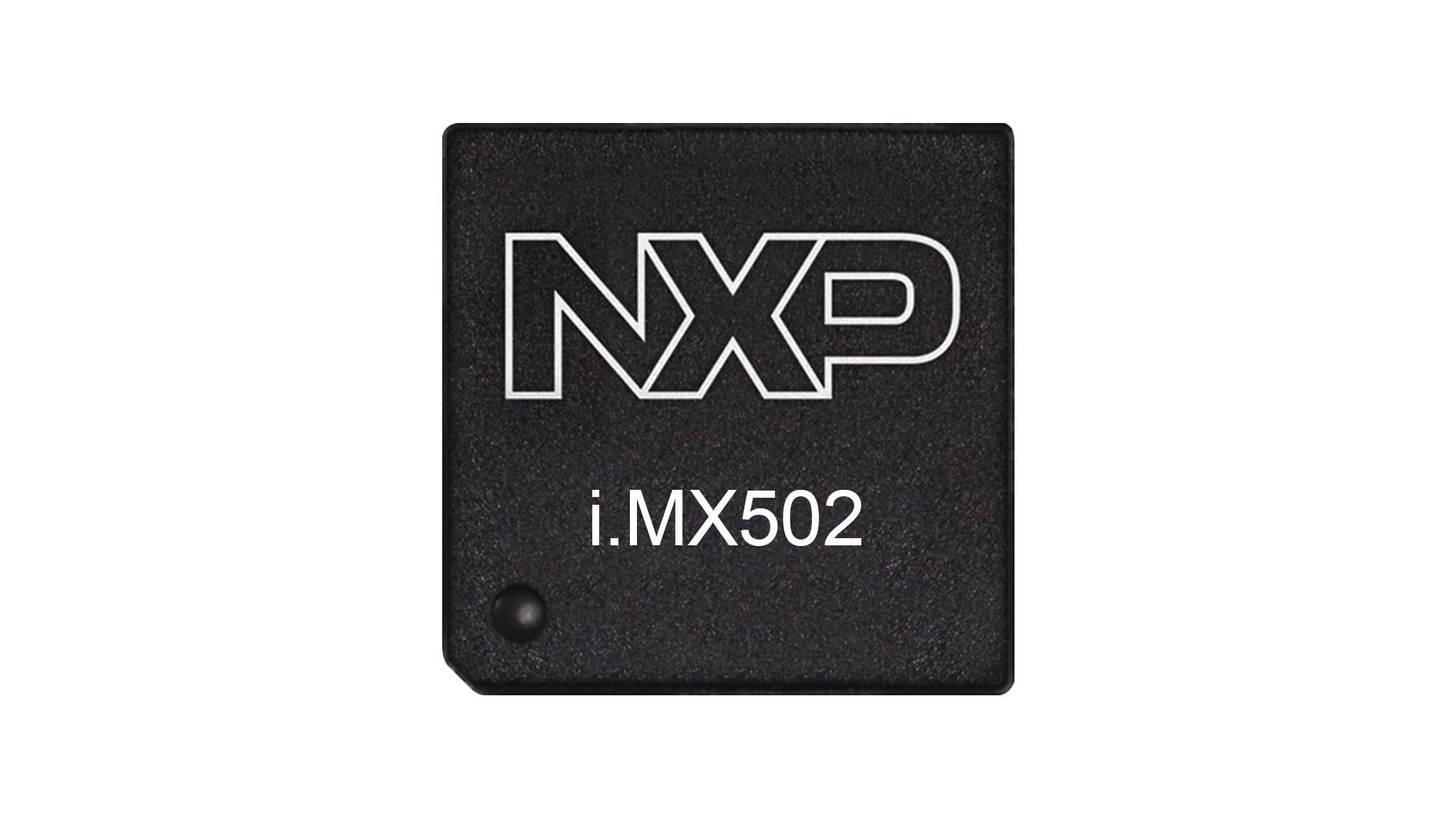

Multimedia Applications Processors - LCD Controller, Arm® Cortex®-A8 Core
With Arm® Cortex™- A8 core and the integrated LCD controller, the i.MX502 provides the right level of performance and integration for portable applications such as DECT phones and vending machine displays. With a NEON™ DSP and a 266 MHz memory bus, the i.MX502 provides a level of performance that is not sacrificed by power consumption.
Supported by NXP® power management ICs (PMIC) MC34708 and MMPF0100, the i.MX502 supports a standy-by power of <1mW. Our proven combined solutions are available as reference designs with full software BSPs and backed by integrated technical support to offer quality solutions that get our customers to market faster.
製品詳細
Features
CPU Complex
- Up to 800 MHz Arm® Cortex™-A8
- 32 KB instruction and data caches
- Unified 256 KB L2 cache
- NEON SIMD media accelerator
- Vector floating point coprocessor
Multimedia
- 32-bit primary display support up to SXGA+ resolution
- Pixel Processing Pipeline (ePxP) supporting CSC, Combine, Rotate, Gamma Mapping
External Memory Interface
- Up to 2GB of LP-DDR2, DDR2 and LP-DDR1(mDDR), 16/32-bit
- SLC/MLC NAND flash, 8/16-bit with 32-bit ECC
Advanced Power Management
- Multiple independent power domains
- State Retention Power Gating (SRPG)
- Dynamic voltage and frequency scaling (DVFS)
Connectivity
- High-Speed USB 2.0 OTG with PHY
- High-Speed USB 2.0 Host with PHY
- 10/100 Ethernet controller
Controllers
- Wide array of serial interfaces, including SDIO, SPI, I2C and UART
- I2S audio interface
Product Longevity
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
