This Linux software development kit (SDK) includes support for family of QorIQ^® Arm^®-based and Power Architecture^®-based system on chip (SoC) processors and corresponding boards.

Linux board support packages (BSPs) for our Silicon are tested, certified and frozen, ensuring a fully operational toolchain, kernel and board specific modules that are ready to use together within a fixed configuration for specific hardware reference platforms. These BSPs, combined with CodeWarrior^® tools, provide the foundation you need to begin your project quickly.

Customers have the option of both QorIQ SDK as well as community to meet their enablement needs on Power Architecture-based P-series and T-series families of processors.

As NXP, we are committed to contributing enablement software for our platforms into communities like kernel.org, uboot etc. NXP is an excellent option for getting updated and appropriate enablement software for our platforms. As the architecture matures, the enablement is upstream and accepted into the community permitting customers to get it directly from the community. NXP maintains our platforms as part of the community effort.

Going forward, we encourage customers using Power Architecture-based P-series and T-series platforms to get the enablement software directly from the community sources like kernel.org and denx.de (uboot).

ソフトウェア詳細

特徴
対応製品

Features

Linux kernel and device drivers
Yocto Embedded Linux development environment
GNU tools (compilers, linkers, etc.)
Bootloaders and firmware
Libraries and middleware
Reference applications
Linux root filesystem
Deployment mechanisms

QorIQ SDK or Layerscape SDK – which to choose?

QorIQ SDK or Layerscape SDK – which to choose?
- QorIQ SDK is a fully featured and mature Yocto-based software kit for QorIQ PowerPC-based P-series and T-series family of processors. It also supports Layerscape family, but we recommend users to leverage the new Layerscape SDK to get access to latest features on Layerscape platforms
- Layerscape SDK is the hybrid Ubuntu-based software kit for the Layerscape family of processors, and going forward will be the primary delivery mechanism for the most up-to-date software on Layerscape platforms
- Both QorIQ and Layerscape SDK can be consumed either as reference Linux integration or as individual NXP components – drivers, tools, libraries, boot-loaders etc. that feed into that integration

What's new on v2.0-1703

Highlights
- Integrates off-train release for LS2088A BSP v0.3
- Integrates off-train release for LS1012A BSP v0.5
- Removal of LS2080A
- MC 10.1.2 update
- Added DPDK support for DPAA2 platforms (LS2088A)
- Integrates Open Data Plane (ODP) for LS2088A
- Includes several software fixes
- Includes additional workarounds for Chip Errata: A-009241, A-009942, A-010554, A-010635, A-010812

対応製品

全ての展開

プロセッサ＆マイクロコントローラ
- Power Architecture
  - QorIQ Qonverge^® Platform：ベースバンドプロセッサ
    - B4420
    - B4860
  - フィールドで実証済みのパワー・アーキテクチャ・テクノロジーPシリーズに基づくQorIQ^® Processor
    - P3041
    - P4080
    - P5020
    - P5040
  - Power Architecture Technology T-SeriesをベースにしたQorIQ^® Processor
    - T1024
    - T1040
    - T1042
    - T2080
    - T4240
- Armプロセッサ
  - Layerscape^®プロセッサ
    - LS1020A
    - LS1021A
    - LS1043A
    - LS2084A
    - LS1088A
    - LS1046A
    - LS2088A
    - LS1028A
    - LS1012A

Connect With Us

The QorIQ^® Linux Software Development Kit - aiming to exceed your expectations

Linux Security Advisory

Linux SDK Security Advisory

Previous Releases

Earlier SDK and BSP releases for QorIQ and PowerQUICC^® processors and boards not superseded by this SDK may be found at the following link:

QorIQ Linux SDK previous releases

Note: Click on the "previous tab" to see older releases.

Linux Security Advisory

What is NXP’s policy regarding security vulnerabilities in its QorIQ Linux SDKs?
- The QorIQ Linux SDK is a reference SDK, provided to our OEM customers as a reference implementation of QorIQ platform support under Linux which OEMs integrate into their own code base. We do not expect OEMs to use our SDK as their release vehicle. If they do, then they are responsible for updating their code base with critical updates.
- The QorIQ Linux SDK is based on a specific upstream baseline. We do not cherry-pick upstream patches (including security patches) to include in our SDK unless we need them to enable support for our silicon. Instead, we provide an annual or bi-annual update of our software base. Each SDK release is static until the next release.
Does this mean QorIQ SDKs have the Heartbleed and Shellshock vulnerabilities?
- This is the status of recent, high profile vulnerabilities as of October 13, 2014. This is not an exhaustive list of all Linux vulnerabilities nor is it an exhaustive list of all vulnerabilities in current or past SDK releases.
Heartbleed
- Heartbleed is an OpenSSL boundary checking vulnerability allowing attackers to read the memory of systems engaged in a SSL handshake. These memory reads can extract secret keys, passwords, and other sensitive information, allowing attackers to launch additional eavesdropping and impersonation attacks. This vulnerability was announced in April 2014.
- In April 2014, the available QorIQ Linux SDK was version 1.5. Prior to SDK 1.5, the OpenSSL version in the SDK was typically the latest available in the community. Users could replace it with any OpenSSL version they choose. In SDK 1.5, NXP included OpenSSL 1.0.1e with an optimized support for cryptographic acceleration using the QorIQ SEC (Security Engine).
- Users had 2 options for fixing Heartbleed in SDK 1.5;
  - In OpenSSL 1.0.1e, disable the heartbeat via compilation flag “-DOPENSSL_NO_HEARTBEATS “.
    - Optimized crypto acceleration still supported
  - Replace OpenSSL 1.0.1e with a fixed version from Yocto Project
    - NXP patches for optimized crypto acceleration in SDK 1.5 not tested with other versions of OpenSSL, not guaranteed to work.
- In June 2014, NXP released SDK 1.6, which includes OpenSSL 1.0.1g, which fixes the Heartbleed vulnerability. Our optimized crypto acceleration patches were tested with OpenSSL 1.0.1g.
Shellshock
- Shellshock is the genus of several species of Unix Bash shell vulnerabilities which can be exploited to allow remote attackers to execute arbitrary commands on an affected system. This vulnerability was announced on September 24, 2014.
- In September. 2014, the available QorIQ Linux SDK was v1.6. SDK v1.6 and all prior revisions include vulnerable versions of Bash
- Bash is a serious vulnerability for servers. QorIQ devices are typically used in embedded systems which are less likely to have a log-in shell reachable by attackers, however the OEM is best positioned to know the degree of vulnerability of their system.
- SDK v1.7 (Fall 2014) is planned to include Bash 4.3.25 or later, which contains fixes for currently understood vulnerabilities exploited by Shellshock.
- Whether these fixes are comprehensive and completely close Shellshock cannot be guaranteed by NXP. OEMs are advised to continue to follow this issue and patch their systems as necessary. There are no QorIQ platform specific features in Bash which prevent the OEM from patching, replacing, or removing Bash as they see fit.

ダウンロード

クイック・リファレンスソフトウェア・タイプ.

公共 (1)

フィルタ

絞り込み

すべてをクリア

ソフトウェア開発ツール
- ソフトウェア開発リソース

すべてをクリア

1 ダウンロード

ソフトウェア開発リソース
Linux SDK for QorIQ Processors

FLEXERA改訂 AllJan 27, 2022 15:24:001 KBSDK_ENABLEMENT

ダウンロード

注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。

セキュアファイルの読み込み中、しばらくお待ちください。

ドキュメント

クイック・リファレンスドキュメンテーションの種類.

公共 (2)

フィルタ

絞り込み

ドキュメント・タイプ

すべてをクリア

リリース・ノート
サポート情報

すべてをクリア

2 ドキュメント

並び替え

リリース・ノート
QORIQ Linux SDK 2.0-1703 - Release Notes

PDF改訂 2.0-1703Mar 31, 201798.1 KBQORIQ-SDK-2-0-1703_RN
サポート情報
QorIQ^® SDK 2.0-1703 Documentation

HTML | PDF改訂 0Mar 30, 201734.0 MBQORIQ-SDK-2.0-IC-REV0

セキュアファイルの読み込み中、しばらくお待ちください。

設計・リソース

ハードウェア
関連ソフトウェア

ハードウェア

クイック・リファレンスボードタイプ.

NXP (1)パートナー (8)

フィルタ

絞り込み

すべてをクリア

開発ボード/設計
- 評価・開発ボード

すべてをクリア

1 ハードウェア提供

評価・開発ボード
Layerscape LS1046A Reference Design Board

LS1046A-RDB

絞り込み

すべてをクリア

開発ボード/設計
- 組み込みボード・ソリューション

すべてをクリア

1-5 の 8 ハードウェア提供

並び替え

組み込みボード・ソリューション

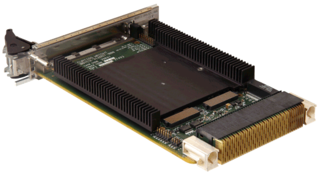

VPX3-133 3U VPX T2080 SBC

The VPX3-133 is a rugged 3U OpenVPX single board computer (SBC) featuring the quad-core QorIQ T2080 processor at 1.5 GHz. Each core includes an AltiVec vector processin...

By Curtiss-Wright Defense Solutions Gold パートナー
組み込みボード・ソリューション

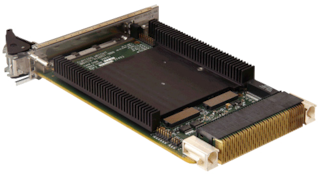

VPX3-152 3U VPX T2080 SBC

The VPX3-152 3U VPX Single Board Computer (SBC) features an NXP T2080 quad-core processor and extensive I/O capabilities (USB, SATA,RS-232/422, GbE, XMC and LVTTL).

By Curtiss-Wright Defense Solutions Gold パートナー
組み込みボード・ソリューション

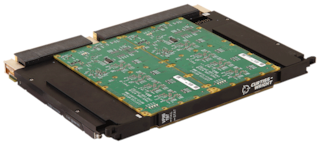

VPX6-197 6U VPX T2080 SBC

The VPX6-197 6U VPX SBC combines the NXP T2080 AltiVec-enabled processor with advanced I/O needed for defense & aerospace applications.

By Curtiss-Wright Defense Solutions Gold パートナー
組み込みボード・ソリューション

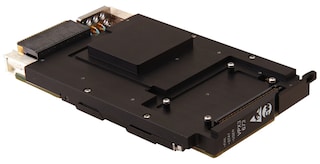

VPX3-673A 3U VPX LS1043S A-PNT Card

The VPX3-673A 3U CMOSS/SOSA Aligned A-PNT Module with Integrated Software was designed to provide A-PNT and central radial clock capabilities for the most challenging app...

By Curtiss-Wright Defense Solutions Gold パートナー
組み込みボード・ソリューション
uCLS1012A IoT SoM

LS1012A based SMARC SoM for secure IoT applications. It includes Mbarx Secure IoT software for connectivity, telemetry, management, OTA firmware updates over Ethernet or ...

By Arcturus Gold パートナー
組み込みボード・ソリューション

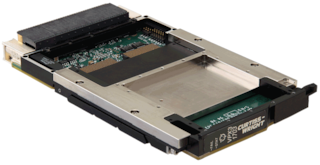

VPX3-1703 3U VPX LS1043A SBC
