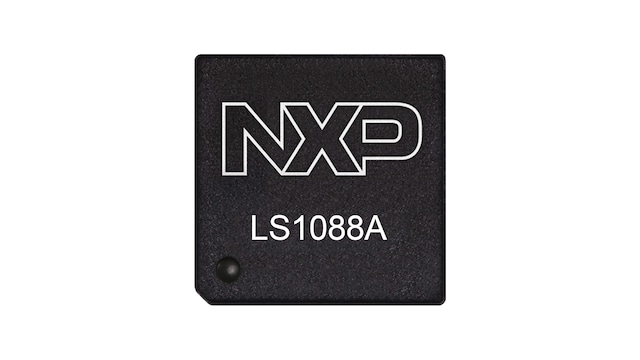

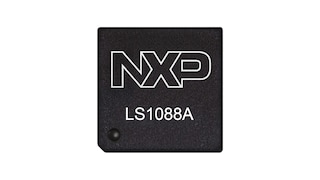

Layerscape® 1088A and 1048A Processor

LS1088A アクティブ
NXP Priority Support: Helping You to Get to Market Faster

動画の上をクリックすると再生されます。

The LS10x8A family of multicore communications processors combines four up to and eight Arm® Cortex®-A53 cores with the advanced, high-performance data path and network peripheral interfaces required for wireless access points, networking infrastructure, intelligent edge access, including virtual customer premise equipment (vCPE) and high-performance industrial applications.

The Arm® general-purpose processors and DPAA2 are supported by a powerful software toolkit that provides a higher level of hardware abstraction and makes software development quick and simple. This combination balances ease-of-use with high-performance processing in a Linux® environment that is familiar to any software programmer.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

ブロック図

LS1088A Block Diagram

LS1088A Processors Block Diagram
図を取得する PDF

Features

Core Complex

  • 8x Cortex-A53 CPUs
    • Up to 1.6 GHz with 64-bit ISA support
    • Each two core clusters shares 1 MB L2 cache
  • 1x 64-bit DDR4 up to 2.1GT/s
    • ECC support

Networking Elements

  • Wire Rate I/O processor, featuring:
    • 2x 10 GbE + 8x 1 GbE
    • MACSEC on 4x 1G
    • XFI/KR, QSGMII, SGMII/KX, RGMII
  • Advanced IO processor (AIOP)
    • up to 10 Gb/s complex packet processing
  • 10 Gb/s SEC crypto acceleration

Interfaces

  • Supports x4, x2, 3x1 PCIe Gen 3 controllers
  • SR-IOV support, Root Complex
  • 1x SATA 3.0
  • 2x USB 3.0 with PHY
  • 2x TDM/HDLC interfaces

Additional Features

  • Support for HW virtualization and partitioning enforcement
  • Industry-standard APIs
  • Functional data path libraries
  • Tailored CodeWarrior® Development Suites
