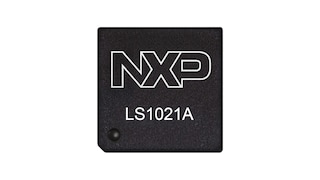

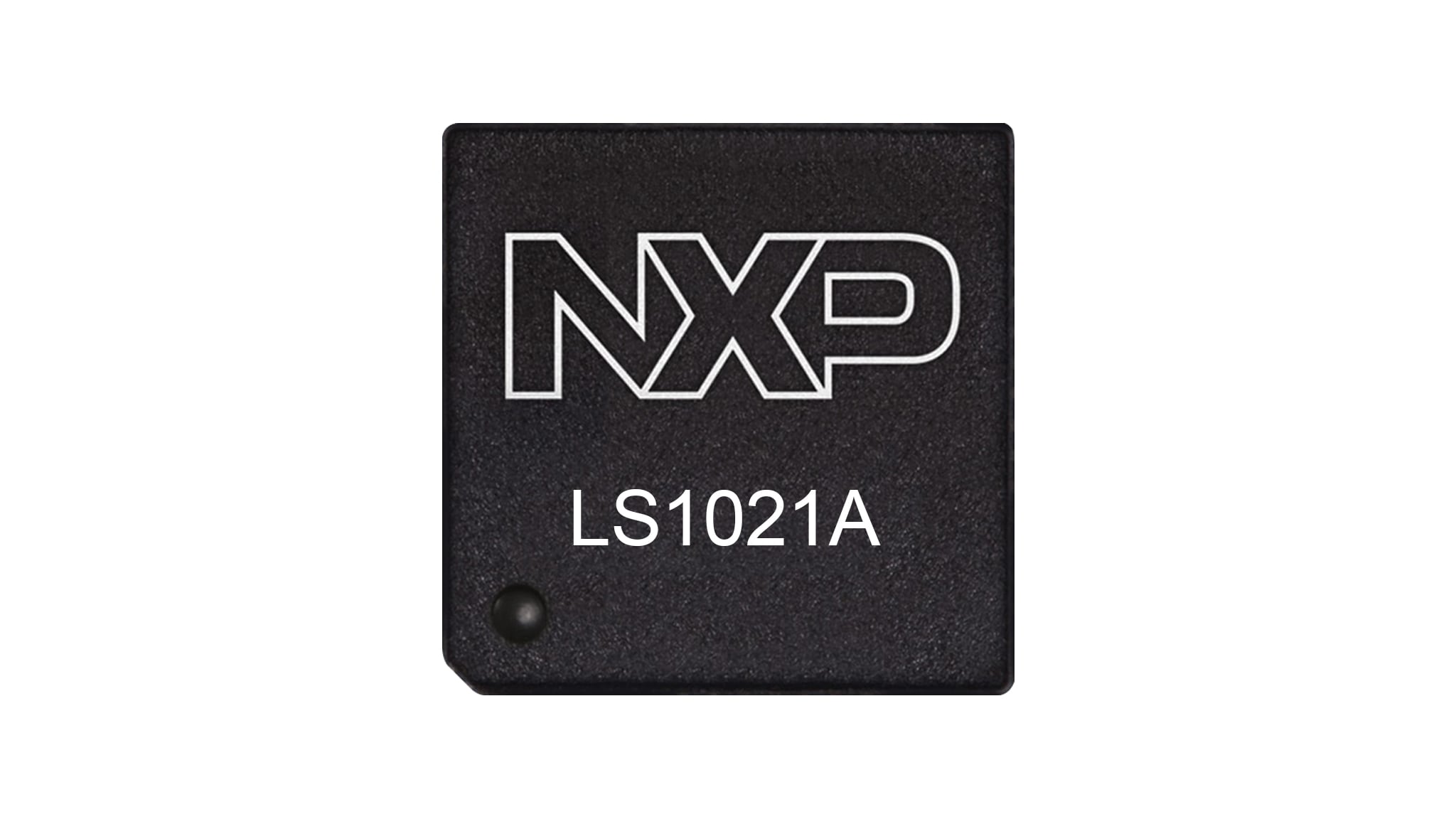

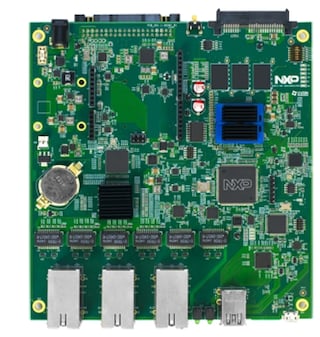

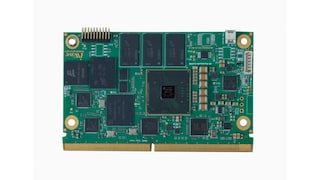

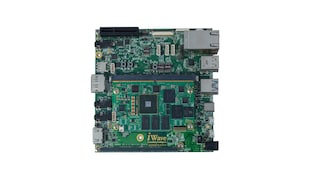

Layerscape® 1021A Dual-Core Processor with LCD Controller

LS1021A アクティブ
NXP Priority Support: Helping You to Get to Market Faster

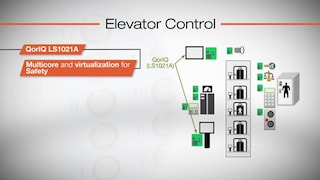

動画の上をクリックすると再生されます。

The LS1 family, which includes the LS1021A communications processor, is built on Layerscape architecture, the industry's first software-aware, core-agnostic networking architecture to offer unprecedented efficiency and scale.

A member of the value-performance tier, the LS1021A processor provides extensive integration and power efficiency for fanless, small form factor enterprise networking applications. Incorporating dual Arm® Cortex®-A7 cores running up to 1.2 GHz, the LS1021A processor is engineered to deliver CoreMark® performance of over 7,000, as well as virtualization support, advanced security features and the broadest array of high-speed interconnects and optimized peripheral features ever offered in a sub-3 W processor.

The LS1021A processor features an integrated LCD controller, CAN controller for implementing industrial protocols, DDR3L/4 running up to 1600 MHz, integrated security engine and QUICC Engine® and ECC protection on both L1 and L2 caches. The LS1021A processor is pin- and software-compatible with the LS1020A and LS1022A processors.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

ブロック図

LS1021A Processor Block Diagram

NXP LS1021A Processor Block Diagram
図を取得する PDF

Features

Core Complex

  • Dual Arm v7 Cortex®-A7 32-bit cores, each supporting dual precision floating point and NEON SIMD module running up to 1.2 GHz
  • 32 KB instruction and data L1 cache with single bit error detection and correction, ECC protection on both instruction and data caches
  • Up to 512 KB coherent L2 cache with single bit error detection and correction, ECC protection

Networking Elements

  • SerDes 4 lanes at up to 6 GHz
    • Supports SGMII, PCIe® and SATA
    • Ethernet
  • Three virtualized enhanced triple-speed Ethernet controllers (VeTSEC) supporting SGMII (up to 2), RGMII, RMII, MII
    • Support IEEE® 1588
  • Twin PCIe Gen2 controllers
    • Supporting up to 5G/tps in 1-lane, 2-lane, or 4-lane (with a single controller)
    • MSI supported
  • Four FlexCAN controllers

Accelerators and Memory Control

  • DDR memory controller supports DDR3L and DDR4 at up to 1600 MHz
    • 8-bit, 16-bit, 32-bit memory supported, with ECC support
  • Security Engine (SEC5.4) features five cryptographic hardware acceleration modules, true random number generator, hashing and CRC unit

Basic Peripherals and Interconnect

  • Arm Cache Coherent Interconnect (CCI400)
  • Arm AMBA 4 MPCore Virtualization
  • Integrated Flash controller supporting 16-bit interface
  • QuadSPI Flash controller
  • USB3.0 superspeed controller with integrated PHY, supporting OTG, Host and Device modes
  • USB2.0 controller supporting OTG, Host and Device modes
  • SD/MMC controller
  • SATA3 controller supporting 6G/tps
  • 3x I²C
  • 2x SPI

Additional Features

  • LCD display controller

もっと見る

購入/パラメータ

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPLS1021Aja 33 アプリケーション・ノート Application Note t789 22 エラッタ Errata t522 1 サポート情報 Supporting Information t531 1 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 1 ホワイト・ペーパ White Paper t530 3 リファレンス・マニュアル Reference Manual t877 3 製品概要 Product Brief t532 1 ja 1 1 6 English The LS1021A processor is a member of the value-performance tier, delivering extensive integration and extreme power efficiency for fanless, small form factor networking applications. Incorporating dual Arm&#174; Cortex&#174; -A7 cores running up to 1.0 GHz, the LS1021A delivers CoreMark&#174; performance of over 5,000, as well as virtualization support, advanced security features and the best performance of any sub-3W communications processor. 1380899497592730355895 PSP 299.3 KB None None documents None 1380899497592730355895 /docs/en/fact-sheet/LS1021AFS.pdf 299341 /docs/en/fact-sheet/LS1021AFS.pdf LS1021AFS documents N N 2017-02-14 LS1021A - Fact Sheet /docs/en/fact-sheet/LS1021AFS.pdf /docs/en/fact-sheet/LS1021AFS.pdf /docs/en/fact-sheet/LS1021AFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Mar 2, 2020 736675474163315314 Fact Sheet Y N LS1021A - Fact Sheet 1 Chinese 1380899497592730355895zh PSP 299.3 KB None None documents None 1380899497592730355895 /docs/zh/fact-sheet/LS1021AFS.pdf 299341 /docs/zh/fact-sheet/LS1021AFS.pdf LS1021AFS documents N N 2017-02-14 LS1021A - Fact Sheet /docs/zh/fact-sheet/LS1021AFS.pdf /docs/zh/fact-sheet/LS1021AFS.pdf /docs/zh/fact-sheet/LS1021AFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 N zh 736675474163315314 Fact Sheet N QorIQ<sup>®</sup> LS1021A - 简介 4 Japanese QorIQ LS1012プロセッサは、極めて優れた電力効率を備え、インテリジェントなインテグレーションを提供します。小型の9.6x9.6mmパッケージにより、ネットワーキングやIoT向けの小型のファンレス・アプリケーションに最適です。 1380899497592730355895ja PSP 299.3 KB None None documents None 1380899497592730355895 /docs/ja/fact-sheet/LS1021AFS.pdf 299341 /docs/ja/fact-sheet/LS1021AFS.pdf LS1021AFS N N 2017-02-14 LS1021A - Fact Sheet /docs/ja/fact-sheet/LS1021AFS.pdf /docs/ja/fact-sheet/LS1021AFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 N ja Fact Sheet t523 ファクト・シート Fact Sheet N QorIQ LS1021A - ファクトシート false ja ja データ・シート Data Sheet 1 2 7 English This document describes the electrical characteristics of the LS1021A communications processor. 1444139018696721730933 PSP 2.1 MB Registration without Disclaimer None documents Extended 1444139018696721730933 /secured/assets/documents/en/data-sheet/LS1021A.pdf 2126798 /secured/assets/documents/en/data-sheet/LS1021A.pdf LS1021A documents Y N 2017-01-18 LS1021A Data Sheet /webapp/Download?colCode=LS1021A&lang_cd=ja /secured/assets/documents/en/data-sheet/LS1021A.pdf Data Sheet N 980000996212993340 2023-06-18 pdf Y en Jun 27, 2019 980000996212993340 Data Sheet Y N LS1021A Data Sheet リファレンス・マニュアル Reference Manual 3 3 3.1 English The LS1021A product family offers the highest level of integration available for an embedded communications processors and a comprehensive enablement model focused on next generation IoT gateways, industrial controllers, and enterprise networking applications. 1446800635867706729753 PSP 34.2 MB Registration without Disclaimer None documents Extended 1446800635867706729753 /secured/assets/documents/en/reference-manual/LS1021ARM.pdf 34184807 /secured/assets/documents/en/reference-manual/LS1021ARM.pdf LS1021ARM documents Y N 2017-04-28 LS1021A Reference Manual /webapp/Download?colCode=LS1021ARM&lang_cd=ja /secured/assets/documents/en/reference-manual/LS1021ARM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Feb 28, 2020 500633505221135046 Reference Manual Y N LS1021A Reference Manual 4 9 English This QEIWRM reference manual defines the functionality of the QUICC Engine<sup>&#174;</sup> block, a versatile RISC-based communication processor. The QUICC Engine block supports multiple external interfaces and protocols independently from the core processor in an integrated processing device. Use this reference manual in conjunction with your device reference manual to implement the QUICC Engine functionality. 1233608188787709580857 PSP 13.4 MB Registration without Disclaimer None documents Extended 1233608188787709580857 /secured/assets/documents/en/reference-manual/QEIWRM.pdf 13369144 /secured/assets/documents/en/reference-manual/QEIWRM.pdf QEIWRM documents Y N 2016-10-31 QUICC Engine Block Reference Manual with Protocol Interworking - Reference Manual /webapp/Download?colCode=QEIWRM&lang_cd=ja /secured/assets/documents/en/reference-manual/QEIWRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en May 3, 2018 500633505221135046 Reference Manual Y N QUICC Engine Block Reference Manual with Protocol Interworking - Reference Manual 5 0 English LS1021ASECRM: This manual documents the LS1021A's security engine, the cryptographic acceleration and offloading hardware. 1456840875889726283638 PSP 6.8 MB Registration without Disclaimer None documents Extended 1456840875889726283638 /secured/assets/documents/en/reference-manual/LS1021ASECRM.pdf 6768476 /secured/assets/documents/en/reference-manual/LS1021ASECRM.pdf LS1021ASECRM documents Y N 2016-10-31 LS1021ASECRM, LS1021A Security (SEC) Reference Manual - Reference Manual /webapp/Download?colCode=LS1021ASECRM&lang_cd=ja /secured/assets/documents/en/reference-manual/LS1021ASECRM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Feb 29, 2016 500633505221135046 Reference Manual Y N LS1021ASECRM, LS1021A Security (SEC) Reference Manual - Reference Manual アプリケーション・ノート Application Note 22 6 1 English This document provides guidelines for the handling and board mounting of FCBGA and FCCSP packages, including recommendations for printed-circuit board (PCB) design, soldering, and rework. It also includes recommendations for thermal solutions. 1662060818252696704548 PSP 6.5 MB None None documents None 1662060818252696704548 /docs/en/application-note/AN13656.pdf 6458358 /docs/en/application-note/AN13656.pdf AN13656 documents N N 2022-09-01 AN13656: Assembly guidelines for Flip Chip plastic ball grid array and chip scale package Application Note /docs/en/application-note/AN13656.pdf /docs/en/application-note/AN13656.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 1, 2022 645036621402383989 Application Note Y N AN13656: Assembly guidelines for Flip Chip plastic ball grid array and chip scale package Application Note 7 0 English This application note introduces the LS1xxxx and LS2xxxx devices Thermal Management Unit (TMU). TMU Thermal Measurement Temperature Sensor Heat power 1651046281017726871122 PSP 241.6 KB None None documents None 1651046281017726871122 /docs/en/application-note/AN12310.pdf 241590 /docs/en/application-note/AN12310.pdf AN12310 documents N N 2022-04-27 Thermal Management Unit Usage /docs/en/application-note/AN12310.pdf /docs/en/application-note/AN12310.pdf Application Note N 645036621402383989 2024-12-13 pdf N en Apr 27, 2022 645036621402383989 Application Note Y N Thermal Management Unit Usage 8 0 Chinese 1649067147403724850019zh PSP 155.1 KB None None documents None 1649067147403724850019 /docs/zh/application-note/AN13608.pdf 155124 /docs/zh/application-note/AN13608.pdf AN13608 documents N N 2022-04-04 Chaining FlexTimers on Layerscape Devices /docs/zh/application-note/AN13608.pdf /docs/zh/application-note/AN13608.pdf Application Note N 645036621402383989 2023-09-14 zh Apr 4, 2022 645036621402383989 Application Note Y N 将Layerscape器件上的FlexTimer串接起来 0 English 1649067147403724850019 PSP 155.1 KB None None documents None 1649067147403724850019 /docs/en/application-note/AN13608.pdf 155124 /docs/en/application-note/AN13608.pdf AN13608 documents N N 2022-04-04 Chaining FlexTimers on Layerscape Devices /docs/en/application-note/AN13608.pdf /docs/en/application-note/AN13608.pdf Application Note N 645036621402383989 2023-09-14 pdf N en Apr 4, 2022 645036621402383989 Application Note Y N Chaining FlexTimers on Layerscape Devices 9 0 Chinese AN5260: This document describes the steps required to configure pre-boot loader (PBL) on NXP QorIQ<sup>&#174;</sup> platform using the PBL tool included in QorIQ Configuration and Validation Suite (QCVS). 1456317293250700197105zh PSP 1.0 MB None None documents None 1456317293250700197105 /docs/zh/application-note/AN5260.pdf 1027928 /docs/zh/application-note/AN5260.pdf AN5260 documents N N 2016-10-31 PBL Configuration using QCVS Application Note /docs/zh/application-note/AN5260.pdf /docs/zh/application-note/AN5260.pdf Application Note N 645036621402383989 2022-12-07 zh Feb 24, 2016 645036621402383989 Application Note Y N PBL Configuration using QCVS Application Note 1 English AN5260: This document describes the steps required to configure pre-boot loader (PBL) on NXP QorIQ platform using the PBL tool included in QorIQ Configuration and Validation Suite (QCVS). 1456317293250700197105 PSP 1.0 MB None None documents None 1456317293250700197105 /docs/en/application-note/AN5260.pdf 1027928 /docs/en/application-note/AN5260.pdf AN5260 documents N N 2016-10-31 PBL Configuration using QCVS Application Note /docs/en/application-note/AN5260.pdf /docs/en/application-note/AN5260.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 30, 2020 645036621402383989 Application Note Y N PBL Configuration using QCVS Application Note 10 6 English This document provides recommendations for new designs based on the LS102xA family, which is a cost-effective, power-efficient, and highly integrated system-on-chip (SoC) design that extends the reach of the NXP Value Performance line, the Layerscape LS1 series, of communications processors. 1444063026044698629512 PSP 774.6 KB Registration without Disclaimer None documents Extended 1444063026044698629512 /secured/assets/documents/en/application-note/AN4878.pdf 774583 /secured/assets/documents/en/application-note/AN4878.pdf AN4878 documents Y N 2017-01-18 AN4878, LS1021A Design Checklist /webapp/Download?colCode=AN4878&lang_cd=ja /secured/assets/documents/en/application-note/AN4878.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Nov 26, 2019 645036621402383989 Application Note Y N AN4878, LS1021A Design Checklist 11 0 Chinese This application note describes a new method to bring up a Layerscape board. 1548868475172728319886zh PSP 907.3 KB None None documents None 1548868475172728319886 /docs/zh/application-note/AN12270.pdf 907314 /docs/zh/application-note/AN12270.pdf AN12270 documents N N 2019-01-30 AN12270, Bringing up Layerscape devices using CCS script and DRAM boot /docs/zh/application-note/AN12270.pdf /docs/zh/application-note/AN12270.pdf Application Note N 645036621402383989 2022-12-07 zh Jan 30, 2019 645036621402383989 Application Note Y N AN12270, Bringing up Layerscape devices using CCS script and DRAM boot 0 English This application note describes a new method to bring up a Layerscape board. 1548868475172728319886 PSP 907.3 KB None None documents None 1548868475172728319886 /docs/en/application-note/AN12270.pdf 907314 /docs/en/application-note/AN12270.pdf AN12270 documents N N 2019-01-30 AN12270, Bringing up Layerscape devices using CCS script and DRAM boot /docs/en/application-note/AN12270.pdf /docs/en/application-note/AN12270.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 30, 2019 645036621402383989 Application Note Y N AN12270, Bringing up Layerscape devices using CCS script and DRAM boot 12 0 English AN12279: This application note is intended for users who want to optimize boot time in their applications when QSPI is selected as the boot source. 1542174029185732481155 PSP 236.9 KB None None documents None 1542174029185732481155 /docs/en/application-note/AN12279.pdf 236865 /docs/en/application-note/AN12279.pdf AN12279 documents N N 2018-11-13 Configure QSPI Bus Width and Frequency in Pre-Boot Loader Stage on LS Series Processors Application Note /docs/en/application-note/AN12279.pdf /docs/en/application-note/AN12279.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 13, 2018 645036621402383989 Application Note Y N Configure QSPI Bus Width and Frequency in Pre-Boot Loader Stage on LS Series Processors Application Note 13 0 English This application note describes how to access a serial NAND and an SPISTACK device (serial NOR + serial NAND) as well as boot from it. 1506408477909683742994 PSP 359.4 KB Registration without Disclaimer None documents Extended 1506408477909683742994 /secured/assets/documents/en/application-note/AN5376.pdf 359433 /secured/assets/documents/en/application-note/AN5376.pdf AN5376 documents Y N 2017-09-25 AN5376, How Does QuadSPI Work with a Serial NAND - Application Note /webapp/Download?colCode=AN5376&lang_cd=ja /secured/assets/documents/en/application-note/AN5376.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Sep 26, 2017 645036621402383989 Application Note Y N AN5376, How Does QuadSPI Work with a Serial NAND - Application Note 14 1 English Solder joint and package temperature for Pb-free BGA in SnPB and Pb-free solders in IR or convection reflow ovens are discussed in this document. 1154542630989715908212 PSP 281.6 KB None None documents None 1154542630989715908212 /docs/en/application-note/AN3300.pdf 281637 /docs/en/application-note/AN3300.pdf AN3300 documents N N 2017-08-17 General soldering Temperature Process Guidelines /docs/en/application-note/AN3300.pdf /docs/en/application-note/AN3300.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 16, 2017 645036621402383989 Application Note Y N General soldering Temperature Process Guidelines 15 0 English Explains how to incorporate MC34VR500 into LS1 design. The MC34VR500 is ideally suited to power system solutions based on QorIQ T1 and LS1 processors. 1500375829476713463811 PSP 281.9 KB None None documents None 1500375829476713463811 /docs/en/application-note/AN5085.pdf 281896 /docs/en/application-note/AN5085.pdf AN5085 documents N N 2017-07-18 AN5085, Powering the LS102xA with the MC34VR500 Power Management Interface Chip - Application Note /docs/en/application-note/AN5085.pdf /docs/en/application-note/AN5085.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jul 18, 2017 645036621402383989 Application Note N AN5085, Powering the LS102xA with the MC34VR500 Power Management Interface Chip - Application Note 16 0 English Differentiates between big-endian and little-endian memory systems as used in the various processor configurations available in NXP’s Layerscape product offering. 1499836410344733417421 PSP 905.4 KB Registration without Disclaimer None documents Extended 1499836410344733417421 /secured/assets/documents/en/application-note/AN4893.pdf 905449 /secured/assets/documents/en/application-note/AN4893.pdf AN4893 documents Y N 2017-07-11 AN4893, Understanding Endianness on Layerscape LS1021A - Application Note /webapp/Download?colCode=AN4893&lang_cd=ja /secured/assets/documents/en/application-note/AN4893.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Jul 12, 2017 645036621402383989 Application Note N AN4893, Understanding Endianness on Layerscape LS1021A - Application Note 17 0 English This application note provides instructions for programming both flash banks and updating the LS1021A-TWR board to the latest SDK. 1489479250919724773198 PSP 1.3 MB Registration without Disclaimer None documents Extended 1489479250919724773198 /secured/assets/documents/en/application-note/AN5089.pdf 1340553 /secured/assets/documents/en/application-note/AN5089.pdf AN5089 documents Y N 2017-03-14 AN5089, Programming RCW and U-Boot on LS1021A-TWR - Application Note /webapp/Download?colCode=AN5089&lang_cd=ja /secured/assets/documents/en/application-note/AN5089.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Mar 14, 2017 645036621402383989 Application Note N AN5089, Programming RCW and U-Boot on LS1021A-TWR - Application Note 18 0 English AN5077: The purpose of this document is to highlight areas of interest for those involved in migrating software applications from Power Architecture&#174; to Arm architecture platforms. 1469723254604728420660 PSP 768.7 KB Registration without Disclaimer None documents Extended 1469723254604728420660 /secured/assets/documents/en/application-note/AN5077.pdf 768706 /secured/assets/documents/en/application-note/AN5077.pdf AN5077 documents Y N 2016-10-31 AN5077, Migrating from Power Architecture to Arm<sup>&#174;</sup> Architecture /webapp/Download?colCode=AN5077&lang_cd=ja /secured/assets/documents/en/application-note/AN5077.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Jul 28, 2016 645036621402383989 Application Note Y N AN5077, Migrating from Power Architecture to Arm<sup>&#174;</sup> Architecture 19 1 English AN5184: This document describes how to program a U-Boot image into an eMMC/SD card using CodeWarrior for LS series for Arm v7 ISA. 1440677483816720987146 PSP 609.0 KB None None documents None 1440677483816720987146 /docs/en/application-note/AN5184.pdf 609046 /docs/en/application-note/AN5184.pdf AN5184 documents N N 2016-10-31 Programming eMMC/SD Card using CodeWarrior for Arm<sup>&#174;</sup>v7 Application Note /docs/en/application-note/AN5184.pdf /docs/en/application-note/AN5184.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 15, 2016 645036621402383989 Application Note Y N Programming eMMC/SD Card using CodeWarrior for Arm<sup>&#174;</sup>v7 Application Note 20 0 English AN5173: This application note describes the on-board flash programming with SD boot. 1451584278062748870506 PSP 887.5 KB Registration without Disclaimer None documents Extended 1451584278062748870506 /secured/assets/documents/en/application-note/AN5173.pdf 887507 /secured/assets/documents/en/application-note/AN5173.pdf AN5173 documents Y N 2016-10-31 AN5173, LS1021A Flash Programming with SD Boot - Application Note /webapp/Download?colCode=AN5173&lang_cd=ja /secured/assets/documents/en/application-note/AN5173.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Dec 30, 2015 645036621402383989 Application Note N AN5173, LS1021A Flash Programming with SD Boot - Application Note 21 0 English AN5125: A device tree is a tree structure used to describe the physical hardware in a system. Each node in the tree describes the characteristics of the device being represented. The purpose of the device tree is to describe device information in a system that cannot necessarily be dynamically detected or discovered by a client program. 1441302193437732651194 PSP 566.4 KB None None documents None 1441302193437732651194 /docs/en/application-note/AN5125.pdf 566365 /docs/en/application-note/AN5125.pdf AN5125 documents N N 2016-10-31 AN5125, Introduction to Device Trees - Application Note /docs/en/application-note/AN5125.pdf /docs/en/application-note/AN5125.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 3, 2015 645036621402383989 Application Note Y N AN5125, Introduction to Device Trees - Application Note 22 1 English AN4877: This application note explains the baud rate clocking, physical layer connectivity, initialization, configuration, and control of a UCC UART programmed for the PROFIBUS mode of operation. It is aimed at hardware and low-level software developers. 1393861823751734809987 PSP 450.8 KB None None documents None 1393861823751734809987 /docs/en/application-note/AN4877.pdf 450761 /docs/en/application-note/AN4877.pdf AN4877 documents N N 2016-10-31 AN4877, PROFIBUS on QUICC Engine Block /docs/en/application-note/AN4877.pdf /docs/en/application-note/AN4877.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 15, 2014 645036621402383989 Application Note N AN4877, PROFIBUS on QUICC Engine Block 23 4 English AN4039: This application note expands on the description of the double data rate (DDR3) memory controller programmable registers in the PowerQUICC<sup>&#174;</sup> and QorIQ<sup>&#174;</sup> processor reference manuals. 1264810112254717714233 PSP 468.7 KB None None documents None 1264810112254717714233 /docs/en/application-note/AN4039.pdf 468655 /docs/en/application-note/AN4039.pdf AN4039 documents N N 2016-10-31 AN4039, PowerQUICC and QorIQ DDR3 SDRAM Controller Register Setting Considerations - Application Note /docs/en/application-note/AN4039.pdf /docs/en/application-note/AN4039.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 11, 2014 645036621402383989 Application Note N AN4039, PowerQUICC and QorIQ DDR3 SDRAM Controller Register Setting Considerations - Application Note 24 Rev. 0 English This application note describes some reference connection schemes when interfacing the third-party clock driver chip&#8217;s output with the SerDes Reference Clock inputs of PowerQUICC<sup>&#174;</sup> or QorIQ<sup>&#174;</sup> devices. It also summarizes some recommendations for PCI Express and SRIO HSSI measurement. 1305312143395731535528 PSP 577.2 KB Registration without Disclaimer None documents Extended 1305312143395731535528 /secured/assets/documents/en/application-note/AN4311.pdf 577164 /secured/assets/documents/en/application-note/AN4311.pdf AN4311 documents Y N 2016-10-31 SerDes Reference Clock Interfacing and HSSI Measurements Recommendations /webapp/Download?colCode=AN4311&lang_cd=ja /secured/assets/documents/en/application-note/AN4311.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en May 13, 2011 645036621402383989 Application Note Y N SerDes Reference Clock Interfacing and HSSI Measurements Recommendations 25 1 English This application note describes how to use and benefit from DDR memory interleaving. 1251150824863717930878 PSP 717.3 KB Registration without Disclaimer None documents Extended 1251150824863717930878 /secured/assets/documents/en/application-note/AN3939.pdf 717276 /secured/assets/documents/en/application-note/AN3939.pdf AN3939 documents Y N 2016-10-31 DDR Interleaving for PowerQUICC and QorIQ Processors /webapp/Download?colCode=AN3939&lang_cd=ja /secured/assets/documents/en/application-note/AN3939.pdf Application Note N 645036621402383989 2022-12-07 pdf Y en Jun 30, 2010 645036621402383989 Application Note Y N DDR Interleaving for PowerQUICC and QorIQ Processors 26 0 English High-level data link control (HDLC) is widely used in the telecommunications and networking industries. NXP&#8217;s PowerQUICC&#8482; communications processors have extensive support for HDLC protocol through the communications processor module (CPM) and QUICC Engine&#8482; technologies.&#13;&#10;&#13;&#10;This application note explains how NXP&#8217;s existing&#13;&#10;PowerQUICC communications processors use the CPM and QUICC Engine technologies to support the HDLC protocol and provides HDLC e 1258066893562722616236 PSP 496.6 KB None None documents None 1258066893562722616236 /docs/en/application-note/AN3966.pdf 496625 /docs/en/application-note/AN3966.pdf AN3966 documents N 2016-10-31 PowerQUICC™ HDLC Support and Example Code /docs/en/application-note/AN3966.pdf /docs/en/application-note/AN3966.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 10, 2009 645036621402383989 Application Note N PowerQUICC™ HDLC Support and Example Code 27 0 English This document demonstrates how to determine the package temperature and thermal mass dependent moisture sensitivity level (MSL) of products to ensure reliable processing of moisture sensitive surface mount components. Comply with these recommendations to maintain package integrity of components during any heat exposure of board soldering and de-soldering. 1154542628855726115465 PSP 151.6 KB None None documents None 1154542628855726115465 /docs/en/application-note/AN3298.pdf 151612 /docs/en/application-note/AN3298.pdf AN3298 documents N N 2016-10-31 Solder Joint Temperature and Package Peak Temperature /docs/en/application-note/AN3298.pdf /docs/en/application-note/AN3298.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 2, 2006 645036621402383989 Application Note Y N Solder Joint Temperature and Package Peak Temperature エラッタ Errata 1 28 kb 12 English The current errata for LS1021/20/22A is Feb 2023, Rev 13. It is an NDA document. Please see the Sharepoint site https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx (NDA and NXP-issued invite required), or contact your NXP representative. 1645463679497705104880 PSP None None documents None 1645463679497705104880 https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx LS1021_20_22-ERRATA-LINK documents N N N 2022-02-21 LS1021/20/22 Errata https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx Y Errata N 155452329886410597 Y 2023-05-23 URL en Feb 21, 2022 155452329886410597 Errata Y N https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx LS1021/20/22 Errata URL 製品概要 Product Brief 1 29 1 English This document provides an overview of the features and functionality of the LS1021A integrated processor family. 1410433558381712465174 PSP 545.1 KB None None documents None 1410433558381712465174 /docs/en/product-brief/LS1021APB.pdf 545092 /docs/en/product-brief/LS1021APB.pdf LS1021APB documents N N 2017-01-18 QorIQ LS1021A Family Communications Processor Product Brief /docs/en/product-brief/LS1021APB.pdf /docs/en/product-brief/LS1021APB.pdf Product Brief N 899114358132306053 2023-06-19 pdf N en Jan 18, 2017 899114358132306053 Product Brief Y N QorIQ LS1021A Family Communications Processor Product Brief サポート情報 Supporting Information 1 30 1.9 English FSLNISTCAVP: NXP<sup>&#174;</sup> Semiconductors has performed NIST CAVP testing of cryptographic accelerators (called Execution Units or EUs) found in multiple product families, including the PowerQUICC<sup>&#174;</sup> and QorIQ<sup>&#174;</sup> embedded communications processors, and the StarCore<sup>&#174;</sup> digital signal processors. 1368836090577704535160 PSP 303.5 KB None None documents None 1368836090577704535160 /docs/en/supporting-information/FSLNISTCAVP.pdf 303546 /docs/en/supporting-information/FSLNISTCAVP.pdf FSLNISTCAVP documents N N 2016-11-09 FSLNISTCAVP, NIST Crypto Algorithm Validation Program Certifications for NXP<sup>®</sup> Cryptographic Accelerators - White Paper /docs/en/supporting-information/FSLNISTCAVP.pdf /docs/en/supporting-information/FSLNISTCAVP.pdf Supporting Information N 371282830530968666 2022-12-07 pdf N en Oct 28, 2016 371282830530968666 Supporting Information Y N FSLNISTCAVP, NIST Crypto Algorithm Validation Program Certifications for NXP<sup>®</sup> Cryptographic Accelerators - White Paper ホワイト・ペーパ White Paper 3 31 0 English QORIQPMWP: This document describes how Power Management technologies will play a more important role in controlling or reducing power consumption of electronic systems. 1419964678458711207150 PSP 1.4 MB None None documents None 1419964678458711207150 /docs/en/white-paper/QORIQPMWP.pdf 1418055 /docs/en/white-paper/QORIQPMWP.pdf QORIQPMWP documents N N 2017-03-30 QORIQPMWP, QorIQ Power Management - White Paper /docs/en/white-paper/QORIQPMWP.pdf /docs/en/white-paper/QORIQPMWP.pdf White Paper N 918633085541740938 2023-06-19 pdf N en Mar 30, 2017 918633085541740938 White Paper N QORIQPMWP, QorIQ Power Management - White Paper 32 0 Chinese 1408456447256714650348zh PSP 339.4 KB None None documents None 1408456447256714650348 /docs/zh/white-paper/QORIQINDIOTWP.pdf 339383 /docs/zh/white-paper/QORIQINDIOTWP.pdf QORIQINDIOTWP documents N N 2016-10-31 Networking for Industrial and IoT Applications - White Paper /docs/zh/white-paper/QORIQINDIOTWP.pdf /docs/zh/white-paper/QORIQINDIOTWP.pdf White Paper N 918633085541740938 2023-06-19 zh 918633085541740938 White Paper N 面向工业和物联网应用的网络 - 白皮书 0 English The networking, industrial control, Machine to Machine (M2M) and emerging Internet of Things (IoT) markets all share a similar basic requirement: the ability to connect a diverse variety of end points together and support centralized control of the network. 1408456447256714650348 PSP 339.4 KB None None documents None 1408456447256714650348 /docs/en/white-paper/QORIQINDIOTWP.pdf 339383 /docs/en/white-paper/QORIQINDIOTWP.pdf QORIQINDIOTWP documents N N 2016-10-31 Networking for Industrial and IoT Applications - White Paper /docs/en/white-paper/QORIQINDIOTWP.pdf /docs/en/white-paper/QORIQINDIOTWP.pdf White Paper N 918633085541740938 2023-06-19 pdf N en Aug 19, 2014 918633085541740938 White Paper N Networking for Industrial and IoT Applications - White Paper 33 0 English In the year 2020, the world will be more connected, wireless networks will connect more machines than people and Machine-to-Machine (M2M) technology will help us to be more energy and cost-efficient, safer and more secure. This is the era of connected intelligence. 1382028081096733601410 PSP 302.0 KB None None documents None 1382028081096733601410 /docs/en/white-paper/M2MGATEWAYWP.pdf 301965 /docs/en/white-paper/M2MGATEWAYWP.pdf M2MGATEWAYWP documents N N 2016-10-31 Machine-to-Machine (M2M) Gateway: Trusted and Connected Intelligence - White Paper /docs/en/white-paper/M2MGATEWAYWP.pdf /docs/en/white-paper/M2MGATEWAYWP.pdf White Paper N 918633085541740938 2023-06-19 pdf N en Oct 17, 2013 918633085541740938 White Paper N Machine-to-Machine (M2M) Gateway: Trusted and Connected Intelligence - White Paper false 0 LS1021A downloads ja true 1 Y PSP Y Y アプリケーション・ノート 22 /docs/en/application-note/AN13656.pdf 2022-09-01 1662060818252696704548 PSP 6 Sep 1, 2022 Application Note This document provides guidelines for the handling and board mounting of FCBGA and FCCSP packages, including recommendations for printed-circuit board (PCB) design, soldering, and rework. It also includes recommendations for thermal solutions. None /docs/en/application-note/AN13656.pdf English documents 6458358 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN13656.pdf AN13656: Assembly guidelines for Flip Chip plastic ball grid array and chip scale package Application Note /docs/en/application-note/AN13656.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN13656: Assembly guidelines for Flip Chip plastic ball grid array and chip scale package Application Note 6.5 MB AN13656 N 1662060818252696704548 /docs/en/application-note/AN12310.pdf 2022-04-27 1651046281017726871122 PSP 7 Apr 27, 2022 Application Note This application note introduces the LS1xxxx and LS2xxxx devices Thermal Management Unit (TMU). TMU Thermal Measurement Temperature Sensor Heat power None /docs/en/application-note/AN12310.pdf English documents 241590 None 645036621402383989 2024-12-13 N /docs/en/application-note/AN12310.pdf Thermal Management Unit Usage /docs/en/application-note/AN12310.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Thermal Management Unit Usage 241.6 KB AN12310 N 1651046281017726871122 /docs/en/application-note/AN13608.pdf 2022-04-04 1649067147403724850019 PSP 8 Apr 4, 2022 Application Note None /docs/en/application-note/AN13608.pdf English documents 155124 None 645036621402383989 2023-09-14 N /docs/en/application-note/AN13608.pdf Chaining FlexTimers on Layerscape Devices /docs/en/application-note/AN13608.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Chaining FlexTimers on Layerscape Devices 155.1 KB AN13608 N 1649067147403724850019 /docs/en/application-note/AN5260.pdf 2016-10-31 1456317293250700197105 PSP 9 Nov 30, 2020 Application Note AN5260: This document describes the steps required to configure pre-boot loader (PBL) on NXP QorIQ platform using the PBL tool included in QorIQ Configuration and Validation Suite (QCVS). None /docs/en/application-note/AN5260.pdf English documents 1027928 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5260.pdf PBL Configuration using QCVS Application Note /docs/en/application-note/AN5260.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N PBL Configuration using QCVS Application Note 1.0 MB AN5260 N 1456317293250700197105 /secured/assets/documents/en/application-note/AN4878.pdf 2017-01-18 1444063026044698629512 PSP 10 Nov 26, 2019 Application Note This document provides recommendations for new designs based on the LS102xA family, which is a cost-effective, power-efficient, and highly integrated system-on-chip (SoC) design that extends the reach of the NXP Value Performance line, the Layerscape LS1 series, of communications processors. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4878.pdf English documents 774583 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN4878&lang_cd=ja AN4878, LS1021A Design Checklist /secured/assets/documents/en/application-note/AN4878.pdf documents 645036621402383989 Application Note N en Extended Y pdf 6 Y N AN4878, LS1021A Design Checklist 774.6 KB AN4878 N 1444063026044698629512 /docs/en/application-note/AN12270.pdf 2019-01-30 1548868475172728319886 PSP 11 Jan 30, 2019 Application Note This application note describes a new method to bring up a Layerscape board. None /docs/en/application-note/AN12270.pdf English documents 907314 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN12270.pdf AN12270, Bringing up Layerscape devices using CCS script and DRAM boot /docs/en/application-note/AN12270.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN12270, Bringing up Layerscape devices using CCS script and DRAM boot 907.3 KB AN12270 N 1548868475172728319886 /docs/en/application-note/AN12279.pdf 2018-11-13 1542174029185732481155 PSP 12 Nov 13, 2018 Application Note AN12279: This application note is intended for users who want to optimize boot time in their applications when QSPI is selected as the boot source. None /docs/en/application-note/AN12279.pdf English documents 236865 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN12279.pdf Configure QSPI Bus Width and Frequency in Pre-Boot Loader Stage on LS Series Processors Application Note /docs/en/application-note/AN12279.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Configure QSPI Bus Width and Frequency in Pre-Boot Loader Stage on LS Series Processors Application Note 236.9 KB AN12279 N 1542174029185732481155 /secured/assets/documents/en/application-note/AN5376.pdf 2017-09-25 1506408477909683742994 PSP 13 Sep 26, 2017 Application Note This application note describes how to access a serial NAND and an SPISTACK device (serial NOR + serial NAND) as well as boot from it. Registration without Disclaimer /secured/assets/documents/en/application-note/AN5376.pdf English documents 359433 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN5376&lang_cd=ja AN5376, How Does QuadSPI Work with a Serial NAND - Application Note /secured/assets/documents/en/application-note/AN5376.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN5376, How Does QuadSPI Work with a Serial NAND - Application Note 359.4 KB AN5376 N 1506408477909683742994 /docs/en/application-note/AN3300.pdf 2017-08-17 1154542630989715908212 PSP 14 Aug 16, 2017 Application Note Solder joint and package temperature for Pb-free BGA in SnPB and Pb-free solders in IR or convection reflow ovens are discussed in this document. None /docs/en/application-note/AN3300.pdf English documents 281637 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN3300.pdf General soldering Temperature Process Guidelines /docs/en/application-note/AN3300.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N General soldering Temperature Process Guidelines 281.6 KB AN3300 N 1154542630989715908212 /docs/en/application-note/AN5085.pdf 2017-07-18 1500375829476713463811 PSP 15 Jul 18, 2017 Application Note Explains how to incorporate MC34VR500 into LS1 design. The MC34VR500 is ideally suited to power system solutions based on QorIQ T1 and LS1 processors. None /docs/en/application-note/AN5085.pdf English documents 281896 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5085.pdf AN5085, Powering the LS102xA with the MC34VR500 Power Management Interface Chip - Application Note /docs/en/application-note/AN5085.pdf documents 645036621402383989 Application Note N en None pdf 0 N N AN5085, Powering the LS102xA with the MC34VR500 Power Management Interface Chip - Application Note 281.9 KB AN5085 N 1500375829476713463811 /secured/assets/documents/en/application-note/AN4893.pdf 2017-07-11 1499836410344733417421 PSP 16 Jul 12, 2017 Application Note Differentiates between big-endian and little-endian memory systems as used in the various processor configurations available in NXP’s Layerscape product offering. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4893.pdf English documents 905449 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN4893&lang_cd=ja AN4893, Understanding Endianness on Layerscape LS1021A - Application Note /secured/assets/documents/en/application-note/AN4893.pdf documents 645036621402383989 Application Note N en Extended pdf 0 Y N AN4893, Understanding Endianness on Layerscape LS1021A - Application Note 905.4 KB AN4893 N 1499836410344733417421 /secured/assets/documents/en/application-note/AN5089.pdf 2017-03-14 1489479250919724773198 PSP 17 Mar 14, 2017 Application Note This application note provides instructions for programming both flash banks and updating the LS1021A-TWR board to the latest SDK. Registration without Disclaimer /secured/assets/documents/en/application-note/AN5089.pdf English documents 1340553 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN5089&lang_cd=ja AN5089, Programming RCW and U-Boot on LS1021A-TWR - Application Note /secured/assets/documents/en/application-note/AN5089.pdf documents 645036621402383989 Application Note N en Extended pdf 0 Y N AN5089, Programming RCW and U-Boot on LS1021A-TWR - Application Note 1.3 MB AN5089 N 1489479250919724773198 /secured/assets/documents/en/application-note/AN5077.pdf 2016-10-31 1469723254604728420660 PSP 18 Jul 28, 2016 Application Note AN5077: The purpose of this document is to highlight areas of interest for those involved in migrating software applications from Power Architecture&#174; to Arm architecture platforms. Registration without Disclaimer /secured/assets/documents/en/application-note/AN5077.pdf English documents 768706 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN5077&lang_cd=ja AN5077, Migrating from Power Architecture to Arm<sup>&#174;</sup> Architecture /secured/assets/documents/en/application-note/AN5077.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN5077, Migrating from Power Architecture to Arm<sup>&#174;</sup> Architecture 768.7 KB AN5077 N 1469723254604728420660 /docs/en/application-note/AN5184.pdf 2016-10-31 1440677483816720987146 PSP 19 Jan 15, 2016 Application Note AN5184: This document describes how to program a U-Boot image into an eMMC/SD card using CodeWarrior for LS series for Arm v7 ISA. None /docs/en/application-note/AN5184.pdf English documents 609046 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5184.pdf Programming eMMC/SD Card using CodeWarrior for Arm<sup>&#174;</sup>v7 Application Note /docs/en/application-note/AN5184.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N Programming eMMC/SD Card using CodeWarrior for Arm<sup>&#174;</sup>v7 Application Note 609.0 KB AN5184 N 1440677483816720987146 /secured/assets/documents/en/application-note/AN5173.pdf 2016-10-31 1451584278062748870506 PSP 20 Dec 30, 2015 Application Note AN5173: This application note describes the on-board flash programming with SD boot. Registration without Disclaimer /secured/assets/documents/en/application-note/AN5173.pdf English documents 887507 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN5173&lang_cd=ja AN5173, LS1021A Flash Programming with SD Boot - Application Note /secured/assets/documents/en/application-note/AN5173.pdf documents 645036621402383989 Application Note N en Extended pdf 0 Y N AN5173, LS1021A Flash Programming with SD Boot - Application Note 887.5 KB AN5173 N 1451584278062748870506 /docs/en/application-note/AN5125.pdf 2016-10-31 1441302193437732651194 PSP 21 Sep 3, 2015 Application Note AN5125: A device tree is a tree structure used to describe the physical hardware in a system. Each node in the tree describes the characteristics of the device being represented. The purpose of the device tree is to describe device information in a system that cannot necessarily be dynamically detected or discovered by a client program. None /docs/en/application-note/AN5125.pdf English documents 566365 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5125.pdf AN5125, Introduction to Device Trees - Application Note /docs/en/application-note/AN5125.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5125, Introduction to Device Trees - Application Note 566.4 KB AN5125 N 1441302193437732651194 /docs/en/application-note/AN4877.pdf 2016-10-31 1393861823751734809987 PSP 22 Dec 15, 2014 Application Note AN4877: This application note explains the baud rate clocking, physical layer connectivity, initialization, configuration, and control of a UCC UART programmed for the PROFIBUS mode of operation. It is aimed at hardware and low-level software developers. None /docs/en/application-note/AN4877.pdf English documents 450761 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4877.pdf AN4877, PROFIBUS on QUICC Engine Block /docs/en/application-note/AN4877.pdf documents 645036621402383989 Application Note N en None pdf 1 N N AN4877, PROFIBUS on QUICC Engine Block 450.8 KB AN4877 N 1393861823751734809987 /docs/en/application-note/AN4039.pdf 2016-10-31 1264810112254717714233 PSP 23 Nov 11, 2014 Application Note AN4039: This application note expands on the description of the double data rate (DDR3) memory controller programmable registers in the PowerQUICC<sup>&#174;</sup> and QorIQ<sup>&#174;</sup> processor reference manuals. None /docs/en/application-note/AN4039.pdf English documents 468655 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4039.pdf AN4039, PowerQUICC and QorIQ DDR3 SDRAM Controller Register Setting Considerations - Application Note /docs/en/application-note/AN4039.pdf documents 645036621402383989 Application Note N en None pdf 4 N N AN4039, PowerQUICC and QorIQ DDR3 SDRAM Controller Register Setting Considerations - Application Note 468.7 KB AN4039 N 1264810112254717714233 /secured/assets/documents/en/application-note/AN4311.pdf 2016-10-31 1305312143395731535528 PSP 24 May 13, 2011 Application Note This application note describes some reference connection schemes when interfacing the third-party clock driver chip&#8217;s output with the SerDes Reference Clock inputs of PowerQUICC<sup>&#174;</sup> or QorIQ<sup>&#174;</sup> devices. It also summarizes some recommendations for PCI Express and SRIO HSSI measurement. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4311.pdf English documents 577164 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN4311&lang_cd=ja SerDes Reference Clock Interfacing and HSSI Measurements Recommendations /secured/assets/documents/en/application-note/AN4311.pdf documents 645036621402383989 Application Note N en Extended Y pdf Rev. 0 Y N SerDes Reference Clock Interfacing and HSSI Measurements Recommendations 577.2 KB AN4311 N 1305312143395731535528 /secured/assets/documents/en/application-note/AN3939.pdf 2016-10-31 1251150824863717930878 PSP 25 Jun 30, 2010 Application Note This application note describes how to use and benefit from DDR memory interleaving. Registration without Disclaimer /secured/assets/documents/en/application-note/AN3939.pdf English documents 717276 None 645036621402383989 2022-12-07 Y /webapp/Download?colCode=AN3939&lang_cd=ja DDR Interleaving for PowerQUICC and QorIQ Processors /secured/assets/documents/en/application-note/AN3939.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N DDR Interleaving for PowerQUICC and QorIQ Processors 717.3 KB AN3939 N 1251150824863717930878 /docs/en/application-note/AN3966.pdf 2016-10-31 1258066893562722616236 PSP 26 Nov 10, 2009 Application Note High-level data link control (HDLC) is widely used in the telecommunications and networking industries. NXP&#8217;s PowerQUICC&#8482; communications processors have extensive support for HDLC protocol through the communications processor module (CPM) and QUICC Engine&#8482; technologies.&#13;&#10;&#13;&#10;This application note explains how NXP&#8217;s existing&#13;&#10;PowerQUICC communications processors use the CPM and QUICC Engine technologies to support the HDLC protocol and provides HDLC e None /docs/en/application-note/AN3966.pdf English documents 496625 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3966.pdf PowerQUICC™ HDLC Support and Example Code /docs/en/application-note/AN3966.pdf documents 645036621402383989 Application Note N en None pdf 0 N PowerQUICC™ HDLC Support and Example Code 496.6 KB AN3966 N 1258066893562722616236 /docs/en/application-note/AN3298.pdf 2016-10-31 1154542628855726115465 PSP 27 Aug 2, 2006 Application Note This document demonstrates how to determine the package temperature and thermal mass dependent moisture sensitivity level (MSL) of products to ensure reliable processing of moisture sensitive surface mount components. Comply with these recommendations to maintain package integrity of components during any heat exposure of board soldering and de-soldering. None /docs/en/application-note/AN3298.pdf English documents 151612 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN3298.pdf Solder Joint Temperature and Package Peak Temperature /docs/en/application-note/AN3298.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Solder Joint Temperature and Package Peak Temperature 151.6 KB AN3298 N 1154542628855726115465 エラッタ 1 https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx 2022-02-21 1645463679497705104880 PSP 28 Feb 21, 2022 Errata The current errata for LS1021/20/22A is Feb 2023, Rev 13. It is an NDA document. Please see the Sharepoint site https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx (NDA and NXP-issued invite required), or contact your NXP representative. URL None https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx English documents kb None 155452329886410597 2023-05-23 N https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx LS1021/20/22 Errata https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx documents 155452329886410597 Errata N en None Y Y N URL 12 N LS1021/20/22 Errata Y LS1021_20_22-ERRATA-LINK N https://nxp1.sharepoint.com/teams/cext79/SitePages/Home.aspx 1645463679497705104880 サポート情報 1 /docs/en/supporting-information/FSLNISTCAVP.pdf 2016-11-09 1368836090577704535160 PSP 30 Oct 28, 2016 Supporting Information FSLNISTCAVP: NXP<sup>&#174;</sup> Semiconductors has performed NIST CAVP testing of cryptographic accelerators (called Execution Units or EUs) found in multiple product families, including the PowerQUICC<sup>&#174;</sup> and QorIQ<sup>&#174;</sup> embedded communications processors, and the StarCore<sup>&#174;</sup> digital signal processors. None /docs/en/supporting-information/FSLNISTCAVP.pdf English documents 303546 None 371282830530968666 2022-12-07 N /docs/en/supporting-information/FSLNISTCAVP.pdf FSLNISTCAVP, NIST Crypto Algorithm Validation Program Certifications for NXP<sup>®</sup> Cryptographic Accelerators - White Paper /docs/en/supporting-information/FSLNISTCAVP.pdf documents 371282830530968666 Supporting Information N en None Y pdf 1.9 N N FSLNISTCAVP, NIST Crypto Algorithm Validation Program Certifications for NXP<sup>®</sup> Cryptographic Accelerators - White Paper 303.5 KB FSLNISTCAVP N 1368836090577704535160 データ・シート 1 /secured/assets/documents/en/data-sheet/LS1021A.pdf 2017-01-18 1444139018696721730933 PSP 2 Jun 27, 2019 Data Sheet This document describes the electrical characteristics of the LS1021A communications processor. Registration without Disclaimer /secured/assets/documents/en/data-sheet/LS1021A.pdf English documents 2126798 None 980000996212993340 2023-06-18 Y /webapp/Download?colCode=LS1021A&lang_cd=ja LS1021A Data Sheet /secured/assets/documents/en/data-sheet/LS1021A.pdf documents 980000996212993340 Data Sheet N en Extended Y pdf 7 Y N LS1021A Data Sheet 2.1 MB LS1021A N 1444139018696721730933 ファクト・シート 1 /docs/ja/fact-sheet/LS1021AFS.pdf 2017-02-14 1380899497592730355895ja PSP 1 Fact Sheet ファクト・シート QorIQ LS1012プロセッサは、極めて優れた電力効率を備え、インテリジェントなインテグレーションを提供します。小型の9.6x9.6mmパッケージにより、ネットワーキングやIoT向けの小型のファンレス・アプリケーションに最適です。 None /docs/ja/fact-sheet/LS1021AFS.pdf Japanese 299341 None Fact Sheet 2022-12-07 N /docs/ja/fact-sheet/LS1021AFS.pdf QorIQ LS1021A - ファクトシート /docs/ja/fact-sheet/LS1021AFS.pdf documents 736675474163315314 Fact Sheet N Y ja None t523 4 N N LS1021A - Fact Sheet 299.3 KB LS1021AFS N 1380899497592730355895 ホワイト・ペーパ 3 /docs/en/white-paper/QORIQPMWP.pdf 2017-03-30 1419964678458711207150 PSP 31 Mar 30, 2017 White Paper QORIQPMWP: This document describes how Power Management technologies will play a more important role in controlling or reducing power consumption of electronic systems. None /docs/en/white-paper/QORIQPMWP.pdf English documents 1418055 None 918633085541740938 2023-06-19 N /docs/en/white-paper/QORIQPMWP.pdf QORIQPMWP, QorIQ Power Management - White Paper /docs/en/white-paper/QORIQPMWP.pdf documents 918633085541740938 White Paper N en None pdf 0 N N QORIQPMWP, QorIQ Power Management - White Paper 1.4 MB QORIQPMWP N 1419964678458711207150 /docs/en/white-paper/QORIQINDIOTWP.pdf 2016-10-31 1408456447256714650348 PSP 32 Aug 19, 2014 White Paper The networking, industrial control, Machine to Machine (M2M) and emerging Internet of Things (IoT) markets all share a similar basic requirement: the ability to connect a diverse variety of end points together and support centralized control of the network. None /docs/en/white-paper/QORIQINDIOTWP.pdf English documents 339383 None 918633085541740938 2023-06-19 N /docs/en/white-paper/QORIQINDIOTWP.pdf Networking for Industrial and IoT Applications - White Paper /docs/en/white-paper/QORIQINDIOTWP.pdf documents 918633085541740938 White Paper N en None pdf 0 N N Networking for Industrial and IoT Applications - White Paper 339.4 KB QORIQINDIOTWP N 1408456447256714650348 /docs/en/white-paper/M2MGATEWAYWP.pdf 2016-10-31 1382028081096733601410 PSP 33 Oct 17, 2013 White Paper In the year 2020, the world will be more connected, wireless networks will connect more machines than people and Machine-to-Machine (M2M) technology will help us to be more energy and cost-efficient, safer and more secure. This is the era of connected intelligence. None /docs/en/white-paper/M2MGATEWAYWP.pdf English documents 301965 None 918633085541740938 2023-06-19 N /docs/en/white-paper/M2MGATEWAYWP.pdf Machine-to-Machine (M2M) Gateway: Trusted and Connected Intelligence - White Paper /docs/en/white-paper/M2MGATEWAYWP.pdf documents 918633085541740938 White Paper N en None pdf 0 N N Machine-to-Machine (M2M) Gateway: Trusted and Connected Intelligence - White Paper 302.0 KB M2MGATEWAYWP N 1382028081096733601410 リファレンス・マニュアル 3 /secured/assets/documents/en/reference-manual/LS1021ARM.pdf 2017-04-28 1446800635867706729753 PSP 3 Feb 28, 2020 Reference Manual The LS1021A product family offers the highest level of integration available for an embedded communications processors and a comprehensive enablement model focused on next generation IoT gateways, industrial controllers, and enterprise networking applications. Registration without Disclaimer /secured/assets/documents/en/reference-manual/LS1021ARM.pdf English documents 34184807 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=LS1021ARM&lang_cd=ja LS1021A Reference Manual /secured/assets/documents/en/reference-manual/LS1021ARM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 3.1 Y N LS1021A Reference Manual 34.2 MB LS1021ARM N 1446800635867706729753 /secured/assets/documents/en/reference-manual/QEIWRM.pdf 2016-10-31 1233608188787709580857 PSP 4 May 3, 2018 Reference Manual This QEIWRM reference manual defines the functionality of the QUICC Engine<sup>&#174;</sup> block, a versatile RISC-based communication processor. The QUICC Engine block supports multiple external interfaces and protocols independently from the core processor in an integrated processing device. Use this reference manual in conjunction with your device reference manual to implement the QUICC Engine functionality. Registration without Disclaimer /secured/assets/documents/en/reference-manual/QEIWRM.pdf English documents 13369144 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=QEIWRM&lang_cd=ja QUICC Engine Block Reference Manual with Protocol Interworking - Reference Manual /secured/assets/documents/en/reference-manual/QEIWRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 9 Y N QUICC Engine Block Reference Manual with Protocol Interworking - Reference Manual 13.4 MB QEIWRM N 1233608188787709580857 /secured/assets/documents/en/reference-manual/LS1021ASECRM.pdf 2016-10-31 1456840875889726283638 PSP 5 Feb 29, 2016 Reference Manual LS1021ASECRM: This manual documents the LS1021A's security engine, the cryptographic acceleration and offloading hardware. Registration without Disclaimer /secured/assets/documents/en/reference-manual/LS1021ASECRM.pdf English documents 6768476 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=LS1021ASECRM&lang_cd=ja LS1021ASECRM, LS1021A Security (SEC) Reference Manual - Reference Manual /secured/assets/documents/en/reference-manual/LS1021ASECRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 0 Y N LS1021ASECRM, LS1021A Security (SEC) Reference Manual - Reference Manual 6.8 MB LS1021ASECRM N 1456840875889726283638 製品概要 1 /docs/en/product-brief/LS1021APB.pdf 2017-01-18 1410433558381712465174 PSP 29 Jan 18, 2017 Product Brief This document provides an overview of the features and functionality of the LS1021A integrated processor family. None /docs/en/product-brief/LS1021APB.pdf English documents 545092 None 899114358132306053 2023-06-19 N /docs/en/product-brief/LS1021APB.pdf QorIQ LS1021A Family Communications Processor Product Brief /docs/en/product-brief/LS1021APB.pdf documents 899114358132306053 Product Brief N en None Y pdf 1 N N QorIQ LS1021A Family Communications Processor Product Brief 545.1 KB LS1021APB N 1410433558381712465174 true Y Products
