High-Integrated and Low-Power Smart Card Interface
画像にカーソルを合わせると拡大表示されます。
This is a modal window.
Beginning of dialog window. Escape will cancel and close the window.
End of dialog window.
This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.
This is a modal window.
Beginning of dialog window. Escape will cancel and close the window.
End of dialog window.
This is a modal window. This modal can be closed by pressing the Escape key or activating the close button.
Please check the new online NFC Antenna Tool for tag and reader devices.
If you need high NFC performance or the lowest power consumption, use this remarkably efficient yet highly flexible frontend family to push your design further. It offers an extended temperature range, pin-to-pin compatibility within the CLRC663 plus family (see table below), and time-saving software tools. Supporting, among others, MIFARE®, ISO/IEC 14443, ISO/IEC 15693, and ISO/IEC 18000-3m3, the CLRC663 plus family is the natural companion to match with NXP NFC tags.
The CLRC663 plus family is a great choice for NFC applications with high performance requirements: access control, gaming, and industrial.
Commitment to Longevity
CLRC66303HN is ready to support your development today, tomorrow and beyond through its longevity program. The Product Longevity program ensures a stable supply of products for your embedded designs.

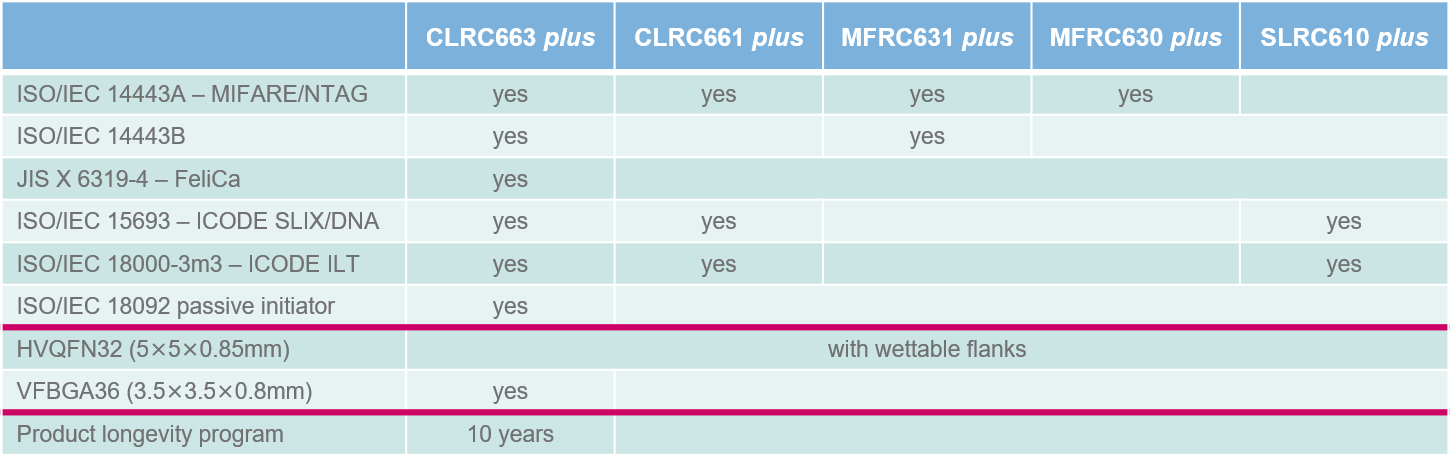

CLRC663 plus | CLRC661 plus | MFRC631 plus | MFRC630 plus | SLRC610 plus | |
---|---|---|---|---|---|
ISO/IEC 14443A – MIFARE/NTAG | Yes | Yes | Yes | Yes | |
ISO/IEC 14443B | Yes | Yes | |||
JIS X 6319-4 – FeliCa | Yes | ||||
ISO/IEC 15693 – ICODE SLIX/DNA | Yes | Yes | Yes | ||
ISO/IEC 18000-3m3 – ICODE ILT | Yes | Yes | Yes | ||
ISO/IEC 18092 passive initiator | Yes | ||||
HVQFN32 (5×5×0.85mm) | |||||
VFBGA36 (3.5×3.5×0.8mm) | yes | ||||
Product longevity program | 10 years |
Kinetis® K82-150 MHz HW Cryptographic Co-Processor and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core
Kinetis® KW41Z-2.4 GHz Dual Mode: Bluetooth® Low Energy and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core
6 結果
マッチしていない 0 NRND
パーツ | 注文 | コンピュータ支援設計 モデル | 状況 | Application Segment | Read distance [TYP] (mm) | 特徴 | Contactless Identification Standard | Host Interface | Host interface protocol | 電源電圧 [最小 - 最大] (V) | RF driver supply voltage [min-max] (V) | RF driver current [max](mA) | Max output power (W) | User Non volatile memory size [kB] | Ambient Operating Temperature (Min to Max) (℃) | Package Dimensions (LxWxZ (mm)) | パッケージタイプ | パッケージ端子数 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
アクティブ | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18000-3M3, ISO/IEC 18092 | I2C, SPI, UART | register level command- response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 105 | 5 x 5 x 0.85 | HVQFN32 | 32 | |||
アクティブ | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | FeliCa, ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18092 | I2C, SPI, UART | register level command- response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 85 | 3.5 x 3.5 x 0.8 | VFBGA36 | 36 | |||
アクティブ | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18000-3M3, ISO/IEC 18092 | I2C, SPI, UART | register level command- response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 105 | 5 x 5 x 0.85 | HVQFN32 | 32 | |||
アクティブ | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 14443 Type A | I2C, SPI, UART | register level command- response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 105 | 5 x 5 x 0.85 | HVQFN32 | 32 | |||
アクティブ | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 14443 Type A, ISO/IEC 14443 Type B | I2C, SPI, UART | register level command- response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -40 to 105 | 5 x 5 x 0.85 | HVQFN32 | 32 | |||
アクティブ | Access control, Gaming, Industrial, Smart City, Smart Home | 160 | NFC reader/writer | ISO/IEC 15693 | I2C, SPI, UART | register level command- response | 2.5 to 5.5 | 2.5 - 5.5 | 350 | 1.93 | 6 | -25 to 85 | 5 x 5 x 0.85 | HVQFN32 | 32 |
