RW612 Wi-Fi 6 + Bluetooth Low Energy + 802.15.4トライラジオ・ワイヤレスMCUに対応する、FRDM開発ボード

FRDM-RW612 アクティブ

画像にカーソルを合わせると拡大表示されます。

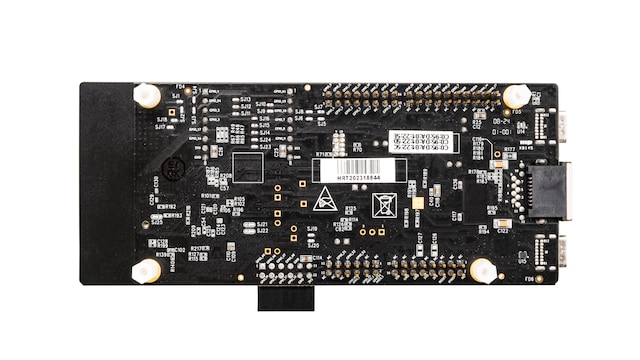

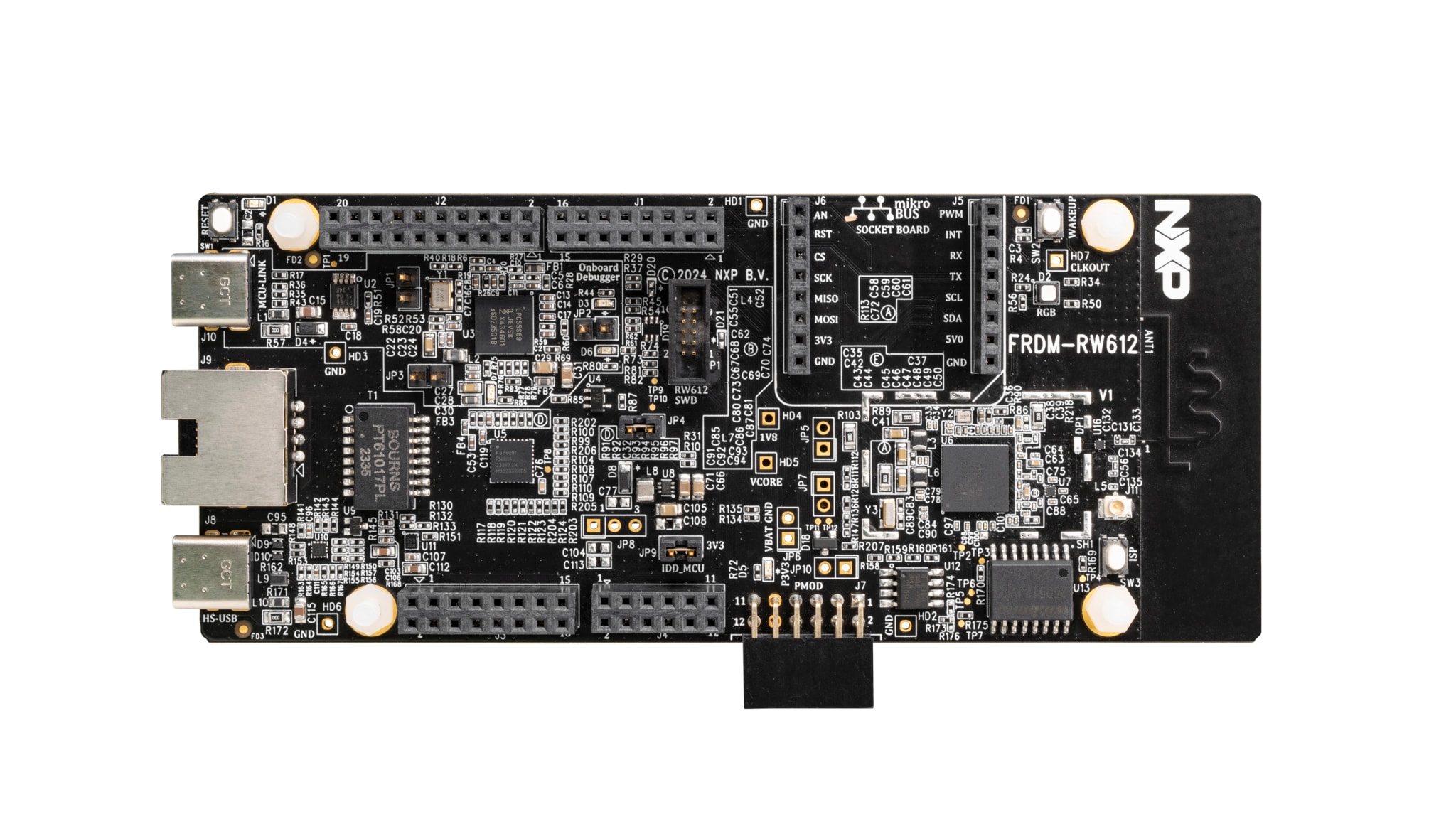

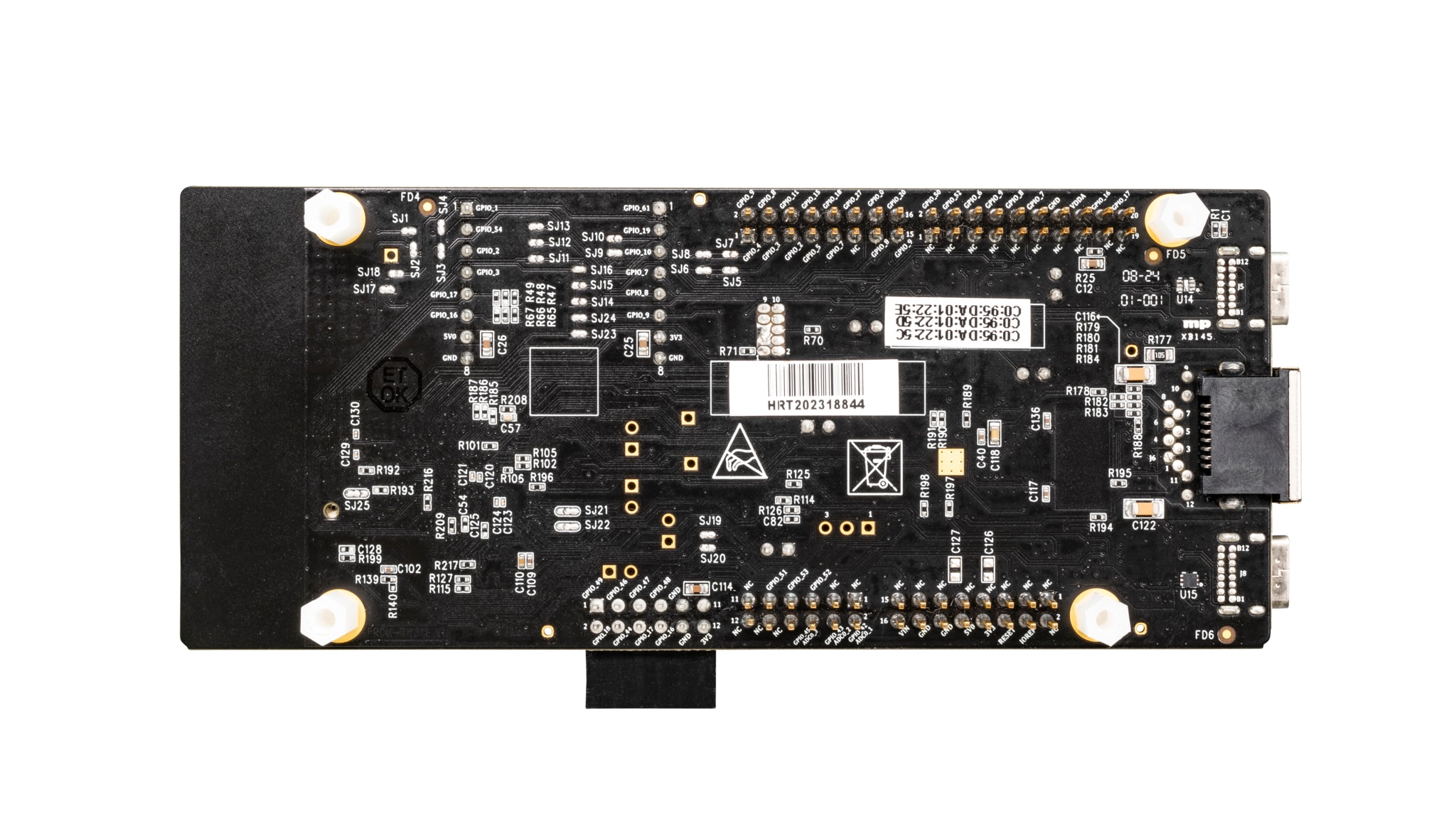

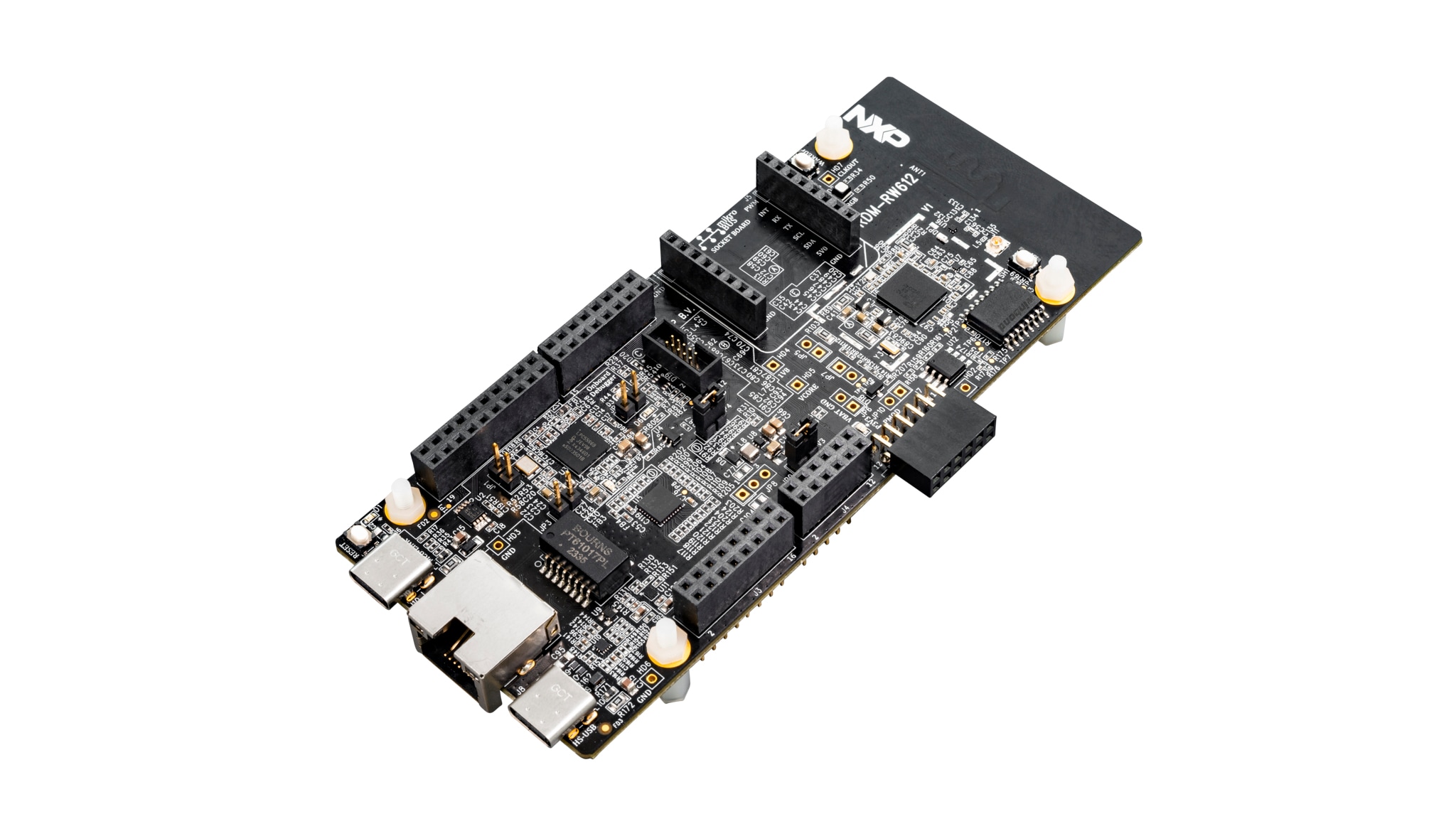

FRDM-RW612は、Wi-Fi 6 + Bluetooth Low Energy + 802.15.4に対応するトライラジオ・ワイヤレスMCUであるRW61xシリーズのラピッド・プロトタイピングを目的とした、小型で拡張性に優れた開発ボードです。

このMCUのI/Oおよびペリフェラルに容易にアクセスできるほか、オープン・スタンダードの統合シリアル・インターフェース、外部フラッシュ・メモリ、オンボードMCU-Linkデバッガを備えています。

アドオン・ボードに対応するNXPの拡張ボード・ハブや、ソフトウェア・サンプルを入手できるアプリケーション・コード・ハブなどを、MCUXpresso開発者エクスペリエンスで利用できます。

FRDM-RW612

対応製品

ワイヤレス・コネクティビティ

Wi-Fi®＋Bluetooth®＋802.15.4

  • RW610: 無線内蔵ワイヤレスMCU：1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4無線
  • RW612: トライラジオ内蔵ワイヤレスMCU：1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4 / 802.15.4

パワーマネージメント

ロード・スイッチ

  • NX5P3090UK: USB PDおよびType-C電流制限電源スイッチ

センサ

I3C/I²Cデジタル温度センサ

  • P3T1755DP: I3C/I²Cバス対応、±0.5°C精度デジタル温度センサ

特長

マイクロコントローラ

  • 高性能/高効率に最適化されたRW612 Arm™ Cortex™-M33コア@260MHz、1.2 MBオンチップSRAM

メモリ拡張

  • Winbond QSPIフラッシュ (512 Mbit)：W25Q512JV
  • APメモリQSPI pSRAM (64 Mbit)：APS6404L-SQN-SN

コネクティビティ

  • SPI/I2C/UARTコネクタ（mikroBUS、Pmod™）
  • イーサネットPHYおよびコネクタ
  • HS USB Type-Cコネクタ
  • デュアルバンド、1x1 Wi-Fi 6無線、20 MHzのチャネル帯域幅
  • Bluetooth LE無線機能
  • ZigbeeとThreadをサポートする802.15.4無線機能

デバッグ

  • CMSIS-DAPを備えたオンボードMCU-Linkデバッガ
  • JTAG/SWDコネクタ

センサ

拡張オプション

  • Arduino®ヘッダ（FRDM拡張用列付き）
  • FRDMヘッダ
  • Pmod™
  • mikroBUS™

ユーザ・インターフェース

  • RGBユーザLED、リセット、ISP、ウェイクアップ・ボタン

もっと見る
