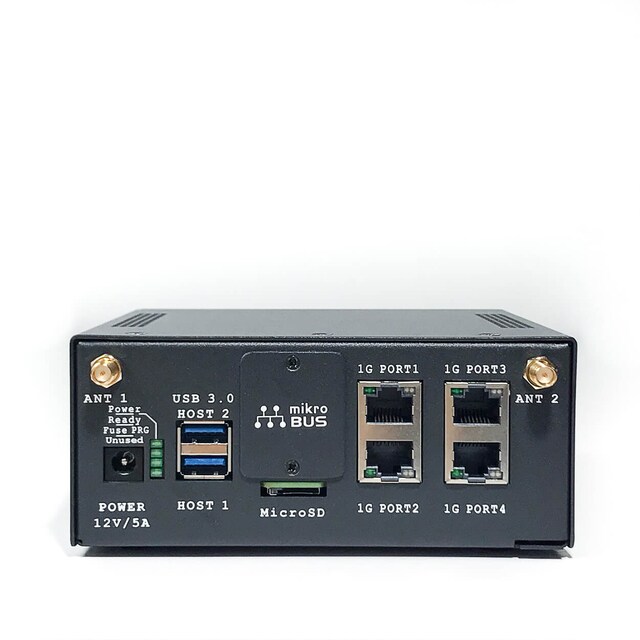

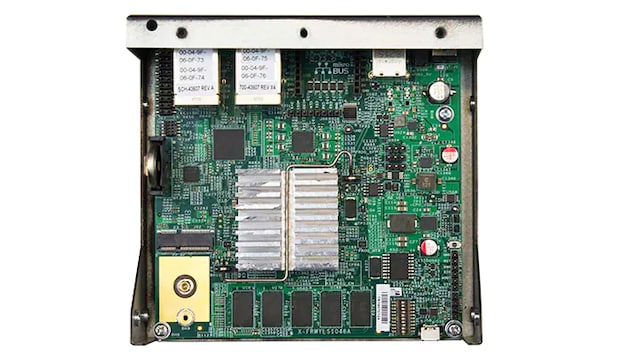

LS1046A Freeway Board

FRWY-LS1046A

画像にカーソルを合わせると拡大表示されます。

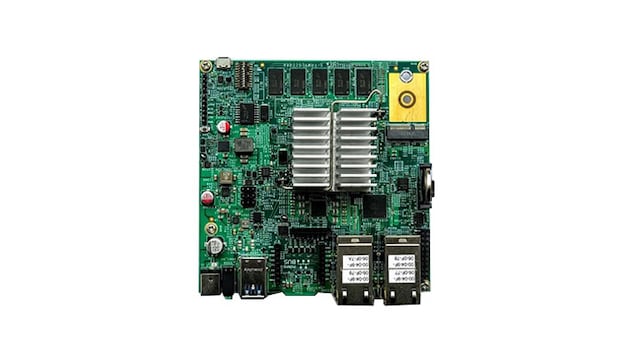

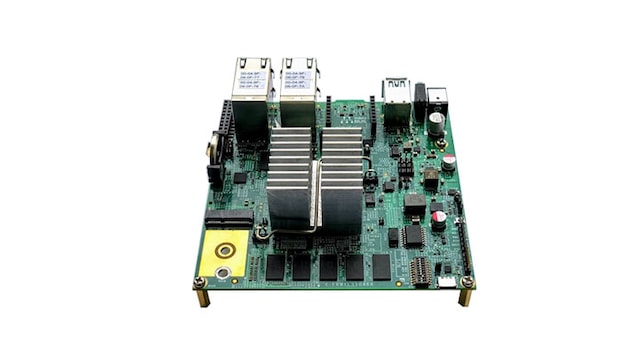

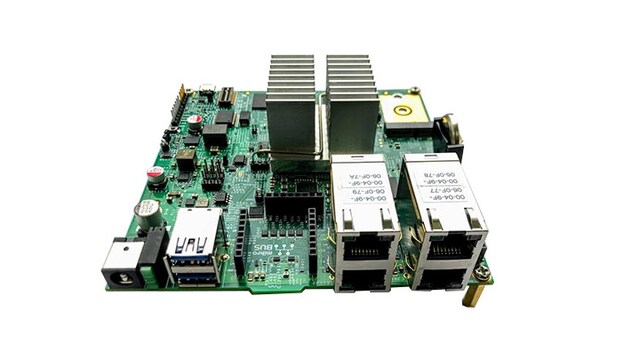

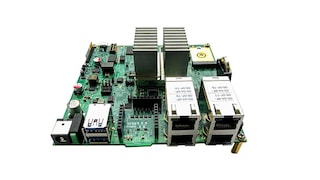

The LS1046A Freeway board (FRWY) is a high-performance computing, evaluation, and development platform that supports the LS1046A architecture processor capable of support more than 32,000 CoreMark performance. The FRWY-LS1046A board supports the LS1046A processor, onboard DDR4 memory, multiple Gigabit Ethernet, USB3.0 and M2_Type_E interfaces for Wi-Fi, FRWY-LS1046A-AC includes the Wi-Fi card.

In addition to a Wi-Fi card, the FRWY-LS1046A-TP includes the Coral Tensor Flow Processing Unit that offloads AI/ML inferencing from the CPU to provide significant boost for AI/ML applications. The FRWY-LS1046A-TP includes one M.2 TPU module and more modules can easily be added including USB versions of the module to scale the AI/ML performance.

The board has been certified to the Arm SystemReady ES  standard to ensure interoperability with standard operating systems and hypervisors.

ブロック図

Layerscape LS1046A

FRWY LS1046A Block Diagram
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

Layerscapeプロセッサ

  • LS1046A: Layerscape® 1046A and 1026A Processors

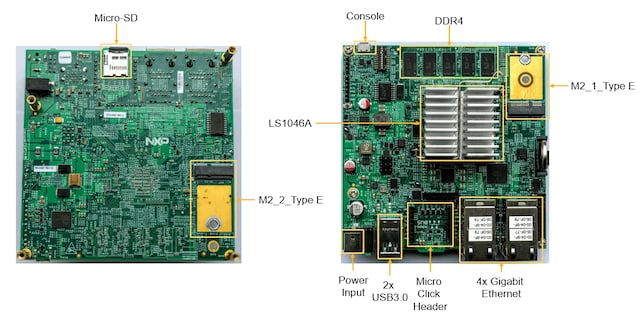

Features

Core Complex

  • LS1046A – 2/4-core Arm® Cortex®-A72 cores @ 1.6GHz

Network Elements

  • 2x M.2 slots – Wi-Fi, 4G/LTE, SSD
  • 4x 1GE Ethernet
  • Mikro-Click for expansion – NFC, Sensors, BLE/ZigBee, LoRa etc

Basic Peripherals

  • 4GB DDR4 with ECC @ 2.1GT/s
  • 4Gb NAND FLASH
  • 64MB QSPI FLASH
  • 2x USB3.0 (host)
  • Micro SD – Linux, Demo SW, Videos

Additional Features

  • Expansion Headers - I2C, SPI, Clocks, Interrupts, GPIO
  • Passive cooling heat sink (no fan)
  • Support LSDK / OpenWRT / Ubuntu

購入オプション

FRWY-LS1046A-AC-Image

クリックして展開

  • FRWY-LS1046A-AC
    アクティブ

  • LS1046A Freeway Board.

  • Kit Contains

    • Dual-band 2x2 802.11ac Wi-Fi card installed

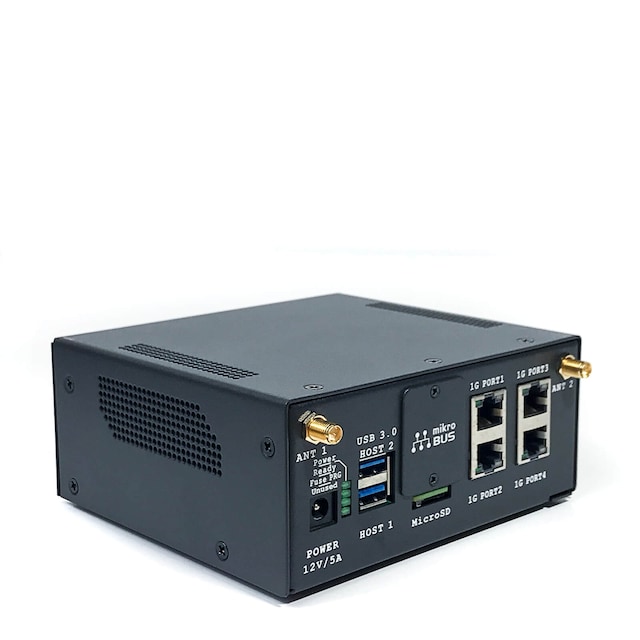

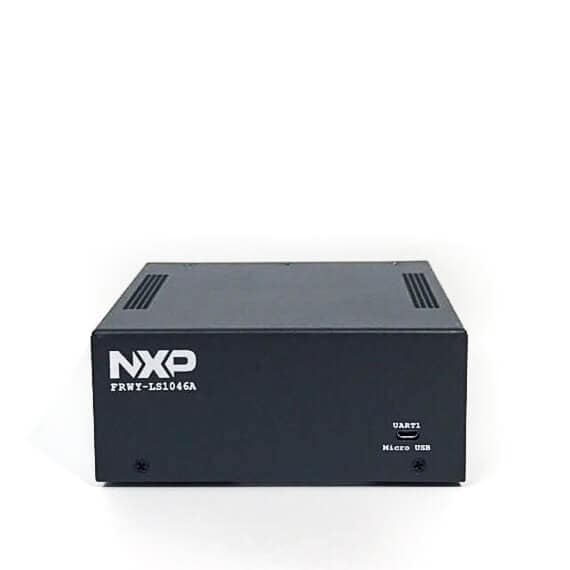

    • Enclosure
    • Universal Adaptors
    • Power Supply 12VDC 5A, adapters CE, FCC, PSE, CCC, UL, VI approvedPower Supply 12VDC 5A, adapters CE, FCC, PSE, CCC, UL, VI approved
    • Cable USB A to Micro-USB
    • Programmed 32GB TF Card
  • $1029.41 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 6
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
FRWY-LS1046A-TP-Image

クリックして展開

  • FRWY-LS1046A-TP
    アクティブ

  • LS1046A Freeway Board.

  • Kit Contains

    • Google TPU installed
    • Dual-band 2x2 802.11ac Wi-Fi card installed
    • Enclosure
    • Universal Adaptors
    • Power Supply 12VDC 5A, adapters CE, FCC, PSE, CCC, UL, VI approvedPower Supply 12VDC 5A, adapters CE, FCC, PSE, CCC, UL, VI approved
    • Cable USB A to Micro-USB
    • Programmed 32GB TF Card
  • $1333.39 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 8
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
FRWY-LS1046A-PA-Image

クリックして展開

  • FRWY-LS1046A-PA
    アクティブ

  • LS1046A Freeway Board.

  • Kit Contains

    • Universal Adaptors
    • Power Supply 12VDC 5A, adapters CE, FCC, PSE, CCC, UL, VI approvedPower Supply 12VDC 5A, adapters CE, FCC, PSE, CCC, UL, VI approved
    • Cable USB A to Micro-USB
  • の数量に対して 1
代理店からの注文
