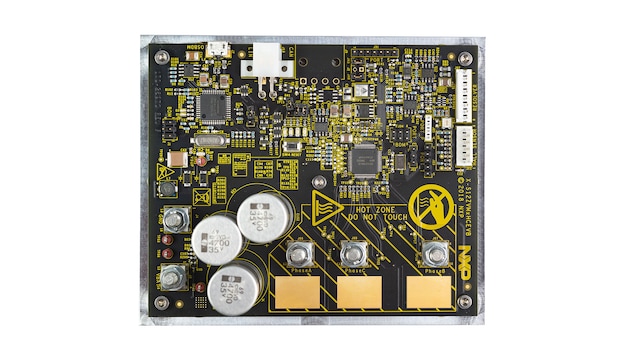

S12ZVM high-current BLDC/PMSM Evaluation Board

MCSXSR1CS12ZVM アクティブ

画像にカーソルを合わせると拡大表示されます。

The MCSXSR1CS12ZVM is an evaluation board engineered for 3-phase brushless direct current (BLDC) and permanent magnet synchronous motor (PMSM) control in high-current applications, featuring automotive connectivity with LIN or CAN, on-board OSBDM debugger with UART-to-USB bridge and various customizable I/O pins.

Based on the 16-bit S12 MagniV® S12ZVM mixed-signal microcontroller, the MCSXSR1CS12ZVM offers high performance 3-phase power stage for PMSM or BLDC motor control in sensorless mode or with Hall or Resolver type of sensors together with DC-link current sensing for 3-phase current reconstruction.

The MCSXSR1CS12ZVM integrates an automotive voltage regulator, a LIN physical interface and a gate driver unit able to drive up to six external MOSFETs.

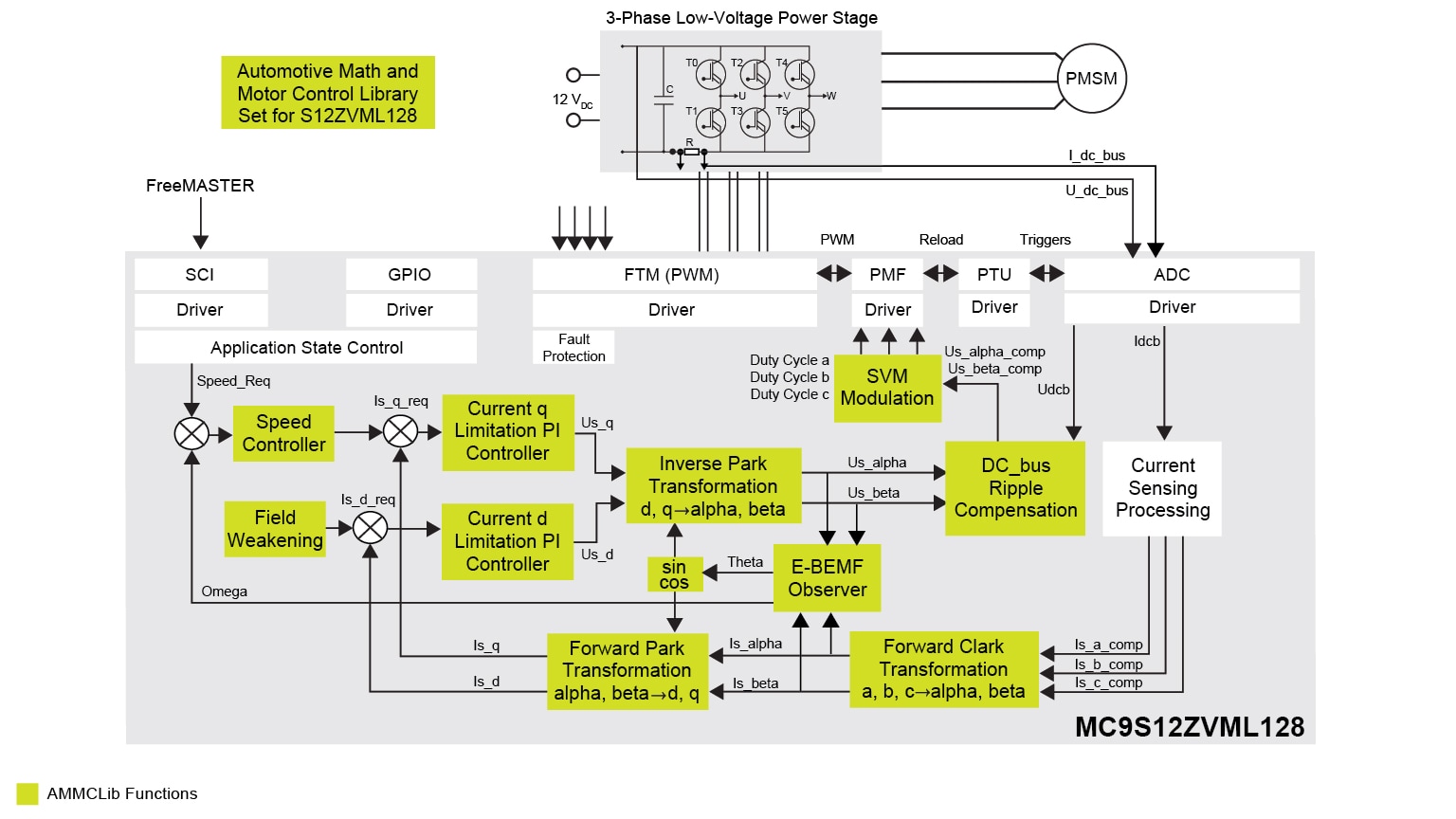

ブロック図

Motor Control Algorithm for MCSXSR1CS12ZVM

Motor Control Algorithm for MCSXSR1CS12ZVM
図を取得する PDF

対応製品

インターフェース

3.3 V/5 V IO CANトランシーバ

  • TJA1042: 高速CANトランシーバ、スタンバイ・モード搭載

プロセッサ＆マイクロコントローラ

S12 MagniVミックスド・シグナルMCU

  • S12ZVM: S12ZVM Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

MCSXSR1CS12ZVM hardware features:

  • Highly-integrated board for space constraint applications
  • Single PCB hardware design up to 1 kW of power with optimized switching performance
  • Single-shunt current sensing design for cost-sensitive applications
  • Resolver hardware interface with integrated voltage regulator
  • Interfaces: integrated LIN, optional CAN connectivity support, UART/SCI, SPI
  • OSBDM programming/debugging with USB-to-SCI transceiver
  • Easy access to the MCU I/O header pins for prototyping
  • External 12 V up to 100 A (not included in the package)

MCSXSR1CS12ZVM software features:

  • Automotive Motor Control Algorithm: sensorless control of the 3-phase PMSM motor based on Field Oriented Control (FOC) allowing independent control of the magnetic field and torque/speed
  • Evaluation version of the Automotive Math and Motor Control Library (AMMCLib) Set: control algorithm built on blocks of precompiled software library
  • FreeMASTER and MCAT application tuning and variables tracking at different levels of the FOC cascade structure
  • CodeWarrior 11.x: example software created in CodeWarrior 11.0 or higher

購入オプション

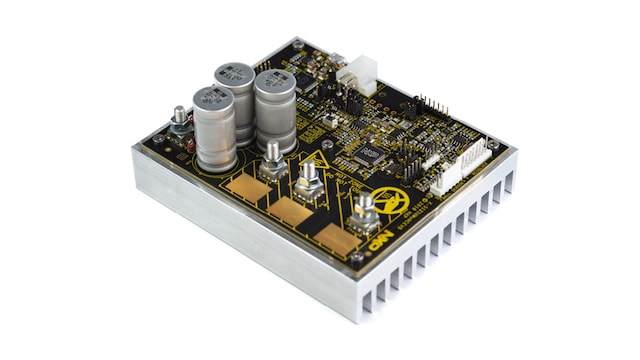

MCSXSR1CS12ZVM-Image

クリックして展開

  • MCSXSR1CS12ZVM
    アクティブ

  • MCSXSR1CS12ZVM for 3-phase high-current BLDC/PMSM.

  • $375.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
