S12ZVM32 3-phase BDLC and PMSM Evaluation Board

S12ZVM32EVB アクティブ

画像にカーソルを合わせると拡大表示されます。

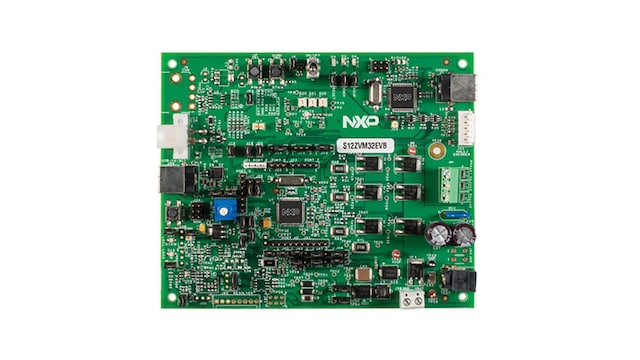

The S12ZVM32EVB is a development board for the S12 MagniV S12ZVM 16-bit MCUs targeted for 2-phase DC and 3-phase BLDC or PMSM motor control applications. The S12ZVM integrates a MCU with an S12Z core, a 5 V voltage regulator, a LIN physical layer and a gate driver unit capable of controlling up to 6 power MOSFETs and is targeted for automotive applications such as HVAC blowers, engine cooling fans, wiper systems, fuel or water pumps.

製品詳細

Features

Connectivity

  • Connector interface for 2-phase (DC) or 3-phase (BLDC or PMSM) motor
  • USB-to-SCI interface
  • LIN connector
  • Hall-sensor interface and connector
  • Resolver interface and connector

Debug

  • Built-in OSBDM debugger

User components

  • One general-purpose potentiometer
  • Two LEDs
  • Two push buttons
  • One switch
  • Shunt resistors for current sensing on up to three phases and common DC link
  • S12ZVM32 (LIN version)

購入オプション

S12ZVM32EVB-Image

クリックして展開

  • S12ZVM32EVB
    アクティブ

  • S12ZVM32 Evaluation Board for 2-phase DC and 3-phase BLDC.

    • S12ZVM32 Evaluation Board
    • Quick Start guide
  • $315.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
N true 0 TSPS12ZVM32EVBja 7 アプリケーション・ノート Application Note t789 5 サポート情報 Supporting Information t531 1 ユーザ・ガイド User Guide t792 1 ja ja 1 1 0 English Highly Integrated Microcontroller&#13;&#10;Enhanced S12Z Core at 50 MHz Bus Speed&#13;&#10;Up to 32 KB Flash and 4 KB RAM 1474928020759699808859 TSP 511.3 KB None None documents Y None 1474928020759699808859 /docs/en/user-guide/S12ZVM32EVB-QSG.pdf 511265 /docs/en/user-guide/S12ZVM32EVB-QSG.pdf S12ZVM32EVB-QSG N N 2016-11-09 S12ZVM32EVB Quick Start Guide /docs/en/user-guide/S12ZVM32EVB-QSG.pdf /docs/en/user-guide/S12ZVM32EVB-QSG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Sep 26, 2016 User Guide t792 ユーザ・ガイド User Guide Y N S12ZVM32EVB Quick Start Guide false ja アプリケーション・ノート Application Note 5 2 0 English AN5201SW.zip /docs/en/application-note-software/AN5201SW.zip /docs/en/application-note-software/AN5201SW.zip Guiding on integrating the Local Interconnect Network (LIN) driver with the BLDC sensorless motor controller software provided with the S12ZVM128EVB. 1444037247767723571162 TSP 1.1 MB None None documents None 1444037247767723571162 /docs/en/application-note/AN5201.pdf 1079043 /docs/en/application-note/AN5201.pdf AN5201 documents N N 2021-07-21 AN5201: Integrating the LIN Driver with BLDC Sensorless Motor Controller – Application Note /docs/en/application-note/AN5201.pdf /docs/en/application-note/AN5201.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Sep 30, 2015 645036621402383989 Application Note Y N AN5201: Integrating the LIN Driver with BLDC Sensorless Motor Controller – Application Note 3 0 Chinese AN5190: This application note focuses on showing how to configure the PMF module to achieve different output combinations.&#13;&#10;&#13;&#10; 1442486237276702683769zh TSP 1.4 MB None None documents None 1442486237276702683769 /docs/zh/application-note/AN5190.pdf 1409572 /docs/zh/application-note/AN5190.pdf AN5190 documents N N 2016-10-31 AN5190: S12ZVM Derivatives: Configuring PMF Module – Application Note /docs/zh/application-note/AN5190.pdf /docs/zh/application-note/AN5190.pdf Application Note N 645036621402383989 2024-07-15 zh Sep 16, 2015 645036621402383989 Application Note Y N AN5190, S12ZVM Derivatives: Configuring PMF Module 0 English Showing how to configure the Pulse Width Modulator with Fault protection (PMF) module to achieve different output combinations. The PMF is a specialized and versatile Pulse Width Modulator (PWM) module aimed for motor control. 1442486237276702683769 TSP 1.4 MB None None documents None 1442486237276702683769 /docs/en/application-note/AN5190.pdf 1409572 /docs/en/application-note/AN5190.pdf AN5190 documents N N 2016-10-31 AN5190: S12ZVM Derivatives: Configuring PMF Module – Application Note /docs/en/application-note/AN5190.pdf /docs/en/application-note/AN5190.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Sep 16, 2015 645036621402383989 Application Note Y N AN5190: S12ZVM Derivatives: Configuring PMF Module – Application Note 4 1 English Introducing the High Voltage (HV) physical layer of the S12ZVM16 and S12ZVM32 MCUs. The HV layer is a physical interface that provides single-wire communication. Illustrating how to use the HV physical layer for PWM communication. 1439794892727718645145 TSP 655.0 KB None None documents None 1439794892727718645145 /docs/en/application-note/AN5176.pdf 655006 /docs/en/application-note/AN5176.pdf AN5176 documents N N 2016-10-31 AN5176: Using the High Voltage Physical Layer in the S12ZVM – Application Note /docs/en/application-note/AN5176.pdf /docs/en/application-note/AN5176.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Sep 1, 2015 645036621402383989 Application Note Y N AN5176: Using the High Voltage Physical Layer in the S12ZVM – Application Note 5 1 Chinese 1376919947986721925229zh TSP 2.6 MB None None documents None 1376919947986721925229 /docs/zh/application-note/AN4704.pdf 2648009 /docs/zh/application-note/AN4704.pdf AN4704 documents N N 2016-10-31 AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note /docs/zh/application-note/AN4704.pdf /docs/zh/application-note/AN4704.pdf Application Note N 645036621402383989 2024-07-15 zh 645036621402383989 Application Note N AN4704，采用S12 MagniV<sup>®</sup> MC9S12ZVM的3相无传感器BLDC电机控制套件 - 应用笔记 1 English Describing the design of a 3-phase brushless DC (BLDC) motor control drive using a sensorless algorithm. The design is targeted at automotive applications. This cost-effective solution is based on MC9S12ZVML128 MCU, targeting automotive motor control. 1376919947986721925229 TSP 2.6 MB None None documents None 1376919947986721925229 /docs/en/application-note/AN4704.pdf 2648009 /docs/en/application-note/AN4704.pdf AN4704 documents N N 2016-10-31 AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note /docs/en/application-note/AN4704.pdf /docs/en/application-note/AN4704.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Aug 14, 2013 645036621402383989 Application Note Y N AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note 6 0 English Introducing the MTRCKTSBNZVM128 in a 3-phase Hall sensor-based BLDC motor control application. The MC9S12ZVML128 and MC9S12ZVMC128 devices offer the right blend of digital programmability and high precision analog to streamline the final design, integrating a 16-bit microcontroller build on proven S12 technology, an automotive voltage regulator, a LIN or CAN interface, and a gate driver unit to drive six external MOSFETs. 1367400780325718597409 TSP 1.5 MB None None documents None 1367400780325718597409 /docs/en/application-note/AN4718.pdf 1507458 /docs/en/application-note/AN4718.pdf AN4718 documents N N 2016-10-31 AN4718: 3-Phase BLDC Hall Sensor Application Using S12ZVM – Application Note /docs/en/application-note/AN4718.pdf /docs/en/application-note/AN4718.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Apr 30, 2013 645036621402383989 Application Note Y N AN4718: 3-Phase BLDC Hall Sensor Application Using S12ZVM – Application Note サポート情報 Supporting Information 1 7 0 English 1474928359570714077599 TSP 5.9 KB None None documents None 1474928359570714077599 /docs/en/supporting-information/S12ZVM32EVB-BOM.txt 5919 /docs/en/supporting-information/S12ZVM32EVB-BOM.txt S12ZVM32EVB-BOM documents N N 2016-11-09 S12ZVM32EVB Bill of Materials /docs/en/supporting-information/S12ZVM32EVB-BOM.txt /docs/en/supporting-information/S12ZVM32EVB-BOM.txt Supporting Information N 371282830530968666 2022-12-07 txt N en Sep 26, 2016 371282830530968666 Supporting Information Y N S12ZVM32EVB Bill of Materials false 0 S12ZVM32EVB downloads ja true 0 Y TSP アプリケーション・ノート 5 /docs/en/application-note/AN5201.pdf 2021-07-21 1444037247767723571162 TSP 2 Sep 30, 2015 Application Note Guiding on integrating the Local Interconnect Network (LIN) driver with the BLDC sensorless motor controller software provided with the S12ZVM128EVB. None /docs/en/application-note/AN5201.pdf English documents 1079043 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5201.pdf AN5201: Integrating the LIN Driver with BLDC Sensorless Motor Controller – Application Note /docs/en/application-note/AN5201.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5201: Integrating the LIN Driver with BLDC Sensorless Motor Controller – Application Note 1.1 MB AN5201 N 1444037247767723571162 /docs/en/application-note/AN5190.pdf 2016-10-31 1442486237276702683769 TSP 3 Sep 16, 2015 Application Note Showing how to configure the Pulse Width Modulator with Fault protection (PMF) module to achieve different output combinations. The PMF is a specialized and versatile Pulse Width Modulator (PWM) module aimed for motor control. None /docs/en/application-note/AN5190.pdf English documents 1409572 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5190.pdf AN5190: S12ZVM Derivatives: Configuring PMF Module – Application Note /docs/en/application-note/AN5190.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5190: S12ZVM Derivatives: Configuring PMF Module – Application Note 1.4 MB AN5190 N 1442486237276702683769 /docs/en/application-note/AN5176.pdf 2016-10-31 1439794892727718645145 TSP 4 Sep 1, 2015 Application Note Introducing the High Voltage (HV) physical layer of the S12ZVM16 and S12ZVM32 MCUs. The HV layer is a physical interface that provides single-wire communication. Illustrating how to use the HV physical layer for PWM communication. None /docs/en/application-note/AN5176.pdf English documents 655006 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5176.pdf AN5176: Using the High Voltage Physical Layer in the S12ZVM – Application Note /docs/en/application-note/AN5176.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5176: Using the High Voltage Physical Layer in the S12ZVM – Application Note 655.0 KB AN5176 N 1439794892727718645145 /docs/en/application-note/AN4704.pdf 2016-10-31 1376919947986721925229 TSP 5 Aug 14, 2013 Application Note Describing the design of a 3-phase brushless DC (BLDC) motor control drive using a sensorless algorithm. The design is targeted at automotive applications. This cost-effective solution is based on MC9S12ZVML128 MCU, targeting automotive motor control. None /docs/en/application-note/AN4704.pdf English documents 2648009 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4704.pdf AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note /docs/en/application-note/AN4704.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note 2.6 MB AN4704 N 1376919947986721925229 /docs/en/application-note/AN4718.pdf 2016-10-31 1367400780325718597409 TSP 6 Apr 30, 2013 Application Note Introducing the MTRCKTSBNZVM128 in a 3-phase Hall sensor-based BLDC motor control application. The MC9S12ZVML128 and MC9S12ZVMC128 devices offer the right blend of digital programmability and high precision analog to streamline the final design, integrating a 16-bit microcontroller build on proven S12 technology, an automotive voltage regulator, a LIN or CAN interface, and a gate driver unit to drive six external MOSFETs. None /docs/en/application-note/AN4718.pdf English documents 1507458 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4718.pdf AN4718: 3-Phase BLDC Hall Sensor Application Using S12ZVM – Application Note /docs/en/application-note/AN4718.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4718: 3-Phase BLDC Hall Sensor Application Using S12ZVM – Application Note 1.5 MB AN4718 N 1367400780325718597409 サポート情報 1 /docs/en/supporting-information/S12ZVM32EVB-BOM.txt 2016-11-09 1474928359570714077599 TSP 7 Sep 26, 2016 Supporting Information None /docs/en/supporting-information/S12ZVM32EVB-BOM.txt English documents 5919 None 371282830530968666 2022-12-07 N /docs/en/supporting-information/S12ZVM32EVB-BOM.txt S12ZVM32EVB Bill of Materials /docs/en/supporting-information/S12ZVM32EVB-BOM.txt documents 371282830530968666 Supporting Information N en None Y txt 0 N N S12ZVM32EVB Bill of Materials 5.9 KB S12ZVM32EVB-BOM N 1474928359570714077599 ユーザ・ガイド 1 /docs/en/user-guide/S12ZVM32EVB-QSG.pdf 2016-11-09 1474928020759699808859 TSP 1 Sep 26, 2016 User Guide ユーザ・ガイド Highly Integrated Microcontroller&#13;&#10;Enhanced S12Z Core at 50 MHz Bus Speed&#13;&#10;Up to 32 KB Flash and 4 KB RAM Y None /docs/en/user-guide/S12ZVM32EVB-QSG.pdf English 511265 None User Guide 2022-12-07 N /docs/en/user-guide/S12ZVM32EVB-QSG.pdf S12ZVM32EVB Quick Start Guide /docs/en/user-guide/S12ZVM32EVB-QSG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 0 N N S12ZVM32EVB Quick Start Guide 511.3 KB S12ZVM32EVB-QSG N 1474928020759699808859 true Y Tools
