S12ZVM PMSM Development Kit

MTRCKTSPNZVM128 製造開始前

画像にカーソルを合わせると拡大表示されます。

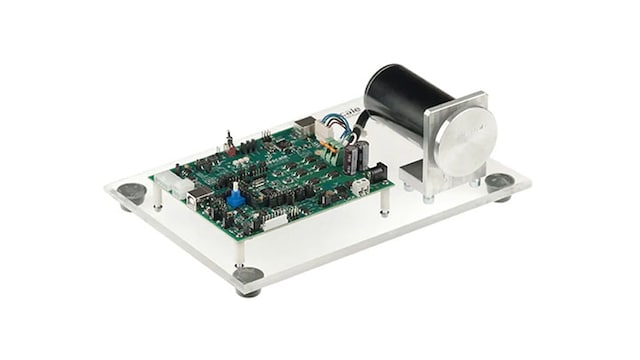

The MTRCKTSPNZVM128 motor control development kit is ideal for sensorless applications required to control one PMSM motor, such as HVAC or electric pumps. The kit is designed to enable rapid prototyping and evaluation of the motor control application without the need to wait for the final hardware design.

The kit includes the evaluation boards along with application software reference implementation of the PMSM motor control application using single-shunt and dual-shunt current sensing.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

S12 MagniVミックスド・シグナルMCU

  • S12ZVM: S12ZVM Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

Microcontroller

  • S12 MagniV® MC9S12ZVML128 microcontroller evaluation board

Sensors

  • DC-bus overvoltage, overcurrent, and under voltage fault detection

Support

  • Supports low-voltage PMSM/BLDC motors
  • FreeMASTER visualization/configuration support
  • ANSI-C based motor control reference software with easy portability
  • Extensive documentation for software and hardware
  • Dual or single shunt current sensing
