S32K344 Motor Control Development Kit for High-Power 48 V Applications

MC_XTM4CK344 製造開始前

画像にカーソルを合わせると拡大表示されます。

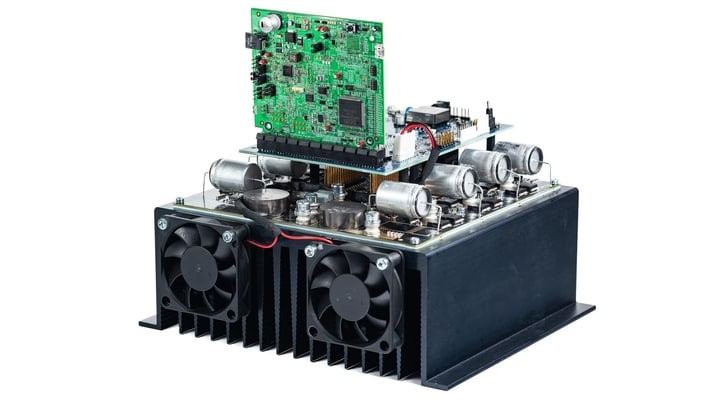

The MCSXTM4CK344 and MCDXTM4CK344 are motor control development kits for rapid prototyping and evaluation of high-power 48 V applications.

Based on the 32-bit Arm® Cortex®-M7 S32K3 microcontroller, the MCSXTM4CK344 kit controls one 3-phase permanent magnet synchronous motor (PMSM) or brushless direct current (BLDC) motor, while the MCDXTM4CK344 development kit may control either two 3-phase motors or one 6-phase PMSM/BLDC motor.

The 48 V development kit can be used directly by automotive manufacturers, suppliers and software ecosystem partners to accelerate development for a shorter time to market in 48 V applications like starter generators, eTurbo, eCompressors or a small traction drives for eBikes, e-Scooters and rickshaws.

ブロック図

図を選択する。:

S32K3 Single FOC Diagram

S32K3 Single FOC Diagram

S32K3 Dual FOC Diagram

S32K3 Dual FOC Diagram
図を取得する PDF

対応製品

インターフェース

CAN with Flexible Data Rate

  • TJA1052IT: Galvanically-Isolated High-Speed CAN Transceiver

セキュアCANトランシーバ

  • TJA1153: Secure HS-CAN Transceiver with Sleep Mode

オートモーティブLINソリューション

  • TJA1021: ISO17987 LIN 2.1/SAE J2602トランシーバ

車載用イーサネットPHY

  • TJA1101: TJA1101B、IEEE 100BASE-T1準拠、車載用イーサネットPHYトランシーバ

プロセッサ＆マイクロコントローラ

S32K 車載汎用MCU

  • S32K3: S32K3 車載向け汎用マイクロコントローラ

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

パワーマネージメント

セーフティSBC

  • FS26: 低消費電力セーフティ・システムベーシス・チップ、ASIL Dシステム対応

Features

Hardware Features

  • Control of 3/6-phase AC motors types:
  • PMSM / BLDC / ACIM / (optional DC)
  • 3.8 kVA - 5.7 kVA power rate, up to ~170 Amps (peak current)
  • Position/Speed sensor options:
    • Resolver
    • Encoder
    • HALL
    • or Sensorless techniques
  • Isolated 48/12 V layer: Isolated CAN PHY and Flyback converter
  • Voltage/current sensors:
    • Battery Voltage
    • DC Bus voltage
    • Phase voltages and currents
    • BEMF voltages
    • Over current/voltage/temperature protections
  • Temperature measurement

Software Features

Interfaces

  • Onboard isolated and nonisolated CAN
  • Onboard LIN
  • Onboard Ethernet (socket connector)
  • Onboard S32K3 debug interface (including serial communication)
  • JTAG debug interface

Enablement

  • ANSI-C based example SW created in S32 Design Studio for S32 Platform built on S32K3 RTD drivers
  • FreeMASTER visualization/configuration support
  • MCAT tool - part of software package
  • MCU peripherals initialization generated by S32CT Configuration Tool (CT)
