S12ZVML 3-phase BLDC/PMSM Evaluation Kit

S12ZVML-MINIXXX アクティブ

画像にカーソルを合わせると拡大表示されます。

The S12ZVML-MINIBRD evaluation board and the S12ZVML-MINIKIT evaluation kit are based on the 16-bit S12 MagniV® S12ZVM microcontroller. S12ZVML-MINIBRD and S12ZVML-MINIKIT are engineered for 3-phase BLDC and PMSM sensorless motor control applications as well as DC applications requiring load switching and load current monitoring.

Both S12ZVML-MINIBRD and S12ZVML-MINIKIT uses a S12ZVML MCU, integrating an automotive voltage regulator, a LIN physical interface, and a gate driver unit able to drive up to six external MOSFETs.

対応製品

プロセッサ＆マイクロコントローラ

S12 MagniVミックスド・シグナルMCU

  • S12ZVM: S12ZVM Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

Microcontroller

  • S12 MagniV S12ZVM microcontroller mini board design
  • Supports low-voltage BLDC, PMSM, and DC motors
  • DC-bus overvoltage, overcurrent, and under voltage fault detection
  • FreeMASTER visualization/configuration support
  • ANSI-C based motor control reference software with easy portability
  • Extensive documentation for software and hardware

購入オプション

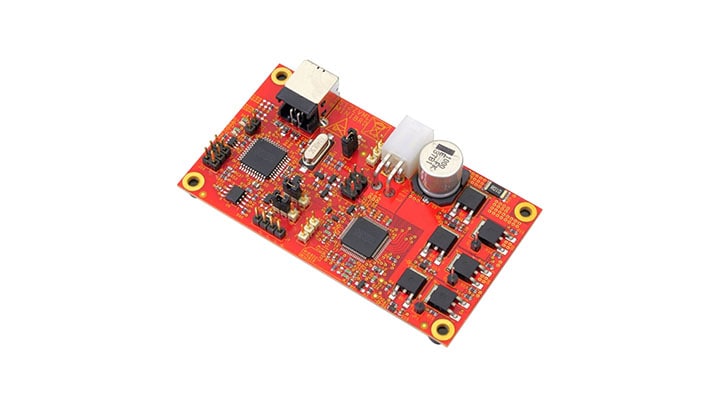

S12ZVML-MINIBRD-Image

クリックして展開

  • S12ZVML-MINIBRD
    アクティブ

  • S12ZVML Development Board for 3-phase sensorless BLDC.

    • S12ZVML-based evaluation board
    • Power supply cable
    • USB cable
    • Get started card with support package information
  • $79.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文

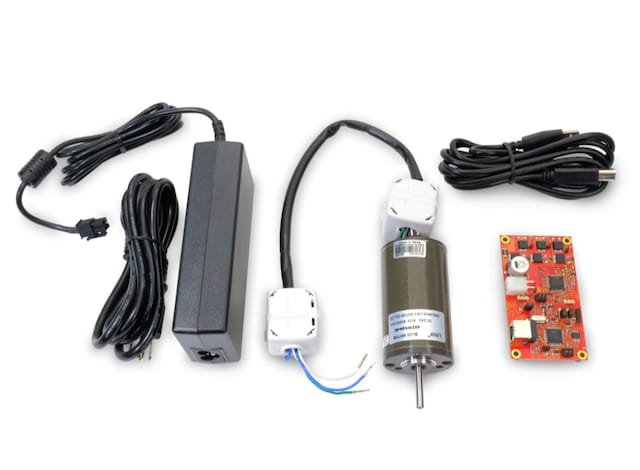

S12ZVML-MINIKIT-Image

クリックして展開

  • S12ZVML-MINIKIT
    アクティブ

  • S12ZVML-MINIBRD with a Linix PM motor.

    • S12ZVML-based evaluation board
    • 3-phase Linix 45ZWN24-40 PM motor
    • Power Supply and cable
    • USB cable
    • Get started card with support package information
  • $179.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
