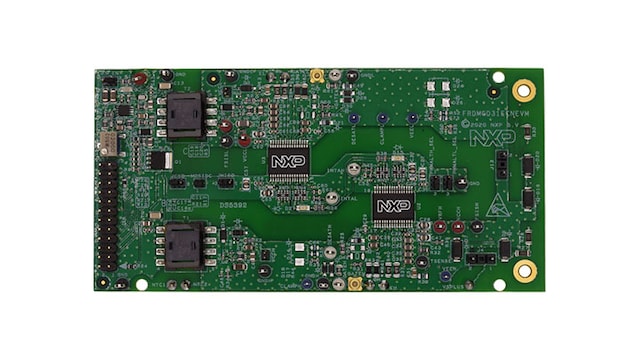

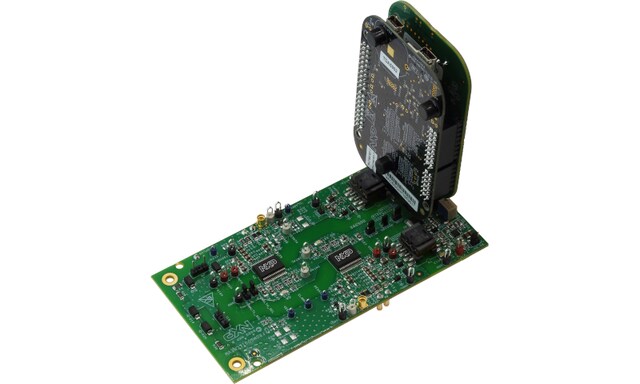

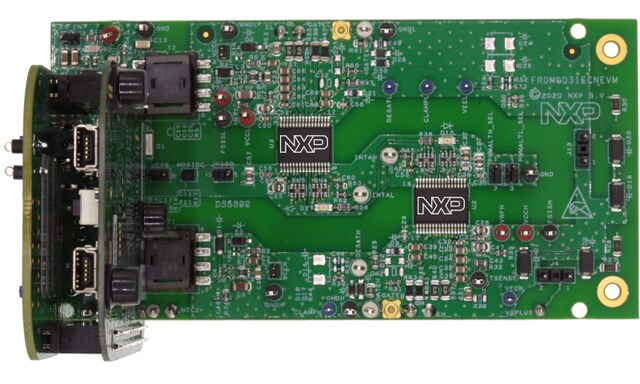

FRDMGD31ECNEVM is a half-bridge evaluation kit populated with two MC33GD3100 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with SPIGen software for communication to the SPI registers on the MC33GD3100 gate drive devices in either daisy chain or standalone configuration.
The GD3100 translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers. The evaluation kit is designed to connect to an Ecno Dual IGBT or SiC MOSFET module for half-bridge evaluations and applications development.
GD3100 Half-Bridge Evaluation Kit.
Half-Bridge evaluation kit featuring GD3100 gate drive devices for IGBT/SiC MOSFET
