FRDMGD3160DSBHB
アクティブ -
GD3160 Half-Bridge Evaluation Kit.
Kit Contains
- Half-Bridge evaluation kit featuring GD3160 gate drive devices for IGBT/SiC MOSFET
- KITGD3160TREVB translator with KL25Z MCU
- Micro usb cable
- Quick start guide
GD3160 Half-Bridge Evaluation Kit

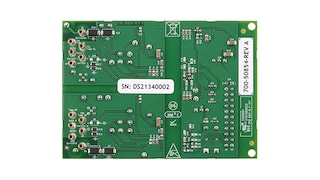

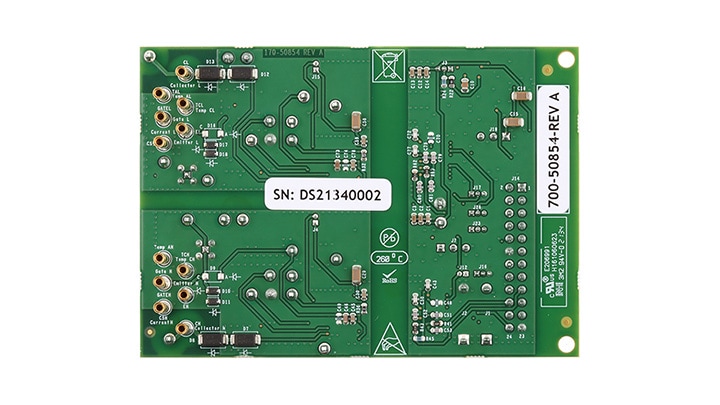

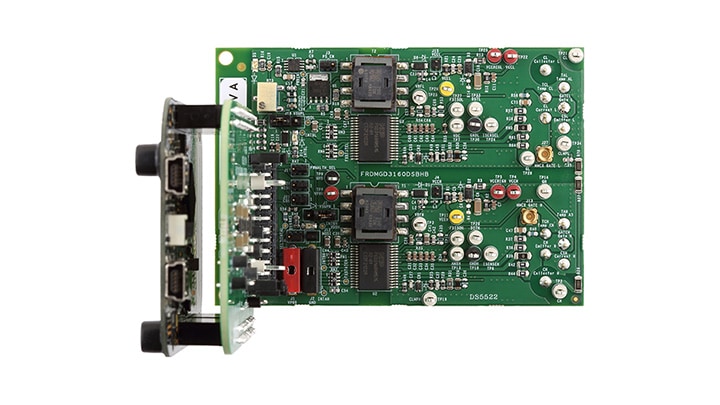

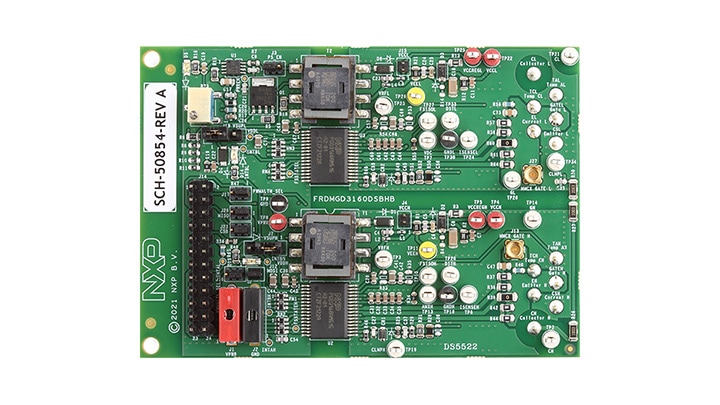

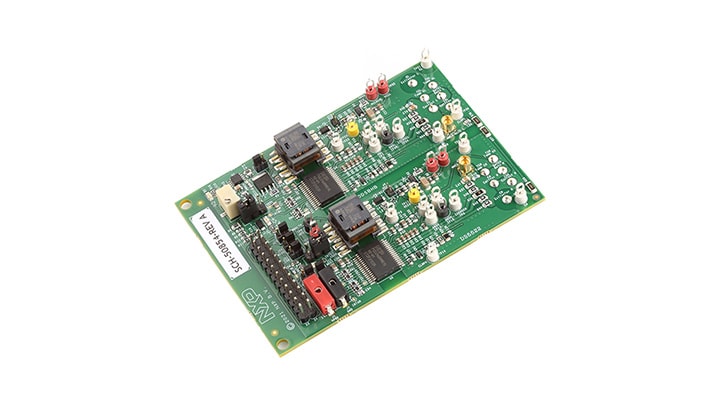

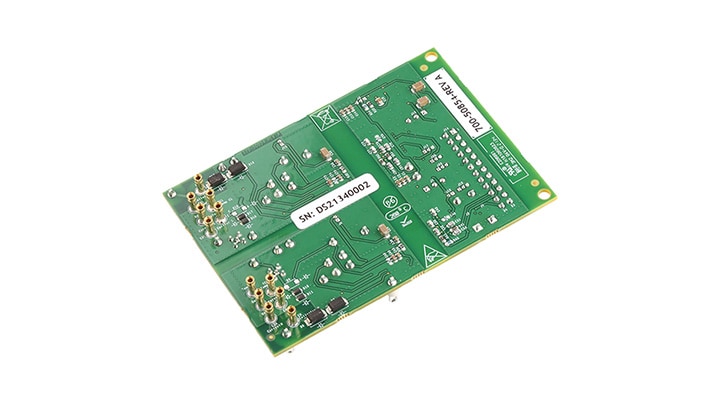

The FRDMGD3160DSBHB is a half-bridge evaluation kit populated with two GD3160 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with Flex GUI software for communication to the SPI registers on the GD3160 gate drive devices in either daisy chain or standalone configuration.

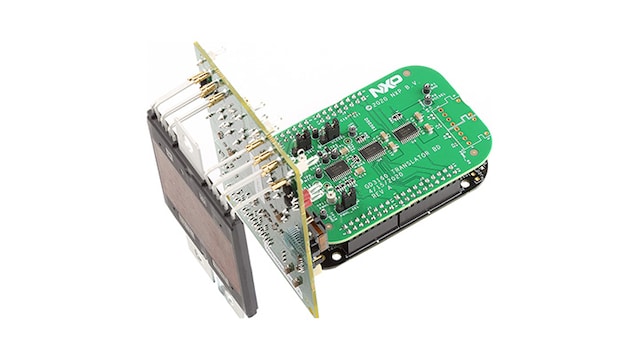

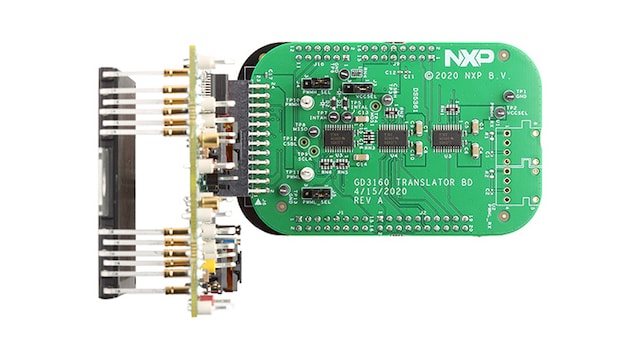

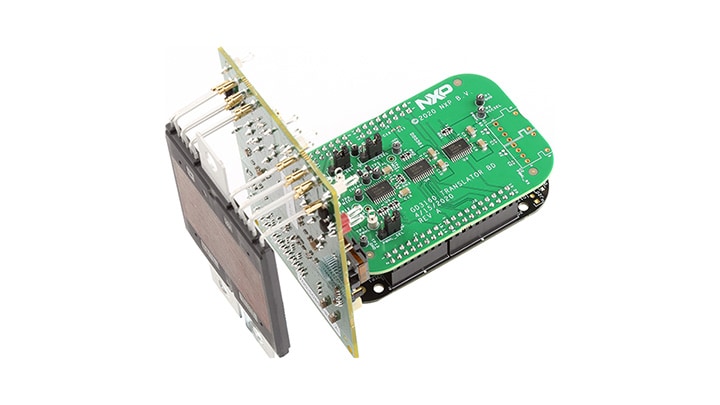

The KITGD3160TREVB translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and GD3160 gate drivers. The evaluation kit is designed to connect to a NVG800A75L4DSB with VE-Trac™ Dual IGBT module from onsemi for half-bridge evaluations and applications development.
製品詳細
対応製品
パワーマネージメント
パワートレイン＆エンジン制御
- GD3160: SiC MOSFET用のセグメント化ドライブを備えた高度な高電圧絶縁ゲート・ドライバ
Features
General
- Compatible with NVG800A75L4DSB IGBT module
- Flex GUI graphical user interface available for use with kit
- Daisy chain SPI interface configurability
- Easy to configure jumper options
- SPI configurable register options using Flex GUI
- Double pulse and short circuit evaluations
- Fiber optic connections for external PWM inputs
購入オプション
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
設計・リソース
デザイン・ファイル
クイック・リファレンス
設計・ファイルの種類.
2 設計・ファイル
-
プリント基板と回路図
FRDMGD3160DSBHB Schematics
-
Design Tool
FRDMGD3160DSBHB Design Files
