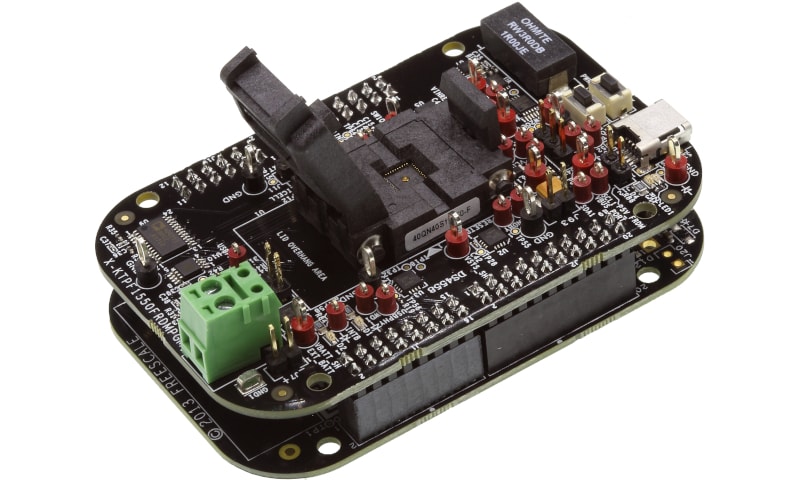

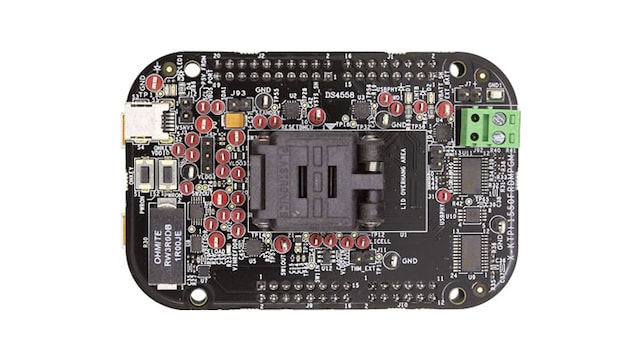

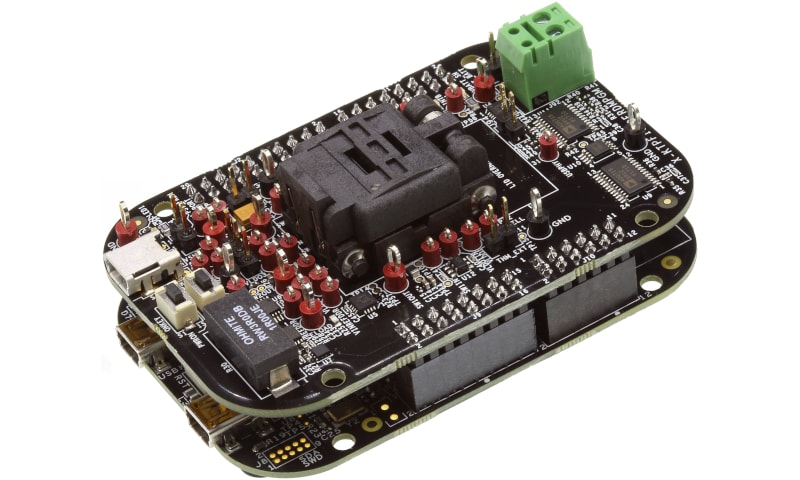

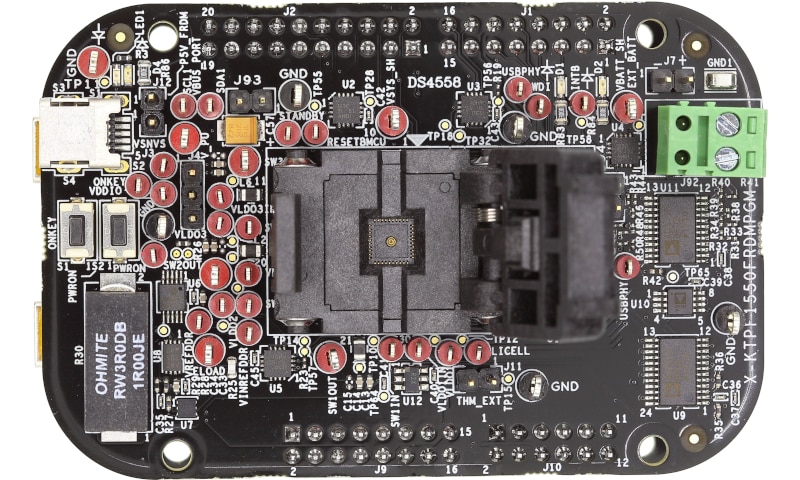

PF1550 Programming Socket Board

KITPF1550FRDMPGM アクティブ

画像にカーソルを合わせると拡大表示されます。

The KITPF1550FRDMPGM programming socket board supports the one time programmable (OTP) programming of the PF1550 power management integrated circuit (PMIC).

The kit comes with a FRDM-KL25Z already mounted and loaded with compatible microcode. The primary function of the FRDM-KL25Z is to control communication between the socket board and a PC.

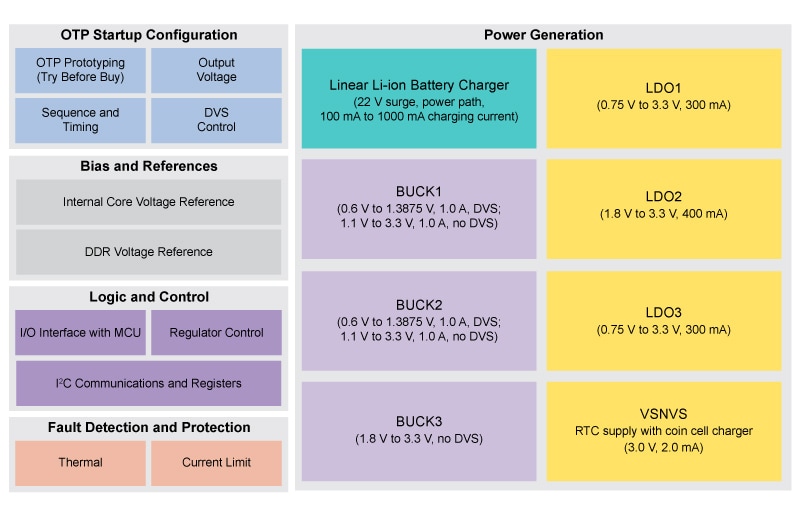

ブロック図

PF1550: PMIC with 1A Li+ Linear Battery Charger

PF1550: PMIC with 1A Li+ Linear Battery Charger
図を取得する PDF

対応製品

パワーマネージメント

PMIC

  • PF1550: PMIC with 1A Li+ Linear Battery Charger for Low Power Processor Systems

Features

OTP Programming

  • A 40-pin QFN clamshell socket installed
  • OTP programming LED indicator

Connectivity

  • Integrated FRDM-KL25Z Freedom Board for control
  • Standard Mini-USB connector for communication with PC

Required equipment

  • KITPF1550GUI installed on a Windows PC 4.3

System requirements

  • USB enabled computer running Windows XP, Vista, 7, 8, or 10 (32-bit or 64-bit)

購入オプション

KITPF1550FRDMPGM-Image

クリックして展開

  • KITPF1550FRDMPGM
    アクティブ

  • Freedom, PF1550, Programming board.

    • The kit contents include:
      • Assembled and tested KITPF1550FRDMPGM and preprogrammed FRDM-KL25Z microcontroller board in an anti-static bag
      • Cable, USB type A male/type mini B male 3 ft
      • Quick start guide
  • $253.57 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 9
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
