Features
Battery Cell Controller, Advanced, 6 Channels, TPL, LQFP48.
Package
HLQFP48 LQFP64, plastic, low profile quad flat package; 64 terminals; 0.5 mm pitch; 10 mm x 10 mm x 1.4 mm body.
購入オプション
S32M27XEVB-L064
アクティブ
12NC: 935439778598
詳細
注文
在庫あり:161
代理店からの注文操作機能
情報なし
環境
| Part/12NC | 鉛フリー | EU RoHS | ハロゲンフリー | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
S32M27XEVB-L064(935439778598) | Not Available | Compliant | Not Available | Compliant | 453592.0 |
品質
| Part/12NC | 安全保障機能安全 |
|---|---|
S32M27XEVB-L064 (935439778598) | No |
配送
| Part/12NC | 関税分類番号（米国)免責事項: | 輸出規制品目番号（米国） | CCATS |
|---|---|---|---|
S32M27XEVB-L064 (935439778598) | 847150 | 5A992C | G174120 |
詳細 S32M27XEVB

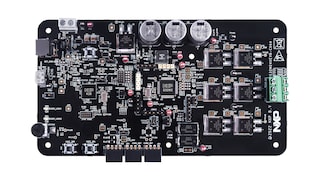

The S32M27xEVB-C064 and S32M27xEVB-L064 are an evaluation boards engineered for 3-Phase Brushless Direct Current (BLDC) and Permanent Magnet Synchronous Motor (PMSM) control applications like electric pumps, cooling systems and actuators like sunroof or seat position adjustment.
The S32M27x is an integrated solution based on an internal 32-bit Arm® Cortex®-M7 S32K3 microcontroller and analog die with voltage regulator, gate driver, current sensing and LIN/CAN physical layer. Evaluation board enables rapid prototyping and evaluation of BLDC and PMSM control applications without having to wait for the final hardware design.
The S32M27XEVB application software leverages the Automotive Math and Motor Control Library (AMMCLib) set plus Real-Time Drivers (RTD) software package to provide a complete reference implementation for both 3-phase BLDC and PMSM motor control.
