Freedom Development Platform for Kinetis® KV1x Family 128 KB, 64 KB, 32 KB and 16 KB Flash MCUs

FRDM-KV11Z アクティブ

画像にカーソルを合わせると拡大表示されます。

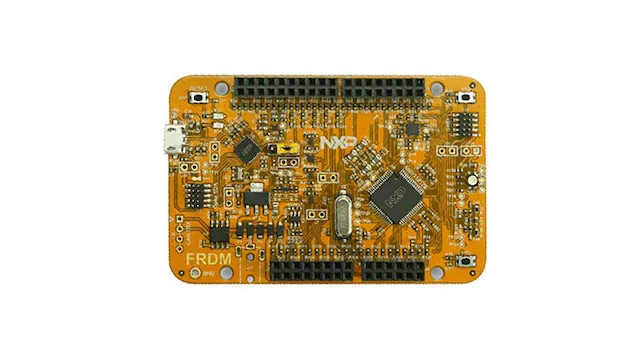

The FRDM-KV11Z is a low-cost development tool for the Kinetis® V series KV1x MCU family built on the Arm® Cortex®-M0+ processor. The FRDM-KV11Z hardware is form-factor compatible with the Arduino® Rev3 pin layout, providing a broad range of expansion board options. The FRDM-KV11Z platform features OpenSDA, the NXP® open source hardware embedded serial and debug adapter running an open source bootloader. This circuit offers several options for serial communication, flash programming, and run-control debugging.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

KVシリーズArm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

Features

Microcontroller

    MKV11Z128VLF7 MCU

    • Arm® Cortex®M0+ 75 MHz
    • 128 kB Flash, 16 kB SRAM
    • 1xFlexCAN, 16-bit ADC, and FlexTimers with quadrature decoder dedicated to motor and power control
    • 48 LQFP

Connectivity

  • Motor control auxiliary connector
  • Form factor compatible with Arduino Rev3 pin layout

Power Management

  • Power selectable 3.3 V/1.8 V

Debug

    New, OpenSDA debug interface from P&E

  • FRDM-KV11Z Mass storage device flash programming interface (default) – no tool installation required to evaluate demo apps
  • P&E Debug interface provides run-control debugging and compatibility with IDE tools

Sensors

  • Six-axis sensor combining accelerometer and magnetometer (FXOS8700CQ)
  • Thermistor sensor to measuring temperature

Support and Software

  • Enabled with MCUXpresso IDE and SDK software solution and Freemaster and MCAT – Motor Control Application Tuner that enables configuration of motor drive systems for BLDC and PMSM type motors
  • FlexCAN I/O supported

Components

  • Tri-color user-controllable LEDs
  • User controlled push-button switches

もっと見る

購入オプション

FRDM-KV11Z-Image

クリックして展開

  • FRDM-KV11Z
    アクティブ

  • FRDM-KV11Z.

    • FRDM-KV11Z Freedom Development Platform
    • Quick Start Guide
    • USB A-to-MicroB cable
  • $28.75 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 2
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
