Layerscape LS2088A Reference Design Board

LS2088A-RDB

画像にカーソルを合わせると拡大表示されます。

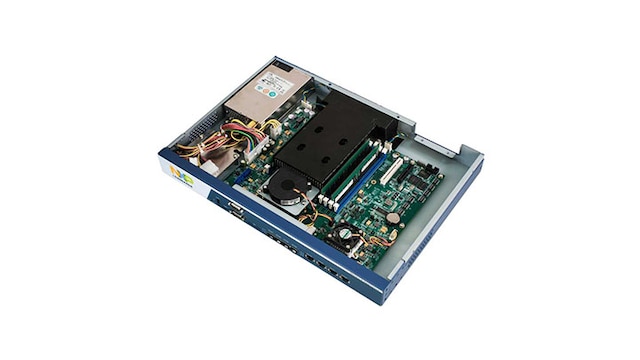

The LS2088A reference design board provides a comprehensive platform that enables design and evaluation of the product (LS2088A processor). This RDB comes pre-loaded with a board support package (BSP) based on a standard Linux kernel.

  • Enables network intelligence with the next generation Datapath (DPPA2) which provides differentiated offload and a rich set of IO
  • Simplifies programming
  • Delivers unprecedented efficiency and new virtualized networks
  • Supports designs in enterprise SDN switching and routing, cloud data center switching, wireless cell site routing, as well as many control-based applications like control plane functions for branch routers, chassis switches, firewalls and WAN optimization controllers

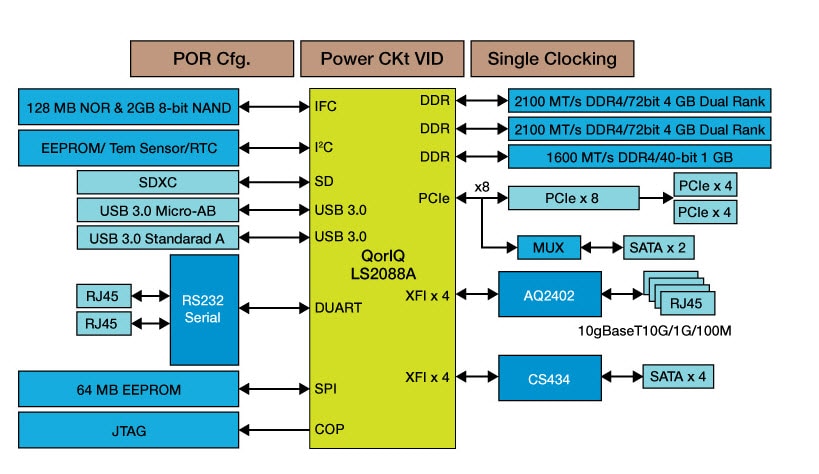

ブロック図

Layerscape LS2088A

LS2088A Reference Design Board
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

Layerscapeプロセッサ

  • LS2088A: Layerscape® 2088A and 2048A Processors
  • LS2084A: Layerscape 2084A and 2044A Multicore Processors
  • LX2160A: Layerscape® LX2160A, LX2120A, LX2080A Processors

Features

Processor

  • LS2088A CPU Up to 8x Arm® Cortex®-A72 CPU
  • Up to 2.0GHz core speed

Memory

  • SDRAM Supporting dual ranked DIMM slot
  • Two x DDR4 UDIMM x72 supports for 4GB memory per slot, 2.1 GT/s data rate. ECC enabled
  • Support for an additional dual rank UDIMM slot. One x ½ UDIMM x40 support for 1 GB memory, 1.6 GT/s data rate
  • 128MB NOR flash
  • 8-bit 2GB SLC NAND flash

Ethernet

  • Support for up to 4-ports of 10GbE, SFP+
  • Support for up to 4-ports of 10GbE, copper (4xRJ45)

Basic Peripherals and Interconnect

  • PCI Express
    • One standard slot x8 PCIe connector to support 1 x8 PCIe Gen3 or 2x4 PCIe through a connector
  • USB 3.0
    • Two USB type A connectors on the front or rear panel connected to a USB PHY. One configured as a host, the second as OTG
  • SATA
    • Support for 2xSATA connectors. These will be muxed from the PCIe SERDES and configure through a switch on the board

購入オプション

LS2088ARDB-PC-Image

クリックして展開

  • LS2088ARDB-PC
    アクティブ

  • Layerscape LS2088A Reference Design Board.

  • $3573.72 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 8
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
