Evaluation Board for FS4508, System Basis Chip

KITFS4508CAEEVM アクティブ

画像にカーソルを合わせると拡大表示されます。

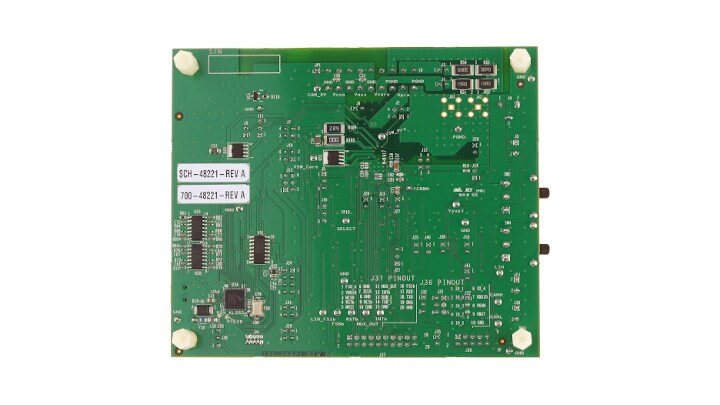

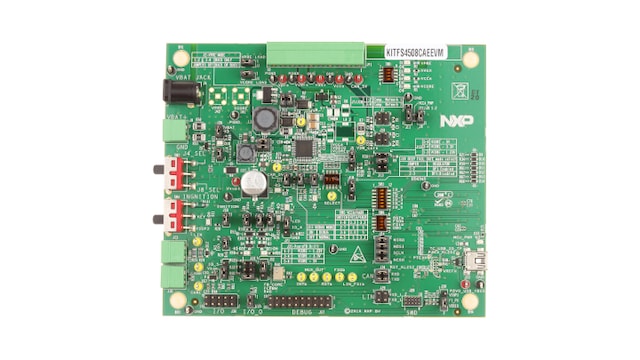

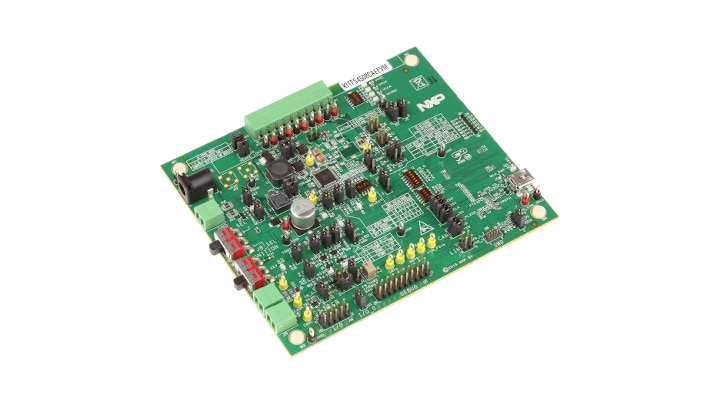

KITFS4508CAEEVM evaluation board demonstrates the functionality of MC33FS4508 supports CAN FD with Linear Vcore regulator up to 0.5 A.These Safety SBC's target ISO 26262 automotive functional safety standard (ASIL B).

NXP’s analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic ICs and system-in-package devices that use proven high-volume SMARTMOS technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state of the art systems.

The tool can be used in a standalone mode and controlled with an embedded USB interface. SPI command is easily controlled by the FlexGUI downloadable here.

対応製品

パワーマネージメント

セーフティSBC

  • FS4500: CAN FDトランシーバを備えたグレード1およびグレード0のセーフティ電源システム・ベーシス・チップ

Features

Key Features

  • Microcontroller KL25Z MCU installed on board for easy connection to host computer on USB link with monitoring features

Connectivity

  • CAN FD and LIN bus (LIN exclusive with FS1B)
  • FS0B and FS1B output pins (FS1B exclusive with LIN)
  • Connectors allowing easy access to digital signals

Power Management

  • VCORE configuration: 1.23 V, 3.3 V, 5.0 V
  • VCCA, VAUX configuration - 3.3 V or 5.0 V, with internal PMOS or external PNP
  • Vpre regulator with a Buck or Boost setting

購入オプション

KITFS4508CAEEVM-Image

クリックして展開

  • KITFS4508CAEEVM
    アクティブ

  • Evaluation Board for FS4508, System Basis Chip.

  • Kit Contains

    • Evaluation board
    • Cable, Mini USB A to B
    • 3x10 pos Connector
    • 1x2 pos Connector
  • $190.90 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 10
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
N true 0 TSPKITFS4508CAEEVMja 2 ユーザ・ガイド User Guide t792 2 ja ja 2 1 English This page will guide you through the process of setting up and using FS45xx/FS65xx evaluation boards. 1618872753148681583586 Y 1618872753148681583586 GS-FS45XX-FS65XX-EVBS GS-FS45XX-FS65XX-EVBS /document/guide/getting-started-with-the-fs45xx-fs65xx-evaluation-boards:GS-FS45XX-FS65XX-EVBS HTML 0 2021-04-20 GS-FS45XX-FS65XX-EVBS TSP User Guide 132339537837198660 2025-03-03 en Apr 20, 2021 User Guide t792 ユーザ・ガイド User Guide Y Getting Started with the FS45XX/FS65XX Evaluation Boards 2 2.0 English The KITFS6522LAEEVM, KITFS6523CAEEVM, and KITFS4503CAEEVM are hardware evaluation tools supporting system designs based on NXP's FS4500 and FS6500 product families. 1463502930084694785573 TSP 2.6 MB Registration without Disclaimer None documents Y Extended 1463502930084694785573 /secured/assets/documents/en/user-guide/KTFS4500-FS6500UG.pdf 2643731 /secured/assets/documents/en/user-guide/KTFS4500-FS6500UG.pdf KTFS4500-FS6500UG Y N 2016-10-31 KTFS4500-FS6500UG, KITFS6522LAEEVM, KIT6523CAEEVM and KIT4503CAEEVM evaluation boards - User’s guide /webapp/Download?colCode=KTFS4500-FS6500UG&docLang=en /secured/assets/documents/en/user-guide/KTFS4500-FS6500UG.pdf User Guide N 132339537837198660 2024-01-19 pdf Y en Apr 22, 2021 User Guide t792 ユーザ・ガイド User Guide Y N KTFS4500-FS6500UG, KITFS6522LAEEVM, KIT6523CAEEVM and KIT4503CAEEVM evaluation boards - User’s guide false ja false 0 KITFS4508CAEEVM downloads ja true 0 Y TSP ユーザ・ガイド 2 2021-04-20 1618872753148681583586 1 Apr 20, 2021 User Guide ユーザ・ガイド This page will guide you through the process of setting up and using FS45xx/FS65xx evaluation boards. Y GS-FS45XX-FS65XX-EVBS English 0 User Guide 2025-03-03 /document/guide/getting-started-with-the-fs45xx-fs65xx-evaluation-boards:GS-FS45XX-FS65XX-EVBS Getting Started with the FS45XX/FS65XX Evaluation Boards GS-FS45XX-FS65XX-EVBS TSP 132339537837198660 User Guide en Y t792 HTML GS-FS45XX-FS65XX-EVBS 1618872753148681583586 2016-10-31 /secured/assets/documents/en/user-guide/KTFS4500-FS6500UG.pdf 1463502930084694785573 TSP 2 Apr 22, 2021 User Guide ユーザ・ガイド The KITFS6522LAEEVM, KITFS6523CAEEVM, and KITFS4503CAEEVM are hardware evaluation tools supporting system designs based on NXP's FS4500 and FS6500 product families. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/KTFS4500-FS6500UG.pdf English 2643731 None User Guide 2024-01-19 /webapp/Download?colCode=KTFS4500-FS6500UG&docLang=en KTFS4500-FS6500UG, KITFS6522LAEEVM, KIT6523CAEEVM and KIT4503CAEEVM evaluation boards - User’s guide Y /secured/assets/documents/en/user-guide/KTFS4500-FS6500UG.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 2.0 Y N KTFS4500-FS6500UG, KITFS6522LAEEVM, KIT6523CAEEVM and KIT4503CAEEVM evaluation boards - User’s guide 2.6 MB KTFS4500-FS6500UG N 1463502930084694785573 true Y Tools
