System Basis Chip with CAN High-Speed and LIN Interface

MC34904
生産終了 (EOL)
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

The NXP® MC34904 is an analog companion chip for the MCU and combines several voltage regulators, interface, monitoring and control, and other features to enhance present module designs targeting the industrial market.

  • Built-in enhanced high-speed CAN interface (ISO11898-2 and -5) with local and bus failure diagnostics, protection, and fail-safe operation modes
  • Includes up to four wake-up input pins that can also be configured as output drivers for flexibility
  • Powered by SMARTMOS® technology

製品画像を見る

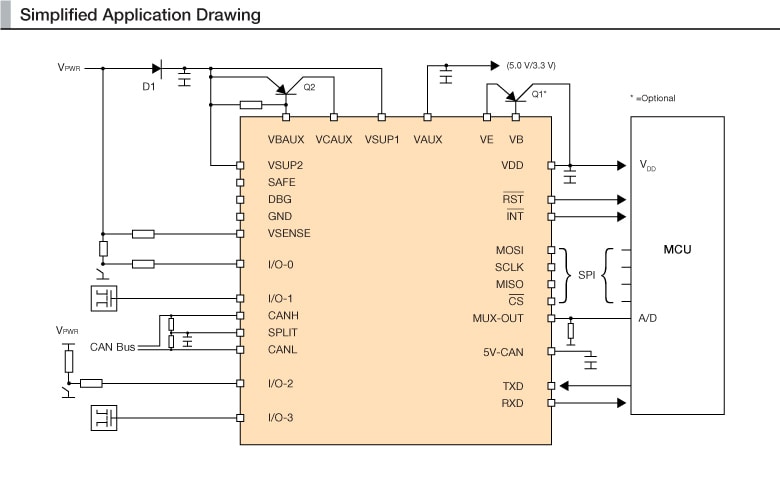

ブロック図

29400_MC34904_BD

NXP<sup>&#174;</sup> MC34904 Internal Block Diagram
図を取得する PDF

Features

  • Voltage regulator for MCU, 5.0 or 3.3 V, part number selectable, with possibility of usage external PNP to extend current capability and share power dissipation
  • Very low quiescent current in LP modes
  • Fully protected embedded 5.0 V regulator for the CAN driver
  • Multiple undervoltage detections to address various MCU specifications and system operation modes
  • Auxiliary 5.0 or 3.3 V SPI configurable regulator, for additional ICs, with overcurrent detection and undervoltage protection
  • MUX output pin for device internal analog signal monitoring and power supply monitoring
  • Advanced SPI, MCU, ECU power supply, and critical pins diagnostics and monitoring
  • Multiple wake-up sources in LP modes: CAN or LIN bus, I/O transition, automatic timer, SPI message, and VDD overcurrent detection
  • ISO11898-5 high-speed CAN interface compatibility for baud rates of 40 kb/s to 1.0 Mb/s

購入/パラメータ

2 結果

除外 2 NRND

パーツ

説明を表示

コンピュータ支援設計 モデル

状況

電源電圧 [最小] (V)

電源電圧 [最大] (V)

標準価格

製品機能

保護

インターフェースと入力制御

Additional Features - Security

パッケージタイプ

MC34904C3EK
データ・シート

置き換え部品: MCZ33904D3EK

生産終了 (EOL)

5.5

28

1K @ US$1.73

comm transceivers, linear regulators, system basis chip

overtemperature, overvoltage protect, undervoltage

SPI

SPI

HSOP32

MC34904C5EK
データ・シート

置き換え部品: MCZ33904D5EK

生産終了 (EOL)

5.5

28

1K @ US$1.73

comm transceivers, linear regulators, system basis chip

overtemperature, overvoltage protect, undervoltage

SPI

SPI

HSOP32
