Mini High-Speed CAN System Basis Chip with Standby Mode and Watchdog
デザイン・ファイル
完全な内訳を受け取ります。 eCad ファイルで製品のフットプリントなどを確認してください。

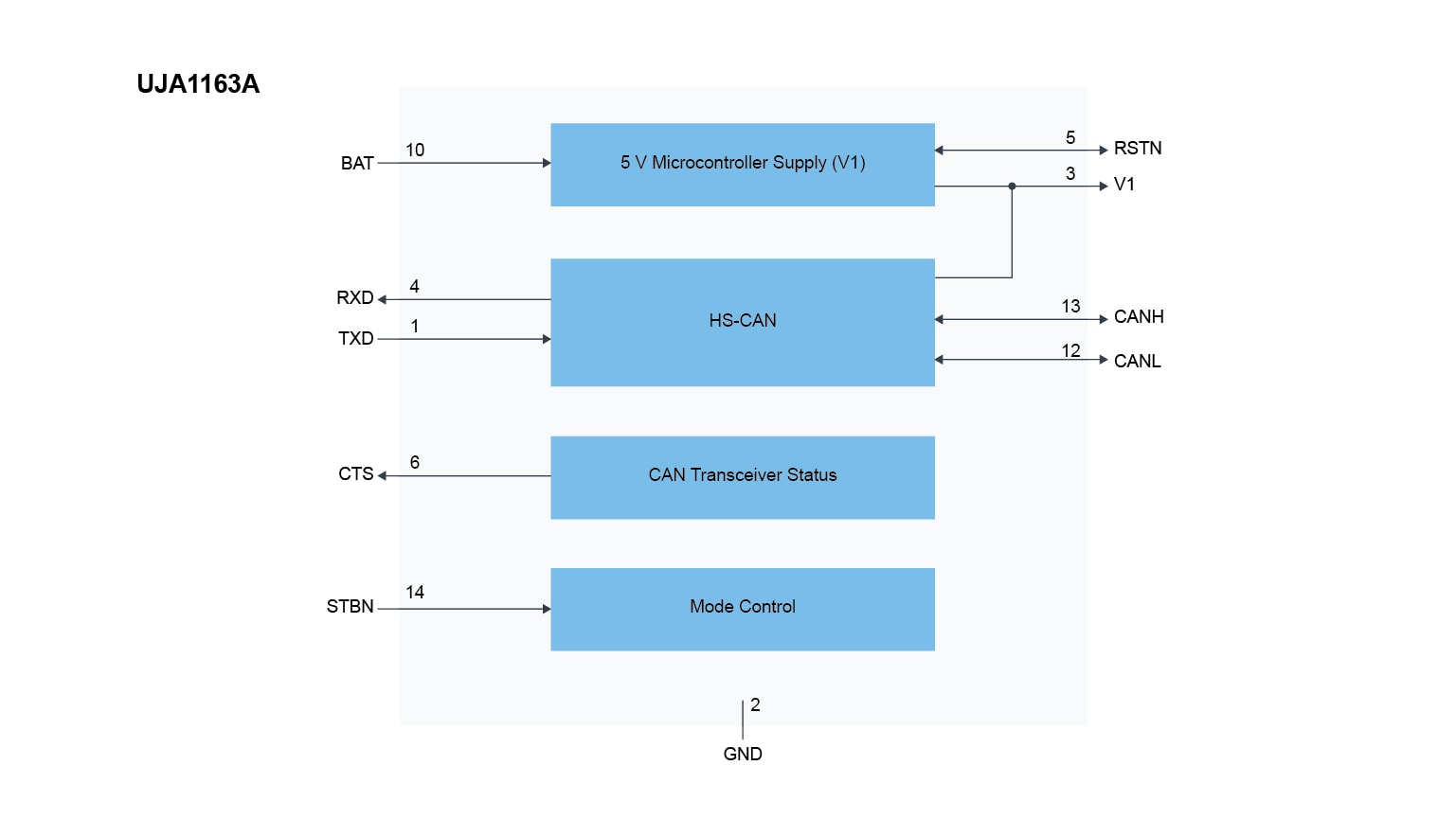

Mini High-Speed CAN System Basis Chip with Standby Mode
The UJA1163ATK is a mini high-speed CAN system basis chip (SBC) containing an ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant HS-CAN transceiver, supporting CAN FD up to 5 Mbit/s and an integrated 5 V/100 mA supply for a microcontroller.
The UJA1163ATK can be operated in very-low-current standby mode with bus wake-up capability and supports ISO 11898-6 compliant autonomous CAN biasing.
製品詳細
Features
General
- Designed for automotive applications ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant high-speed CAN transceiver
- Hardware and software compatible with the UJA116x product family and with improved EMC performance
- ±8 kV ESD protection, according to the Human Body Model (HBM) on the CAN bus pins
- ±6 kV ESD protection, according to IEC TS 62228 on the CAN bus pins and on pin BAT
- CAN bus pins short-circuit proof to ±58 V
- Battery and CAN bus pins are protected against automotive transients according to with ISO 7637-3
CAN Transceiver
- High-speed CAN transceiver supporting CAN FD active communication up to 5 Mbit/s in the CAN FD data field
- Autonomous bus biasing according to ISO 11898-6
- Remote wake-up capability via standard CAN wake-up pattern
Integrated Voltage Regulator (V1)
- Integrated 5 V / 100 mA voltage regulator for microcontroller supply
- Support for microcontroller RAM retention down to a battery voltage of 2 V
System Control Features
- Standby mode featuring very low supply current
- Transmit data (TXD) dominant time-out function
- Mode control via STBN pin
- Bidirectional reset pin
比較表
| Features | |||||||||||
| Orderable Type | Standby Mode | Sleep Mode | VIO | LDO (5 V) | SPI | Watchdog | INH | External 5 V Supply | Partial Networking | CAN FD Active | CAN FD Passive |
| UJA1161ATK/0 | X | Internally used as self-supplied CAN | 5 Mbps | ||||||||
| UJA1162ATK/0 | X | X | X | Internally used as self-supplied CAN | INH | 5 Mbps | |||||
| UJA1163ATK/0 | X | 100 mA | 5 Mbps | ||||||||
| UJA1164ATK/0 | X | 100 mA | X | X | 5 Mbps | ||||||
| UJA1166ATK/0 | X | X | X | 100 mA | INH | 5 Mbps | |||||
| UJA1167ATK/0 | X | X | 100 mA | X | X | INH | 5 Mbps | ||||
| UJA1167ATK/X/0 | X | X | 70 mA | X | X | 5 V/ 30 mA | 5 Mbps | ||||
| UJA1168ATK/0 | X | X | 100 mA | X | X | INH | X | 5 Mbps | |||
| UJA1168ATK/X/0 | X | X | 70 mA | X | X | 5 V/ 30 mA | X | 5 Mbps | |||
| UJA1168ATK/F/0 | X | X | 100 mA | X | X | INH | X | 5 Mbps | X | ||
| UJA1168ATK/XF/0 | X | X | 70 mA | X | X | 5 V/ 30 mA | X | 5 Mbps | X | ||
