FS6507, System Basis Chip, ASIL B, DCDC 0.8 A Vcore, LDT, CAN, LIN

KITFS6507LAEEVM アクティブ

画像にカーソルを合わせると拡大表示されます。

KITFS6507LAEEVM evaluation board demonstrates the functionality of MC33FS6507 supports CAN FD and LIN with Vcore SMPS regulator up to 0.8 A.These Safety SBCs target ISO 26262 automotive functional safety standard (ASIL B).

NXP’s analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic ICs and system-in-package devices that use proven high-volume SMARTMOS technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state of the art systems.

The tool can be used in a standalone mode and controlled with an embedded USB interface. SPI command is easily controlled by the FlexGUI downloadable here.

対応製品

プロセッサ＆マイクロコントローラ

KLシリーズ Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

パワーマネージメント

セーフティSBC

  • FS6500: CAN FDトランシーバを備えたグレード1およびグレード0のセーフティ電源システム・ベーシス・チップ

Features

Microcontroller

  • KL25Z MCU installed on board for easy connection to host computer on USB link with monitoring features

Connectivity

  • CAN FD and LIN bus (LIN exclusive with FS1B)
  • FS0B and FS1B output pins (FS1B exclusive with LIN)
  • Connectors allowing easy access to digital signals

Power Management

  • VCORE configuration 1.23 V, 3.3 V, 5.0 V
  • VCCA VAUX configuration 3.3 V or 5.0 V, with internal PMOS or external PNP
  • Vpre regulator with a Buck or Boost setting

購入オプション

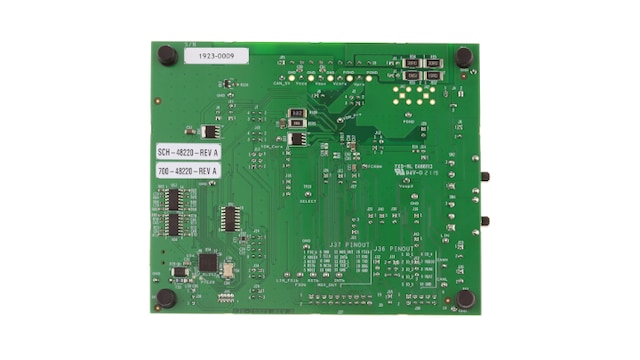

KITFS6507LAEEVM-Image

クリックして展開

  • KITFS6507LAEEVM
    アクティブ

  • FS6507, System Basis Chip, ASIL B, DCDC 0.8 A Vcore, LDT, CAN, LIN.

    • Evaluation board
    • Cable, Mini USB A to B
    • 3x10 pos Connector
    • 1x2 pos Connector
  • $241.50 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 9
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
