Layerscape Access LA12xx Development System

LA1224-RDB

画像にカーソルを合わせると拡大表示されます。

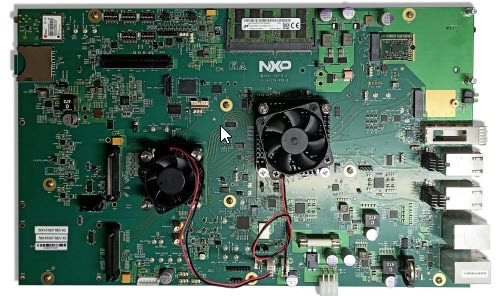

The Layerscape Access LA1224 reference design board is a comprehensive development system with a combination of an advanced NXP LX2160A CPU processor and NXP LA1224 programmable baseband processor, enabled including High Speed ADC/DAC functionality. The LA1224-RDB comes preloaded with a board support package (BSP) based on a standard Linux kernel. The board is lead-free and RoHS-compliant.

製品詳細

Features

Host Processor

  • LX2160A, 16x Arm® Cortex®-A72 CPU, 2.2GHz

Programmablible Baseband Processor

  • 6x 32-bit e200 Power® Architecture core complex @ 614.4 MHz
  • Up to 8x VSPA3-16 @ 614.4 MHz (=1.3 TFLOP)
  • 2MB On-Chip SRAM memory

System Memory

  • 1x 72-bit DDR4 port (64-bit data, 8-bit ECC)
  • 32GB total capacity (16GB per UDIMM)
  • Flash: 128MB NOR, 128GB eMMC

Connectivity and I/O

  • 2x 10/5G/2.5 GbE RJ45 connectors
  • 1x 25 GbE SFP+ optical cage
  • PCIex2 (up to Gen3) based M.2 Type E
  • USB - Two high-speed USB 3.0 ports with integrated PHYs

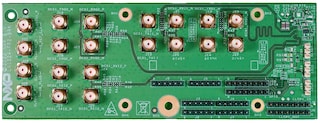

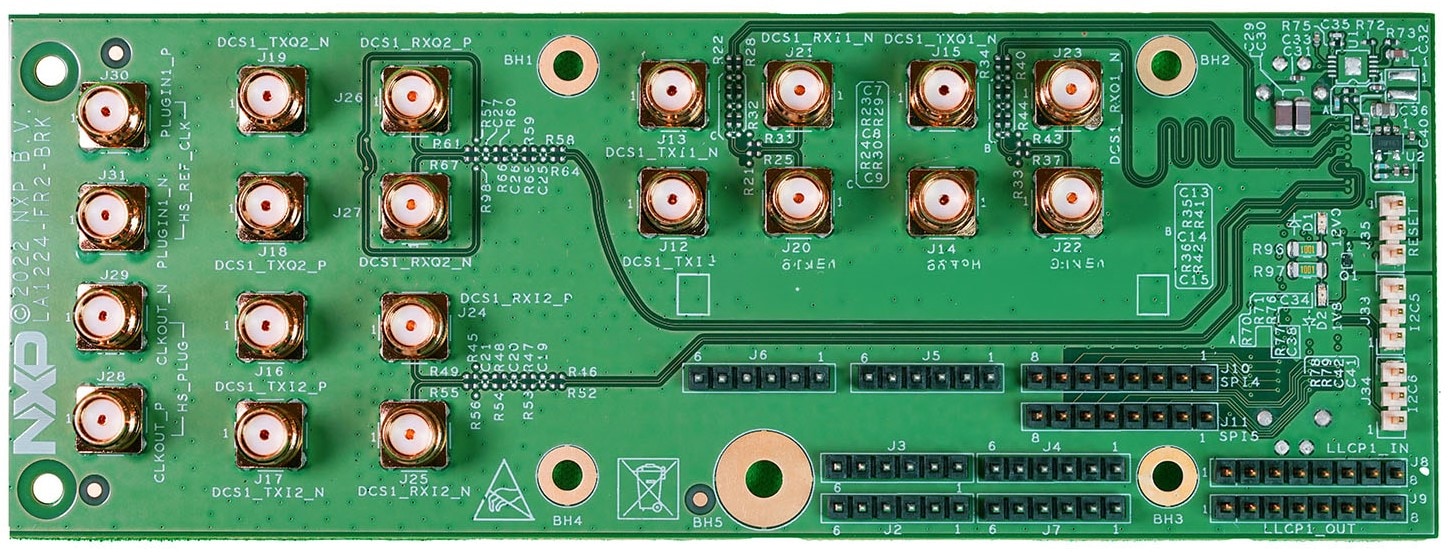

  • FR2 interface: 2x {I+Q} HS-DCS complex sampling rate of 1966.08 or 983.04 Msps

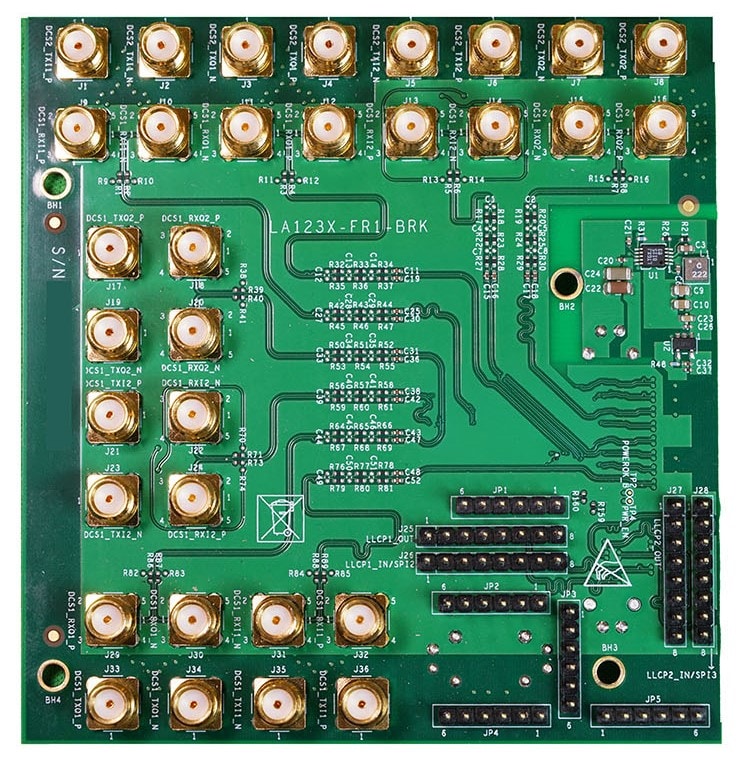

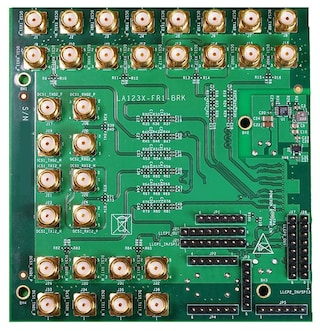

  • FR1 interface: 4x {I+Q} LS-DCS complex sampling up to 491.52 Msps

Time Synch & Clocks

  • Si5518 clock generator for 122.88 MHz, 156.25 MHz and 125 MHz Sysclk option
  • Si5332HD14719-GM3 clock generator for 100 MHz / 125 MHz
  • IEEE 1588 interface
  • u-blox GPS module
  • SYSCLK and SerDes clocks
  • Ethernet clocks

Acceleration

  • Forward Error Correction Unit (FECU)
  • 3GPP 5G/NR 38.212 compliant gNB and UE modes
  • Polar decoder/encoder
  • LDPC decoder/encoder

Other I/O

  • 1x tri-speed RGMII interface
  • 1x USIM module
  • JTAG

もっと見る

購入オプション

LA1224-RDB-BHS-Image

クリックして展開

  • LA1224-RDB-BHS
    アクティブ

  • Layerscape Access LA12xx Development System.

    • 1x - LA1224-RDB hardware assembly
    • 1x - Power supply 12 V DC, 21A, OUTPUT 2X3 MOLEX
    • 1x - Power cord
    • 2x - RJ45-to-DB9F shielded serial cable, 1 m
    • 2x - Cat-6 500 MHz Gbit Ethernet cable, 5 ft
    • 1x - Power cable for card external card 12V only
    • 1x - Custom cable for LA9310-NLM card (47910)
    • 2x - Jumper wire Female-to-Female 11.81 inch (300.00mm) 26 AWG
    • 2x - Cable assembly coaxial U.FL (UMCC) to SMA 1.13 mm OD coaxial cable 7.874 inch (200.00 mm)
    • 2x - Cable assembly coaxial U.FL (UMCC) to U.FL (UMCC) 1.37 mm OD coaxial Cable 3.937 inch (100.00 mm)
    • 7x - Shunt 0.1IN SP jumper
    • 1x - Universal adapter
  • $5500.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 4
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
LA1224-RDB-BLS-Image

クリックして展開

  • LA1224-RDB-BLS
    アクティブ

  • Layerscape Access LA12xx Development System.

    • 1x - LA1224-RDB hardware assembly
    • 1x - Power supply 12 V DC, 21A, OUTPUT 2X3 MOLEX
    • 1x - Power cord
    • 2x - RJ45-to-DB9F shielded serial cable, 1 m
    • 2x - Cat-6 500 MHz Gbit Ethernet cable, 5 ft
    • 1x - Power cable for card external card 12V only
    • 1x - Custom cable for LA9310-NLM card (47910)
    • 2x - Jumper wire Female-to-Female 11.81 inch (300.00mm) 26 AWG
    • 2x - Cable assembly coaxial U.FL (UMCC) to SMA 1.13 mm OD coaxial cable 7.874 inch (200.00 mm)
    • 2x - Cable assembly coaxial U.FL (UMCC) to U.FL (UMCC) 1.37 mm OD coaxial Cable 3.937 inch (100.00 mm)
    • 7x - Shunt 0.1IN SP jumper
    • 1x - Universal adapter
  • $5500.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 9
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
LA1224RDB-LS-BO-Image

クリックして展開

  • LA1224RDB-LS-BO
    アクティブ

  • Layerscape® Access LA12xx Programmable Baseband Processor.

LA1224RDB-HS-BO-Image

クリックして展開

  • LA1224RDB-HS-BO
    アクティブ

  • Layerscape® Access LA12xx Programmable Baseband Processor.
