T2080 development System.

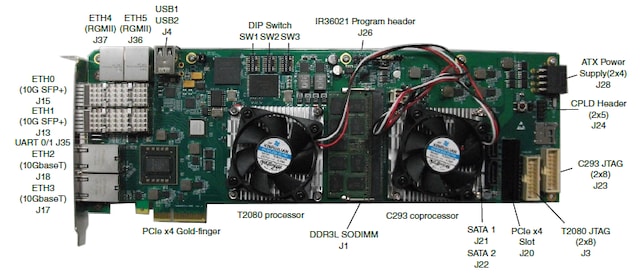

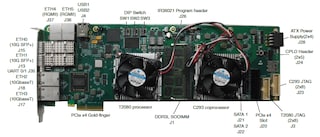

QorIQ® T2080 Development Board
The QorIQ® T2080 development board (T2080RDB) is a highly integrated tool featuring the QorIQ T2080 communications processor.
With the high-performance T2080 processor and rich I/O mix, the board is designed for evaluating both the T2080 and T2081 processors in networking and Ethernet-centric applications, such as high-performance control plane applications and midrange mixed control and data plane in enterprise equipment, service provider, wireless infrastructure, aerospace and defense and industrial computing applications.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
Tシリーズ
- T2080: QorIQ® T2080 and T2081 Multicore Communications Processors

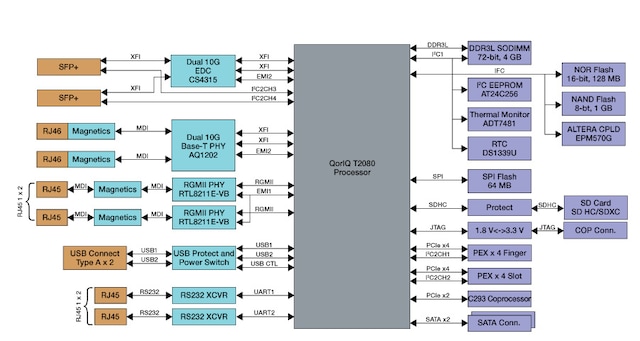

Features
Processor
- QorIQ® T2080 communications processor with 1.8 GHz core
- Multiple SysClk inputs for generating various device frequencies
Memory
- 4 GB unbuffered DDR3 SDRAM SODIMM (64-bit bus), 1600 MHz data rate
- 128 MB NOR Flash, 16-bit
- 1 GB SLC NAND Flash
- SD Connector to Interface
- SATA interface
Connectivity
- Dual USB slot, connected to USB PHY
- Dual 10 GB/s XFI - Qurtina CS4315
- Dual 10 GB/s Base-T PHY - AQ1202
- Two Independent RGMII PHYs - RTL8211
UART
- Two UART ports at up to 115200 bit/s
Others
- JTAG/COP for debugging
- Real-time clock
