QorIQ® T1040 Reference Design Board

T1040RDB アクティブ

画像にカーソルを合わせると拡大表示されます。

The QorIQ® T1040 reference design board is a high-performance computing evaluation, development and test platform for QorIQ T1040/20 communications processors built on Power Architecture® technology.

The boards, with 1.5 GHz T1040 processor and rich I/O mix, are for evaluation of QorIQ T1 in networking and Ethernet applications, such as mixed control and data plane in fixed routers, switches, Internet access devices, firewall and other packet-filtering applications, as well as general-purpose embedded computing.

The T1040RDB board can help shorten your time to market. It can be used for software development and performance evaluation prior to the customers' own board is ready.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

Tシリーズ

  • T1040: QorIQ® T1040 and T1020 Multicore Communications Processors
  • T1042: QorIQ® T1042 and T1022 Multicore Communications Processors

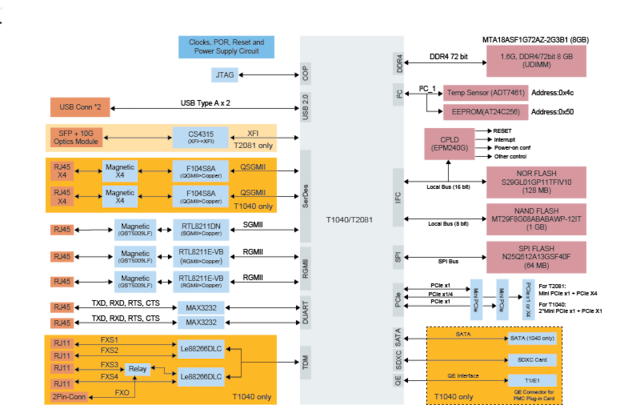

Features

Processor

  • QorIQ® T1040, 1.5 GHz core with 1600 MT/s DDR3L data rate
  • Multiple SysClk inputs for generating various device frequencies

Memory

  • 2 GB unbuffered DDR3L SDRAM UDIMM/RDIMM (64-bit bus), 1600 MHz data rate
  • 128 MB NOR Flash, 16-bit
  • 2 GB SLC NAND Flash
  • SD Connector to Interface
  • SATA interface

PCI Express

  • One x4 PCIe slot
  • Two Mini-PCIe connectors

Connectivity

  • Dual USB slot, connected to USB PHY
  • One onboard SGMII 10/100/1G Ethernet ports
  • Two onboard RGMII 10/100/1G Ethernet ports
  • Two onboard QSGMII 10/100/1G For 8 GE ports

UART

  • Two UART ports at up to 115200 bit/s

TDM

  • One FXO and Four FXS ports

Software

  • QorIQ Linux SDK V1.8

Additional Features

  • JTAG/COP for debugging
  • Thermal monitor

もっと見る

購入オプション

T1040D4RDB-PA-Image

クリックして展開

  • T1040D4RDB-PA
    アクティブ

  • QorIQ T1040 DEVELOPMENT SYSTEM, DDR4 MEMORY.

  • $1967.34 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
T1042D4RDB-PA-Image

クリックして展開

  • T1042D4RDB-PA
    アクティブ

  • QorIQ T1042 DEVELOPMENT SYSTEM, DDR4 MEMORY.

  • の数量に対して 1
代理店からの注文
