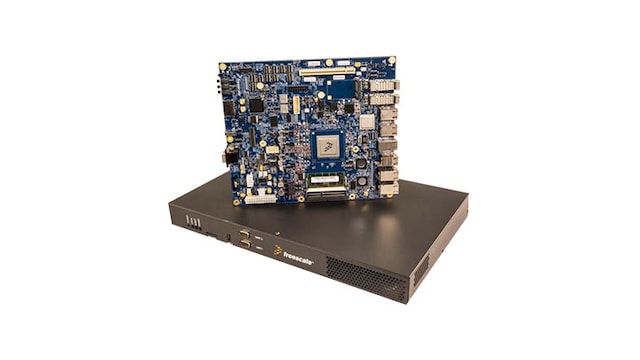

QorIQ P5040 Reference Design Board.
QorIQ® P5040 Reference Design Board
The QorIQ® P5040 reference design board (P5040-RDB) is a flexible system that supports the quad-core P5040 processor.
With frequencies scaling to 2.2 GHz and rich input/output mix, the P5040-RDB is intended for enterprise and data center networking, telecom and industrial applications, where its high-performance, high-efficiency cores and integration make it well suited as a multicore control plane processor.
The P5040-RDB can help shorten time to market. The system can serve as a reference for system-level hardware development by providing a comparison tool for customer-specific board implementations. It can also be used for custom software development and performance evaluation.
製品詳細
Features
Core Complex
- Up to 2.4 GHz with 64-bit ISA support (Power Architecture v2.06-compliant)
- Three levels of instruction: user, supervisor, hypervisor
- Hybrid 32-bit mode to support legacy software and transition to 64-bit architecture
QorIQ® P5040 quad-core processor built on the advanced, 64-bit e5500 Power Architecture® core
Connectivity and Networking
- 1 Gb Ethernet – RGMII and SGMII
- 10 Gb Ethernet – XAUI (copper) or XFI (fiber)
- PCI Express gen 2.0
- SATA
Memory System
- Supports two unbuffered DDR3 DIMM modules
- 8 GB memory
- NAND/NOR Flash
- eSDHC interface
Basic Peripherals and Interconnect
- DUART
- USB 2.0
- Debug (JTAG and AURORA)
Additional Features
- IEEE® 1588 connector for external Symmetric option card
- Temperature monitoring
