XAUI Riser Card for QorIQ Development Systems, revB.
XAUI Riser Ethernet Card for QorIQ P4080 Development System

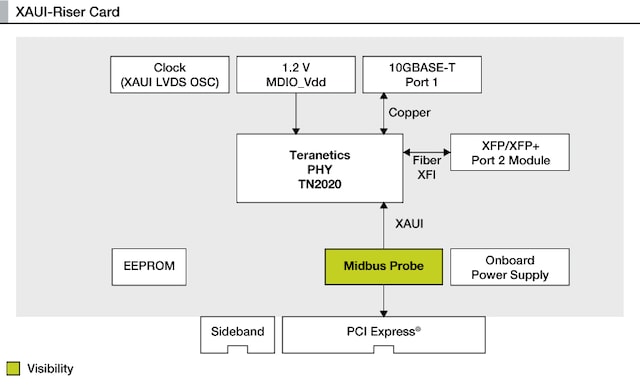

NXP’s XAUI (10 Gigabit Attachment Unit Interface)-Riser Ethernet network card is designed primarily to test the XAUI interface for the QorIQ® P4080 communication processor using Our P4080 development system (P4080DS). The XAUI Riser card uses Cat6a/Cat7 copper cable as primary interface and has the ability to switch over to fiber optic for higher speeds. NXP’s Software Development Kit (SDK, starting with version 2.1.1) facilitates switching capability between the two modes.
製品詳細
Features
Support
- Supports up to 100 m on CAT6a and CAT7 cable types. Supports up to 55 m on CAT6 cable, already deployed in many data centers
- Multirate support (100M/1G/10GBASE-T) decouples the simultaneous upgrade of both ends of a link, which provides flexibility in existing installations and accelerates the adoption of new equipment
- Flexible switch/MAC interface support in current and next-generation NICs and switches for servers, enterprise networks, and storage appliances:
- 10G XFI–1 lane, 10.3125G
- 10G XAUI–4 lane, 3.125G
- 1G/100M SGMII–1 lane, 1.25G
Tools and OS Support
- Built-in diagnostics helps data center operators localize cables problems, thus minimizing the link downtime
- Triple-speed operation enables compatibility with a previously installed base and allows an upgrade path to increased bandwidth
- Demonstrated to work up to 45 nm on CAT5e, the most commonly installed UTP cable type
- The XAUI-Riser is FCC-compliant
