P4080DS-PC
アクティブ -
QorIQ P4080 Development System, rev3.0 silicon.
コンパクトリスト

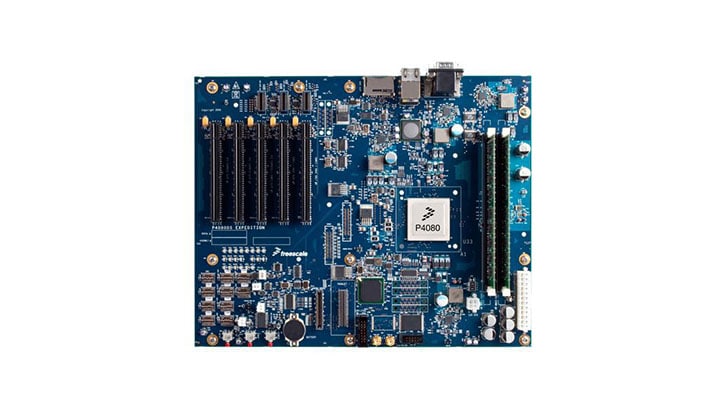

P4080 Development System
The P4080DS is a flexible development system supporting the NXP® P4080, P4040 and P4081 processors.
- The board, with its rich I/O mix, is intended for initial target development and evaluation of P4080 and P4040 processors.
- The P4080DS can help shorten your time to market.
- The board, which exercises many capabilities of the device, can serve as a reference for hardware development and can also be used as a debug tool to check behaviors on the board compared to behaviors seen on customer boards.
製品詳細
Features
Core Complex
- P4080, 1.5 GHz core with 1333 MHz DDR3 data rate
Networking Elements
- 10 GbE supported with optional XAUIRISER card
Accelerators and Memory Control
- 4 GB unbuffered DDR3 240-pin sockets supporting standard JEDEC DIMMs
- 128 MB NOR Flash (fast boot)
- SPI-based 16 MB EEPROM
- SD media card slot
Basic Peripherals and Interconnect
- 18 lanes, dividable into many combinations
- Five add-in slots to selectably connect to five of the 16 controllers supported by the P4080
- Supports PCI Express®, SGMII, Nexus/Aurora debug, XAUI and Serial RapidIO®
Additional Features
- PromJet debug port
- Temperature sensor
Software
- Linux® SDK for QorIQ® Processors
購入オプション
-
SGMII-PEX-RISER
アクティブ -
SGMII-PEX Riser Card for QorIQ Development Systems.
