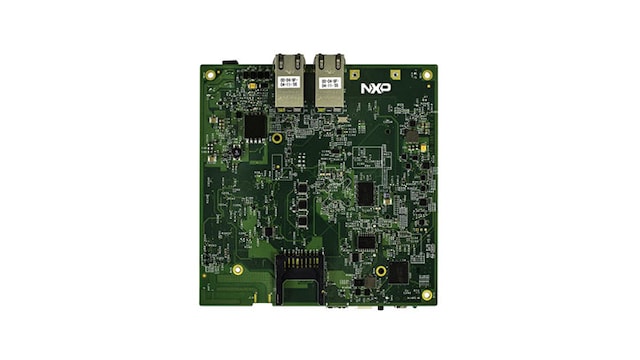

Layerscape LS1012A Reference Design Board

LS1012A-RDB アクティブ

画像にカーソルを合わせると拡大表示されます。

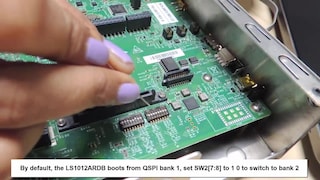

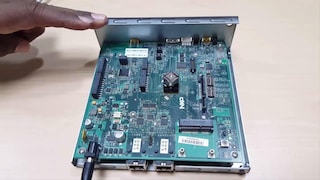

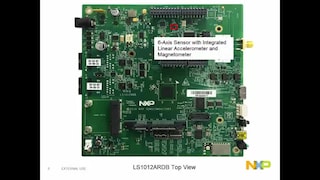

The LS1012A reference design board (LS1012A-RDB) is a compact form-factor tool for evaluating and developing LS1012A- based application solutions. The Layerscape LS1012A processor delivers enterprise-class performance and security capabilities to consumer and networking applications in a package size normally associated with microcontrollers. Combining a 64-bit Arm®v8-based processor with network packet acceleration and Layerscape trust architecture security capabilities, the LS1012A features line-rate networking performance at 1W typical power in a 9.6mm x 9.6mm package.

The LS1012A-RDB provides an Arduino® shield expansion connector for easy prototyping of additional components such as an NXP NFC Reader module. The LS1012A-RDB comes in a compact 5.59 in x 5.59 in a form factor that allows mounting in an enclosure. An SDIO Wi-Fi® module is mounted on the board to facilitate evaluation and development of Wi-Fi connectivity solutions.

ブロック図

Layerscape LS1012A

LS1012A Reference Design Block Diagram
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

Layerscapeプロセッサ

  • LS1012A: Layerscape® 1012A Low Power Processor

Features

Processor

  • Single 1000 MHz Arm® Cortex®-A53 core
  • 32 KB-I and 32 KB-D L1 caches
  • 256 KB ECC-protected L2 cache
  • Over 2000 Coremarks performance

Memory

  • 64 MB NOR Flash
  • 1 GB DDR3L DRAM
  • 512 MB eMMC Flash

Ethernet

  • 2x GbE

External Connectors

  • 1x mPCIe
  • 1x SATA
  • USB 3.0 on USB micro B
  • USB 2.0 debug port on USB mini
  • SD Card Slot
  • 10-pin JTAG
  • External battery connector

Additional Features

  • Arduino® Shield header for expansion
  • Gyro Sensor
  • Accelerometer + Magnetometer Sensor

購入オプション

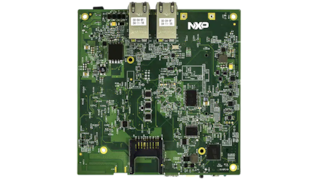

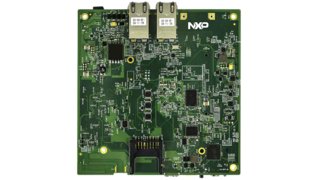

LS1012ARDB-PC-Image

クリックして展開

  • LS1012ARDB-PC
    アクティブ

  • Layerscape LS1012A Reference Design Board.

  • の数量に対して 1
代理店からの注文
