UJA1163A-EVB
アクティブ -
UJA1163A Evaluation Board.
Kit contains:
- UJA1163A Evaluation Board
- UJA116xA-EVB Manual

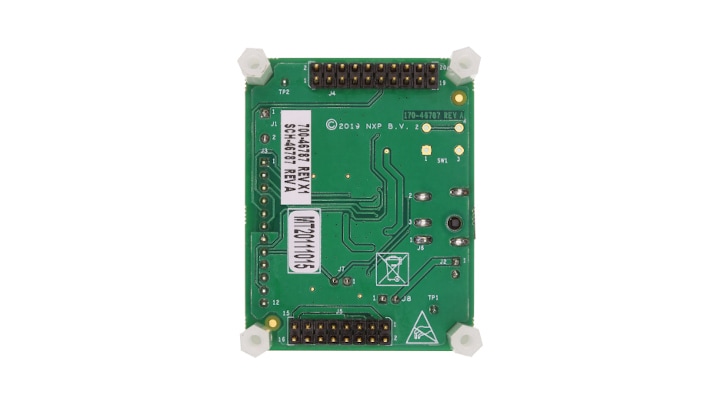

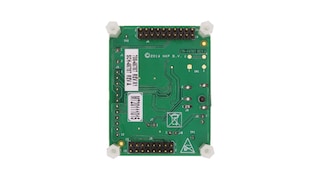

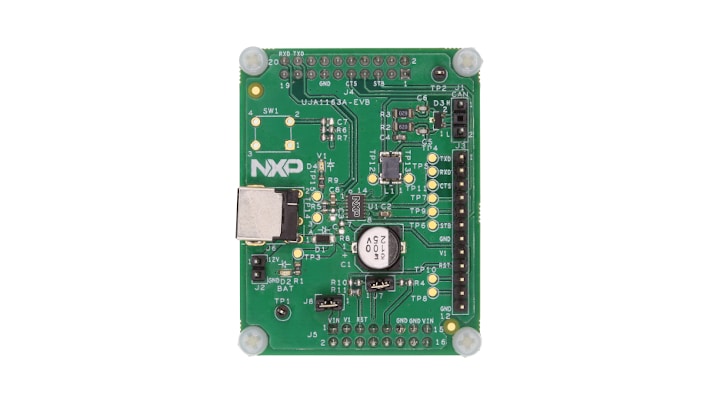

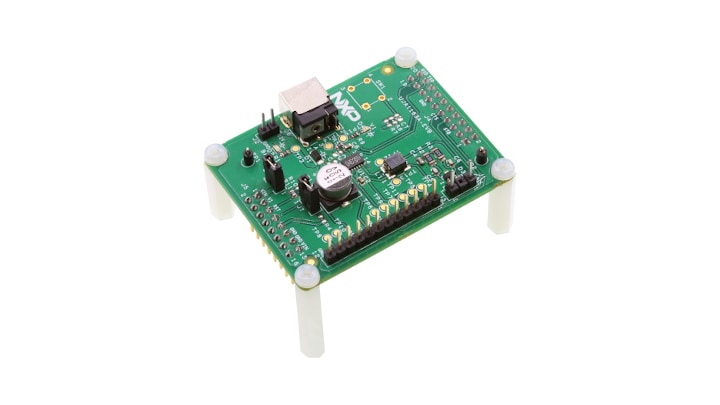

UJA1163A Evaluation Board
The UJA1163A-EVB evaluation board is a supportive tool to develop system solutions using the UJA1163A High-Speed CAN System Basis Chip. The board is pin compatible with the Arduino Uno pinout order and can be used in combination with any microcontroller board providing USB-to-SPI interfacing.
製品詳細
対応製品
パワーマネージメント
セーフティSBC
- UJA1163ATK: Mini High-Speed CAN System Basis Chip with Standby Mode
Features
Features
- Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
- Supporting Arduino connection with microcontroller board.
- The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
- Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
- An external power supply of 12 V typ. must be connected to power-up the board
