S32 Design Studio Configuration Tools

S32CT-S32PLATFORM 新規

画像にカーソルを合わせると拡大表示されます。

S32 Configuration Tools, a comprehensive integrated suite designed to streamline the configuration process for complex systems.

With a user-friendly interface, the suite offers seamless navigation through advanced configuration flows while ensuring precision through a robust constraint mechanism.

The software generates initialization code and binary images tailored to individual user settings, simplifying the deployment of customer applications, and accelerating time to market.

ソフトウェア詳細

Features

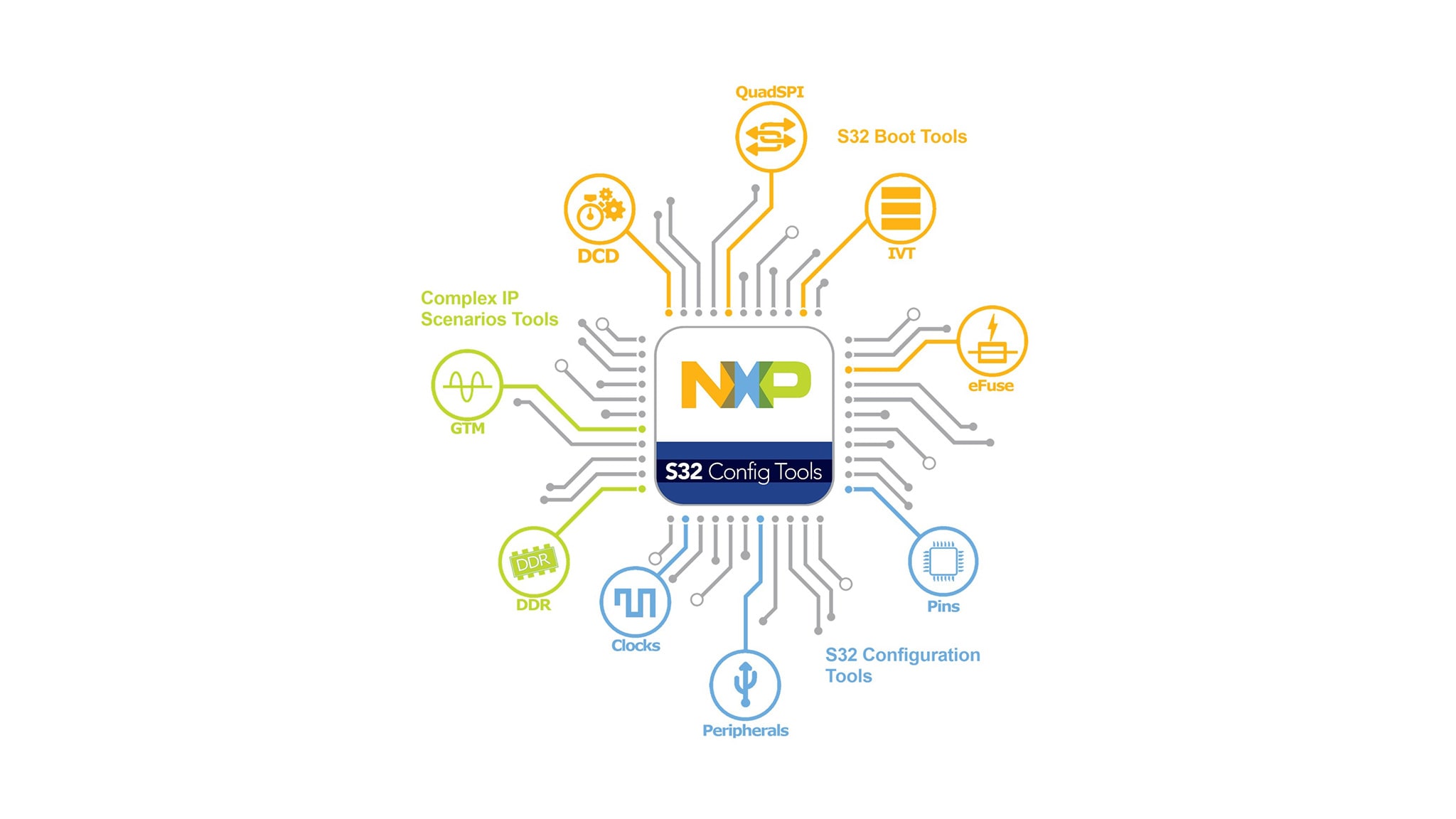

S32 SW Configuration Tools

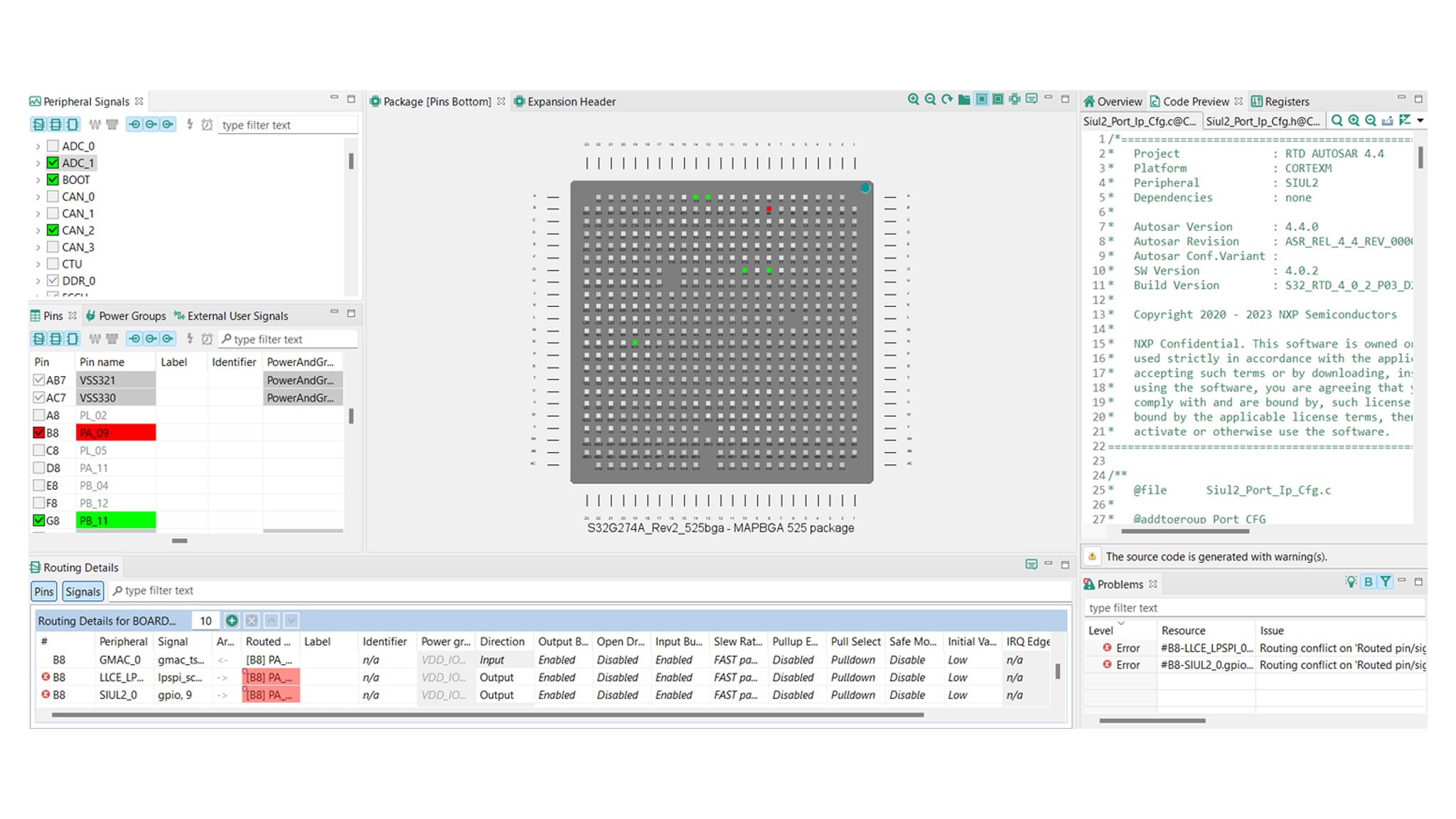

  • Pins Tool
    • Mapping of internal signals to external pins and configuration of electrical characteristics
    • Graphical representation of SoC with support for multiple packages
    • Automatic Routing (automatic conflict resolution)

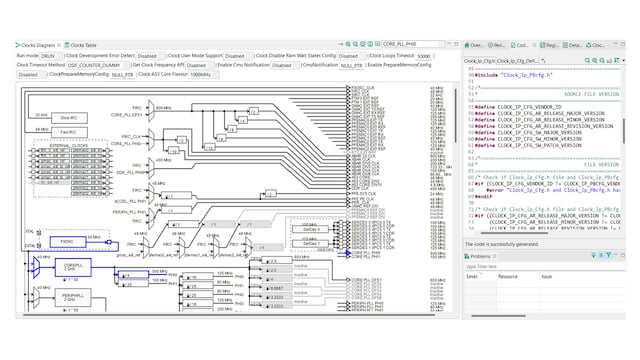

  • Clocks Tool

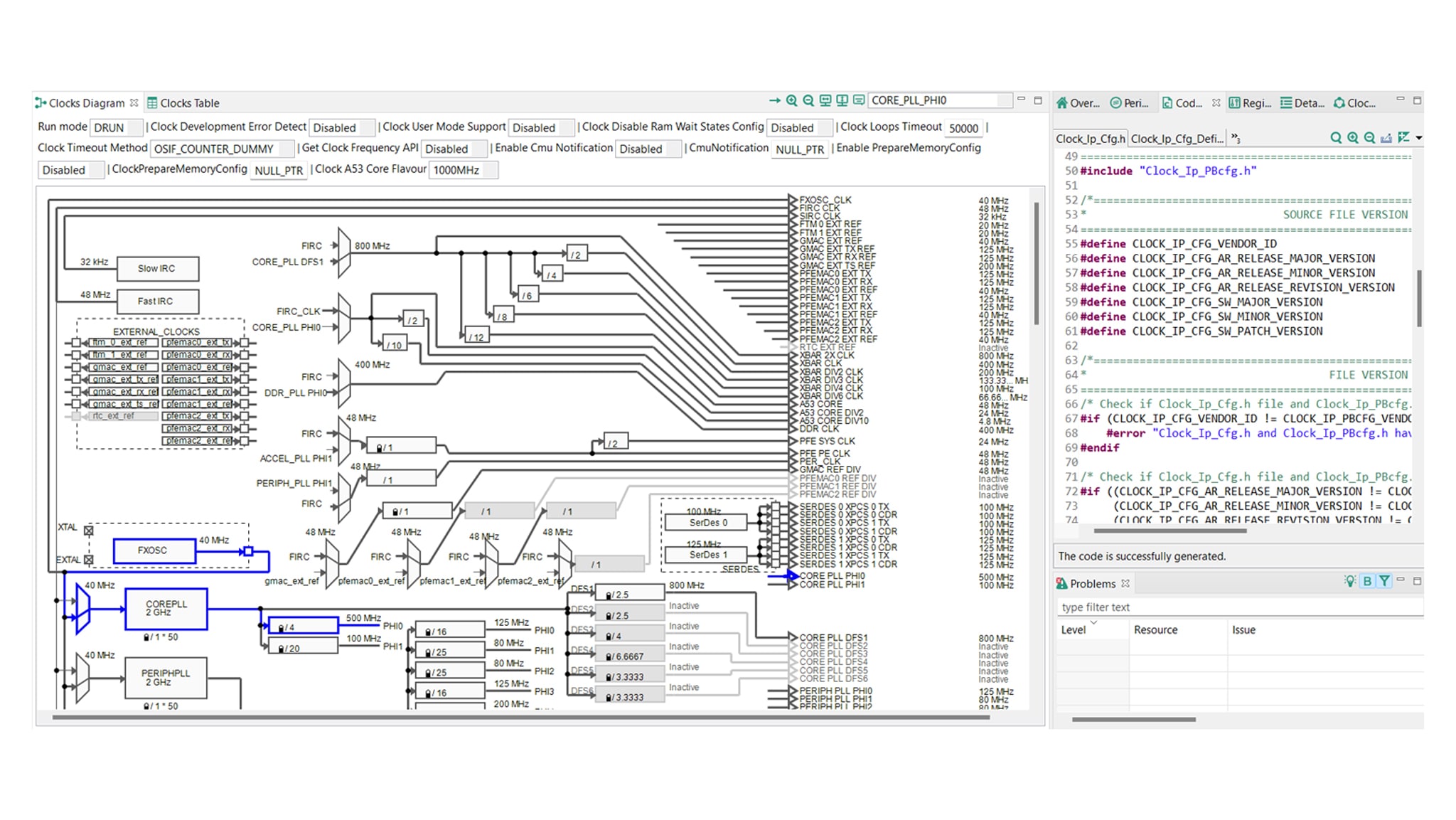

    • Graphical representation of the clocks tree with interactive user controls
    • Clocks tree management from multiple views
    • Find Near Value (assistance with system fine-tuning)

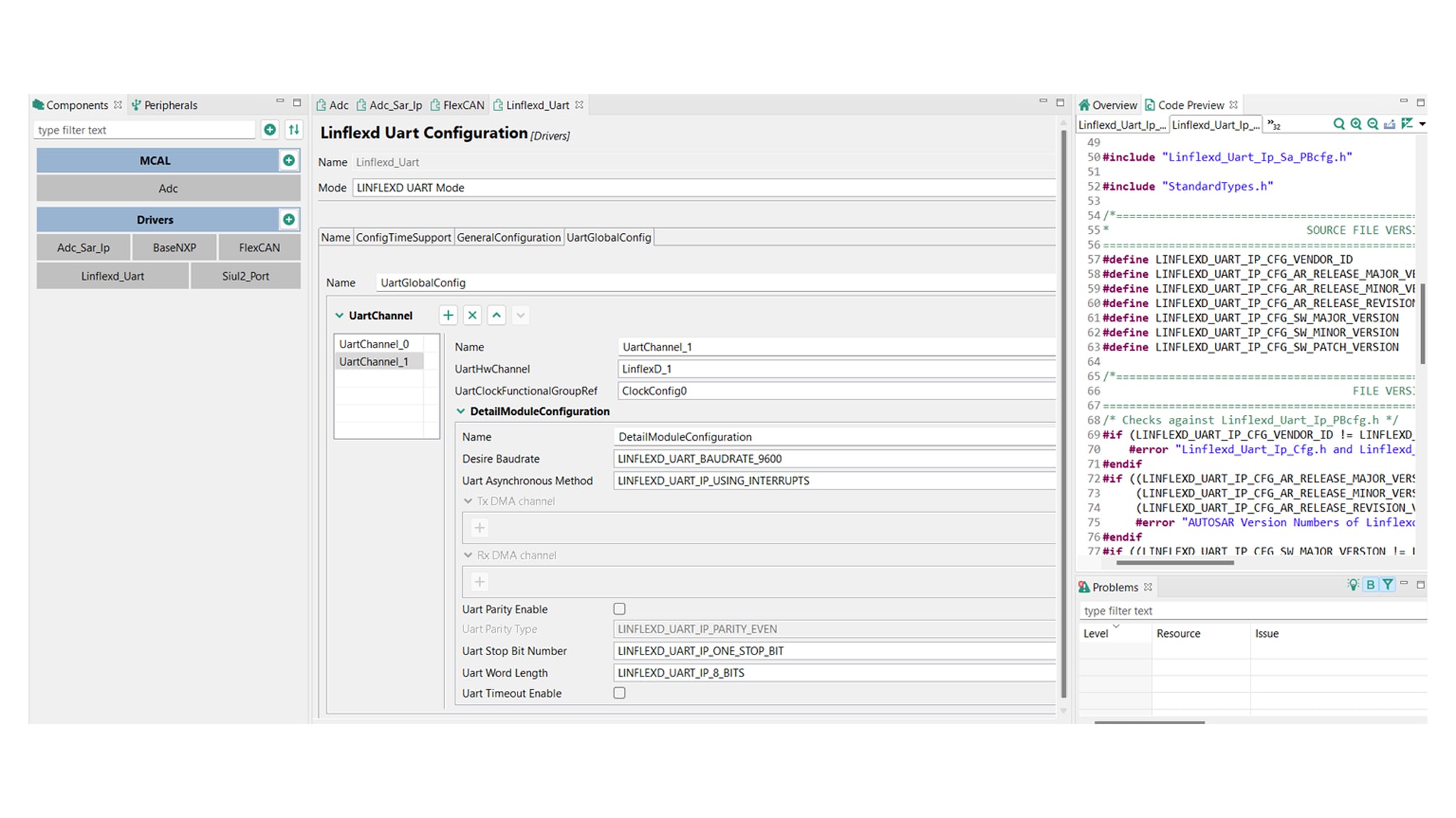

  • Peripherals Tool
    • Selection and configuration of desired peripherals
  • Validation of the selected configuration is based on an extensive constraint mechanism
  • Generates C source code aligned with S32 Real-Time Drivers

Complex IP Scenarios Tools

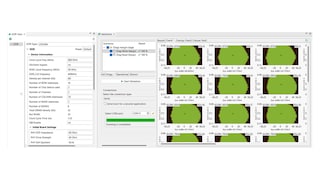

  • DDR Tool
    • User-friendly configuration of DDR controller initialization sequence (DDR3L, LPDDR4, LPDDR5 DRAM, LPDDR4 Flash)
    • Multiple validation scenarios and extensive suite of memory tests
    • Shmoo capabilities for varying Drive strengths and ODTs across the valid ranges

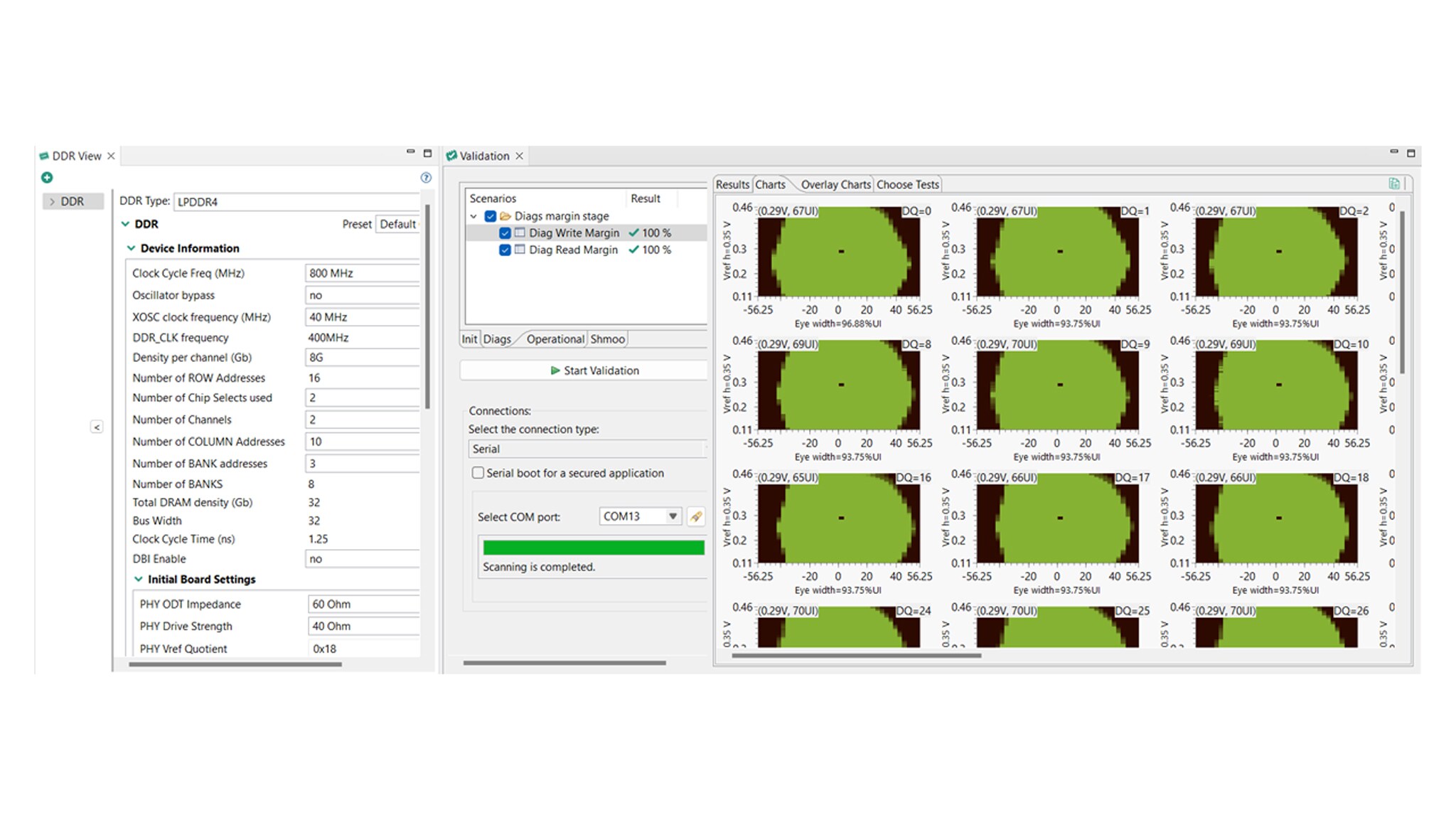

    • Graphical representation of Vref and Delay eye diagrams with interactive overlay support
    • Troubleshooting options and real time status from target, for both Serial and S32 Debug Probe connections
    • Generates C initialization code in multiple formats

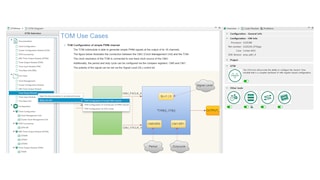

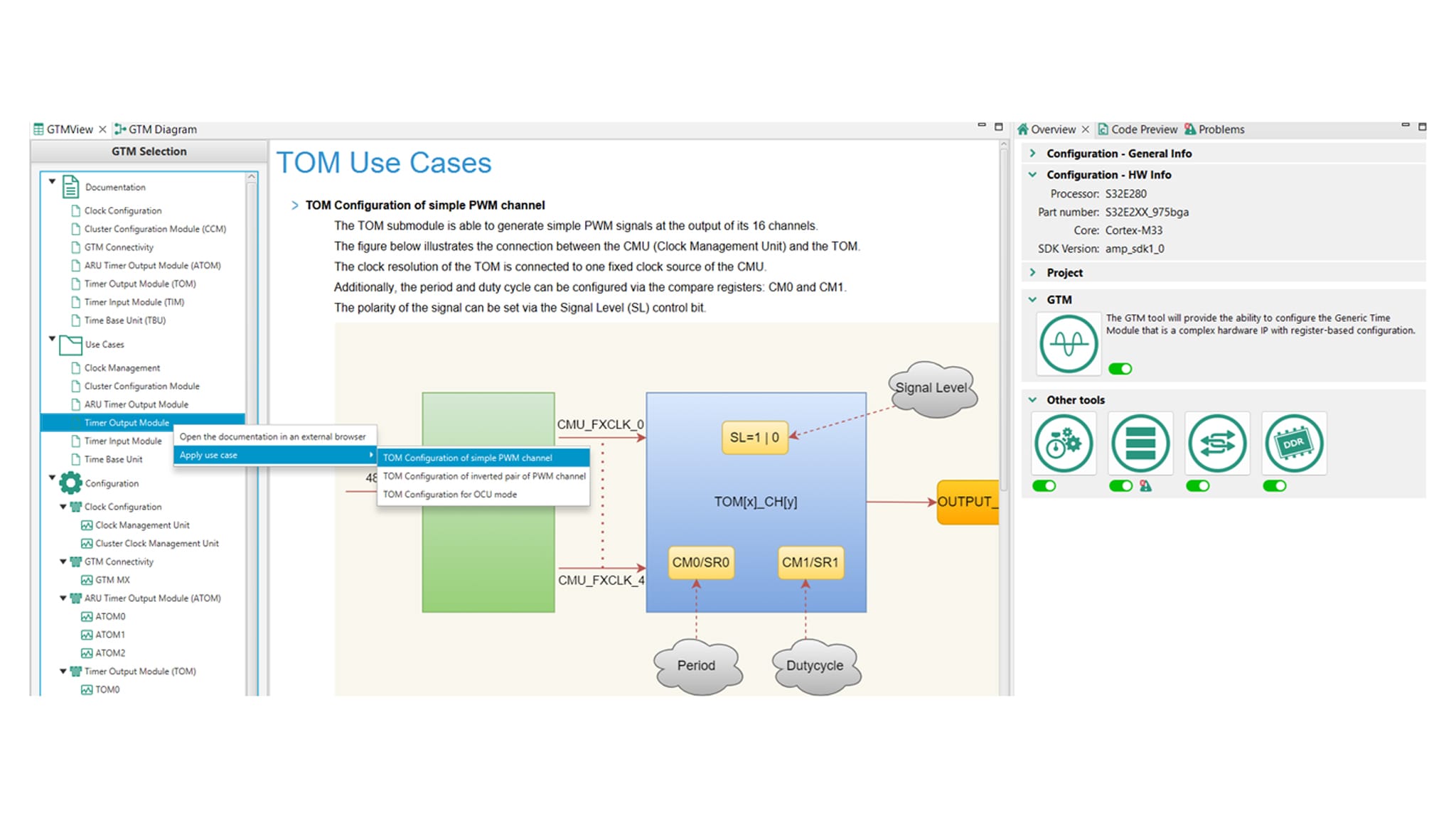

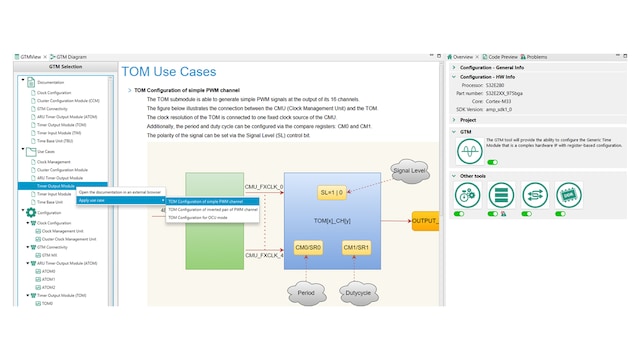

  • GTM Tool
    • Configuration of Generic Timer Module IP version 4.1
    • Graphical abstracting layer for a subset of GTM modules, each with its own dedicated function
    • In-tool documentation including a set of predefined use cases of the GTM peripheral which can be used as starting point for the development process
    • Interactive Diagram view of the current configuration
    • Validation of the selected configuration is based on an extensive constraint mechanism.
    • Generates C initialization code aligned with S32 Real-Time Drivers

S32 Boot Tools

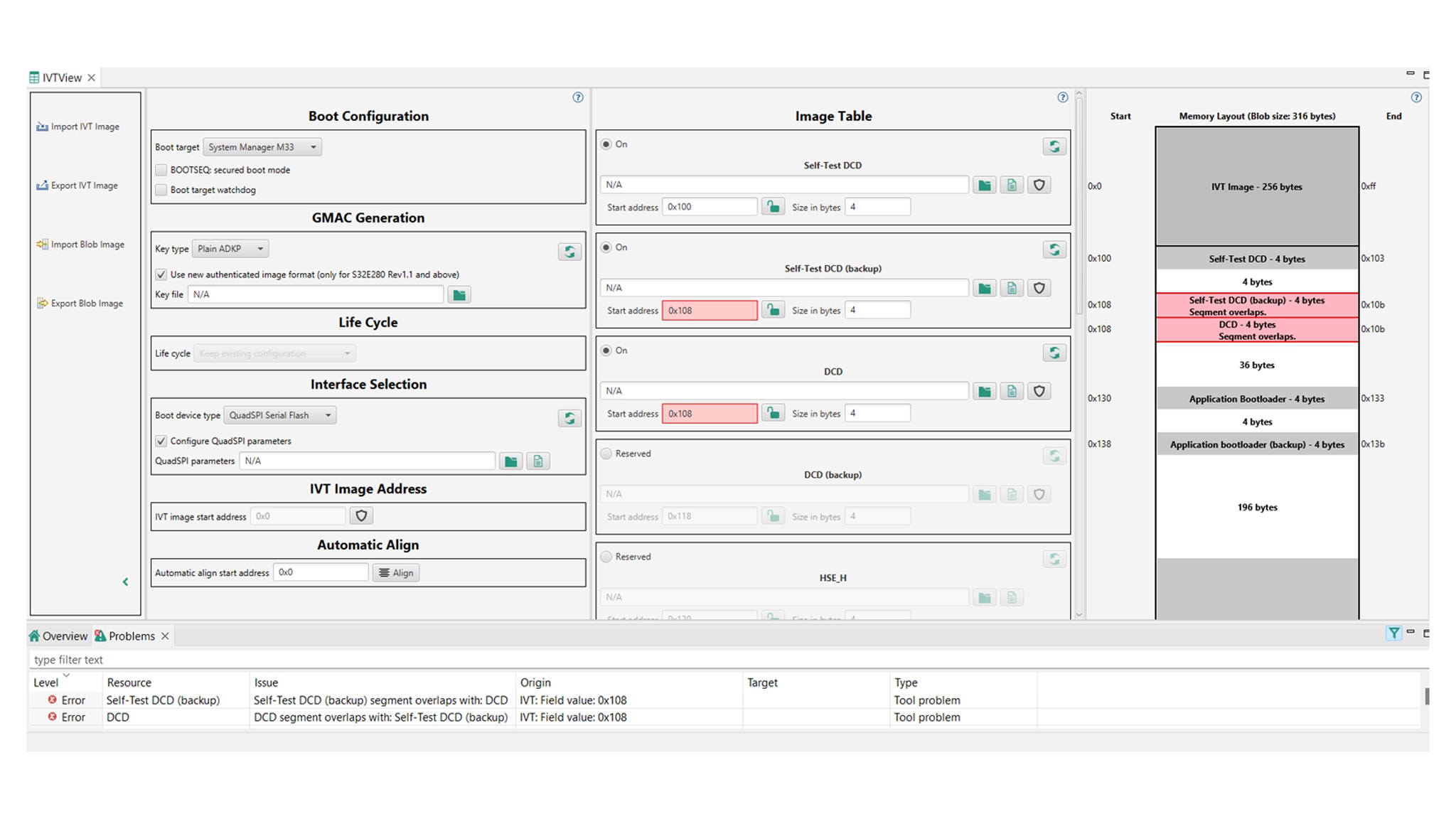

  • Image Vector Table Tool (IVT)
    • Configuration and generation of Image Vector Table based on the BootROM format and constraints
    • Graphical representation of the memory layout and Automatic Alignment support
    • Flexible image structure with custom pointers support (where applicable)
    • Import/Export capabilities for specific IVT image of full IVT Blob image
    • Integrated Flash on target functionality
    • Constraints mechanism and error reporting
    • Secure boot flow support

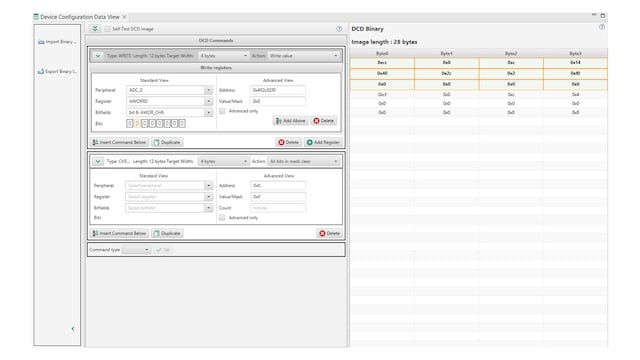

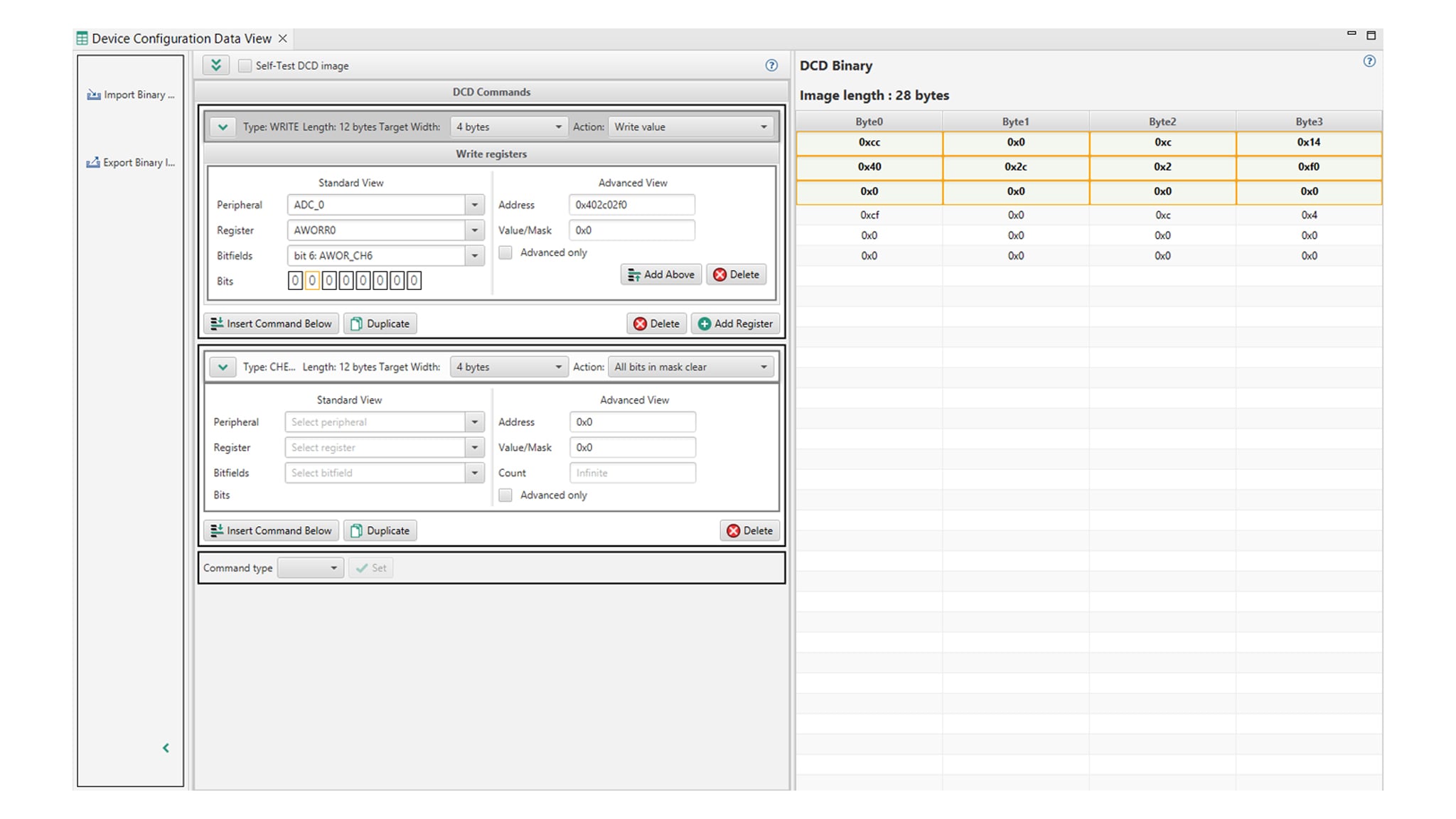

  • Device Configuration Data Tool (DCD)
    • Configuration and generation of Device Configuration Data image based on the BootROM format and constraints
    • Peripheral configuration at register level, performed during the boot process
    • Basic and Advanced configuration modes, offering 2 graphical representations of the DCD image (command list and binary content)

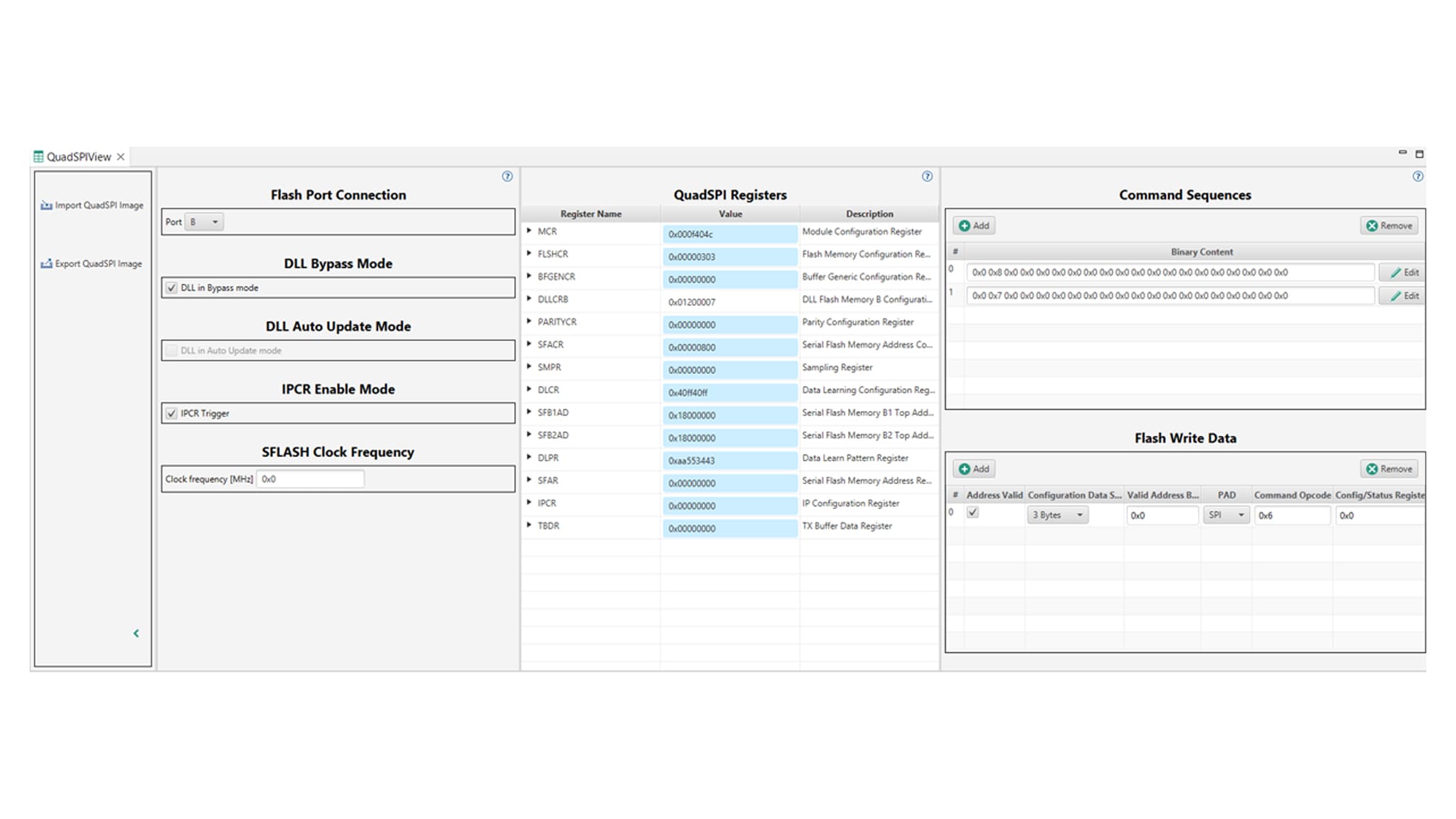

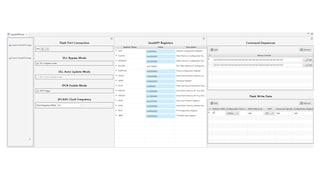

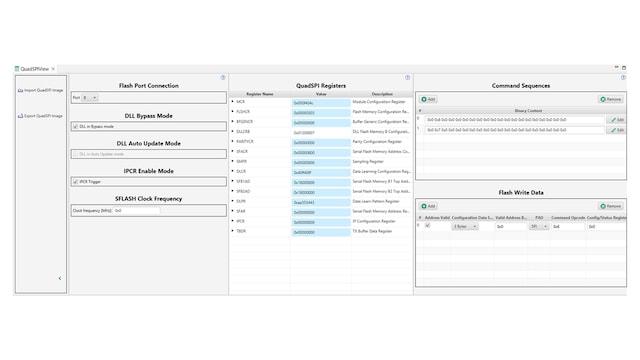

  • QuadSPI Tool
    • Configuration and generation of binary image used to initialize the QuadSPI controller during the boot process, when reading from external flash memory over the QuadSPI interface
    • Set of default boot image configurations available for specific flash devices
    • Constraints mechanism and error reporting

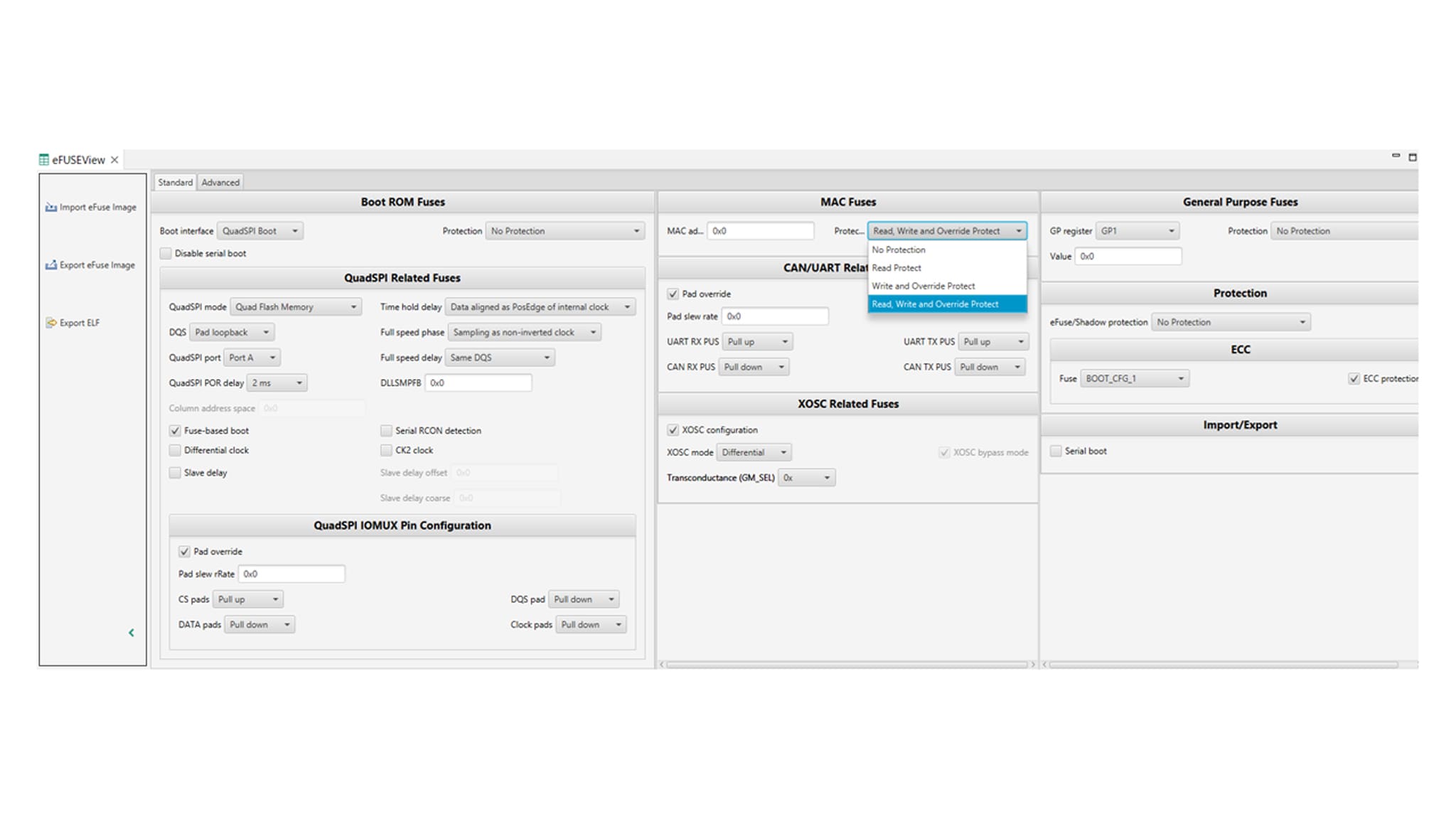

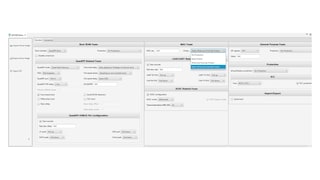

  • eFUSE Tool
    • Intuitive graphical interface for writing the OTP (One Time Programmable) bits by software
    • Generates a binary image which needs to be downloaded on target to apply the selected values on hardware
    • Basic and Advanced configuration modes, integrated with a solid constraint mechanism

IDE Compatibility

対応製品

  • S32V234: S32V2 Processors for Vision, Machine Learning and Sensor Fusion
  • S32K39-37-36: 電動化アプリケーション向けS32K39/37/36マイクロコントローラ
  • S32K3: S32K3 車載向け汎用マイクロコントローラ
  • S32K1: S32K1 車載向け汎用マイクロコントローラ
  • S32M2: S32M2 12 Vモータ制御向け統合ソリューション
  • S32R45: S32R45イメージング・レーダー向け高性能プロセッサ
  • S32G3: 車載ネットワーキング向けS32G3プロセッサ
  • S32R41: S32R41 高分解能レーダー向け高性能プロセッサ
  • S32G2: 車載ネットワーキング向けS32G2プロセッサ
  • S32N55: S32N55車載超統合プロセッサ
  • S32Z2: S32Z2 安全でセキュアな高性能リアルタイム・プロセッサ
  • S32E2: S32E2 アクチュエーション・サポートを搭載した安全でセキュアな高性能リアルタイム・プロセッサ
